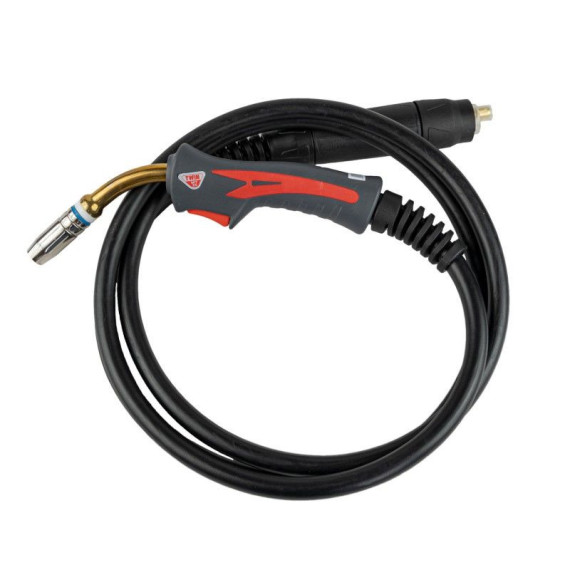

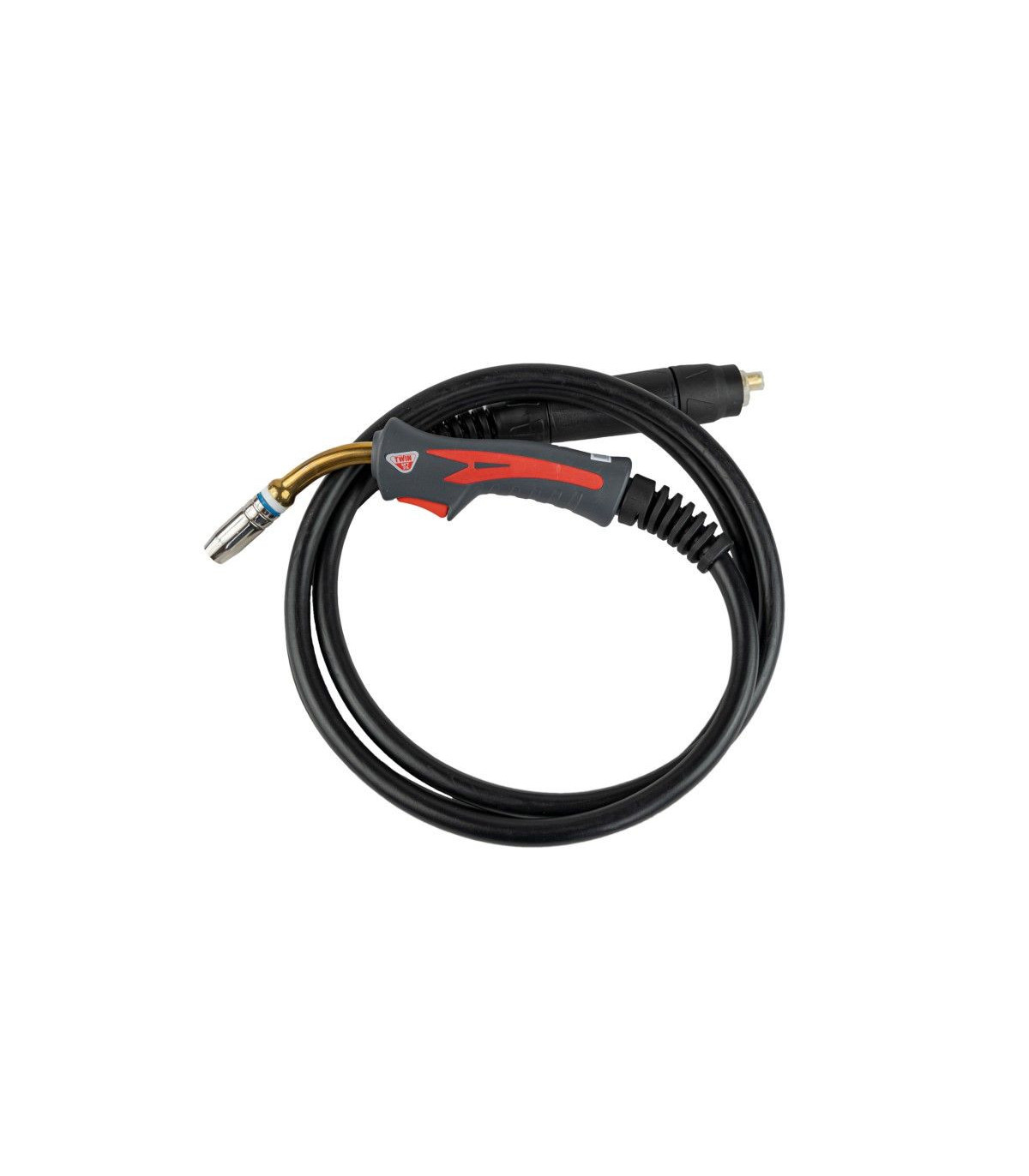

Torch with 3m cable MT25/270A TELWIN

Torch with 3m cable MT25/270A TELWIN. MT25 torch for MIG-MAG welding with continuous wire and 3 meters cable with EURO connector. Air-cooled, it can operate with a maximum current of 200A MIX / 230A CO2 @60%. Supplied with a 0.8 mm M6 contact tip.

FEATURES

MIG MT25 torch with 3m cable (EURO connector).

Air cooling.

Max current: 200A MIX / 230A CO2 @60%.

TECHNICAL DATA

Cable length: 3m

Cable section: 25 mm²

Maximum current: 200A mix / 230A co2 @60% A

Connection: euro connector

Remote control: no

Standard: EN 60974-7

Weight: 2.200 kg

NORMATIVES

- EN 60974-7: The main objective of EN 60974-7 is to ensure that these components are safe, efficient, and compatible with each other, minimizing the risk of electrical or mechanical failures during use. The standard establishes specific criteria for construction, design, testing, and necessary documentation, ensuring that the equipment can operate under safe and effective conditions.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The Torch with 3m cable MT25/270A TELWIN is suitable for:

• Electromig Mastermig 270/2
• Mastermig 300
• Technomig 225
• Telmig 281
