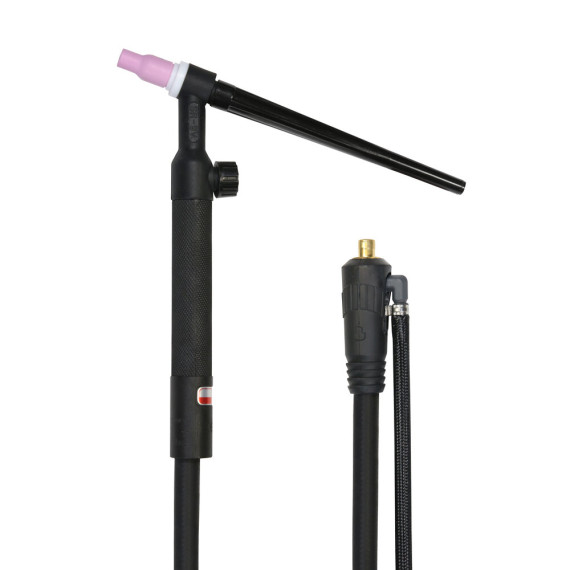

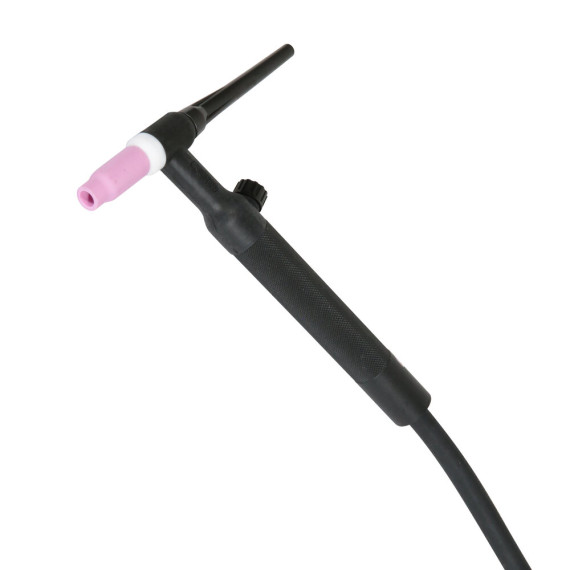

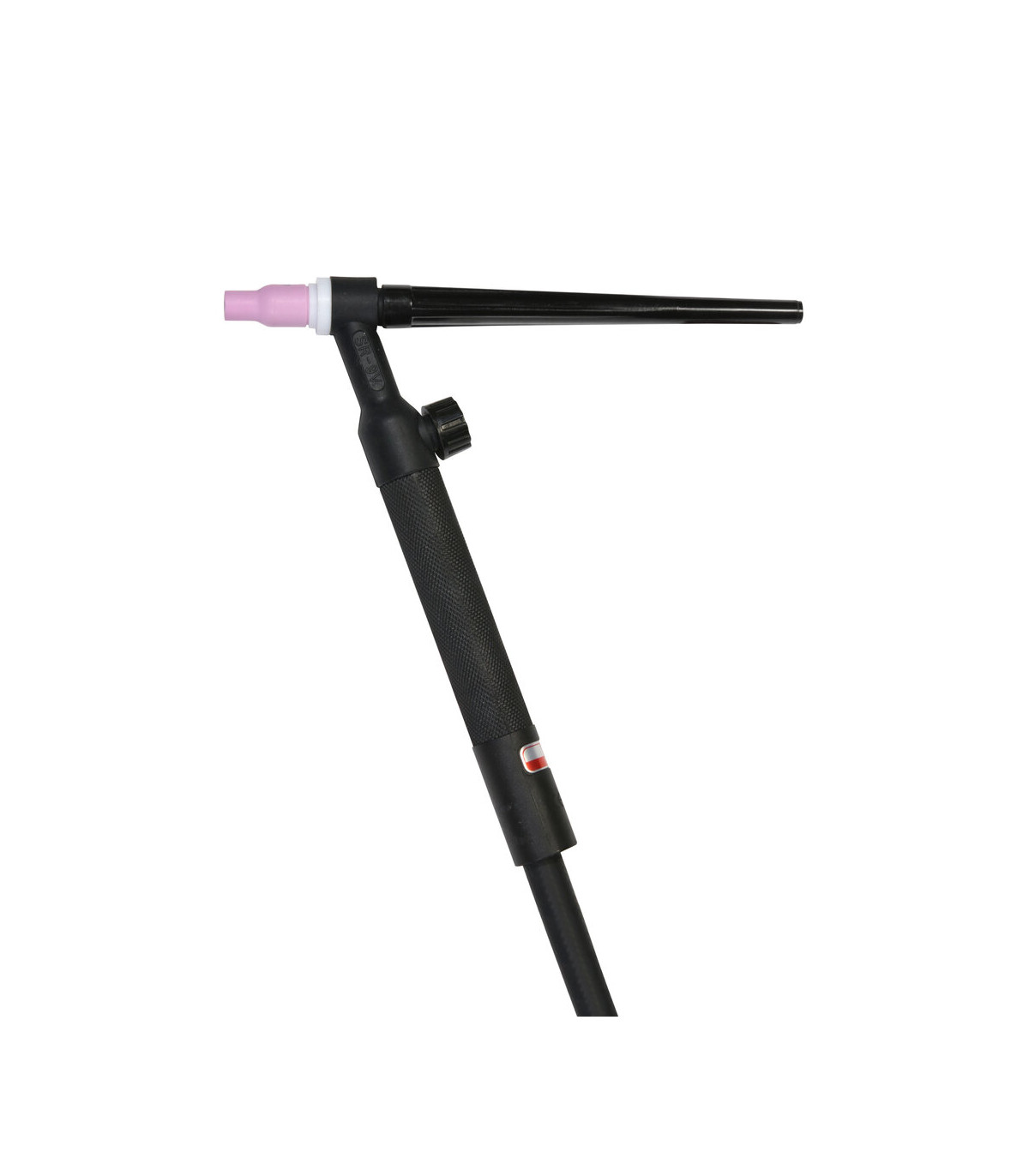

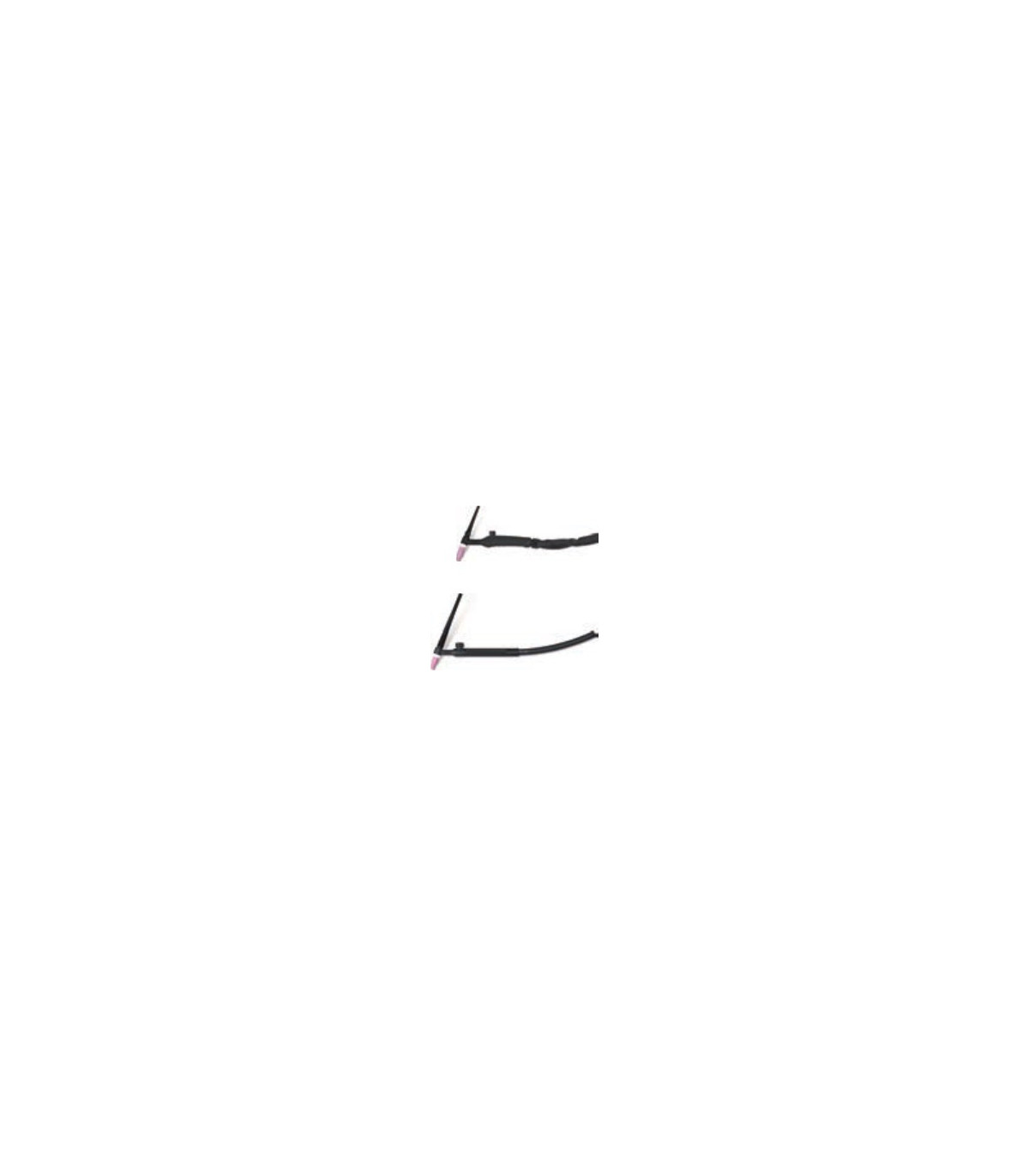

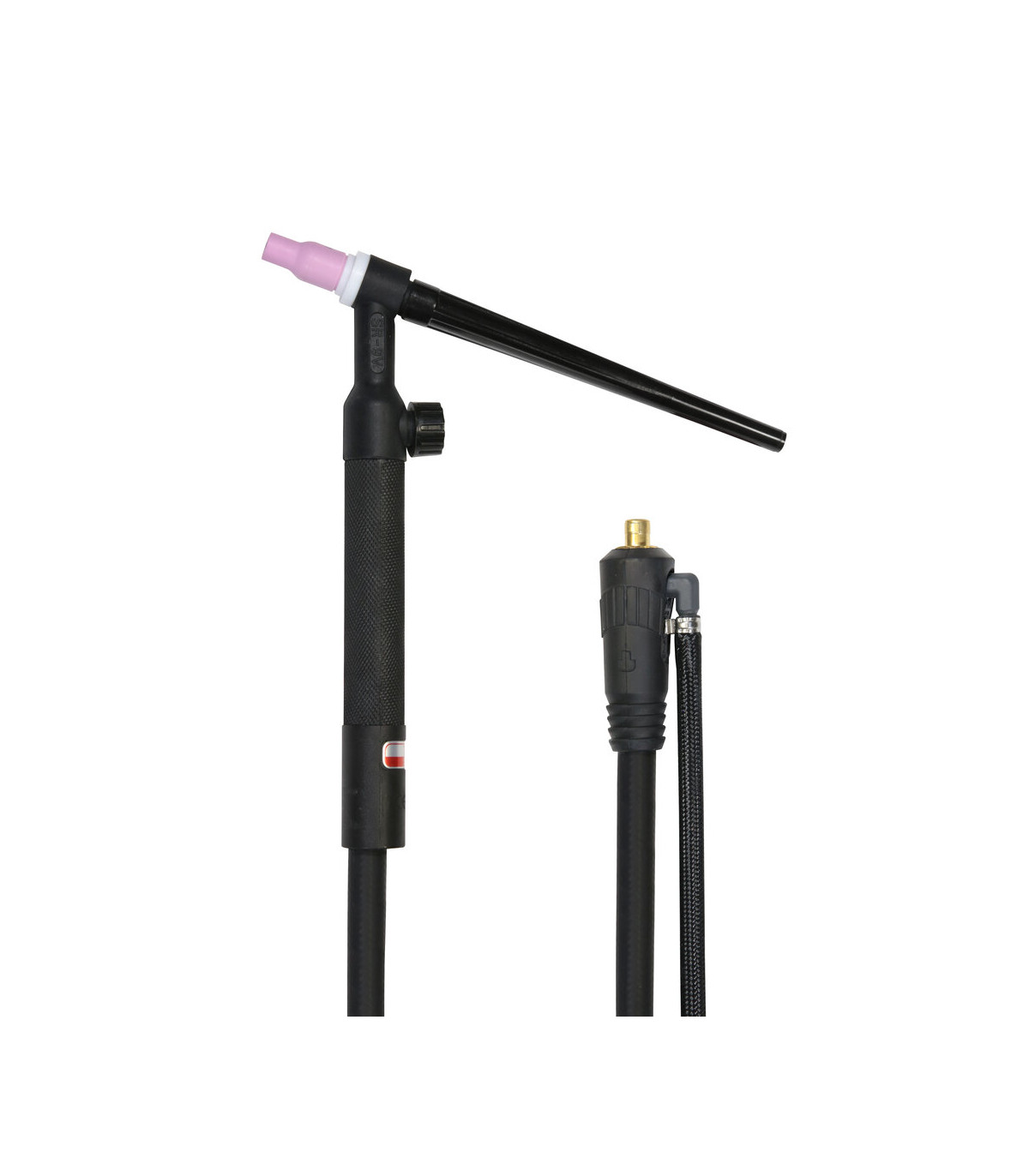

4m TIG torch with DX50 ST26V 200A connector TELWIN

4m TIG Torch with DX50 ST26V 200A TELWIN connector. TIG welding torch ST26V with a 4-meter cable and a 5-pin control connector. Gas regulation is done with the knob placed on the handle (not a push button, primed by contact). The torch can operate with a maximum current of 180A in DC and 125A in AC (@35%). Gas connector type G 3/8. Supplied with DC electrode 2.4 mm and related consumables.

FEATURES

• TIG torch ST26V with 4m cable.
• AX50 connector, control cable with 5 pins, gas connector G 3/8.
• Knob for gas opening.
• Air cooling.
• Max current 180A DC / 125A AC @35%.

TECHNICAL DATA

Cable length: 4m

Cable section: 25 mm²

Maximum current: 180A DC / 125A AC @35% A

Connection: AX50

Remote control: No

Standard: EN 60974-7

Dimensions: 370x315x80 mm

Weight: 2.460 kg

NORMATIVES

- EN 60974-7: The main objective of EN 60974-7 is to ensure that these components are safe, efficient, and compatible with each other, minimizing the risk of electrical or mechanical failures during use. The standard establishes specific criteria for construction, design, testing, and necessary documentation, ensuring that the equipment can operate under safe and effective conditions.

FOR WHAT TYPE OF WORK IS IT SUITABLE

The 4m TIG Torch with DX50 ST26V 200A TELWIN connector is suitable for:

Superior 320 welding machine
