Suction device with an arm for continuous use with self-cleaning filter for welding fumes KEMPER

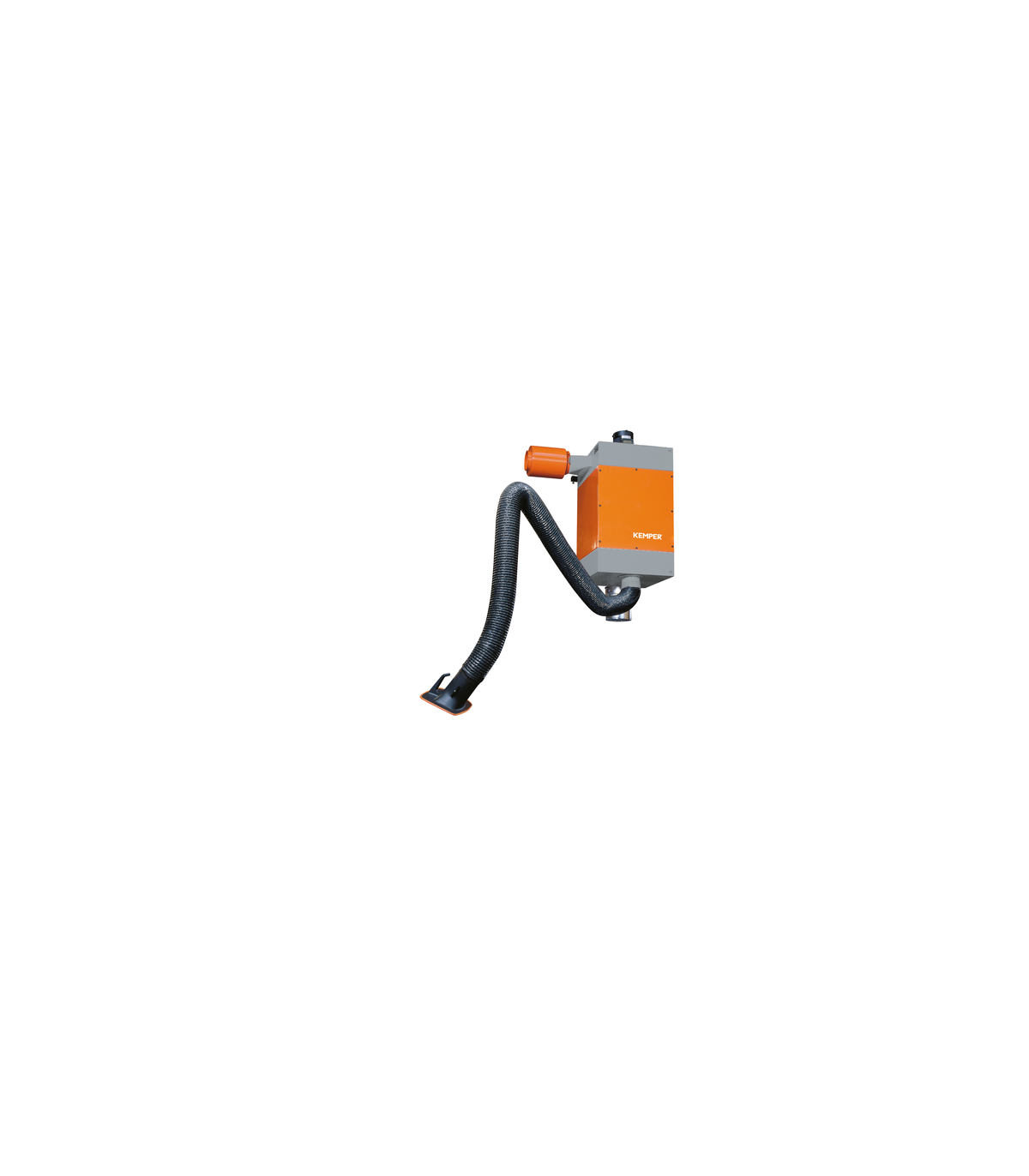

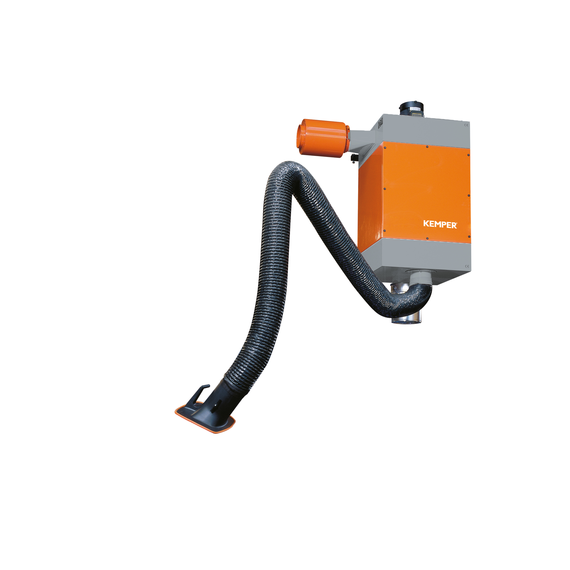

Suction device with an arm for continuous use with self-cleaning filter for welding fumes.

The fixed cartridge filter is suitable due to the automatic cleaning of the filter driven by differential pressure for large amounts of smoke/dust and continuous use with reduced operational costs. The KemTex® ePTFE membrane filter cartridges used for ultrafine dust absorb even dust particles smaller than 0.1 μm. As a version with two suction arms and integrated control valves, it allows simultaneous or alternating work at two stations with adjustable suction power.

Various arm lengths: 2m, 3m, 4m, 5m, 6m, and 7m (version with tube and version with hose)

FEATURES

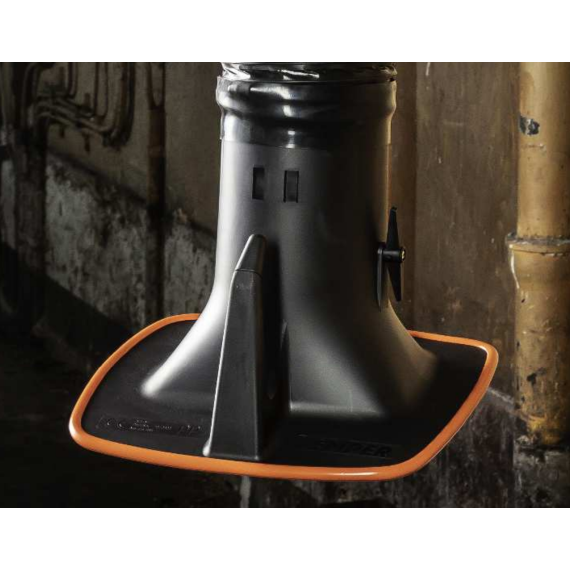

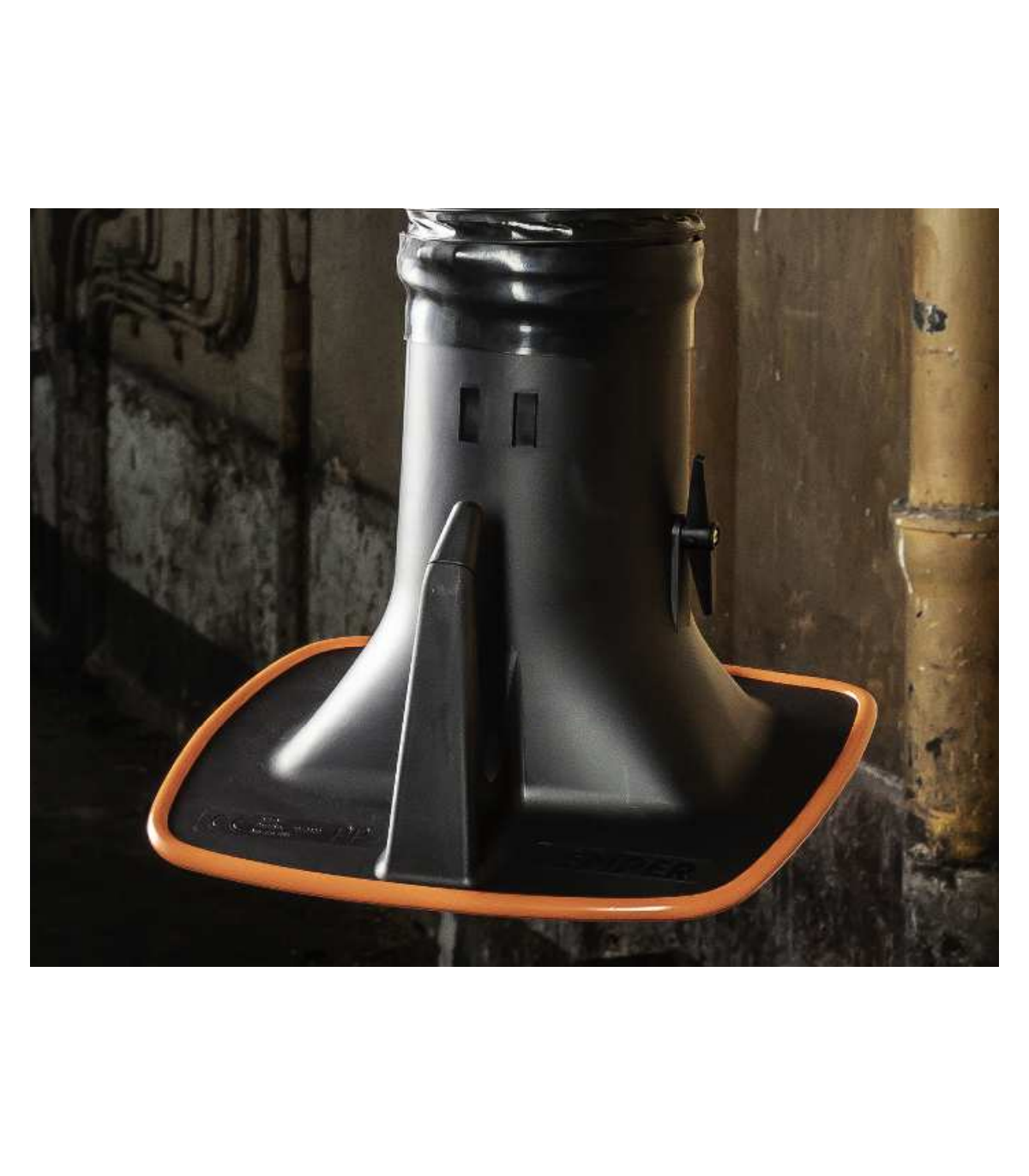

• 360° rotating suction hood with control valve
• Automatic filter cleaning driven by differential pressure
• KemTex® ePTFE filter cartridges
• Automatic start/stop system (optional)
• Work area lighting (optional)
• Arm up to 7 m (with cantilever)
• Available with two arms
• Silencer
• Control-Box

ADDITIONAL EQUIPMENT

• Automatic start/stop system
• Workstation lighting, includes ON/OFF in the extraction hood

VARIANTS

• Various arm lengths
• Other power supply voltages available

SPARE PARTS

• Rotating platform REF: 7905301
• KemTex® ePTFE replacement filter REF: 109 0434
• Suction hood: 7910300
• Hose 2.0 m REF: 1140348
• Rubber seal - set of 10 pcs. REF: 1060290

ACCESSORIES

• Illuminated suction hood for retrofitting REF: 79 103 045
• Illuminated suction hood for original equipment REF: 79103040
• Automatic start-stop REF: 94102702
• Protection grid REF: 1270091

SUPPLY INCLUDES

• Device
• Silencer
• Control-Box
• Suction arm with hood

TECHNICAL DATA
