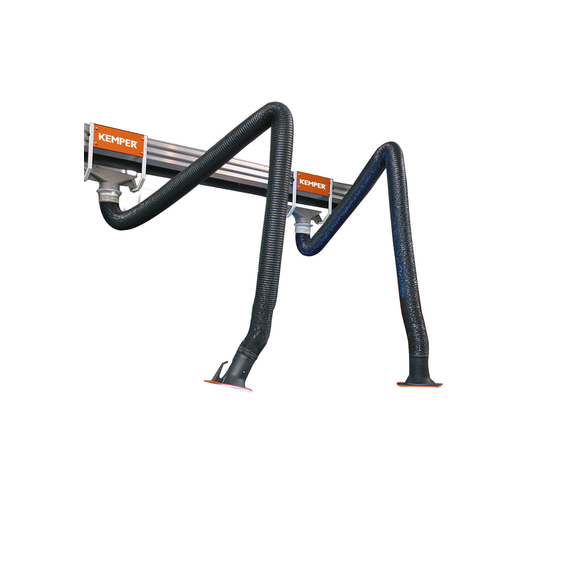

Retractable arm for flexible capture of welding fumes in a 360-degree area KEMPER

Retractable arm for flexible capture of welding fumes in a 360-degree area. Dimensions: 2m, 3m, and 4m.

The suction arms in the grooved suction channel combine a great reach with very easy adjustment and smooth operation. Multiple suction arms can be connected to a channel. The suction arms are designed for continuous use and are suitable for large amounts of smoke and dust such as welding smoke, gases, vapors, light dust, or car exhaust gases.

Check similar product features: Two-piece suction arm up to 10 meters KEMPER

FEATURES

• Polyester fabric hose, PVC coated and with welded steel wire spiral
• 360° rotating suction hood with regulation valve
• Sliding cart with plastic rollers supported on ball bearings

VARIANTS

• Various arm lengths

SUPPLY INCLUDES

• Suction arm with hood
• Rotating crown

TECHNICAL DATA

Technical data

Additional information

Type of suction arm: Hose version

For arm: 2m

SUMMARY/ APPLICATIONS

• For connection in fans or centralized suction systems
• Large quantities of smoke/dust
• Continuous use
• Welding smoke, gases, vapors, light dust, and car exhaust gases
• Large workpieces

BENEFITS

• Fast work due to the great reach and especially flexible adjustment of the suction arm in 360° under the sliding cart
• Easy adjustment of the sliding cart due to plastic rollers supported on ball bearings
• Repositioning of the suction arm is 40% less due to the shape of the hood
• Easy to use, especially since the hood can be operated with one hand
• Maintains the chosen position without supports thanks to the internal load-bearing joint
