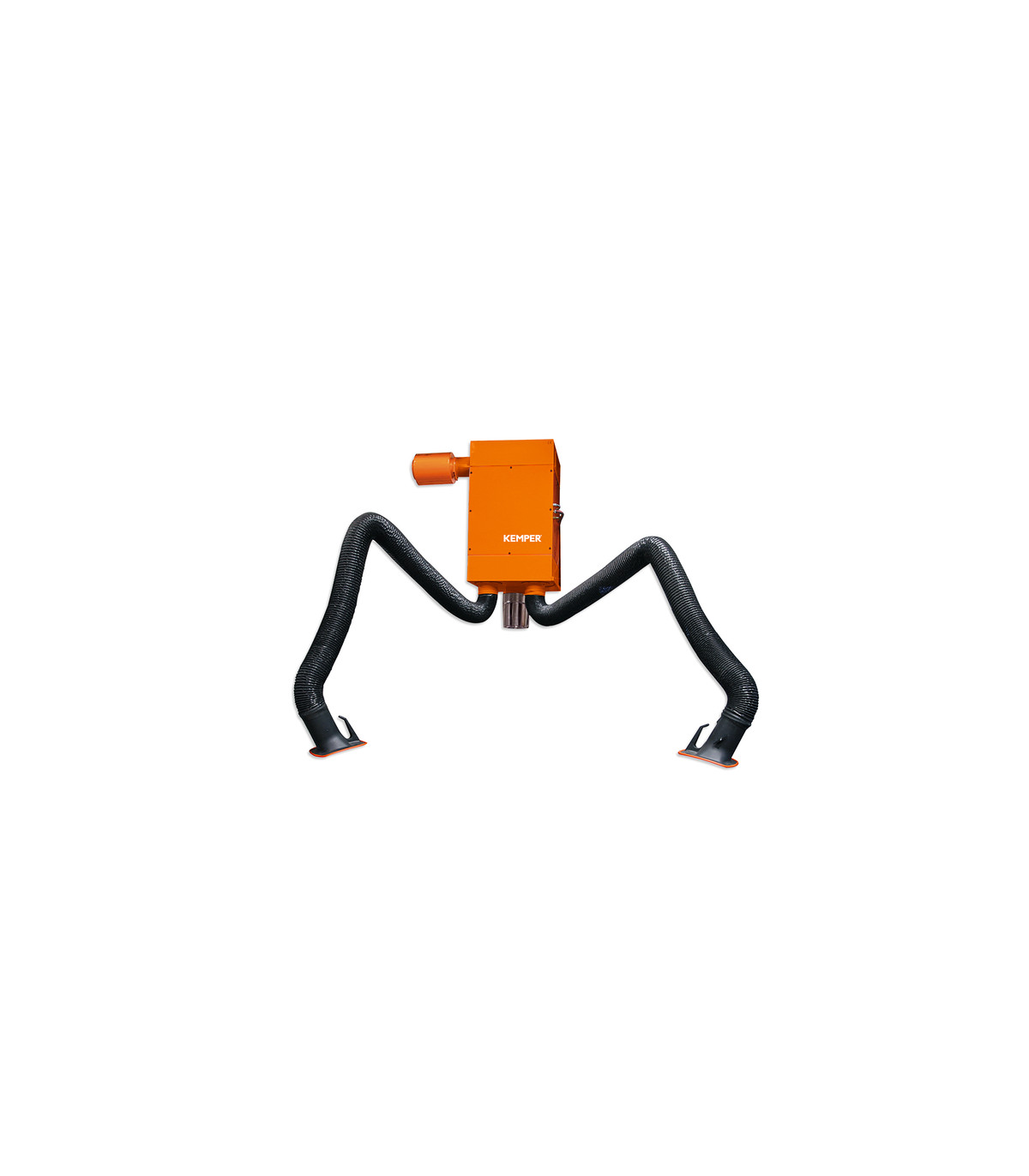

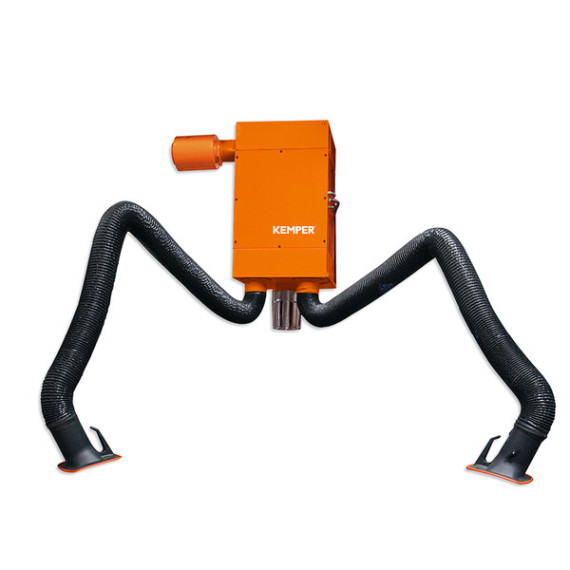

KEMPER suction device with two arms for continuous use with fixed self-cleaning filter KEMPER.

KEMPER suction device with two arms for continuous use with a fixed self-cleaning filter.

The fixed cartridge filter is suitable due to the automatic cleaning of the filter driven by differential pressure for large amounts of smoke/dust and continuous use with reduced operational costs. The KemTex® ePTFE membrane filter cartridges used for ultrafine dust absorb even dust particles smaller than 0.1 μm. As a version with two suction arms and integrated control valves, it allows for simultaneous or alternating operation at two stations with adjustable suction power.

Configurations: 2m, 3m, 4m, 5m, 6m, 7m (version with hose).

APPLICATIONS

• Large amounts of smoke/dust
• Continuous use
• With two arms: For two workstations.

CHARACTERISTICS

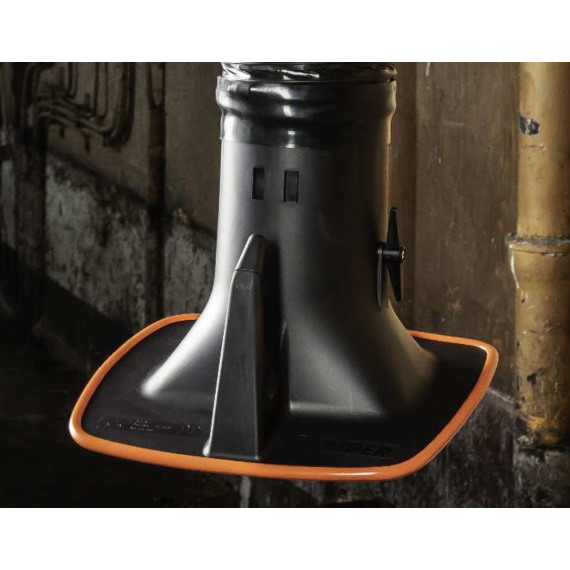

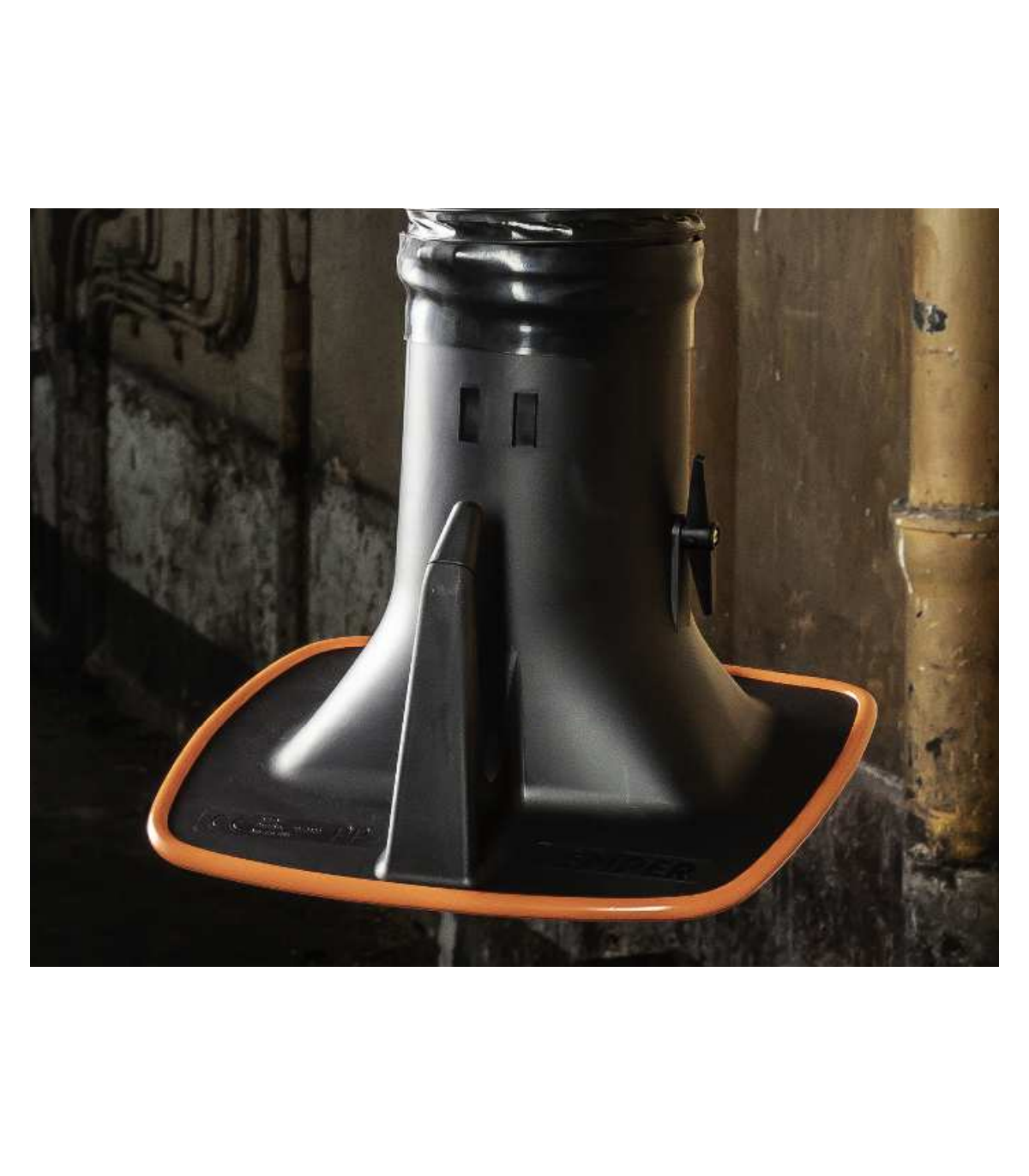

• 360° rotating suction hood with regulation valve
• Automatic filter cleaning activated by differential pressure
• KemTex® ePTFE filter cartridges
• Automatic start/stop system (optional)
• Lighting of the work area (optional)
• Arm of up to 7 m (with crane)
• Available with two arms
• Silencer
• Control-Box

BENEFITS

• High profitability thanks to the automatic filter cleaning.
• Less frequent repositioning of the suction arms thanks to the shape of the suction bells.
• Maximum health protection for workers thanks to the use of KemTex® ePTFE filter cartridges with surface filtration.
• Lower air consumption due to differential pressure-driven cleaning.
• Economic and compact solution since the device has two arms.
• It is possible to work in two places simultaneously or alternately with adjustable suction power thanks to the regulation valves of the suction hoods.

TECHNICAL DATA

Filter

Basic data

Additional information

Measures

SPARE PARTS

REF: 79 103 00 Extraction hood - Extraction hood without lighting

REF: 109 0434 Replacement filter for self-cleaning filter - 4 m² KemTex® filtration cartridge with ePTFE membrane

REF: 114 0348 Hose for suction arm, version with hose - 2.0 m, Ø 150 mm

ADDITIONAL EQUIPMENT

• Automatic start/stop system
• Workstation lighting includes ON/OFF for the extraction hood.

VARIANTS

• Several arm lengths
• Other available power supply voltages

SUPPLY INCLUDES

Silencer Control-Box Device

Suction arm with bell.

ACCESSORIES

• Illuminated suction hood for original equipment REF: 79103040
• Automatic stop march REF: 94102702
• Protection grille REF: 1270091

SPARE PARTS

• Rotating platform REF: 7905301
• Illuminated extraction hood for retrofitting REF: 79 103 045
• KemTex® ePTFE replacement filter REF: 109 0434
• Suction hood: 7910300
• Hose 2.0 m REF: 1140348
• Rubber gasket - set of 10 pcs. REF: 1060290
