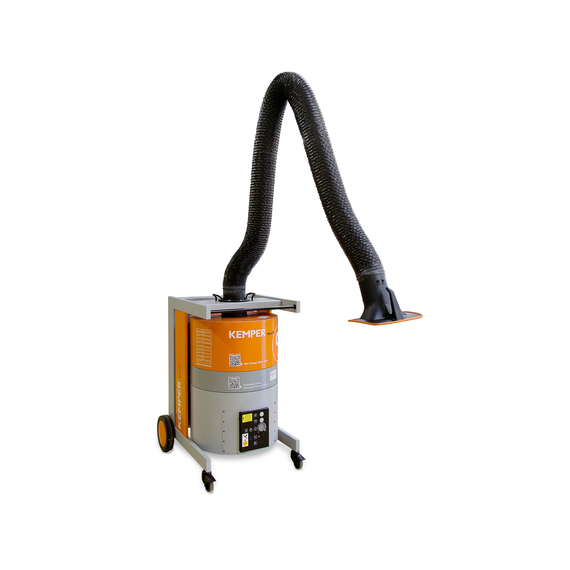

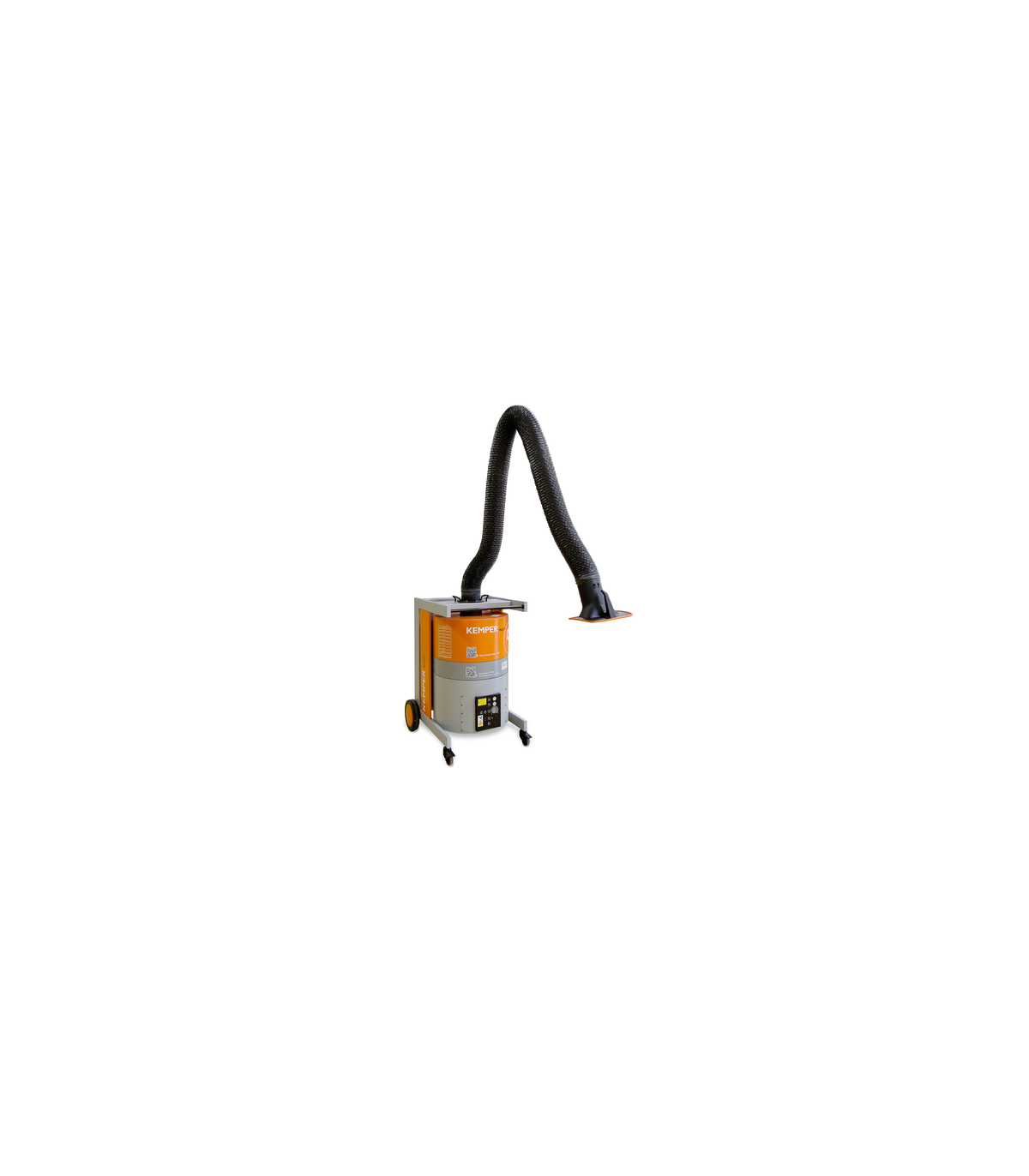

MaxiFil suction device with KEMPER activated carbon filter

MaxiFil suction device with activated carbon filter. Greater safety thanks to contamination-free filter replacement.

Suction arm of 2m, 3m, and 4mAvailable version with hose).

The MaxiFil filtration system combines a large filtering capacity with contamination-free filter changes. Through the additional activated carbon filter, gases and odors are absorbed. Along with high mobility and a 360° range of action, the MaxiFil is ideal for regular use. The comfortable filtration device easily fulfills its function for applications with medium amounts of smoke and dust.

CHARACTERISTICS

• Suction arm of up to 4 m
• Automatic start/stop system (optional)
• Lighting of the work area (optional)
• Activated carbon filter with 7.8 kg of filling.

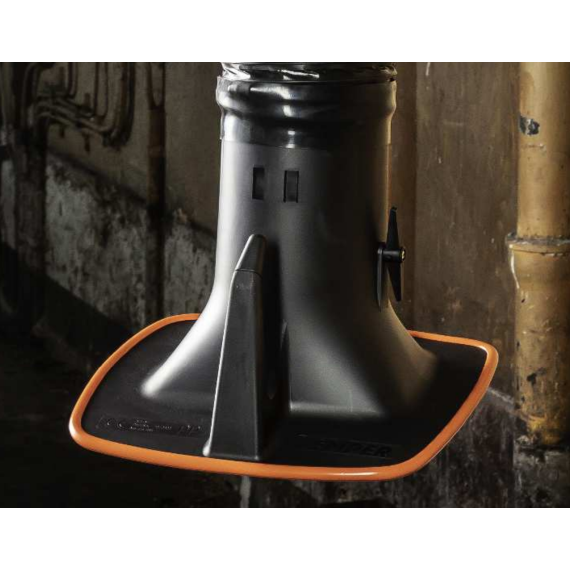

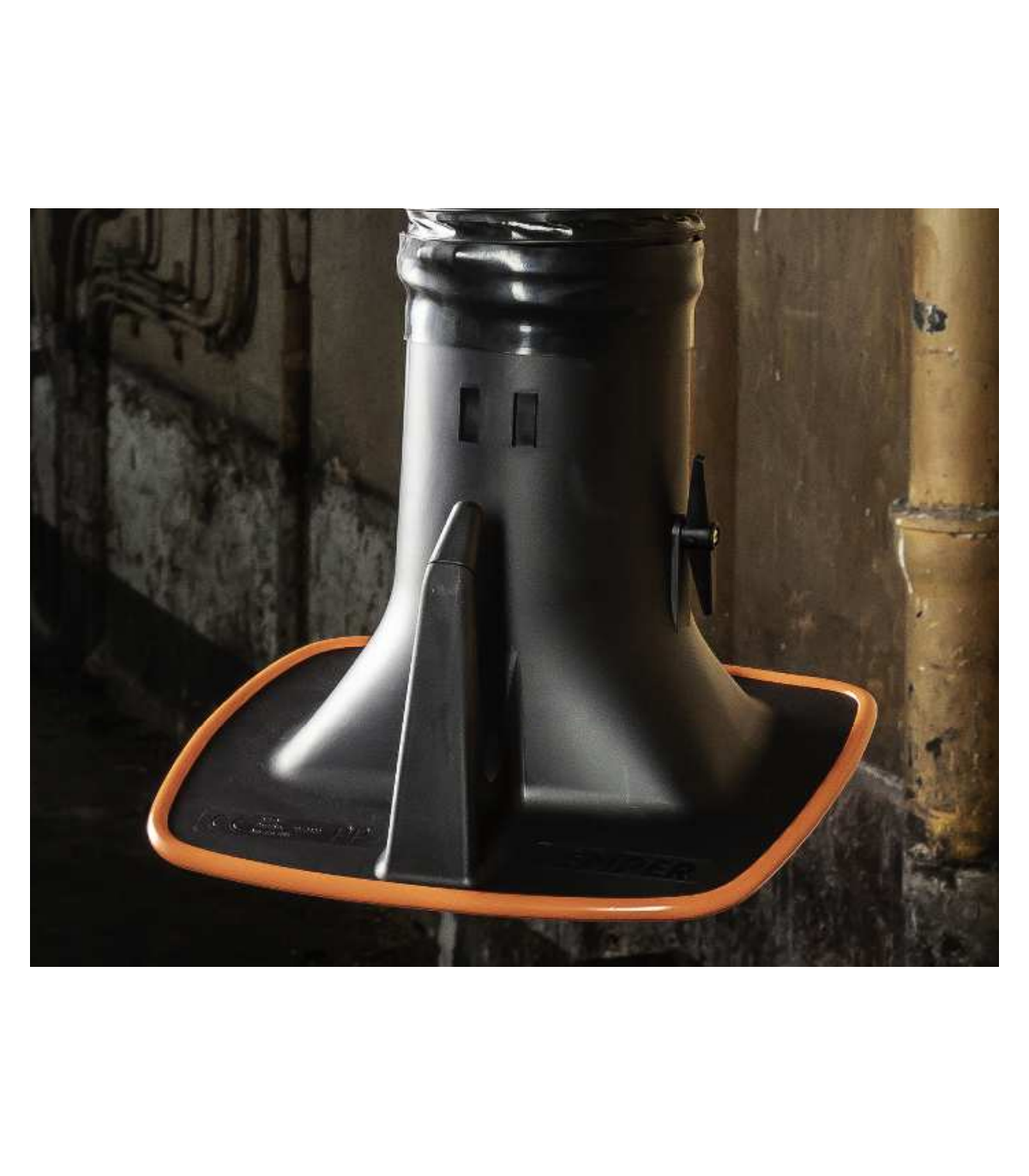

• Rotary suction hood

ADDITIONAL EQUIPMENT

• Automatic start/stop system
• Workstation lighting includes ON/OFF for the extraction hood.

VARIANTS

• Several arm lengths
• Other available power supply voltages

TECHNICAL DATA

Filter

BASIC DATA

ADDITIONAL INFORMATION

APPLICATIONS

Absorption of gases and odors

Moderate amounts of smoke/dust Regular use

BENEFITS

• Safe operation due to the recognition of the direction of rotation.
• Less frequent repositioning of the suction arm thanks to the shape of the suction bell.
• Greater security thanks to filter control.
• Greater safety thanks to the change to a contamination-free filter.
• High profitability thanks to the great capacity and long lifespan of the filter.

SPARE PARTS

• Replacement filter 42 m² for SmartFil, MaxiFil, WallMaster REF: 1090517
• Rotating crown REF: 7910302
• Pre-filter mat (10 units) SmartMaster REF: 1090452
• Suction hood: 7910300
• Hose 2.0 m REF: 1140348
• Rubber gasket - set of 10 pcs. REF: 1060290

ACCESSORIES

• Illuminated suction hood for original equipment REF: 79103040
• Illuminated extraction hood for re-equipment REF: 79103045
• Automatic stop march REF: 94102702
• Protection grille REF: 1270091
