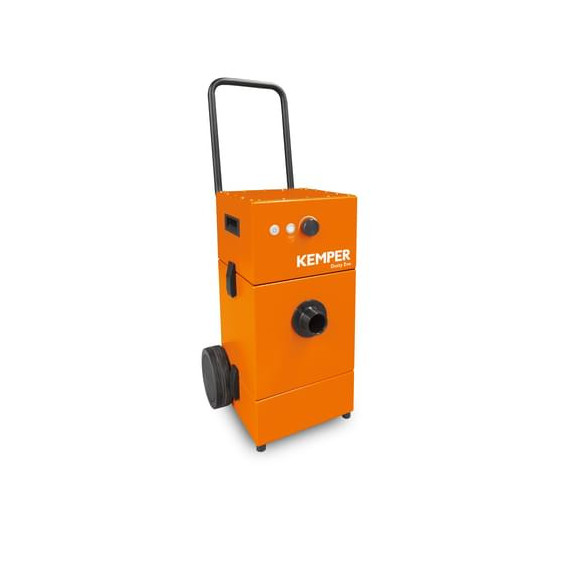

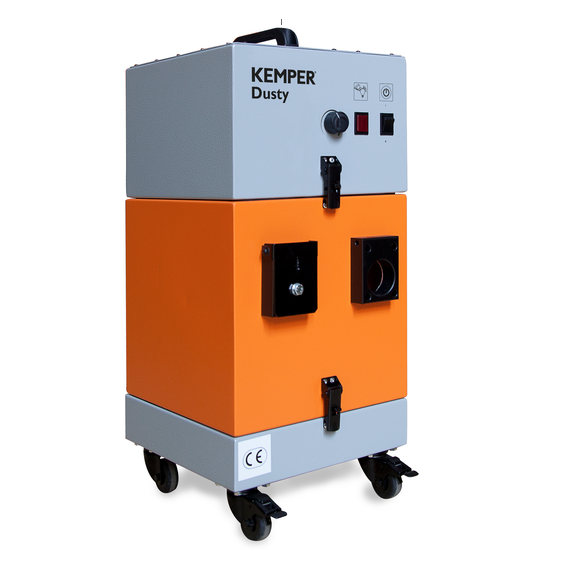

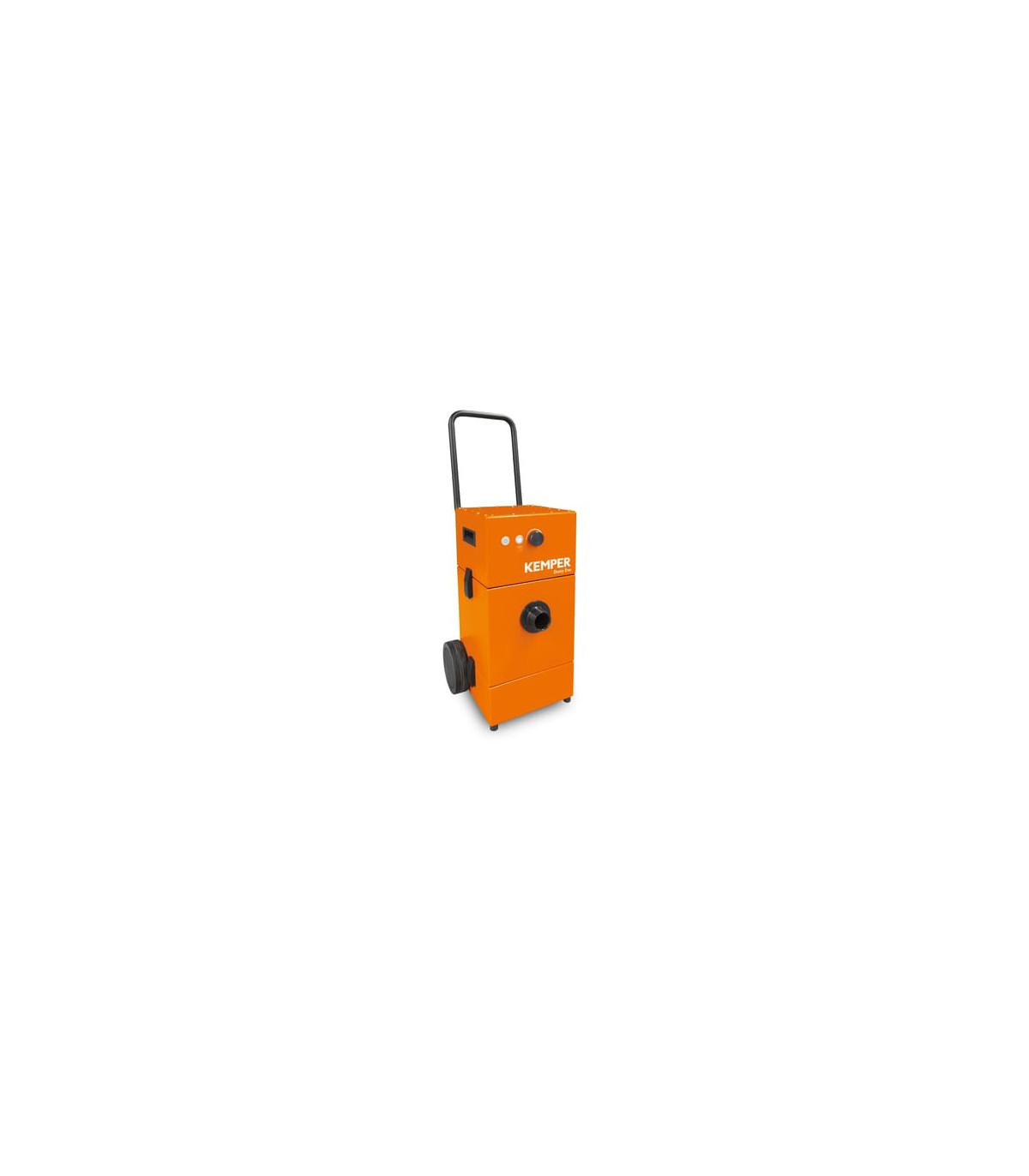

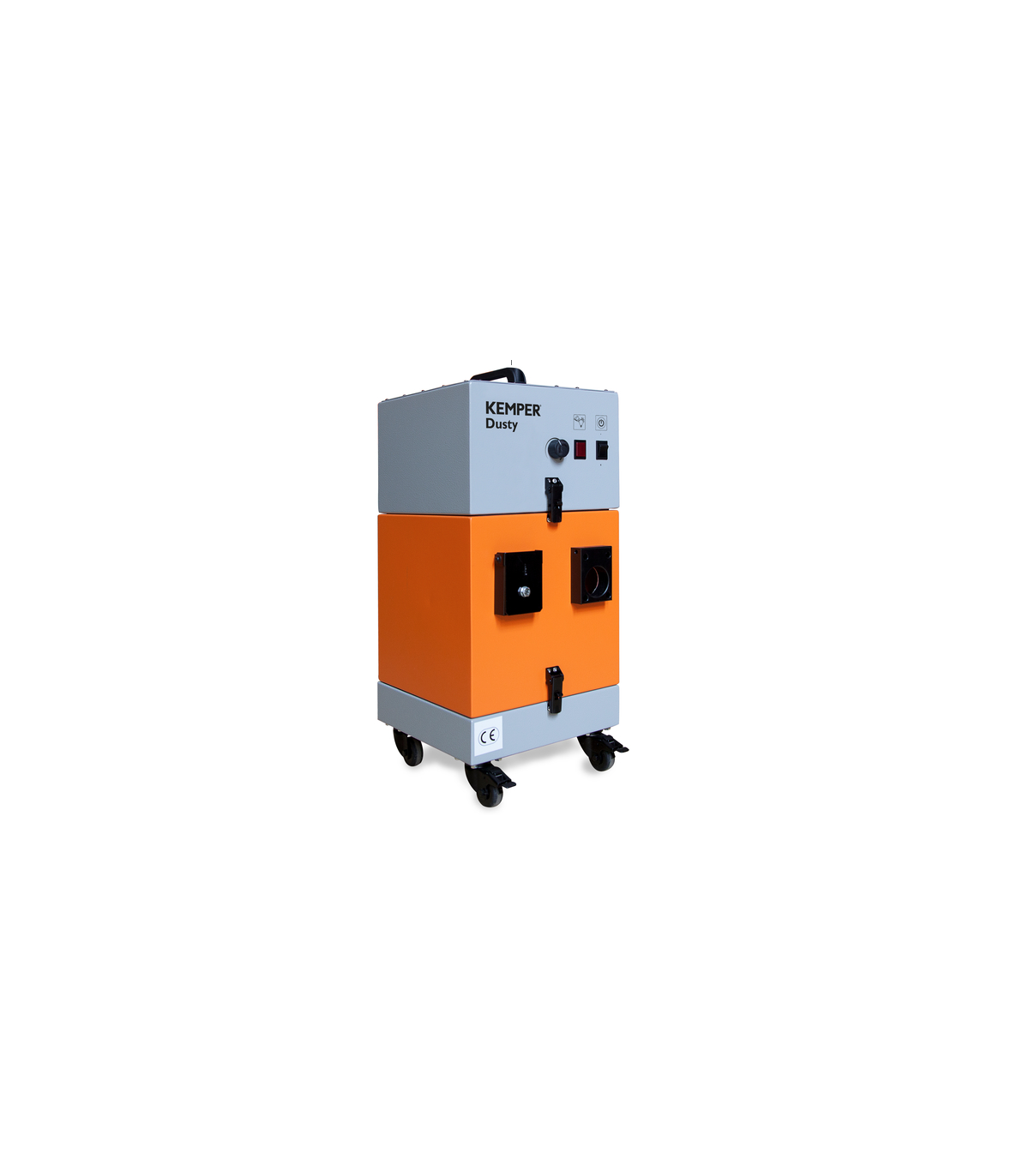

Lightweight high vacuum suction and filtration device with KEMPER nozzles.

High vacuum suction device with two suction connections for sporadic use. For example, repair work or mobile use with small to moderate amounts of smoke. The KemTex® ePTFE filter cartridge, which can be cleaned manually, makes the device particularly cost-effective.

CHARACTERISTICS

• Cleaning filter, manual
• Notice when cleaning is required.
• KemTex® ePTFE filter cartridge
• Portable and mobile
• Two suction connections
• Continuously adjustable suction power

ADDITIONAL EQUIPMENT

• Suction hose
• Slotted nozzle
• Conical nozzle
• Suction connections for welding guns

VARIANTS

• Other available power supply voltages

BENEFITS

• Maximum health protection for workers thanks to the use of KemTex® ePTFE filter cartridges with surface filtration. Mobile use due to its lightweight design.
• Optimal adjustment to the welding process through continuous regulation of suction power.

TECHNICAL DATA

BASIC DATA

ADDITIONAL INFORMATION

SUMMARY/ APPLICATIONS

• Small or moderate amounts of smoke/dust
• Torch with aspiration
• Repair jobs Variable job positions

ACCESSORIES

Automatic stop march REF: 94102702

Welding gun connection piece 42-44 mm REF: 106 0071

Welding gun connection piece 30-38 mm REF: 106 0084

Welding gun connection piece 39-42 mm REF: 106 0104

Grooved nozzle 300 mm REF: 232 0008

Grooved nozzle 600 mm REF: 232 0009

Tool tray with cup holder for VacuFil Compact REF: 1490776

Vacuum hose up to 85°C REF: 93070004

High vacuum suction hose up to 85°C REF: 93070005

High vacuum suction hose up to 85°C made of medium weight PVC REF: 93070006

SPARE PARTS

Replacement filter for Dusty REF: 1090432
