Suction arm with a one-piece crane up to 8 meters KEMPER

Suction arm with a one-piece cantilever up to 8 meters. The KEMPER suction arm with arm support allows for a great reach. It is used either as a single workstation solution in combination with a fan or in a multi-station system with the help of pipes connected to a suction and filtration system. The suction arm is designed for continuous use and is suitable for large amounts of smoke and dust such as welding smoke, gases, vapors, light dust, or car exhaust gases.

Lengths: 7m and 8m (version with tube and with hose).

FEATURES

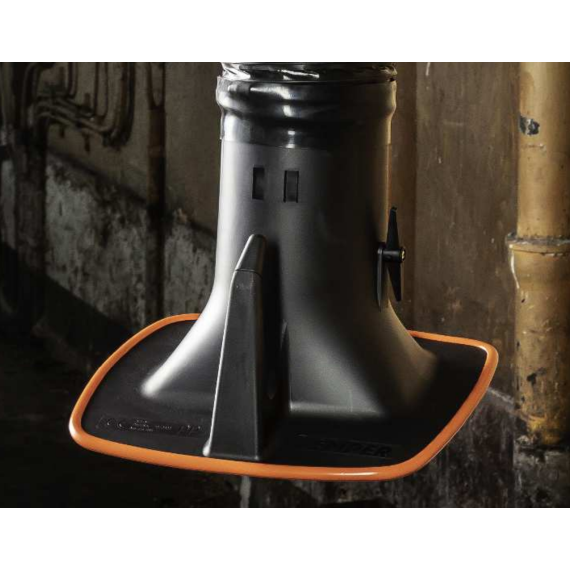

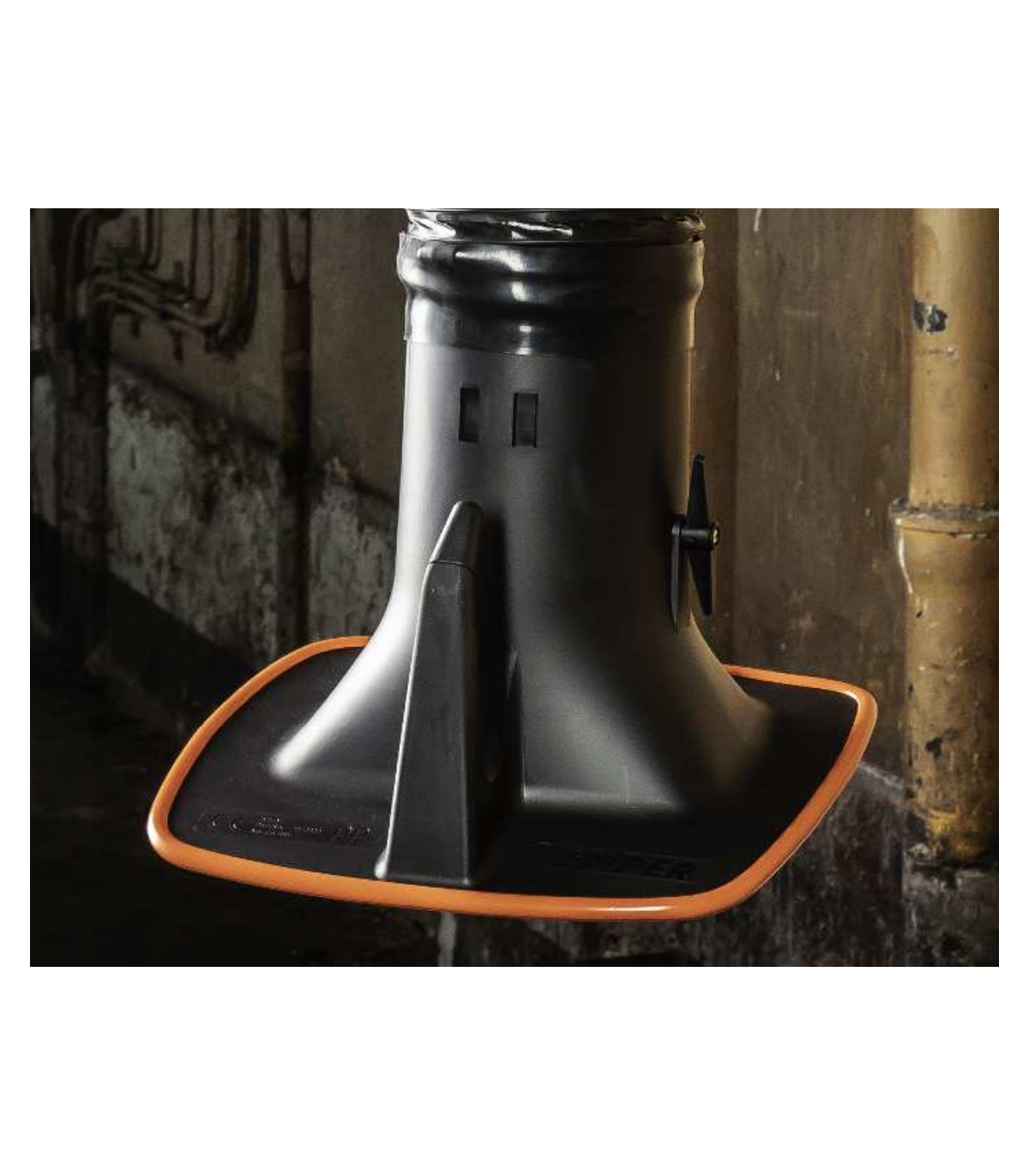

• 360° rotating suction hood with regulation valve
• Internal bearing joint in parallelogram with spring support
• Cantilever arm with a load capacity of 50 kg
• Cantilever arm with integrated C profile and sliding carriage

VARIANTS

• Multiple arm lengths

SUPPLY INCLUDES

• Suction arm with hood
• Cantilever arm
• Wall mount

SUMMARY/ APPLICATIONS

• For connection to fans or centralized suction systems
• Large amounts of smoke/dust
• Continuous use
• Welding smoke, gases, vapors, light dust, and car exhaust gases
• Large workpieces

BENEFITS

• Reduced tripping hazard due to mounting options for tools or cable advance devices on the cantilever arm with sliding carriage
• Repositioning of the suction arm is 40% less due to the shape of the hood
• Easy to use, especially since the hood can be operated with one hand
• Maintains the chosen position without supports thanks to the internal bearing joint
• Thanks to its great ease of movement, the suction arm can be positioned with one hand in any position, where it remains fixed
• Fast work due to the great reach and especially flexible adjustment options
• Numerous connection options for suction arms to fans, fixed equipment, or via a pipe to a central suction and filtration system

TECHNICAL DATA

Weight: 142 Kg

Additional Information

ACCESSORIES

• Illuminated suction hood for retrofitting REF: 79 103 045
• Illuminated suction hood for original equipment REF: 79103040
• Protective grille REF: 1270091
• Support column for suction arm REF: 998800280

SPARE PARTS

• Suction hood: 7910300
• Rubber seal - set of 10 pcs. REF: 1060290
• Rotating crown REF: 7910302
• Hose 2.0 m REF: 1140348
