Air purification with autonomous system

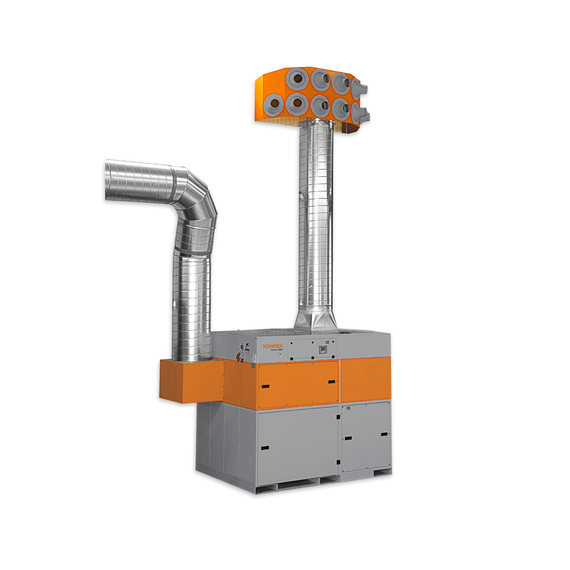

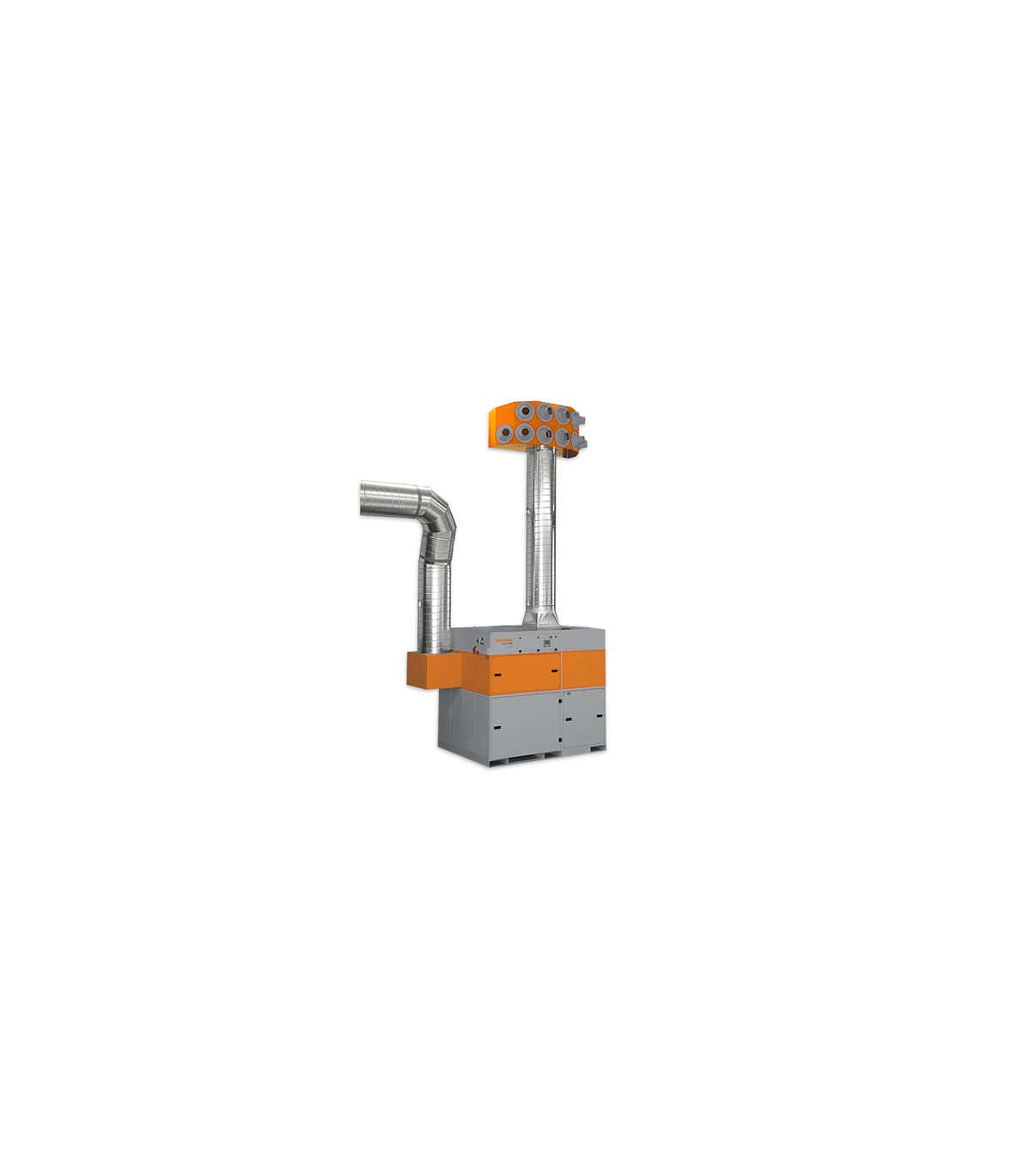

KemJET is a central environmental suction system for workshops where point suction is not possible or is used as a complement to point suction systems. It effectively protects operators and machines from fine dust. The purified and heated air is retained in the premises so that in winter, the heat from the heating system is conserved. This way, significant savings in energy costs are achieved.

Summary/Applications

• Workshops where point suction is not possible
• Complementary to point suction systems
• Environments with variable sources of dust and smoke
• For large workpieces or workplaces that are far apart

Benefits

• Adaptable fresh air distribution to the installation location since it can be adjusted 30°
• Contamination-free dust collection thanks to the airtight sealing of the container through a mechanism activated by compressed air.
• Continuous uninterrupted operation thanks to the automatic cleaning of the filter driven by differential pressure
• Different blowing heights are possible due to variable tube lengths
• Low noise emissions due to operation with a particularly low noise level
• Minimization of heating costs thanks to air recirculation
• Quick and easy assembly
• Convenient handling thanks to intelligent control via the touchscreen with diagnostic system

Features

• Automatic filter cleaning driven by differential pressure
• Control via touchscreen
• Certified W3/IFA
• KemTex® ePTFE filter cartridges
• Dust collectors with pressure air lifting device
• High-performance nozzles adjustable 30°

Additional Equipment

• Automatic dust removal: DustEvac
• External start/stop
• Air monitoring AirWatch
• Support set
• Wall mounting set

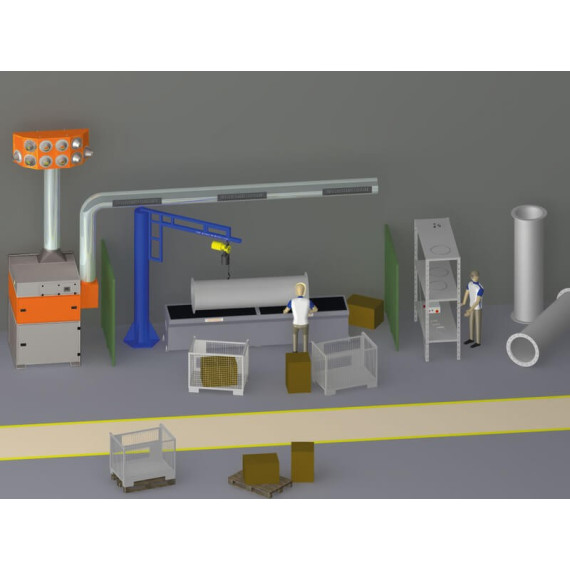

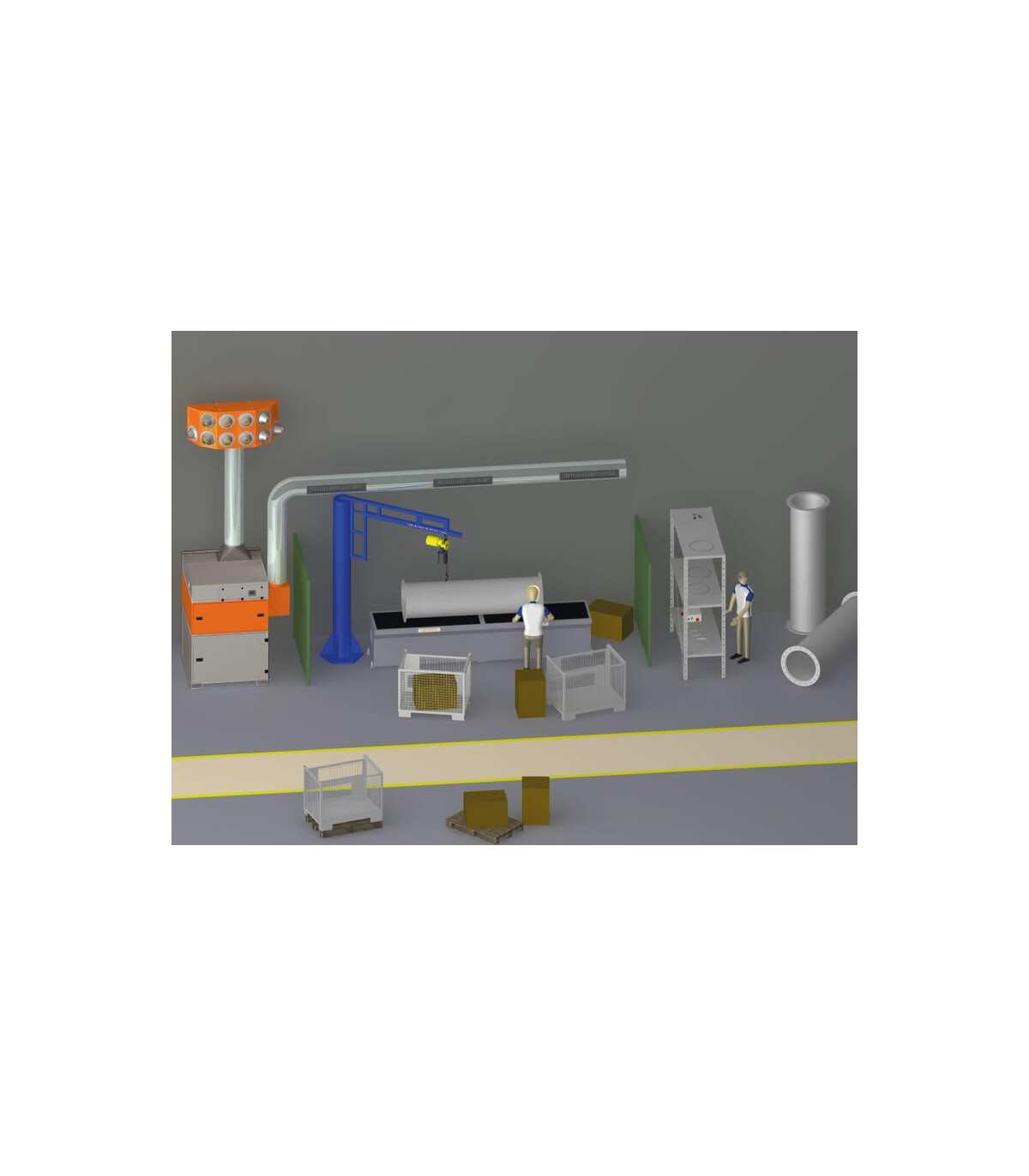

Operation

• Absorbs contaminated hot air through suction tubes on the left and right of the installation
• The contaminated air is cleaned in the filtration system
• High-performance nozzles blow the purified and clean air above the suction tubes
• The clean air is distributed throughout the premises and smoke layers disappear
