MaxiFil suction device for high-capacity welding fumes KEMPER

MaxiFil suction device for high-capacity welding fumes with safe filter change. Arm from 2 to 7 meters (option for version with hose and version with tube).

The MaxiFil filtering units combine a large filtering capacity with a contamination-free filter change. For applications with medium amounts of smoke and dust, the convenient filtration system operates smoothly. The wall-mounted model saves space and is ideal for regular on-site use.

Team with similar functionalities to Suction device with an arm for continuous use with self-cleaning filter for welding fumes KEMPER REF: 83100100.

CHARACTERISTICS

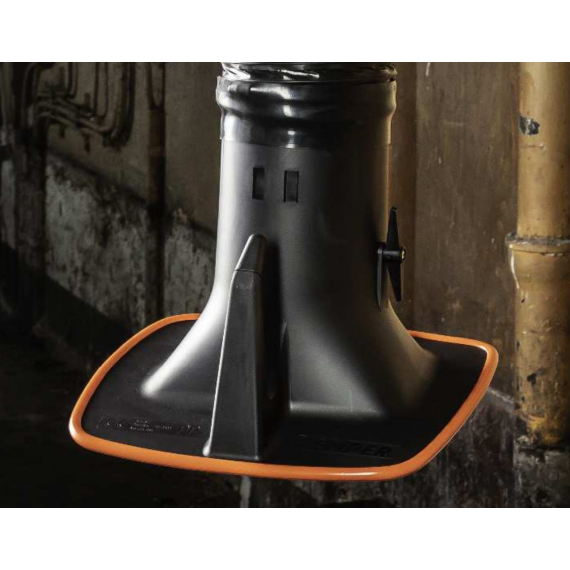

• 360° rotating suction hood with regulation valve
• With W3/IFA certification
• Automatic start/stop system (optional)
• Lighting of the work area (optional)
• Arm of up to 7 m (with crane)
• Silencer
• Control-Box

ADDITIONAL EQUIPMENT

• Automatic start/stop system
• Workstation lighting includes ON/OFF for the extraction hood.

VARIANTS

• Several arm lengths
• Other available power supply voltages

SUPPLY INCLUDES

• Device
• Fan
• Silencer
• Control-Box
• Suction arm with bell.

TECHNICAL DATA

Filter

Basic data

Additional information

SPARE PARTS

Suction hood - Suction hood without lighting REF: 7910300

Suction arm hose, version with hose - 2.0 m, Ø 150 mm REF: 1140348

Replacement filter for fixed MaxiFil - Replacement filter 42 m² REF: 1090517

Rotating platform REF: 7905301

Rubber gasket - set of 10 pcs. REF: 1060290

ACCESSORIES

Illuminated suction hood for original equipment REF: 79103040

Illuminated extraction hood for re-equipment REF: 79103045

Automatic stop march REF: 94102702

Protection grille REF: 1270091

APPLICATIONS

• Also suitable for chrome-nickel steel.
• Moderate amounts of smoke/dust Regular use

BENEFITS

• Safe operation due to the recognition of the direction of rotation.
• Less frequent repositioning of the suction arm thanks to the shape of the suction bell.
• Greater security thanks to filter control.
• Greater safety thanks to the change to a contamination-free filter.
• High profitability thanks to the great capacity and long lifespan of the filter.

FOR WELDING WORK ENVIRONMENTS

In any work environment where some type of work is carried out welding It is essential that every worker has access to the different Personal Protective Equipment that guarantees them the respiratory protection they need to carry out their activities and avoid the possible emergence of health problems in professionals. Likewise, in each facility where any welding task is performed, it is necessary to have the necessary elements to provide greater protection, being the... Fixed suction device high performance welding smoke filter a great option for industrial use in cases where the generated fumes are in small or moderate amounts.

The Fixed suction device high performance welding smoke filter It has a pre-filter that helps extend the lifespan of the main filter. With two suction arms and integrated regulation valves, it allows them to work simultaneously or alternately at two stations, in addition to having adjustable suction power.

Ready for occasional or frequent use, this fixed two-arm suction device features a 360-degree rotating suction hood with a regulation valve, an arm of up to 10 meters, with a silencer and control box, and optionally can include an automatic start/stop system and lighting for the work area. Additionally, it has available extra equipment such as the on/off system in the suction hood or the activated carbon equipment kit.

Among the advantages of using the fixed high-performance smoke welding extraction unit are the convenient filter change through the maintenance door, great safety thanks to filter monitoring, the ability to work at two stations simultaneously, less frequent repositioning of the extraction arm, and so on.

This smoke extraction system is a highly effective equipment for the respiratory protection of the worker, who can thus be properly protected against the inhalation of fumes from welding tasks, as inhaling these fumes could lead to serious health problems for workers in the medium to long term. For this reason, it is necessary to take extreme precautions and ensure that each employee has the necessary equipment and elements available to perform their duties safely.
