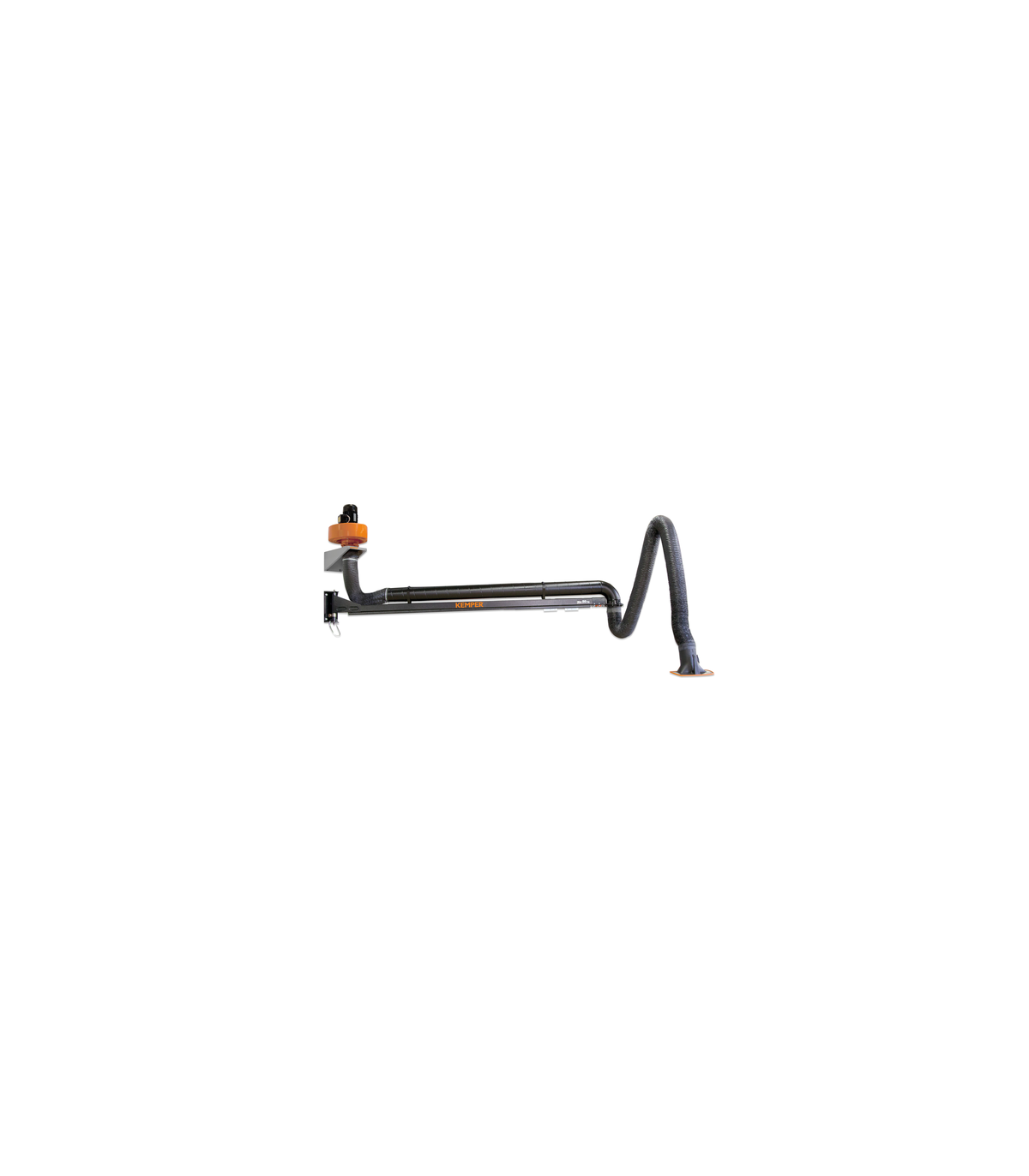

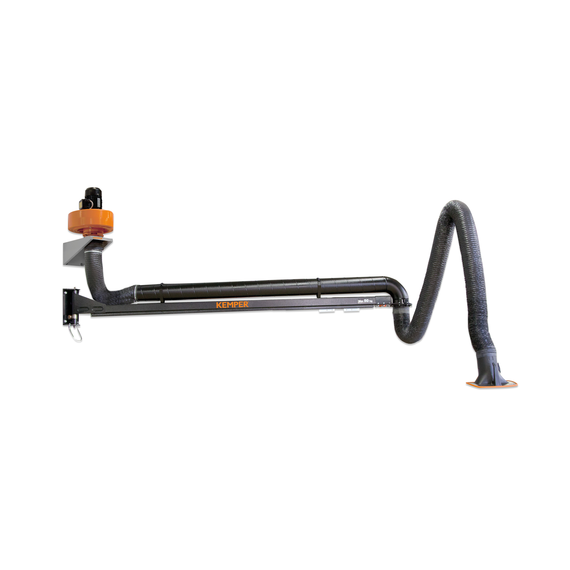

Welding fume extraction set with telescopic extension, arm, and KEMPER fan.
Welding fume ventilation set with cantilever extension, arm, and fan.
Weight 84.5 kg
€2,939.25 (no TAX)
Welding fume ventilation set with cantilever extension, arm, and fan. It is a particularly simple and economical solution where air filtration is not essential. Due to its length, it is also very easy to work flexibly and quickly with large workpieces. It is suitable for large amounts of smoke and dust, such as welding smoke, gases, vapors, light dust, or exhaust gases from cars in continuous use.
Length: 5m, 6m, and 7m (version with tube and version with hose).
SUMMARY/ ASPIRATIONS
- Large amounts of smoke/dust
- Continuous use
- Where air filtration is not essential
- Welding smoke, gases, vapors, light dust, and exhaust gases from cars
FEATURES
- 360° rotating suction hood with regulation valve
- Internal supporting joint in parallelogram with spring support
- With hose: Polyester fabric hose, PVC coated and with welded steel wire spiral
- With tube: Aluminum tube with powder coating and three flexible hose sections
- Spark-proof silumin fan
- Cantilever arm with a load capacity of 50 kg
- Cantilever arm with integrated C profile and sliding carriage
VARIANTS
- Various arm lengths
- Other available power supply voltages
SUPPLY INCLUDES
- Fan
- Suction arm with hood
- Wall mount
- Motor protection switch
- Connection material set
- Extendable exhaust duct of 1.25 to 5.00 m and suitable outlet piece
TECHNICAL DATA
| Basic data | |
| Power | 900 m3/h |
| Weight | 84.5 kg |
| Motor | 0.75 kW |
| Voltage | 3 x 400 V / 50 Hz |
| Nominal current | 1.5 A |
| Noise level | 73 dB(A) |
| Additional information | |
| Fan type | Centrifugal |
| Suction arm type | Hose version |
| Hose diameter | 150 mm |
| For. Arm | 3m |
ACCESSORIES
- Illuminated suction hood for retrofitting REF: 79 103 045
- Illuminated suction hood for original equipment REF: 79103040
- Protection grille REF: 1270091
- Support column for suction arm REF: 998800280
SPARE PARTS
- Suction hood: 7910300
- Rubber gasket - set of 10 pcs. REF: 1060290
- Hose 2.0 m REF: 1140348
BENEFITS
- Reduced tripping hazard due to fastening options for tools or cable advance devices on the cantilever arm with sliding carriage
- Especially quiet thanks to the housing being made of silumin
- Repositioning of the suction arm is 40% less due to the shape of the hood
- Easy to use, especially since the hood can be operated with one hand
- Maintains the chosen position thanks to the internal supporting joint
- Fast and flexible work due to the large reach
RESPIRATORY PROTECTION FOR EVERY WORK ENVIRONMENT
Respiratory protection is essential in every work environment, so every company must ensure that its workers are provided with Personal Protective Equipment (PPE) to work with the maximum possible safety. It is also important that the facilities where any type of work is carried out with the presence of fumes, gases, and other substances in the environment have the appropriate safety elements, such as the ventilation set with 2 joints 5/6/7 m.
The ventilation set with 2 joints 5/6/7 m consists of an arm support, a suction arm, and a fan, being a very simple and economical solution for use in all those work environments where air filtration is not essential. Thanks to its length, it is very easy to use for quick work with workpieces and is optimal for dealing with high amounts of smoke and dust, as well as smoke from welding work, vapors, exhaust gases from cars, etc.
With a suction power of 950 m³/h, this ventilation set has numerous advantages that make it one of the best options for respiratory protection to be used in a wide variety of installations and work sectors. It is a particularly quiet element, featuring a 360-degree rotating suction hood with a regulation valve.
The ventilation set with 2 joints 5/6/7 m is one of the best options on the market, manufactured with the best materials, providing great resistance and durability.
This element is recommended for all types of industries and workshops related to welding, areas with large amounts of dust, or in the automotive sector, where there are exhaust gases from cars in continuous use. With its installation, workers will be able to carry out their various tasks with greater safety.
At Sekureco, you can find the best solutions for respiratory protection for your workers, which is a fundamental aspect due to the various dangers that may be present in the work environment. There are different agents and substances that may be present in the environment and can enter the respiratory system of professionals, causing irritations and breathing discomfort, and even health problems in the short or long term, problems that in the worst cases can lead to death.
SOBRE KEMPER
KEMPER es una sociedad innovadora y líder en el sector de la tecnología de aspiración de humos producidos en la soldadura de metales. Tras más de 40 años de experiencia en el diseño de estos productos, nuestra organización posee un profundo conocimiento de los procesos de las plantas en las que se trabajan con metales.
