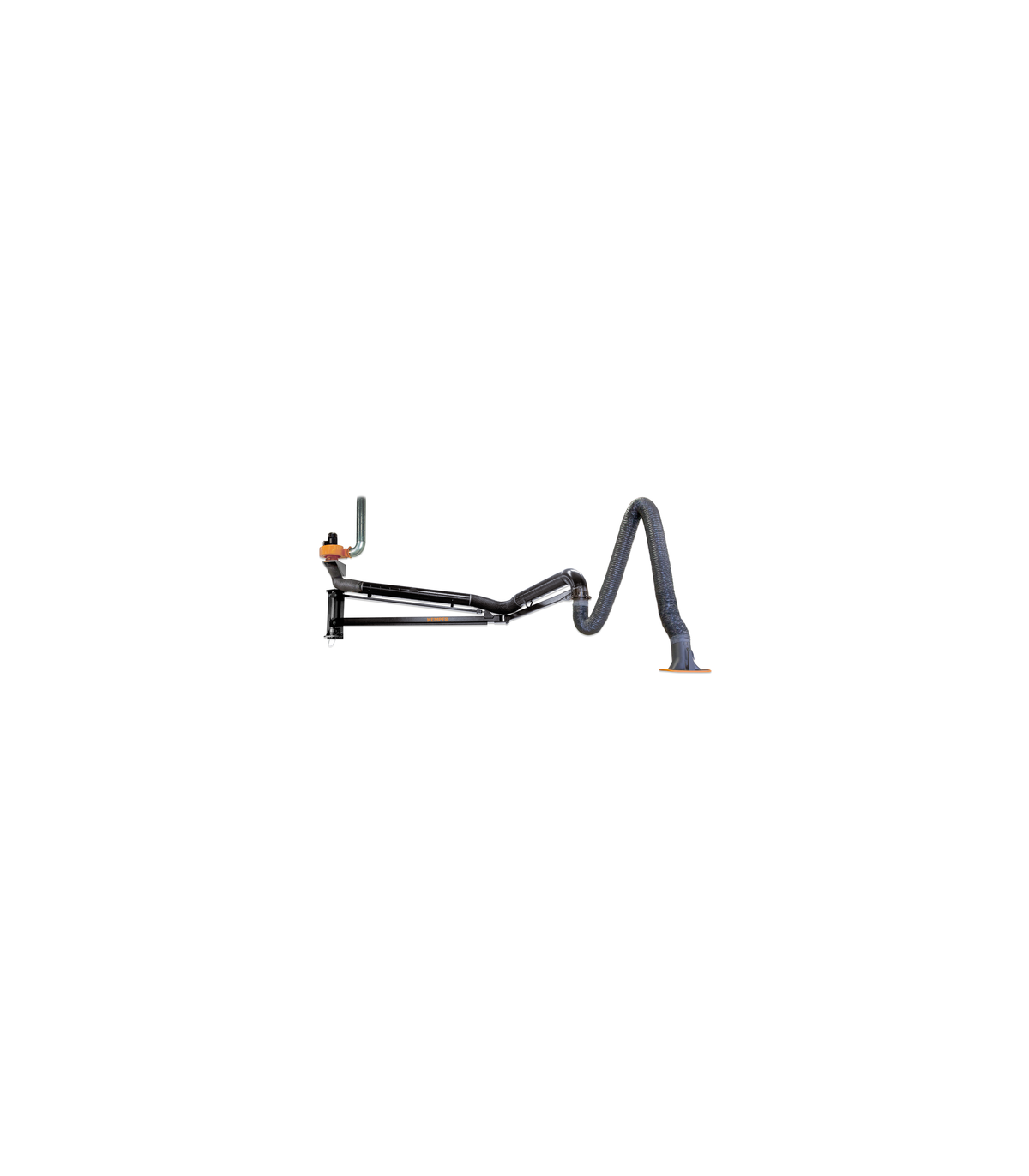

Ventilation set with 2-piece extension arm KEMPER

Ventilation set with a 2-piece cantilever extension, for large amounts of smoke/dust.

The ventilation set consists of an arm support, a suction arm, and a fan. It is a particularly simple and economical solution where air filtration is not essential. Due to its length, it is also very easy to work flexibly and quickly with large workpieces. It is suitable for large amounts of smoke and dust such as welding smoke, gases, vapors, light dust, or exhaust gases from cars in continuous use.

SUMMARY / APPLICATIONS

• Large amounts of smoke/dust
• Continuous use
• Where air filtration is not essential
• Welding smoke, gases, vapors, light dust, and exhaust gases from cars
• Large workpieces

BENEFITS

• Reduced trip hazard due to mounting options for tools or cable feed devices on the cantilever arm with sliding carriage
• Especially quiet thanks to the housing made of silumin cast
• Repositioning of the suction arm is 40% less due to the shape of the hood
• Easy to use, especially since the hood can be operated with one hand
• Maintains the chosen position thanks to the internal supporting joint
• Fast and flexible work due to the large reach

FEATURES

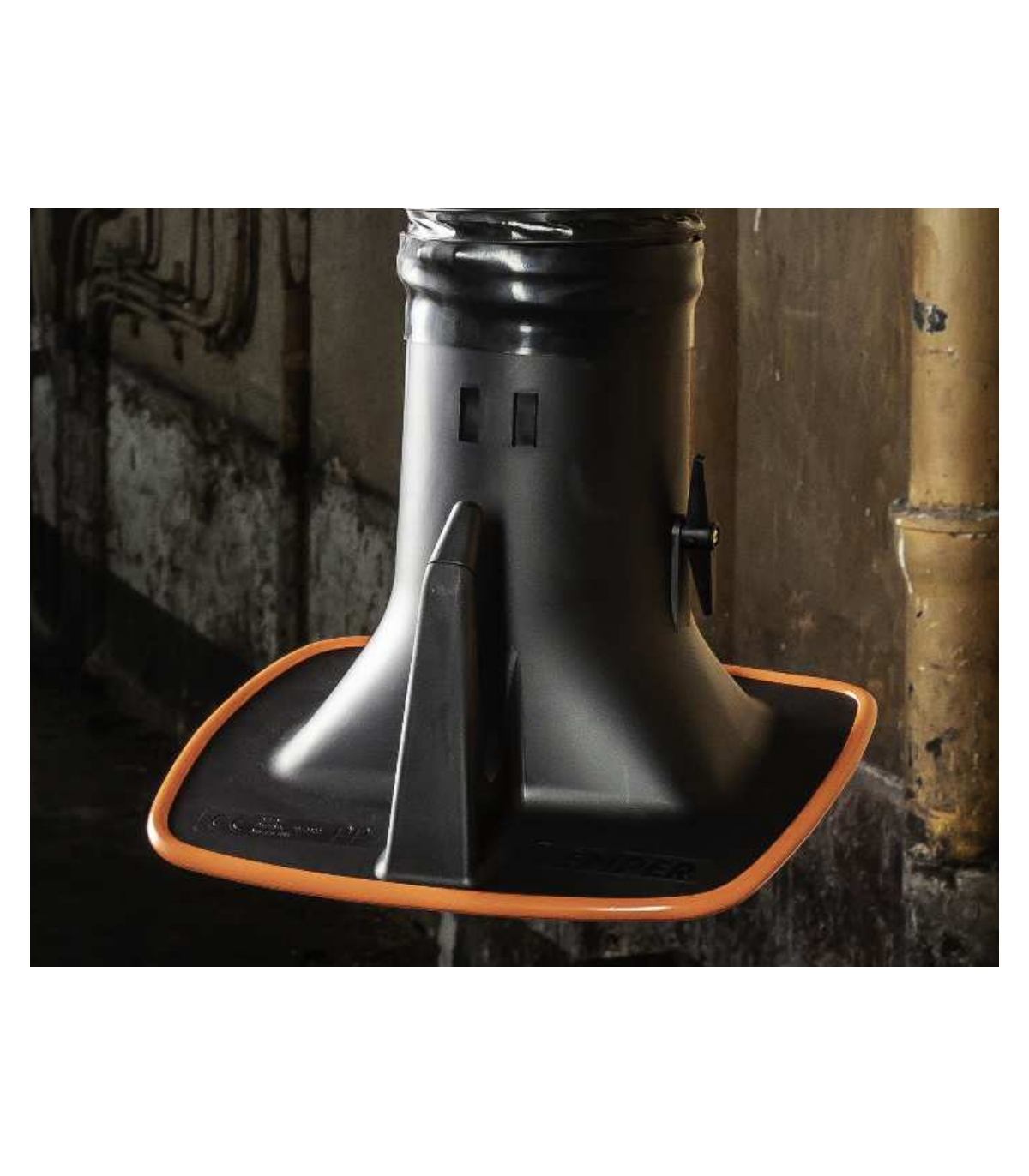

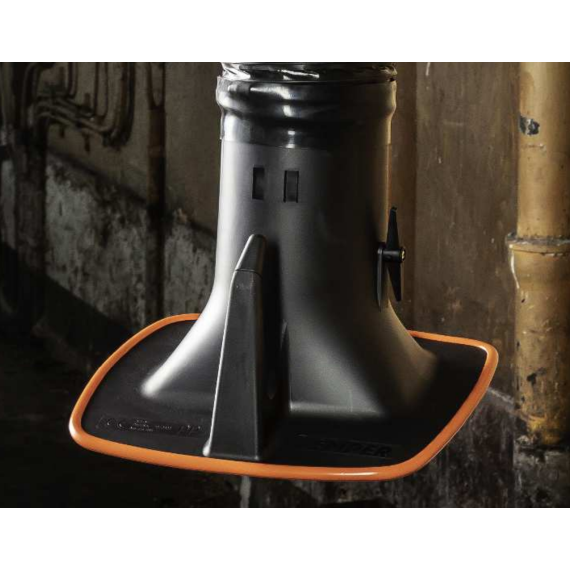

• 360° rotating suction hood with regulation valve
• Internal supporting joint in parallelogram with spring support
• With hose: Polyester fabric hose, PVC coated and with welded steel wire spiral
• With tube: Aluminum tube with powder coating and three flexible hose sections
• Spark-proof silumin cast fan
• Cantilever arm with a load capacity of 50 kg
• Cantilever arm with integrated C profile with sliding carriage

VARIANTS

• Various arm lengths
• Other power supply voltages available

SUPPLY INCLUDES

• Fan
• Suction arm with hood
• Cantilever arm
• Motor protective switch
• Connection material set
• Extendable exhaust duct of 1.25 to 5.00 m and suitable outlet piece

TECHNICAL DATA

Version with hose / version with hose

ACCESSORIES

• Illuminated suction hood for retrofitting REF: 79 103 045
• Illuminated suction hood for original equipment REF: 79103040
• Protective grille REF: 1270091
• Support column for suction arm REF: 998800280

SPARE PARTS

• Suction hood: 7910300
• Rubber seal - set of 10 pcs. REF: 1060290
• Hose 2.0 m REF: 1140348
