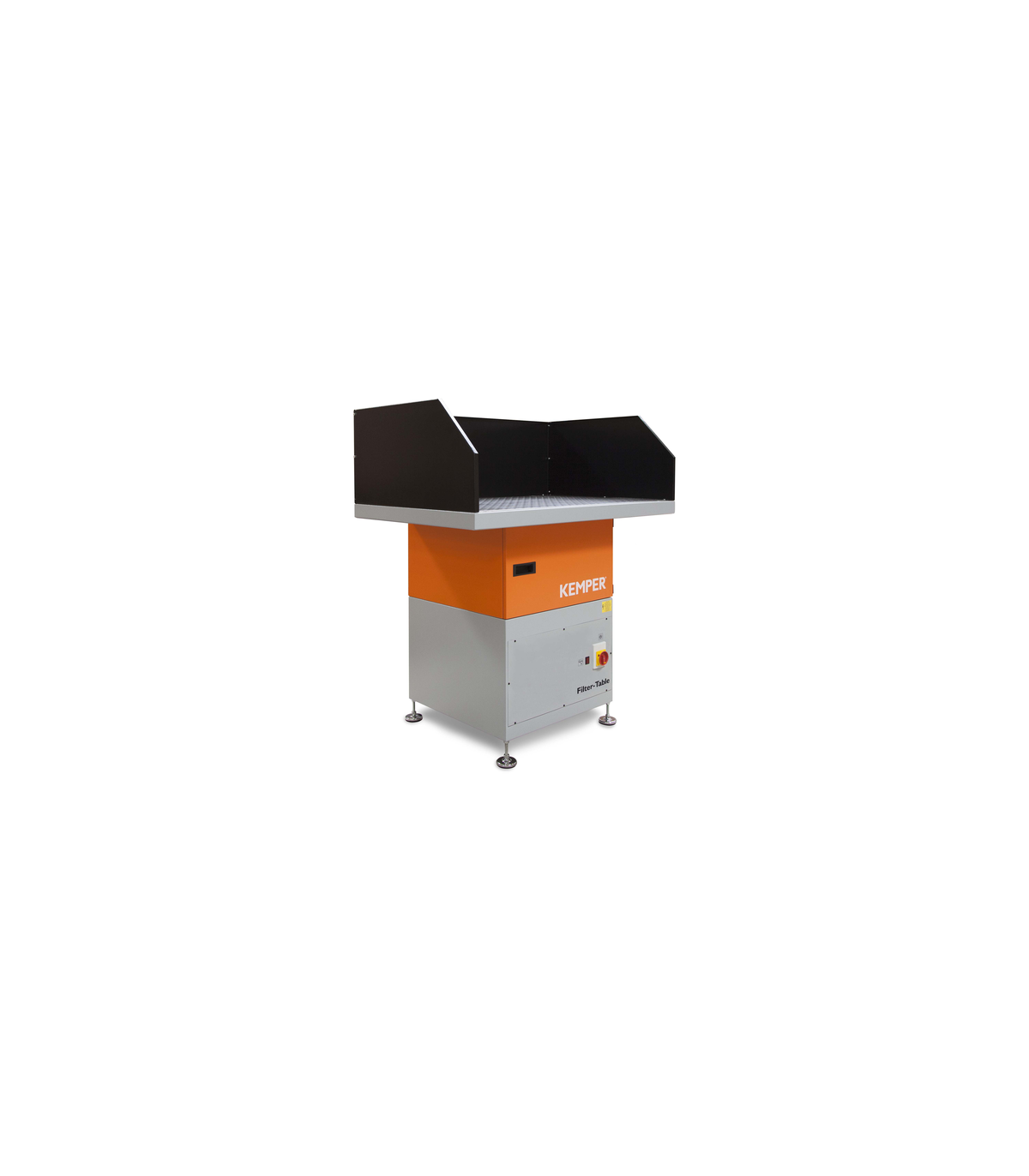

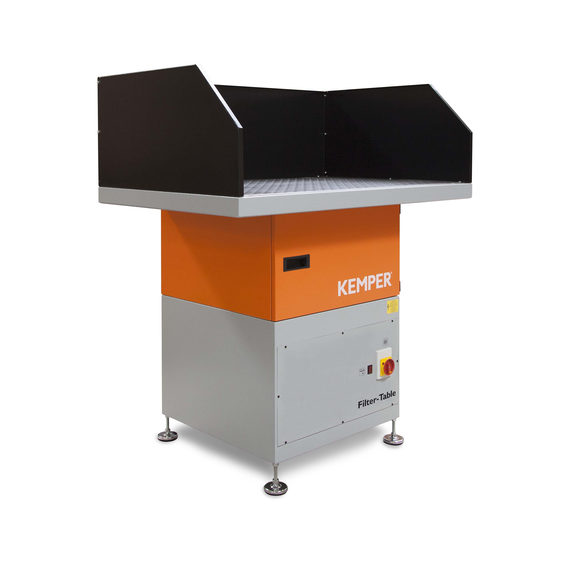

Combined welding table with extraction unit Filter-Table KEMPER

Combined welding table with extraction unit. The Filter-Table is an economical combination of machining table and filtering device. The large surface area of the table allows for effective work when welding and grinding with small to moderate amounts of smoke and dust. The device with disposable filter is designed for small to moderate amounts of smoke and dust with occasional or frequent use.

FEATURES

• Spark pre-separator
• Robust and large support grid
• Use of activated carbon (optional)

VARIANTS

• Other available power supply voltages

TECHNICAL DATA

• Filtration levels 2
• Filtration method: Disposable filter
• Filter surface approx. 15.8 m²
• Filter type: Filter cassette
• Filter material: Fiberglass membrane
• Additional filters: Prefilter

BASIC DATA

• Suction power: 1,400 m³/h
• Dimensions (H x W x D): 1,200 x 800 x 1,340 mm
• Weight: 155 kg
• Motor power: 1.5 kW
• Power supply voltage 3 x 400 V / 50 Hz
• Nominal current 3.2 A
• Sound intensity level 71 dB(A)
• Fan type: Centrifugal

SUMMARY/ APPLICATIONS

• Small to moderate amounts of smoke/dust
• Occasional or frequent use
• Welding and grinding

BENEFITS

• Comfortable filter change through the maintenance door
• Reduced fire risk thanks to an effective spark pre-separator
• All work area can be used, as suction occurs beneath the support grid
• Effective processing thanks to a particularly large work surface of 1,200 x 800 mm

ACCESSORIES

Activated carbon filter: 109 0345

SPARE PARTS

Replacement filter: 109 0010

Braided aluminum filter: 109 0013
