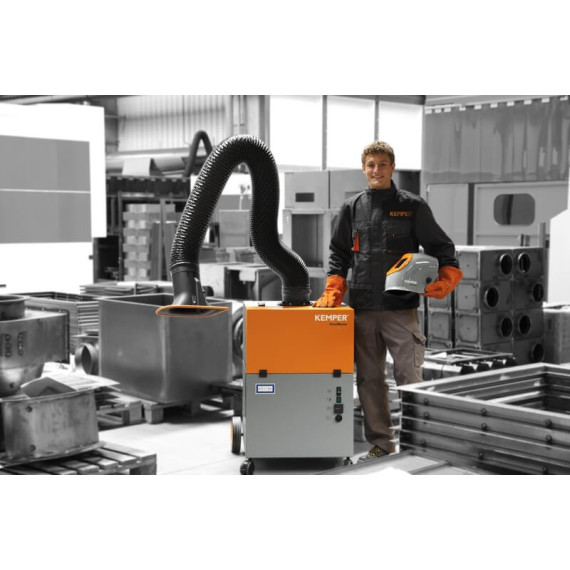

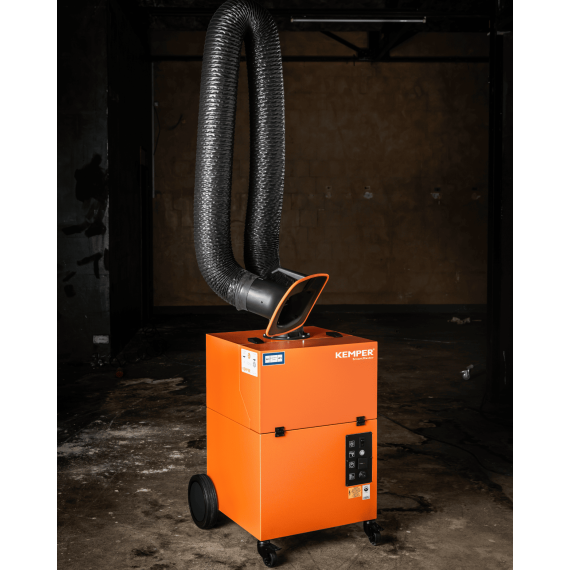

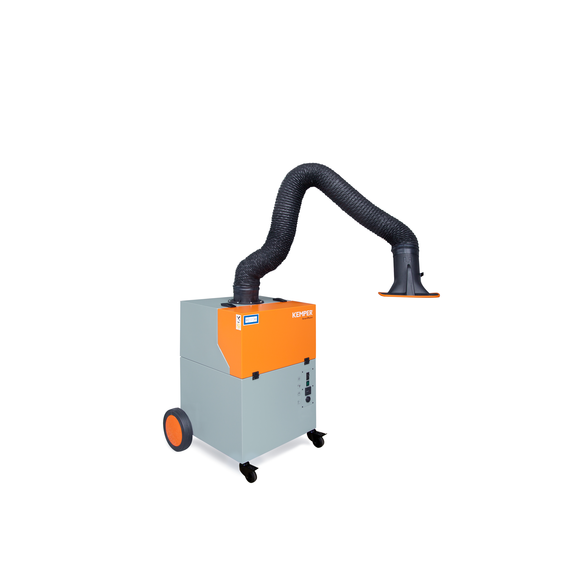

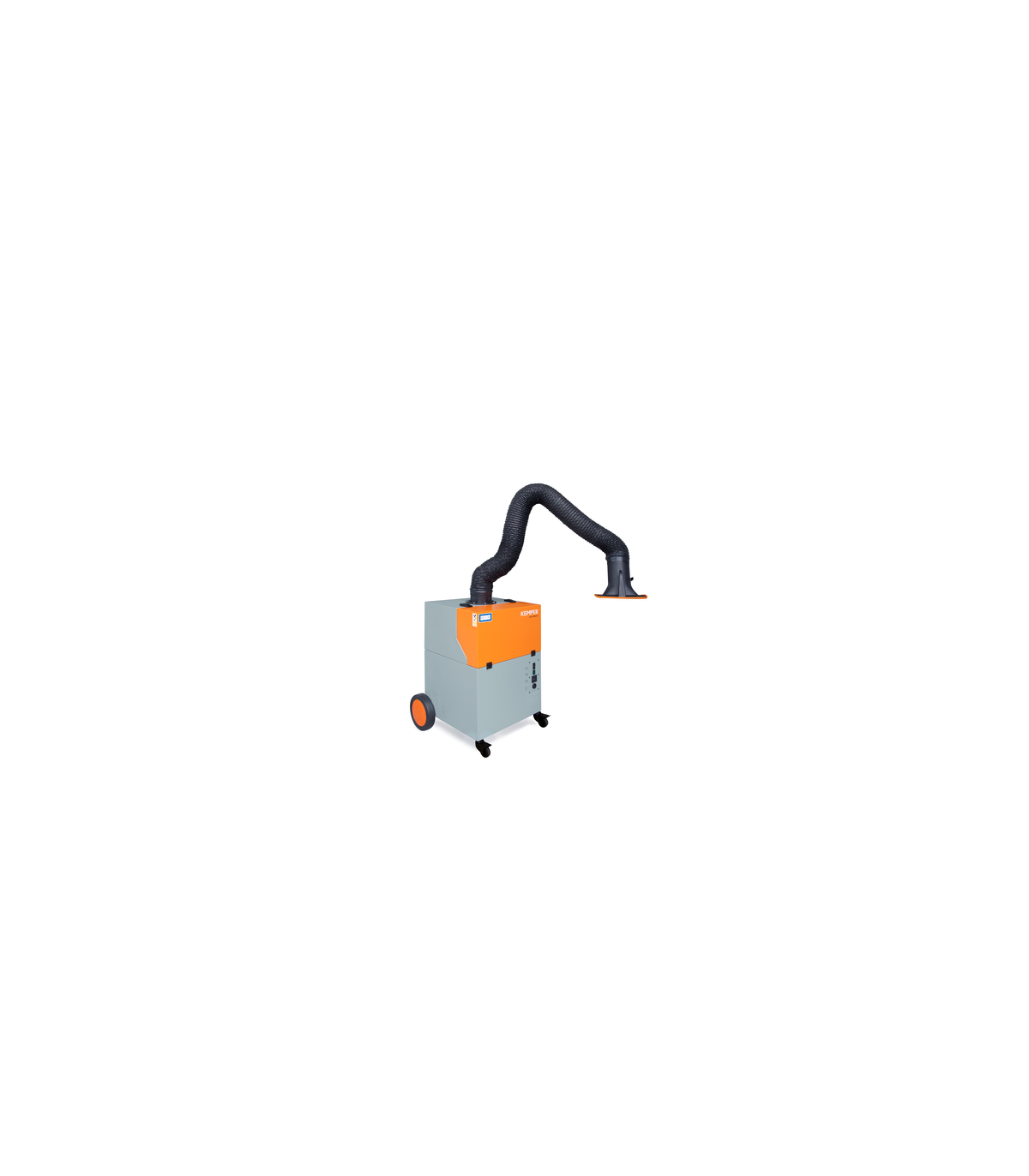

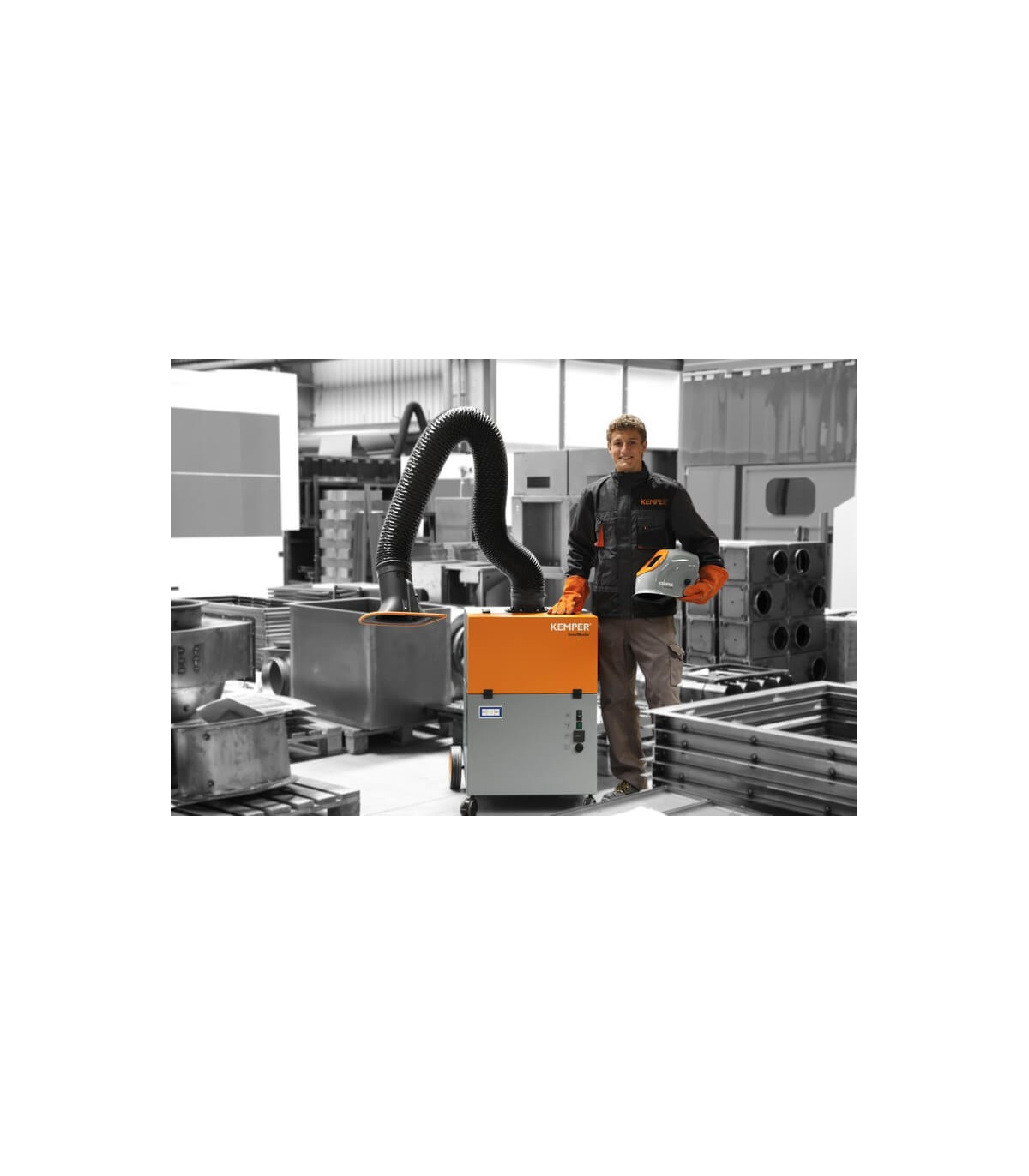

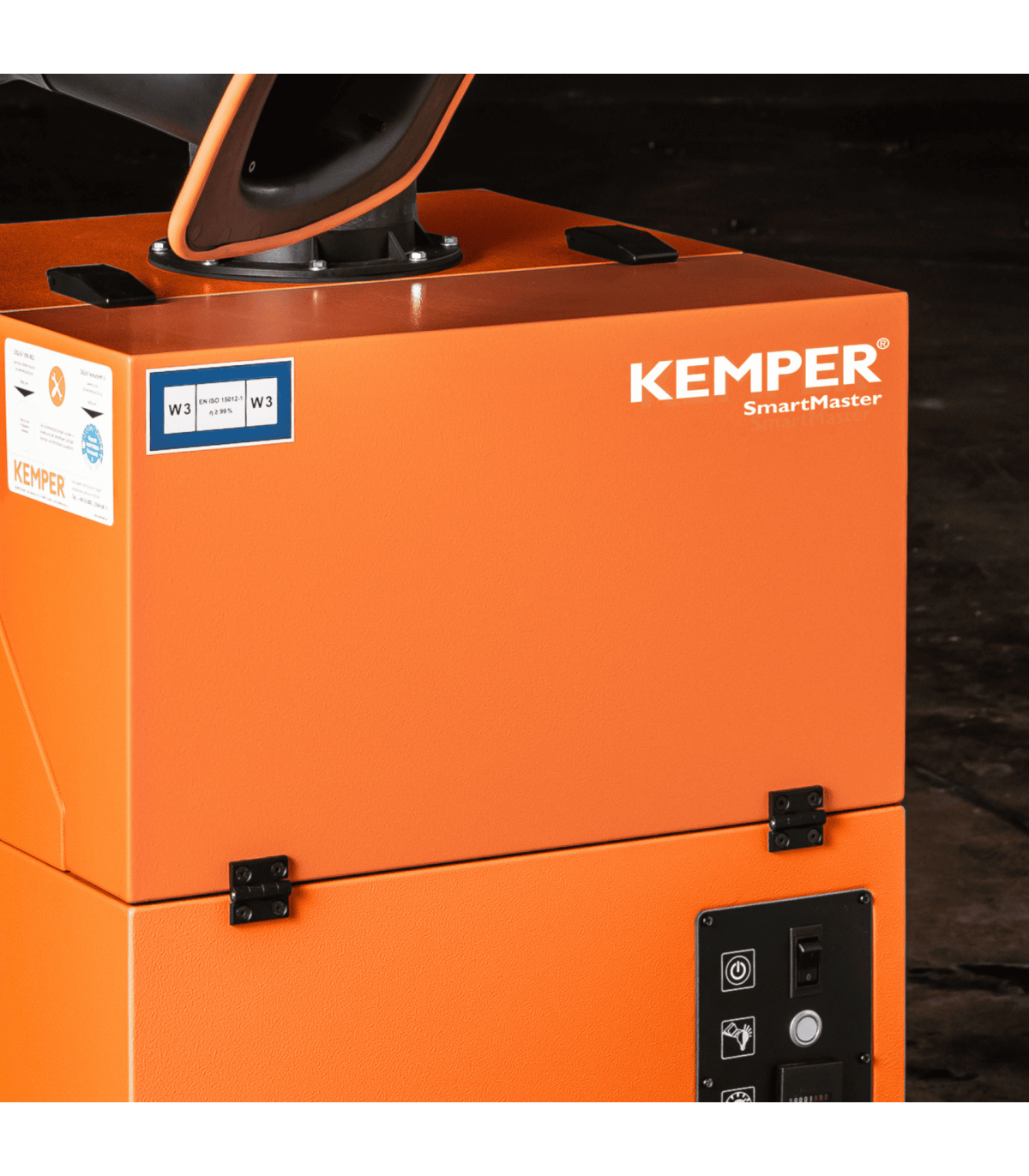

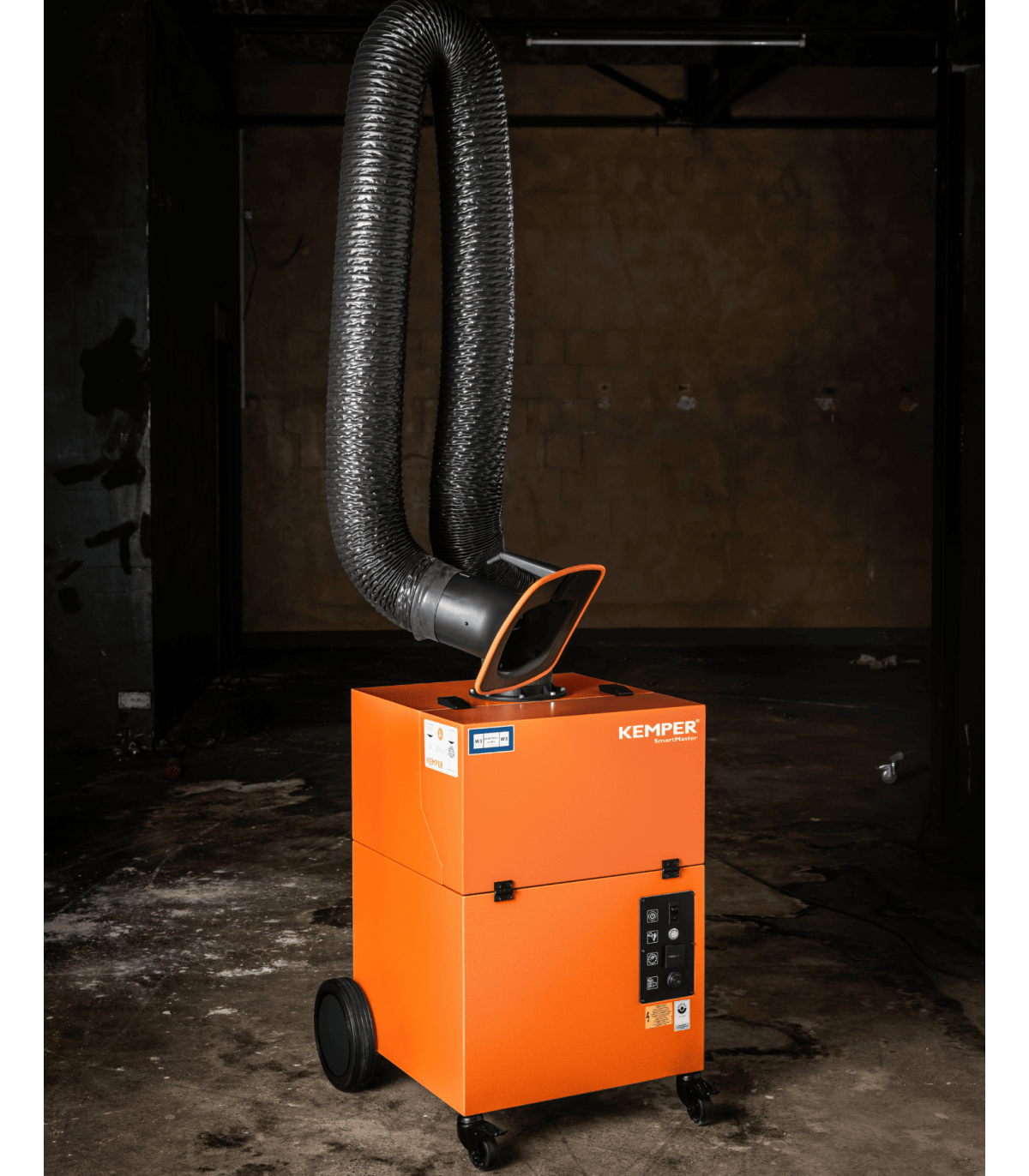

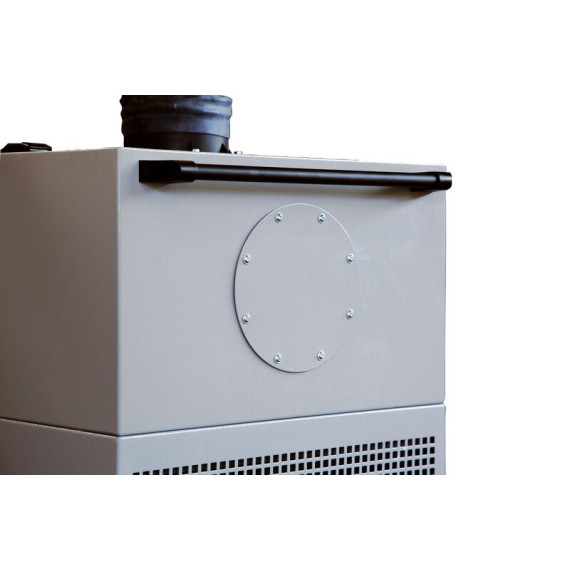

Compact basic SmartMaster suction device for occasional use in welding KEMPER.

Compact basic SmartMaster suction device for occasional use in welding KEMPER. 3 levels of filtration, filter surface approx. 13 m².

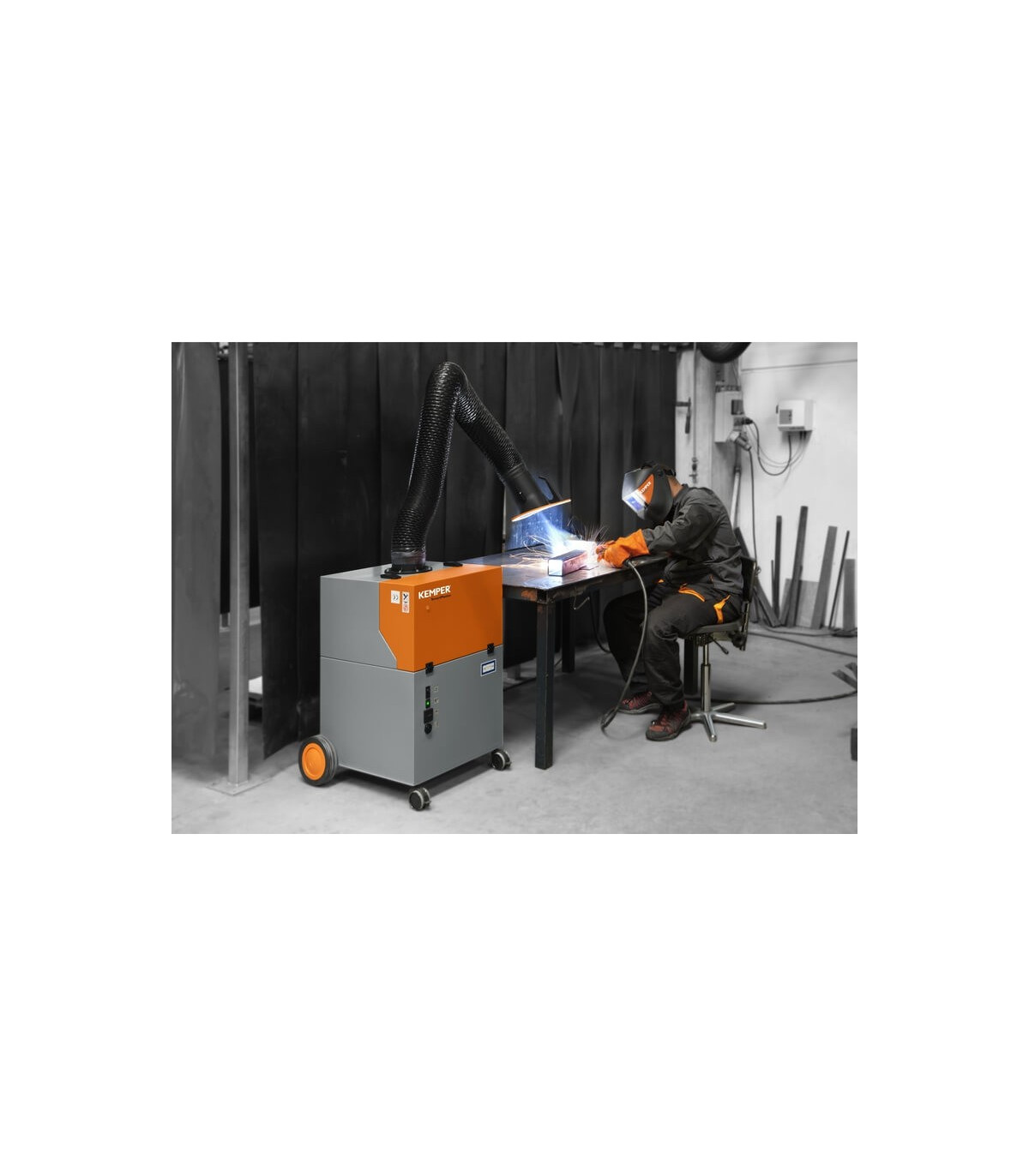

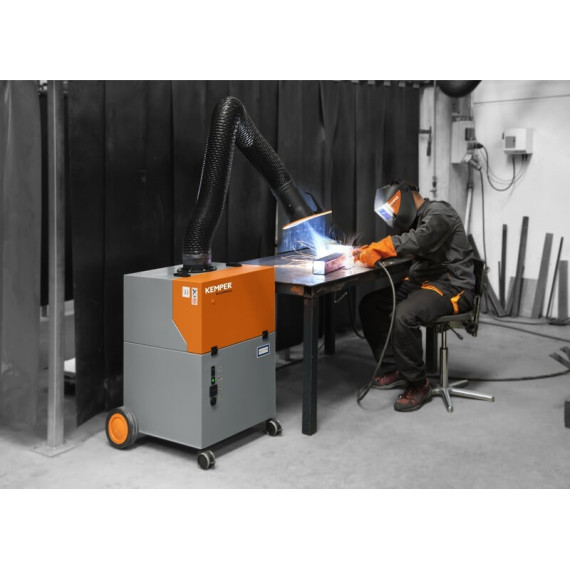

The practical basic equipment is designed for occasional use with small amounts of dust. The variable angle suction hood allows for a 360-degree usage radius and very few repositionings during welding. The basic equipment is suitable for welding chrome-nickel steel thanks to its W3 certification.

SmartMaster suction device with functionalities similar to ProfiMaster suction device for welding fumes with two robust arms KEMPER REF: K60650DA100.

FEATURES

• W3/IFA certified
• Extraction arm 2 m
• Handle and cable holder

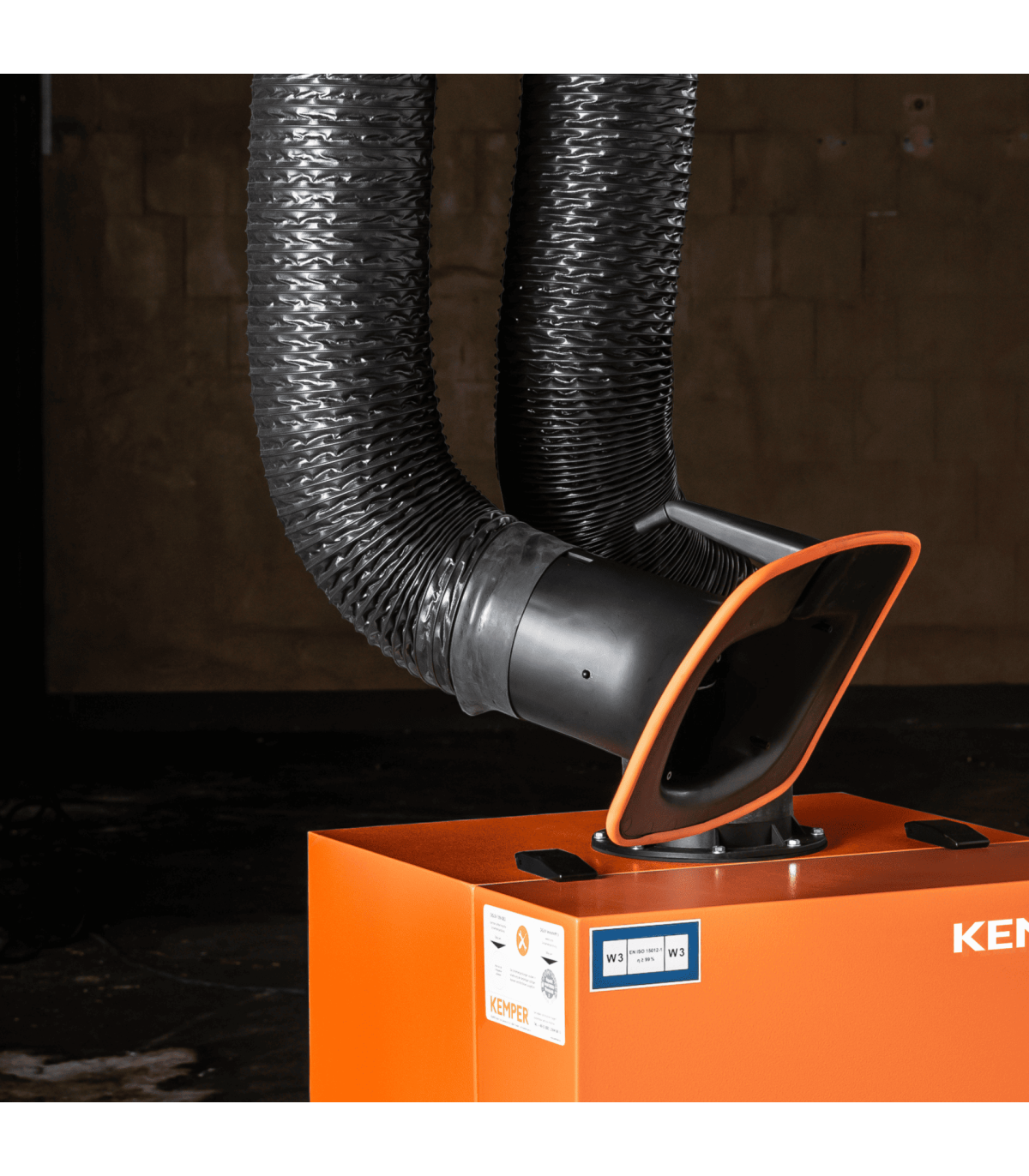

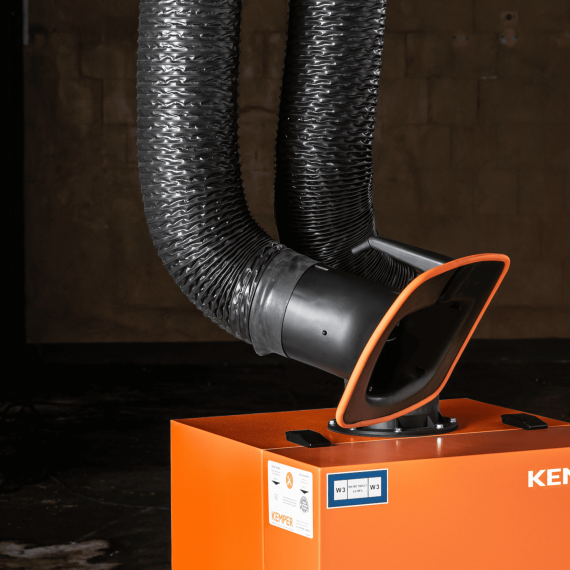

• Rotating suction hood

BENEFITS

• Less frequent repositioning of the suction arm thanks to the shape of the suction hood
• Increased safety thanks to filter monitoring

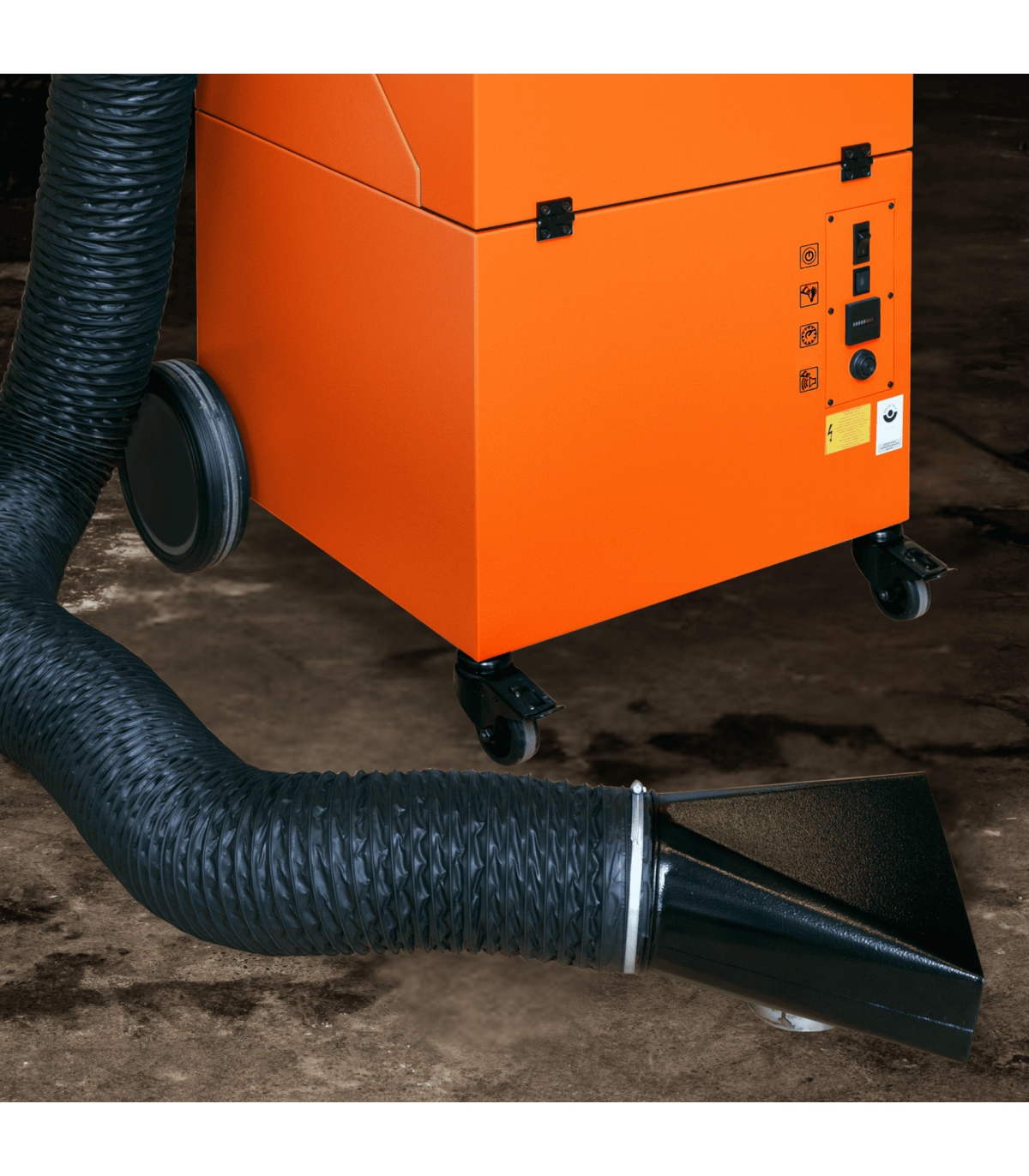

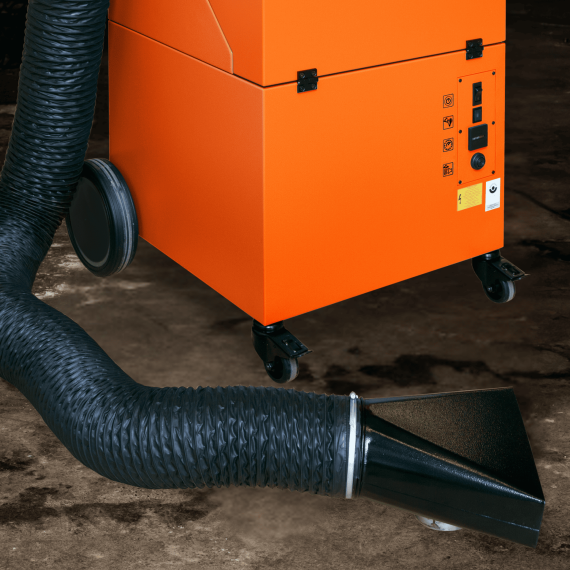

• Flexible use thanks to the hose connection

TECHNICAL DATA

Filter

• Filtration levels: 3
• Filtration method: Disposable filter
• Filter surface: approx. 13 m²
• Filter type: Filtration cassette
• Filter material: Fiberglass membrane
• Filtration grade: > 99.5 %
• Filter class: E12
• Additional filters: Two pre-filters

BASIC DATA

• Suction power: 950 m³/h
• Dimensions (H x W x D): 705 x 655 x 900 mm
• Weight: 71 kg
• Motor power: 1.1 kW
• Power supply voltage: 1 x 230 V / 50 Hz
• Rated current: 6.7 A
• Sound intensity level: 72 dB(A)

ADDITIONAL INFORMATION

• IFA Certificate: W3-Tested
• Fan type: Centrifugal fan
• Number of suction arms: 1
• Suction arm type: Hose version
• Arm diameter: 150 mm
• Flexible arm length: 2 m

SPARE PARTS

• Replacement filter for SmartMaster REF: 1090454
• Replacement filter for SmartMaster REF: 1090453
• Pre-filter mat (10 units) SmartMaster REF: 1090452
• Rotating crown REF: 7910302

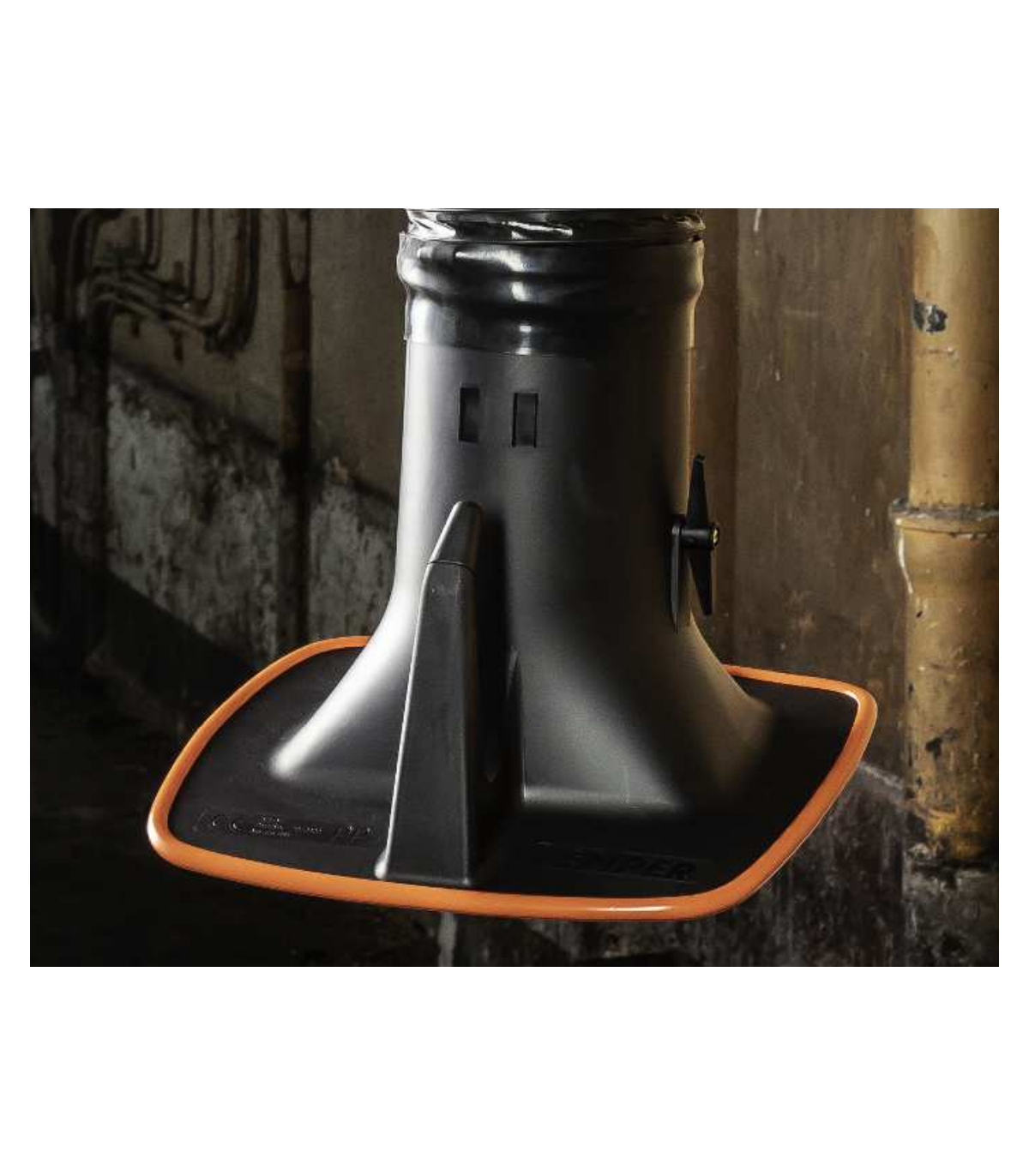

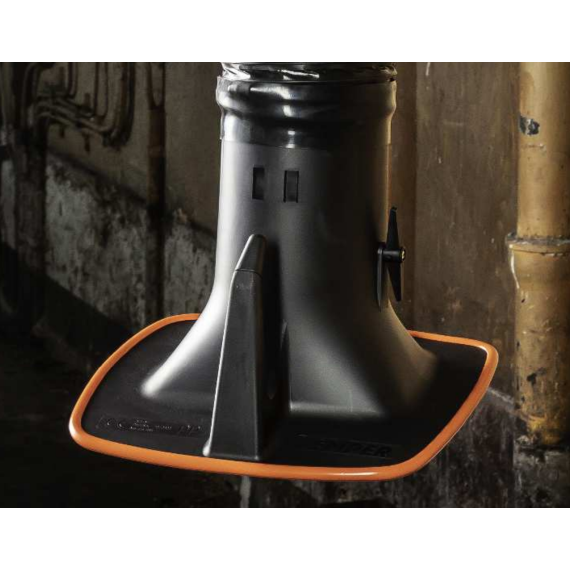

• Suction hood: 7910300
• Hose 2.0 m REF: 1140348
• Rubber seal - set of 10 pcs. REF: 1060290

APPLICATIONS

• Also suitable for chrome-nickel steel
• Small amount of smoke/dust Occasional use

ACCESSORIES

Protective grid REF: 1270091
