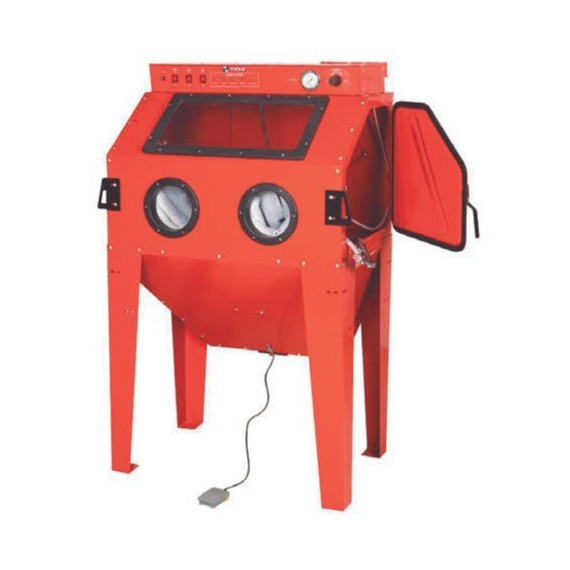

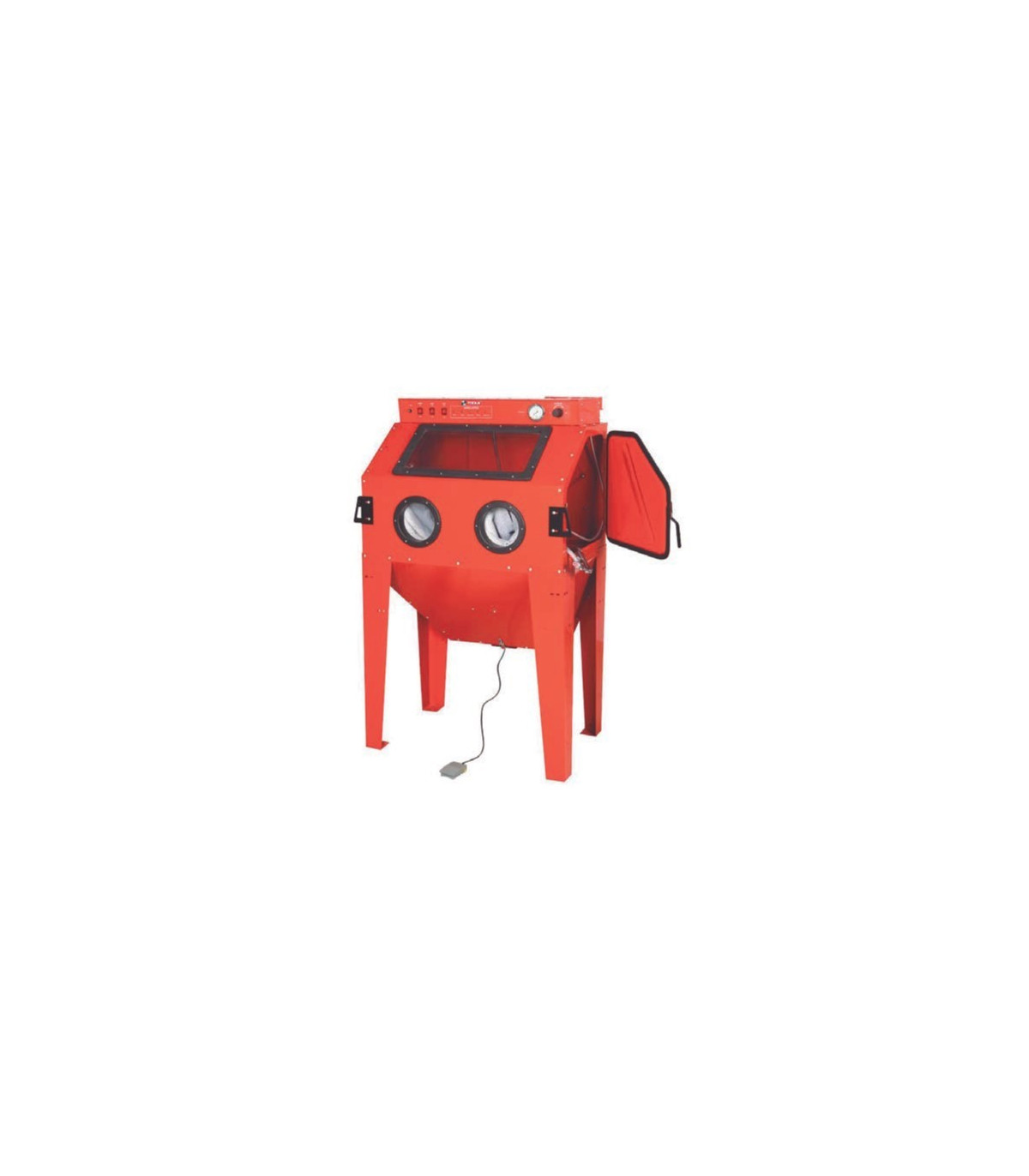

Industrial suction blasting cabinet with rotating table | METALWORKS

Industrial suction blasting cabinet with rotating table | METALWORKS. For professional use of 350 liters with sandblasting gun and fixed blasting head, equipped with a suction system and high-quality latex gloves. The fixed head is controlled by a pedal and is ideal for high-precision blasting. Doors on both sides and a suction system with a washable filter. Quick emptying system at the bottom.

INCLUDES AS STANDARD
Pressure regulator with manometer, latex gloves, internal lighting, replaceable protective glass with 5 included films, and 4 ceramic nozzles.

Efficiency and ergonomics for industrial blasting. This high-capacity cabinet operates by suction, features a rotating table for handling heavy parts, and a cyclonic suction system for clean and continuous work.

FEATURES

Designed for the production and treatment of heavy parts.

• Suction System: The abrasive is continuously sucked from the lower hopper, allowing for long working sessions without the need to reload.

• Integrated Rotating Table: Greatly facilitates the handling of heavy or complex-shaped parts, allowing all sides to be blasted effortlessly.

• Cyclonic Suction: The powerful suction system with a cyclonic filter separates dust from reusable abrasive, ensuring perfect visibility and optimizing material consumption.

• Top and Front Access: Features a large front door and a hinged top cover, assisted by gas struts, to facilitate loading parts with a hoist.

• Pedal Control: Operation is controlled via a robust pedal, leaving hands free to direct the gun and rotate the part.

SPECIFICATIONS

• Type of system: Suction.

• Special features: Manual rotating table, cyclonic vacuum, double door (front and top).

• Model CAT415
  Code 754751444
  Volume 350 l.
  Air consumption 680 l/min.
  Working pressure range 3 - 8.5 bars
  Work table capacity 60 kg
  Internal dimensions (l x w x h) 945 x 605 x 605 mm
  External dimensions (l x w x h) 1,090 x 940 x 1,650 mm
  Net weight 90 kg

APPLICATIONS

• Cleaning and preparation of molds, dies, and tools in the industry.

• Treatment of series of parts in machining and metalworking workshops.

• Restoration of components of heavy machinery, agricultural, or public works.

• Applications requiring a uniform finish and a high production rate.
