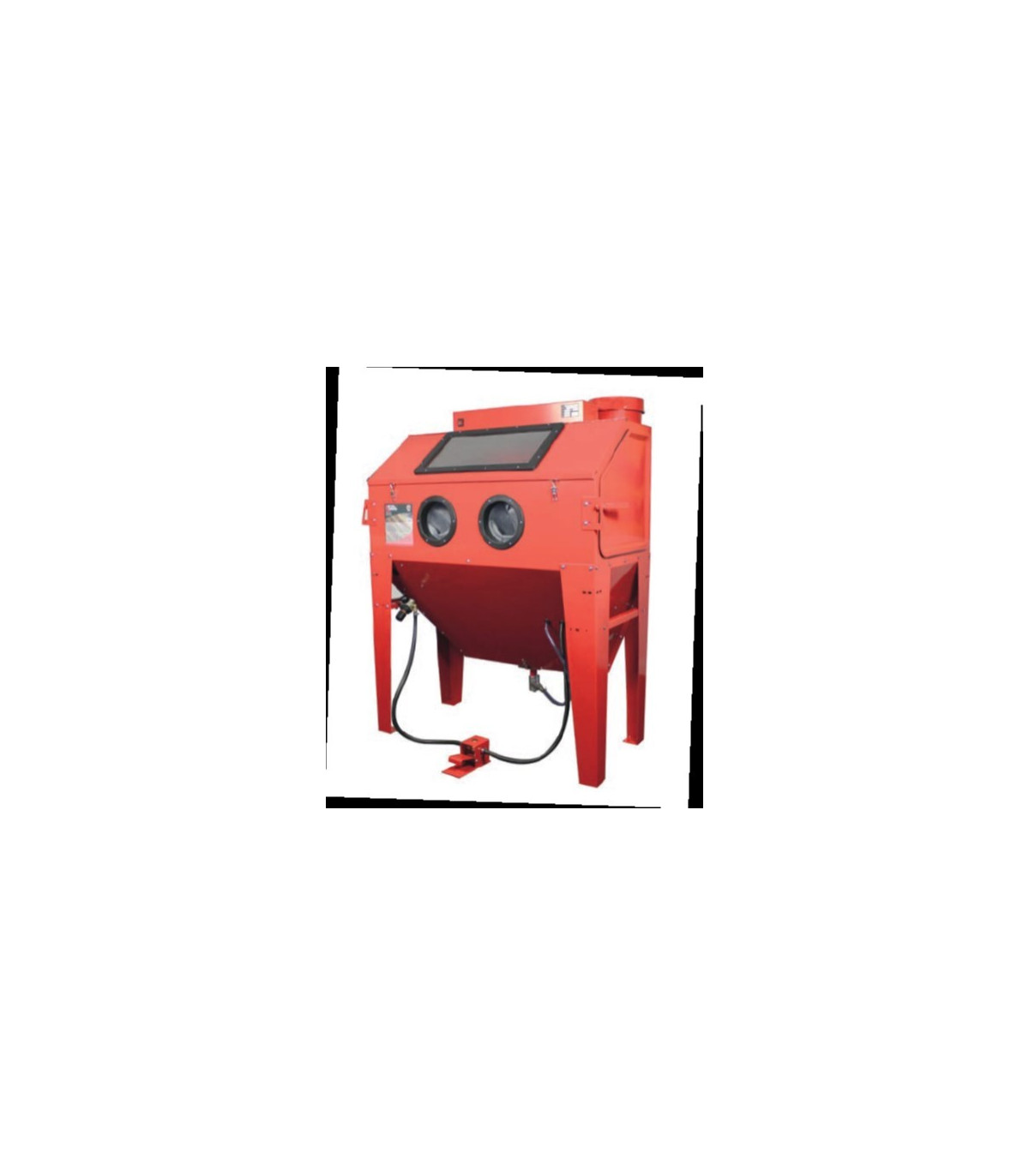

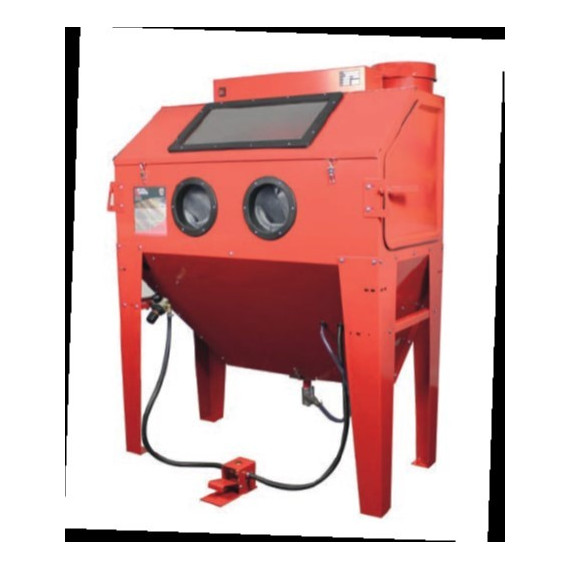

Industrial suction blasting cabinet with rotating table | METALWORKS

Industrial suction blasting cabinet with rotating table | METALWORKS. For professional use, equipped with a high-quality vacuum and latex gloves, integrated into the machine's structure. Provided with a protective cover for optimal visibility of the work area. 4.5 kg tank with a hole for material emptying. Durable internal grid with holes to keep the work surface clean. External connection for compressed air intake. Equipped with rubber feet for better stability. 2 air outlets (1 outlet connection Ø 92 mm and Ø 64 mm) for suction connection. Recommended max pressure: 7 bars.

INCLUDES AS STANDARD:
Blasting gun with ceramic nozzle, 4 ceramic nozzles, 2 fluorescent lamps of 230 V, light switch with dual function, cabin suction and light activation at the same time, regulator for maximum working pressure with manometer, 5 protective films to replace the window ones, 2 large latex work gloves integrated into the cabin.

Efficiency and ergonomics for industrial blasting. This high-capacity cabinet operates by suction, features a rotating table for handling heavy parts, and a cyclonic suction system for clean and continuous work.

FEATURES

Designed for the production and treatment of heavy parts.

• Suction System: The abrasive is continuously sucked from the lower hopper, allowing for long working sessions without the need for reloading.

• Integrated Rotating Table: Greatly facilitates the handling of heavy or complex-shaped parts, allowing all sides to be blasted effortlessly.

• Cyclonic Suction: The powerful suction system with a cyclonic filter separates dust from reusable abrasive, ensuring perfect visibility and optimizing material consumption.

• Top and Front Access: Features a large front door and a top hinged cover, assisted by gas struts, to facilitate loading parts with a hoist.

• Foot Control: Operation is controlled via a robust pedal, leaving hands free to direct the gun and rotate the part.

SPECIFICATIONS

• Volume 340 l.
  Air consumption 400 - 800 l/min.
  Working pressure range 8.6 bars
  Connection 3/8"
  Abrasive core size 40 - 120
  Internal dimensions (l x w x h) 1,210 x 600 x 580 mm
  External dimensions (l x w x h) 1,300 x 630 x 1,700 mm
  Net weight 122 kg

APPLICATIONS

• Cleaning and preparation of molds, dies, and tools in the industry.

• Treatment of series of parts in machining and metalworking workshops.

• Restoration of components of heavy machinery, agricultural, or public works.

• Applications that require a uniform finish and a high production rate.
