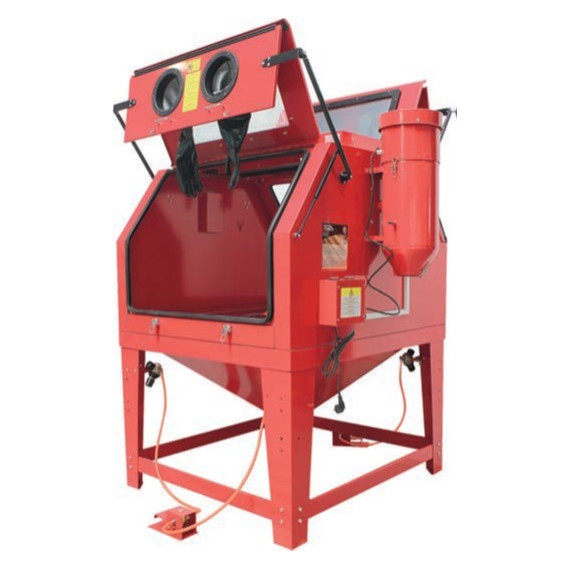

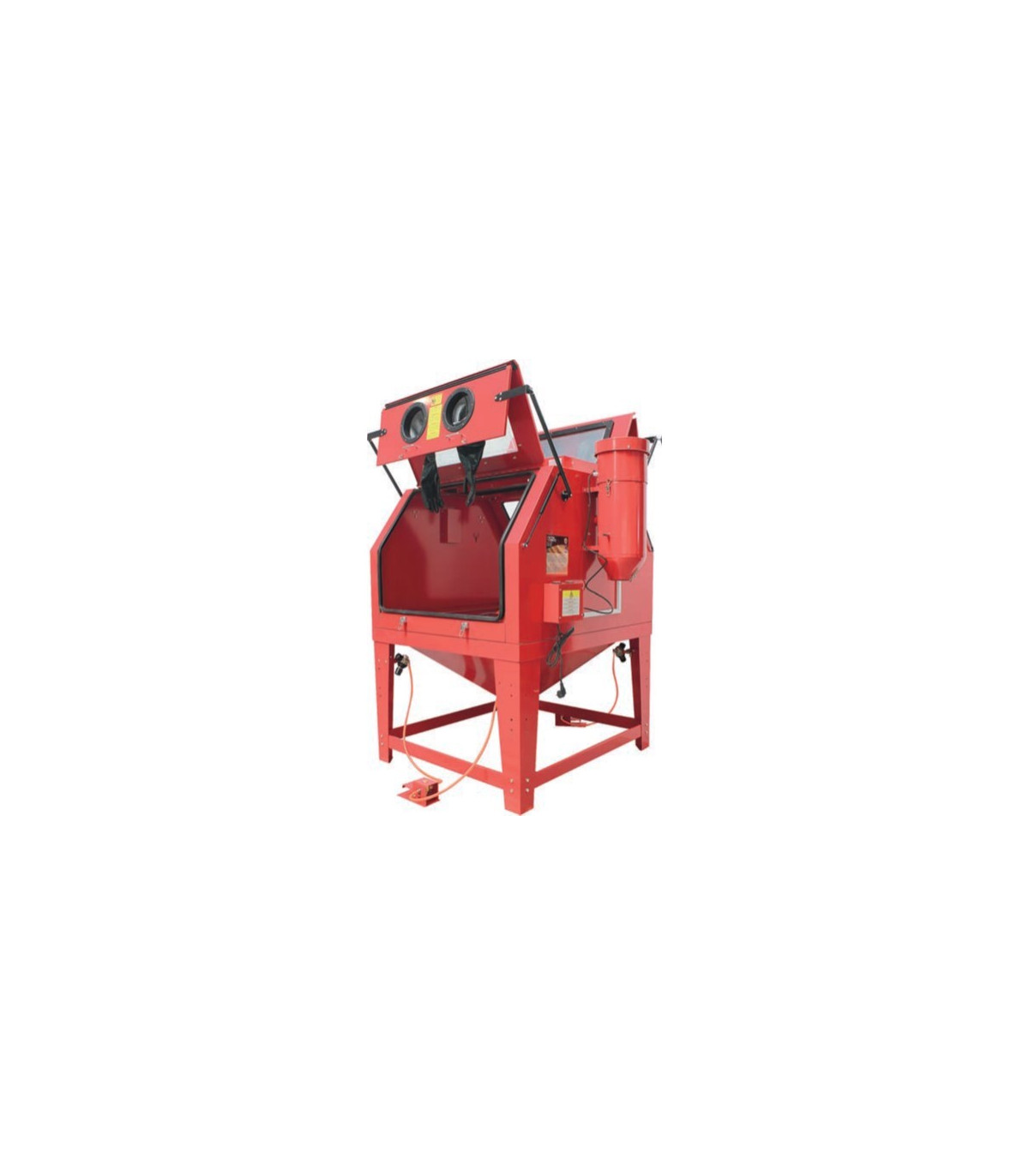

Industrial Wet Blasting Cabin CAT1200 | METALWORKS

Industrial Wet Blasting Cabin CAT1200 | METALWORKS. For professional use, with a capacity of 1,200 l. Equipped with two doors, designed for large parts. Two independent air inlets to allow two people to work simultaneously. Hopper equipped with a hole for emptying the abrasive. With high-quality gloves integrated into the structure. Solid construction with tempered glass windows. Pressure regulator with manometer. Foot switch. Four fluorescent lights of Ø 16 x 890. Suitable for: Glass beads, silica sand, aluminum oxide, corundum. Recommended max pressure: 7 bars.

INCLUDES AS STANDARD:
2 blasting guns with ceramic nozzles 2x6mm and 2x7 mm, 2 pairs of high-quality latex gloves, 4 fluorescent lamps of 26 V, 5 protective films to cover the windows and lamps. Suction system with micro filter.

Achieve a perfect surface finish free of dust. The CAT1200 wet blasting cabin uses a mixture of water and abrasive to clean, strip, and satinize parts without generating dust, ideal for delicate components and high-precision applications.

FEATURES

This high-tech cabin is designed for "wet blasting," a superior process for fine finishes.

• Dust-Free Process: By mixing the abrasive with water in a slurry, dust generation is completely eliminated, creating a cleaner and safer work environment. Water also acts as a lubricant, resulting in a smoother and satin finish.

• Recirculation Pump: Equipped with a pump and agitation system that keeps the water and abrasive mixture in suspension, ensuring a constant and homogeneous flow to the gun.

• Total Visibility: Features a pedal-operated windshield wiper and a rinse system with clean water to keep the viewing window always clear.

• Stainless Steel Construction: Key parts of the cabin and the work grid are made of stainless steel to prevent corrosion.

• High-Efficiency Gun: The specific gun for wet blasting is designed to optimize the flow of the slurry and achieve maximum performance.

SPECIFICATIONS

• System type: Wet Blasting.

• Special features: Recirculation pump, windshield wiper, rinse system, specific gun for wet blasting.

• Volume 1,200 l.
  Motor power 1,200 W
  Working pressure range 125 PSI (8.6 bars)
  Air consumption 2 x 680 l/min.
  External dimensions (l x w x h) 1,524 x 1,400 x 1,839 mm
  Net weight 200 kg

APPLICATIONS

• Cleaning high-end engine components (pistons, cylinder heads) without altering tolerances.

• Restoration of aluminum and alloy parts, returning them to their original satin finish.

• Surface preparation for technical coatings in the aerospace and medical industries.

• Removal of rust and paint on delicate or thin sheet parts without deforming them.
