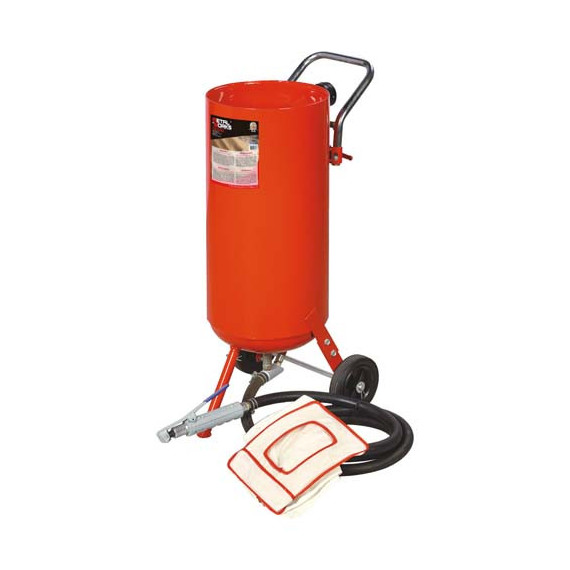

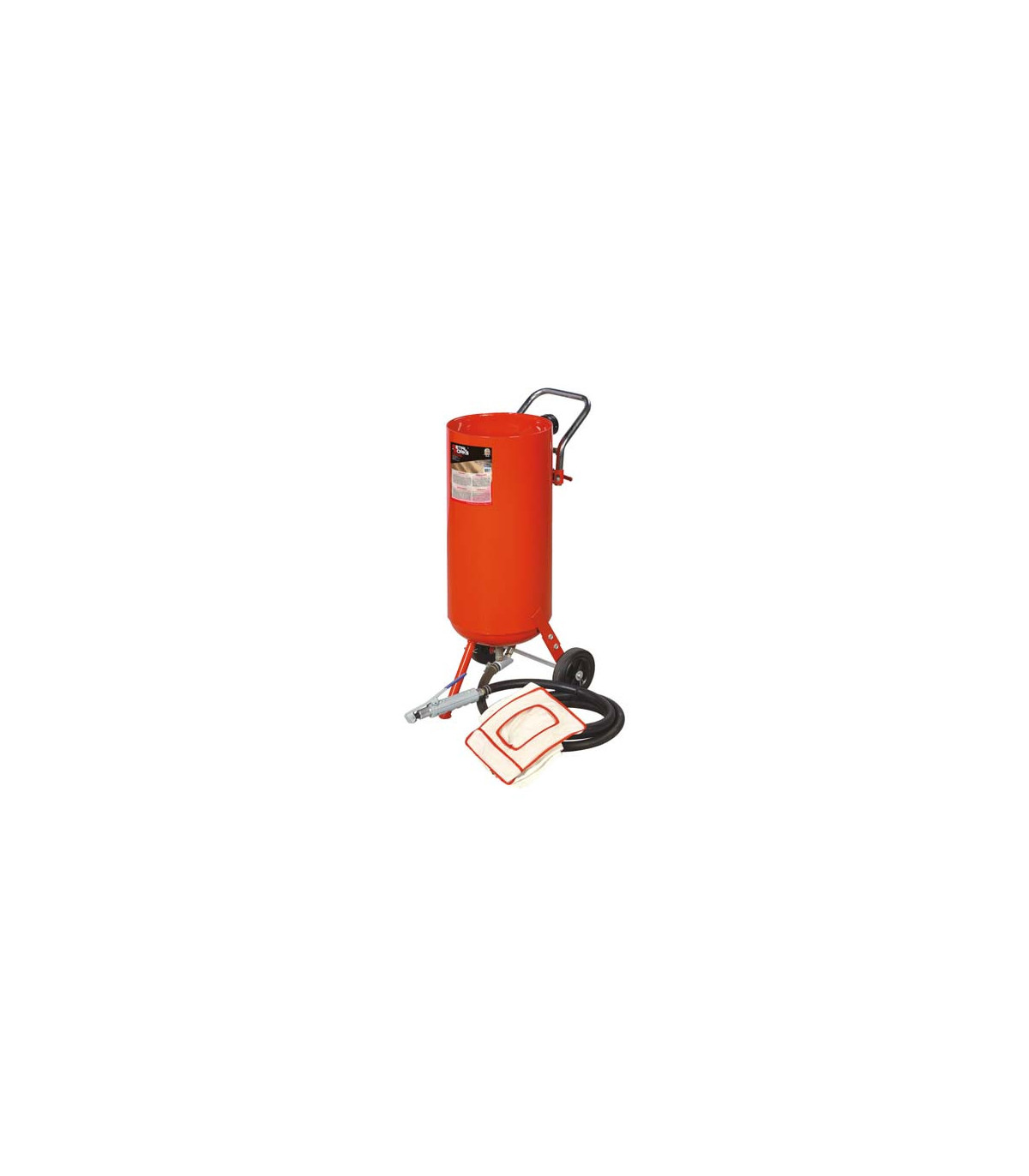

Portable pressure blasting equipment 75 L | METALWORKS

Portable pressure blasting equipment 75 L | METALWORKS. Portable and enamelled with a 1-meter durable hose and 3/8 thread. Equipped with a gun made of carbon steel with 4 interchangeable nozzles. Comes with a safety valve for pressure release. A compressed air system is required for operation (not included). A compressor of at least 5.5 hp and an air hose of Ø 10 mm is recommended. Usable with various types of abrasives: glass-based, silicon carbide, alumina, walnut shell. Use with gravel of 80, 100, 120 with the corresponding nozzle. For optimal results, a working time of 45 minutes at 6.5 bars of pressure is recommended.

Bring the power of pressure blasting anywhere. This 75-liter portable equipment is ideal for stripping large surfaces that do not fit in a booth, such as vehicle chassis, trailers, or metal structures.

FEATURES

Maximum blasting power with total mobility.

• Portable Design: Mounted on rubber wheels and with a sturdy handle, this equipment can be easily moved around the workshop or taken to an outdoor work area.

• Pressure System: The 75-liter capacity tank is pressurized to propel the abrasive with great force, achieving fast and effective stripping.

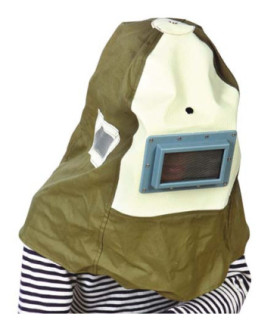

• Complete Kit: Supplied ready to use, including a 2.5-meter hose, a blasting gun with a shut-off valve, a set of 4 ceramic nozzles, a filling funnel, and a protective hood for the operator.

• Safety and Control: Equipped with a pressure gauge to monitor the tank pressure and a safety valve.

SPECIFICATIONS

• Type of system: Direct Pressure, portable.

• Volume 75 l.
  Air consumption 300 - 700 l/min.
  Working pressure range 4.5 - 8.6 bars
  Pressure gauge indicator 0 - 8.5 bars
  Hose length 1 m
  Tank dimensions (Ø x l) 317 x 685 mm
  Dimensions (l x w x h) 420 x 560 x 890 mm
  Net weight 16 kg

APPLICATIONS

• Blasting of car chassis, trailers, and agricultural machinery.

• Cleaning of stone facades, removal of graffiti, or stripping of swimming pools.

• Preparation of large metal surfaces for painting in the shipbuilding or construction industry.

• Restoration of cast iron radiators, railings, and other large structures.
