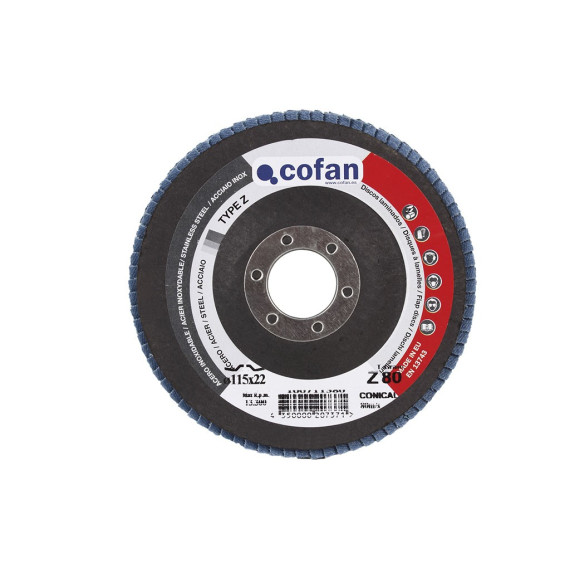

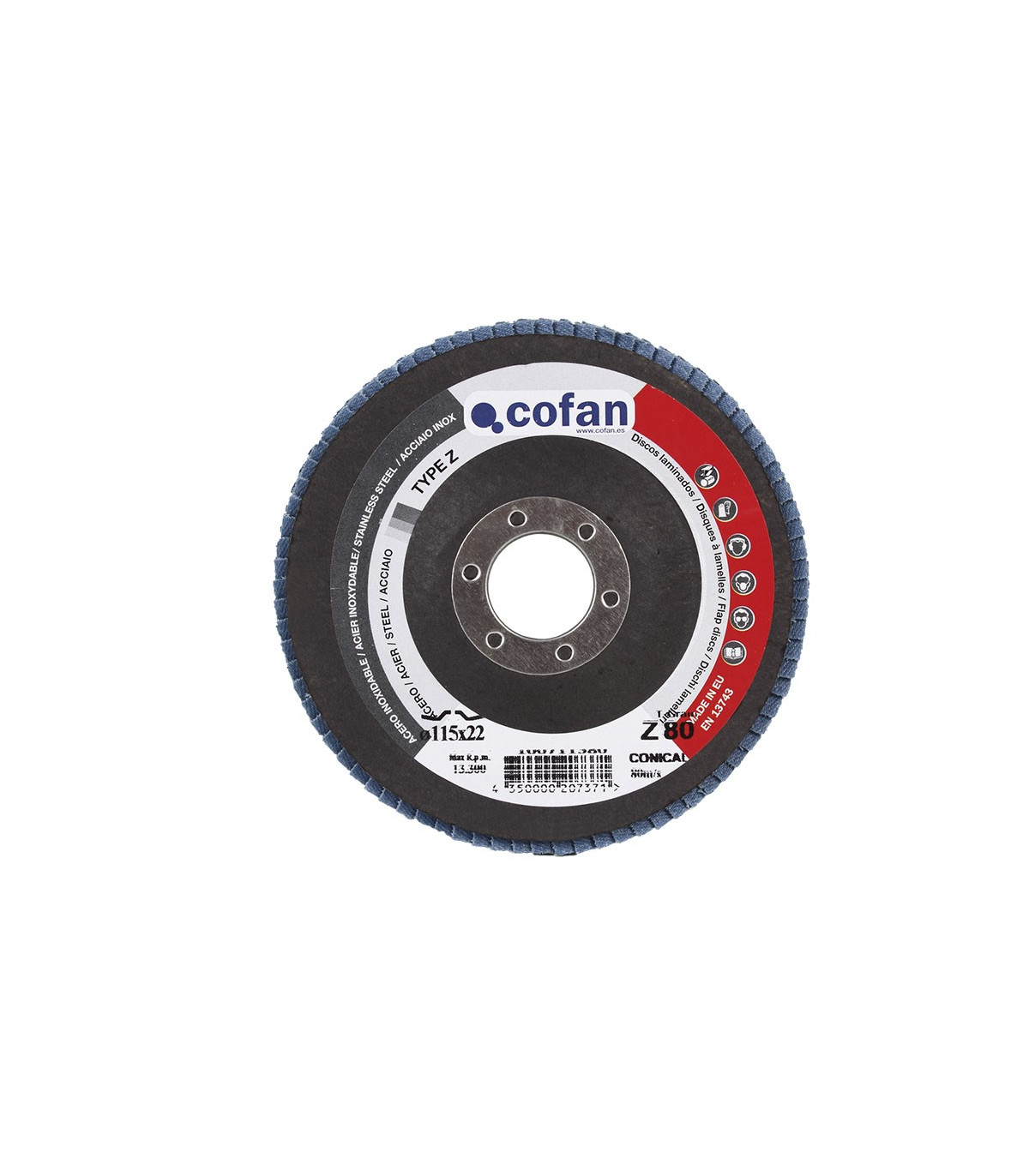

35 ° curved laminate discs with Zirconio Cofan

The curved laminated discs 35º with Cofan zirconium offer a higher solution for rough roughing work in angular grinders. Manufactured with a combination of high quality zirconium abrasive and advanced rolling technology, these discs provide exceptional abrasive power, extended durability and precise results in a wide range of materials.

Features

• 35º curved design: offers an ideal attack angle for aggressive and efficient roughing, minimizing the bounce and operator fatigue.
• Zirconium grain: ensures a high cutting and roughing capacity, ideal for hard and resistant materials such as steel, stainless steel, cast iron, etc.
• Structure of reinforced steel: provides great strength and durability, allowing continuous and prolonged work.
• Quality certifications: meet the strictest standards of quality and safety, guaranteeing reliable and responsible use.
• Available in various grains: from G-60 to G-120 to adapt to different roughing needs, from the thick roughing to the fine polishing.
• A variety diameters: 115, 125 and 178mm to cover a wide range of applications and adapt to different angular grinders.

Regulations

ISO 9001: 2000

International Standard of IT Service Management. This rule has been published by the International Standardization Organization (ISO) and the International Electrotechnical Commission (ICE).

In 12413

The standard EN 12413, entitled "Safety requirements for agglomerated abrasive products", establishes security requirements for rotating agglomerated abrasive products such as abrasive wheels, cutting discs and mounted points. Its objective is to prevent accidents and injuries during the use of these products.

For what kind of work is it appropriate

For angular grinders of any power.

Simply with a slight pressure, a very good cutting quality is achieved in construction materials.

The cutting discs are very resistant to the impacts and avoids its defragmentation during continuous cutting operations.

Uses and applications

• Rough and leveling of welding cords in all types of metals, removal of burrs.

• roughing of hard layers on deep surfaces and oxidations. They are designed to be employed in both pneumatic and electrical polishing or cutting tools whose maximum turning speed is from 8,500 to 13,300 rpm (according to measures)

Instructions for use

Do not use the cutting discs in tools without protective guards. The guard must cover at least half of the disk. Never exceed the maximum turning speed of the disc. Do not adjust the disc too much when it is installed on the machine, this could generate breakage.

The disk should not be forced into the piece during the cutting process until you reach the Puntrode to stop or stop the engine of the machine. Perform only straight cuts, do not bend the disc. Do not support the machine on the saved disc. Before installing the disc, review it in search of fissures.

Storage

This product must be stored in its original packaging, in a place donnela temperature is between 15 ° C and 26 ° C and humidity is between 35% and 50%.

They should also be away from the ground, windows and external walls. The incorrect storage can cause considerable reduction in the quality of this product.

Exposure controls and personal protection

1. Eye protection: Use safety lenses to prevent entry into the eyes of metallic particles or discing that are expelled during the cutting or roughing process.

2. Protection of hands: Wear gloves.

3. Skin protection: Avoid contact with dust skin and generated metallic chip.

4. Respiratory protection: use authorized respirators. In this case respirator against powders.

5. Ingestion: Does not apply

6. Recommended ventilation: Provide adequate extraction

Product life

5 years since its manufacturing date.
