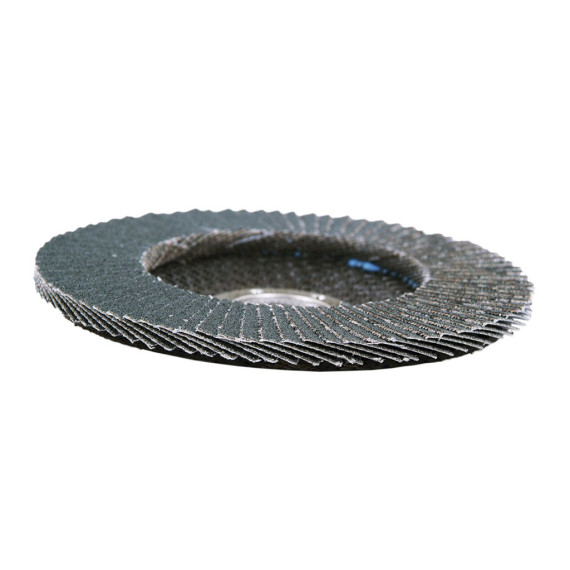

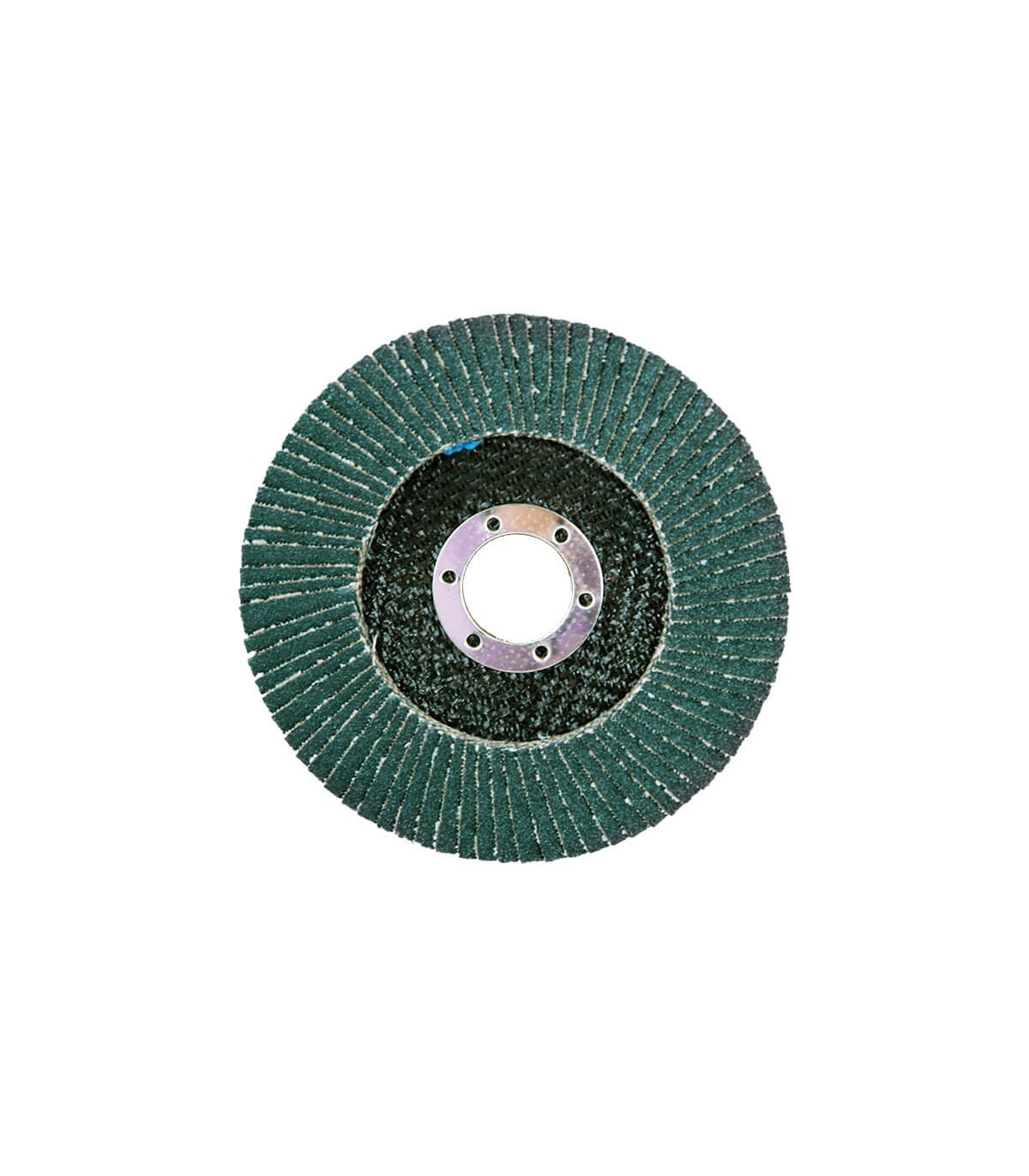

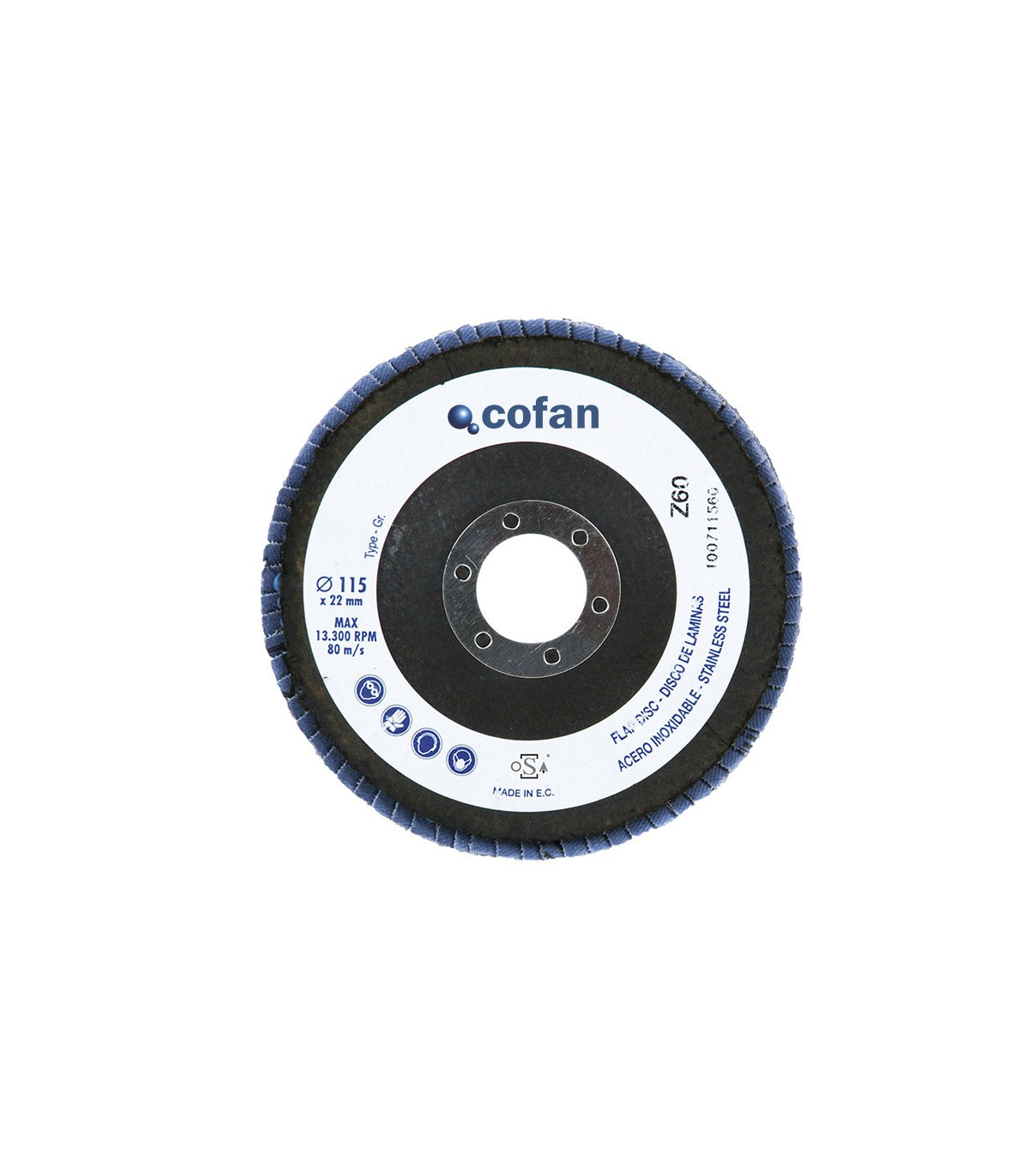

Flat laminated discs with zirconium 115mm and 125mm Cofan

Flat laminated discs with cofan zirconium give you a top roughing solution for angle grinder, combining steel resistance with zirconium cutting power to achieve exceptional results in demanding roughing work.

Cebe certified (EN 12413), FEPA and the organization for the safety of abrasives (OSA), guarantee their quality, safety and optimum performance.

Features

• Large contact surface for fast and efficient roughing, ideal for flat surfaces and general roughing works.
• High cutting and roughing capacity, ideal for hard and resistant materials such as steel, stainless steel, cast iron, etc.
• Great resistance and durability, allowing a continuous and prolonged job.
• With the strictest quality and safety standards, guaranteeing reliable and responsible use.
• From G-60 to G-120 to adapt to different roughing needs, from thick roughing to fine polishing.
• VARED DIAGERS: 115mm and 125mm to cover a wide range of applications and adapt to different angular grinders.

Technical data

Professional laminate discs Flat type "Z" (Zirconium).

Professional line for industrial use.

Laminated disk of great performance.

Number of sheets from 60 (thick grain) up to 120 (fine grain). Valid to work steel or stainless steel.

Regulations

ISO 9001: 2000

International Standard of IT Service Management. This rule has been published by the International Standardization Organization (ISO) and the International Electrotechnical Commission (ICE).

In 12413

The standard EN 12413, entitled "Safety requirements for agglomerated abrasive products", establishes security requirements for rotating agglomerated abrasive products such as abrasive wheels, cutting discs and mounted points. Its objective is to prevent accidents and injuries during the use of these products.

For what kind of work is it appropriate

For angular grinders of any power.

Simply with a slight pressure, a very good cutting quality is achieved in construction materials.

The cutting discs are very resistant to the impacts and avoids its defragmentation during continuous cutting operations.

Uses and applications

• Rough and leveling of welding cords in all types of metals, removal of burrs.

• roughing of hard layers on deep surfaces and oxidations. They are designed to be employed in both pneumatic and electrical polishing or cutting tools whose maximum turning speed is from 8,500 to 13,300 rpm (according to measures)

Instructions for use

Do not use the cutting discs in tools without protective guards. The guard must cover at least half of the disk. Never exceed the maximum turning speed of the disc. Do not adjust the disc too much when it is installed on the machine, this could generate breakage.

The disk should not be forced into the piece during the cutting process until you reach the Puntrode to stop or stop the engine of the machine. Perform only straight cuts, do not bend the disc. Do not support the machine on the saved disc. Before installing the disc, review it in search of fissures.

Storage

This product must be stored in its original packaging, in a place donnela temperature is between 15 ° C and 26 ° C and humidity is between 35% and 50%.

They should also be away from the ground, windows and external walls. The incorrect storage can cause considerable reduction in the quality of this product.

Exposure controls and personal protection

1. Eye protection: Use safety lenses to prevent entry into the eyes of metallic particles or discing that are expelled during the cutting or roughing process.

2. Protection of hands: Wear gloves.

3. Skin protection: Avoid contact with dust skin and generated metallic chip.

4. Respiratory protection: use authorized respirators. In this case respirator against powders.

5. Ingestion: Does not apply

6. Recommended ventilation: Provide adequate extraction

Product life

5 years since its manufacturing date.

On Cofan

Cofan It is a company that has more than 15 years of experience in the hardware sector, industrial supply, and in the manufacture of safety footwear and other body protection equipment. The mark counts 28,000 references and many specialized services to improve productivity and profitability of business and households.
