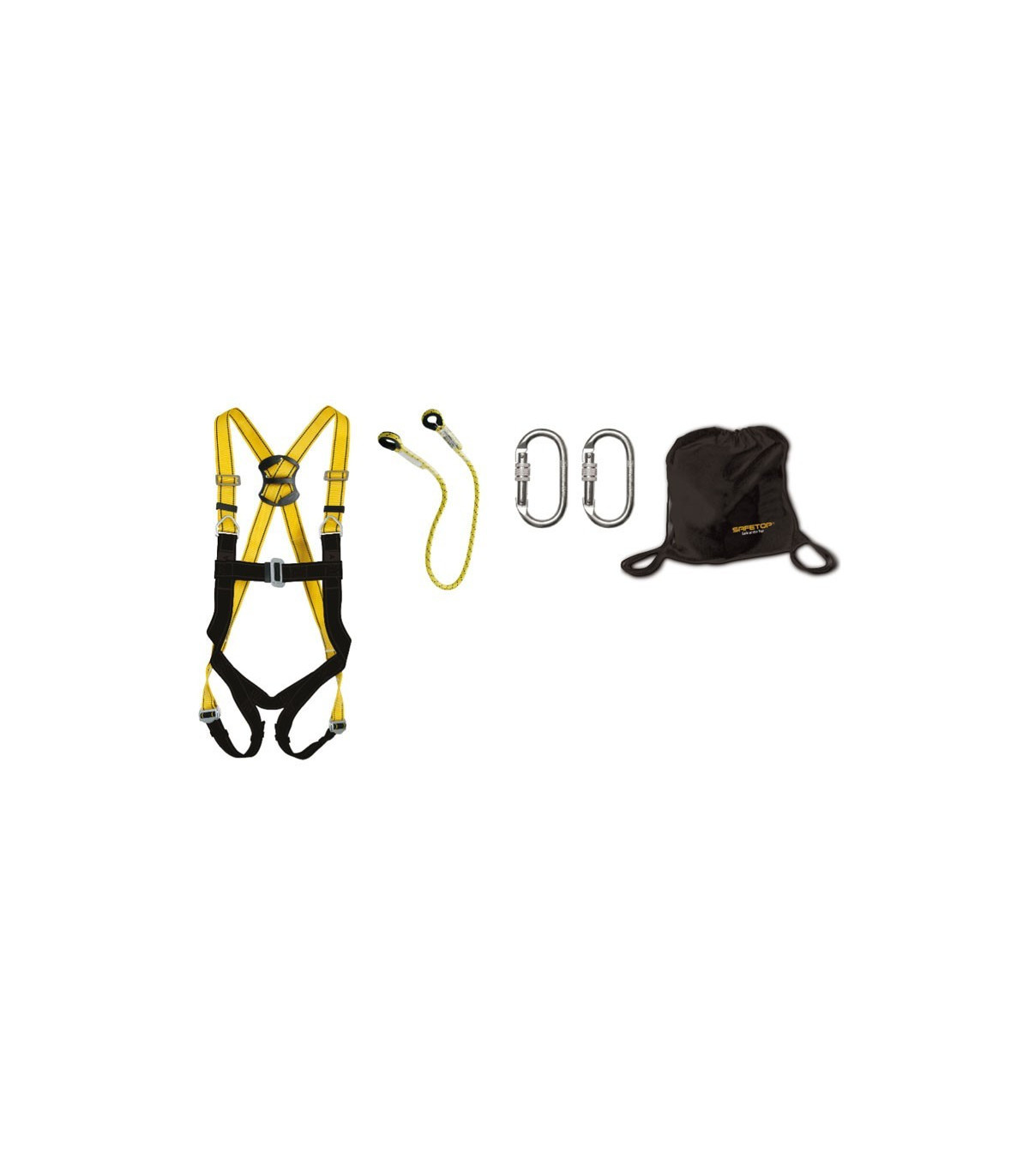

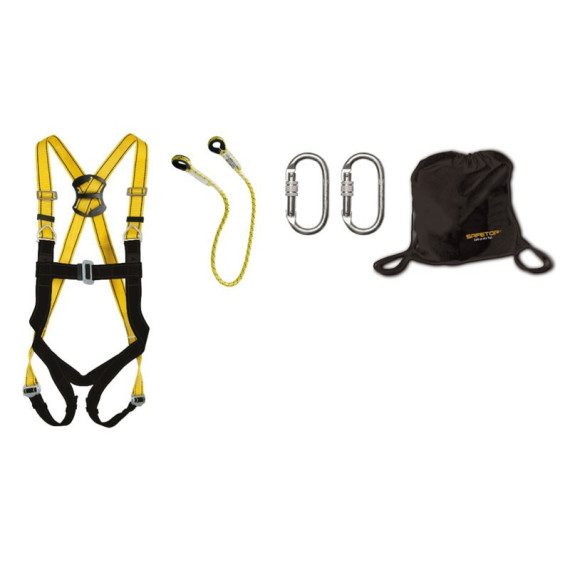

Anti-fall kit with Teide harness and 1.5 m rope SAFETOP

Fall protection equipment consisting of: Teide harness Ref. 80070B, with three attachment points: two chest attachment rings and one dorsal ring to attach the connection subsystem. 1.5 m polyester rope, manufactured with a protective sleeve. Includes two carabiners 80112, with a strength of 25 kN, and a polyester equipment carrying bag Ref. 80124.

CHARACTERISTICS OF THE HARNESS OF

• Category III
• Full body harness with three anchor points
• Two fixation pectoral rings
• A dorsal ring to place the connection subset.
• Adjustable buckle for shoulder and thigh straps
• Buckle for closure and adjustment on the secondary strap that connects the two chest straps.
• Subgluteal band connecting the two thigh bands.
• The tapes have a width of 45 mm.
• Valid for use by a single person.

CHARACTERISTICS OF CONNECTING CORD

• PPE category III
• Braided polyester rope in yellow-black color for easy visibility.
• Anchor or fastening element in a working position.
• Total length (from end cap to end cap): 1.5 m. Diameter: 12 mm.
• Made of polyester.
• Ends manufactured with heat-sealed and reinforced loops on the inside for connecting carabiners.
• The carabiners must be certified according to the EN362 standard.
• The safety rope can be used as: * In connection with an energy absorber as a safety lanyard, according to standard EN354.

CHARACTERISTICS: STEEL CARABINERS

• PPE category III
• made of steel with a manual locking mechanism by thread. 19 mm opening
• Maximum resistance: 25 Kn (longitudinal, when the door is closed and locked)
• Dimensions: 108 x 60 mm
• Weight: approximately 170 g Type B
• Connector used as a component

Reviews and lifespan

Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifespan of the equipment.

Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

CHARACTERISTICS OF THE EQUIPMENT CARRYING BAG

• Polyester bag, designed to store fall protection equipment.
• In black
• High strength fabric
• Waterproof
• Dimensions: 37x32 cm.

APPLICATIONS

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

STANDARDS/ REGULATIONS

EN361 & EN358 (harness)

EN354 (lashing equipment)

EN362 (carabiner)
