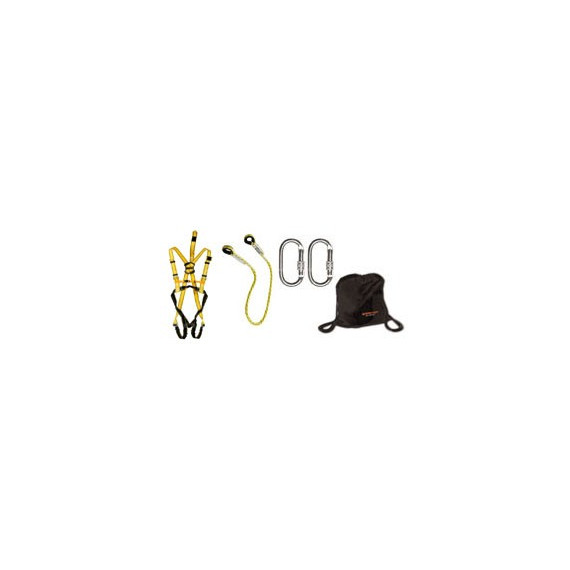

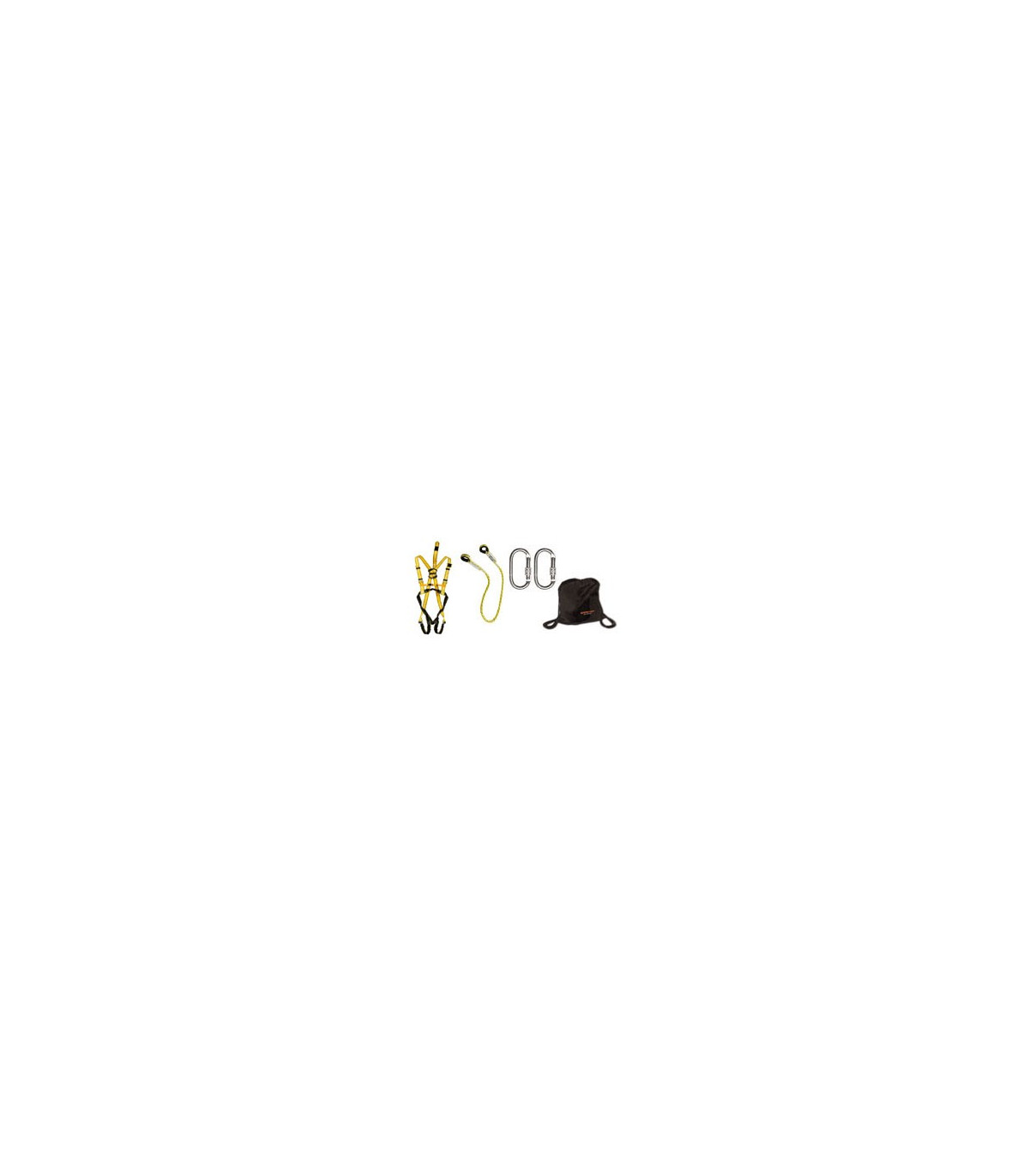

Basic SAFETOP kit with harness and 1-meter rope.

Fall protection equipment consisting of: Tibet harness Ref. 80071, with two anchor points, 40 cm dorsal sling for connection of shock-absorbing element. 1 m polyester rope; two carabiners 80112, with a strength of 25 kN and an opening of 17 mm. Additionally, equipment carrying bag Ref. 80124, made of polyester, in high-strength and waterproof fabric. Dimensions: 40x37 cm.

CHARACTERISTICS OF THE HARNESS

• PPE category III
• Fall protection harness with dorsal attachment ring for the placement of a shock-absorbing element.
• Dorsal strap of 40 cm for connection of shock absorber subassembly.
• Buckle for closure and chest adjustment
• Front knots for chest attachment with connector
• Buckle closures and adjustments for thigh straps, shoulder straps, and chest straps.
• Gluteal band connecting the two thigh bands.
• 4 personal adjustment points, two for the chest and two for the legs.
• Valid for use by a single person.
• Galvanized steel metal parts
• 45 cm wide polyester ribbons

CHARACTERISTICS OF THE CONNECTING CORD

• PPE category III
• Braided polyester rope in yellow-black color for easy visibility.
• Anchor or fastening element in a working position.
• Total length (from end cap to end cap): 1 m. Diameter: 10.5 mm
• Made of polyamide and polyester.
• Ends manufactured with heat-sealed and reinforced loops on the inside for connecting carabiners.
• The carabiners must be certified according to the EN362 standard.
• The safety rope can be used as: * In connection with an energy absorber as a safety lanyard, according to standard EN354. * As a positioning lanyard, according to standard EN358.

CHARACTERISTICS: STEEL CARABINERS

• PPE category III
• made of steel with a manual locking mechanism by thread. 19 mm opening
• Maximum resistance: 25 Kn (longitudinal, when the door is closed and locked)
• Dimensions: 108 x 60 mm
• Weight: approximately 170 g Type B
• Connector used as a component

Reviews and lifespan

Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifespan of the equipment.

Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

CHARACTERISTICS OF THE EQUIPMENT CARRYING BAG

• Polyester bag, designed to store fall protection equipment.
• In black
• High strength fabric
• Waterproof
• Measurements: 40x37 cm
• Packaging: 1 unit (individually packaged)

WORK AREAS OF THE ANTI-FALL KIT

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

STANDARDS/ REGULATIONS

EN361 (full body harness)

EN354 (tie-down equipment)

EN362 (carabiner)
