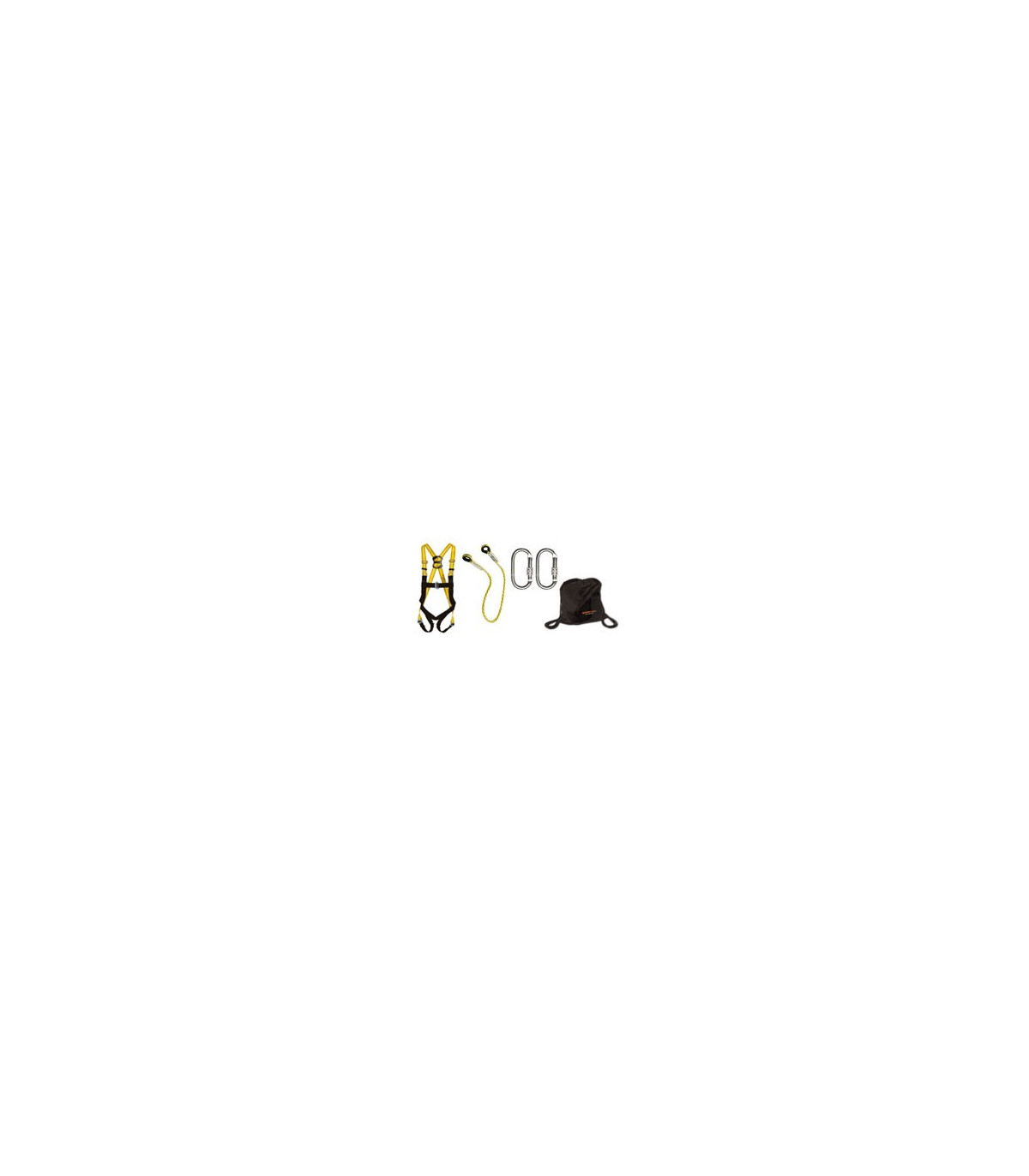

SAFETOP anti-fall kit with Teide harness and carabiners

Fall protection equipment consisting of: Teide harness Ref. 80070B, with three attachment points: two chest attachment rings and one dorsal ring to place the connection subassembly. 1 m polyester rope, manufactured with end protectors to connect carabiners. Includes two carabiners 80112, with a strength of 25 kN and equipment carrying bag Ref. 80124 made of polyester.

FEATURES OF THE TEIDE SAFETY HARNESS

• PPE category III
• 4-point fall protection harness: two front loops, two lateral positioning rings, and one dorsal anchor.
• In easily visible yellow combined with black.
• Includes a belt with a strap for fixed positioning work at job sites, with closure buckles and personal adjustment.
• Dorsal attachment ring for possible connection of a damping element.
• Adjustment buckles and placement of the shoulder and thigh straps.
• Buckle for closing and adjusting the secondary pectoral straps.
• Two lateral rings for fastening or securing
• Subgluteal band connecting the two thigh bands.

CHARACTERISTICS OF CORD WITH CABLE GUARD

• PPE category III
• made of braided yellow-black polyester for easy visibility
• Anchor or fastening element in a working position.
• Total length (from end cap to end cap): 1 m.
• Diameter: 12 mm.
• Ends manufactured with heat-sealed and reinforced loops on the inside for connecting carabiners.
• The carabiners must be certified according to the EN362 standard.
• The safety rope can be used in connection with an energy absorber as a safety lanyard, according to the EN354 standard.

CHARACTERISTICS: STEEL CARABINERS

• PPE category III
• made of steel with a manual locking mechanism by thread. 19 mm opening
• Maximum resistance: 25 Kn (longitudinal, when the door is closed and locked)
• Dimensions: 108 x 60 mm
• Weight: approximately 170 g Type B
• Connector used as a component

Reviews and lifespan

Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifespan of the equipment.

Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

CHARACTERISTICS OF THE EQUIPMENT CARRYING BAG

• Polyester bag, designed to store fall protection equipment.
• In black
• High strength fabric
• Waterproof
• Dimensions: 37x32 cm.

APPLICATIONS

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

STANDARDS/ REGULATIONS

EN361 & EN358 (harness)

EN354 (lashing equipment)

EN362 (carabiner)
