SAFETOP anti-fall equipment with harness and adjustable rope Tibet Plus

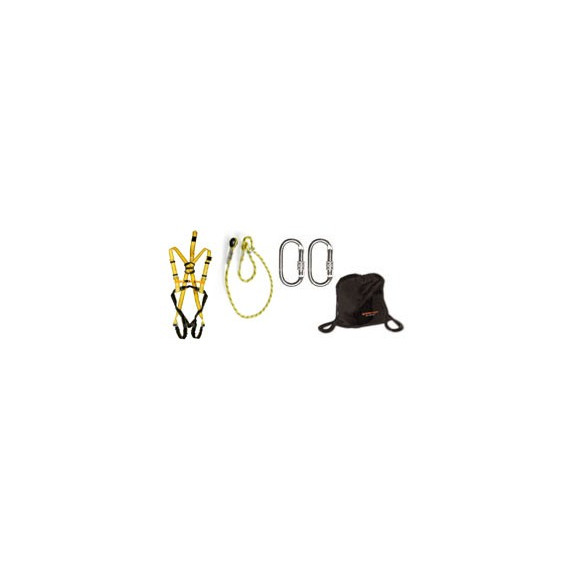

Fall protection equipment consisting of a harness Ref 80071, an adjustable rope 1.7 m 80107; two steel carabiners 80112, and a bag 80124.

CHARACTERISTICS OF THE HARNESS

• PPE category III
• Fall protection harness with dorsal attachment ring for the placement of a shock-absorbing element.
• Dorsal strap of 40 cm for connection of shock absorber subassembly.
• Buckle for closure and chest adjustment
• Front knots for chest attachment with connector
• Buckle closures and adjustments for thigh straps, shoulder straps, and chest straps.
• Gluteal band connecting the two thigh bands.
• 4 personal adjustment points, two for the chest and two for the legs.
• Valid for use by a single person.
• Galvanized steel metal parts
• 45 cm wide polyester ribbons

CHARACTERISTICS OF THE ADJUSTABLE STRING

• PPE category III
• Braided polyester rope in yellow-black color for easy visibility.
• Anchor or fastening element in a working position.
• Adjustable via metal ring
• Adjustable consumes 1.7 meters.
• 12 mm diameter braided rope
• Made of polyamide and polyester.
• Connection to horizontal lifelines or fixed anchor points that can support a force of at least 15 kN.
• The anchor point must be located above the connection point of the fall protection harness.
• The safety rope can be used as: * In connection with an energy absorber as a safety lanyard, according to standard EN354. * As a positioning lanyard, according to standard EN358.

CHARACTERISTICS: STEEL CARABINERS

• PPE category III
• made of steel with a manual locking mechanism by thread. 19 mm opening
• Maximum resistance: 25 Kn (longitudinal, when the door is closed and locked)
• Dimensions: 108 x 60 mm
• Weight: approximately 170 g Type B
• Connector used as a component

Reviews and lifespan

Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifespan of the equipment.

Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

CHARACTERISTICS OF THE EQUIPMENT CARRYING BAG

• Polyester bag, designed to store fall protection equipment.
• In black
• High strength fabric
• Waterproof
• Measurements: 40x37 cm
• Packaging:1 unit (individually packaged)

WORK AREAS OF THE ANTI-FALL KIT

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

STANDARDS/ REGULATIONS

EN361 (full body harness)

EN354(tie-down equipment)

EN362(carabiner)
