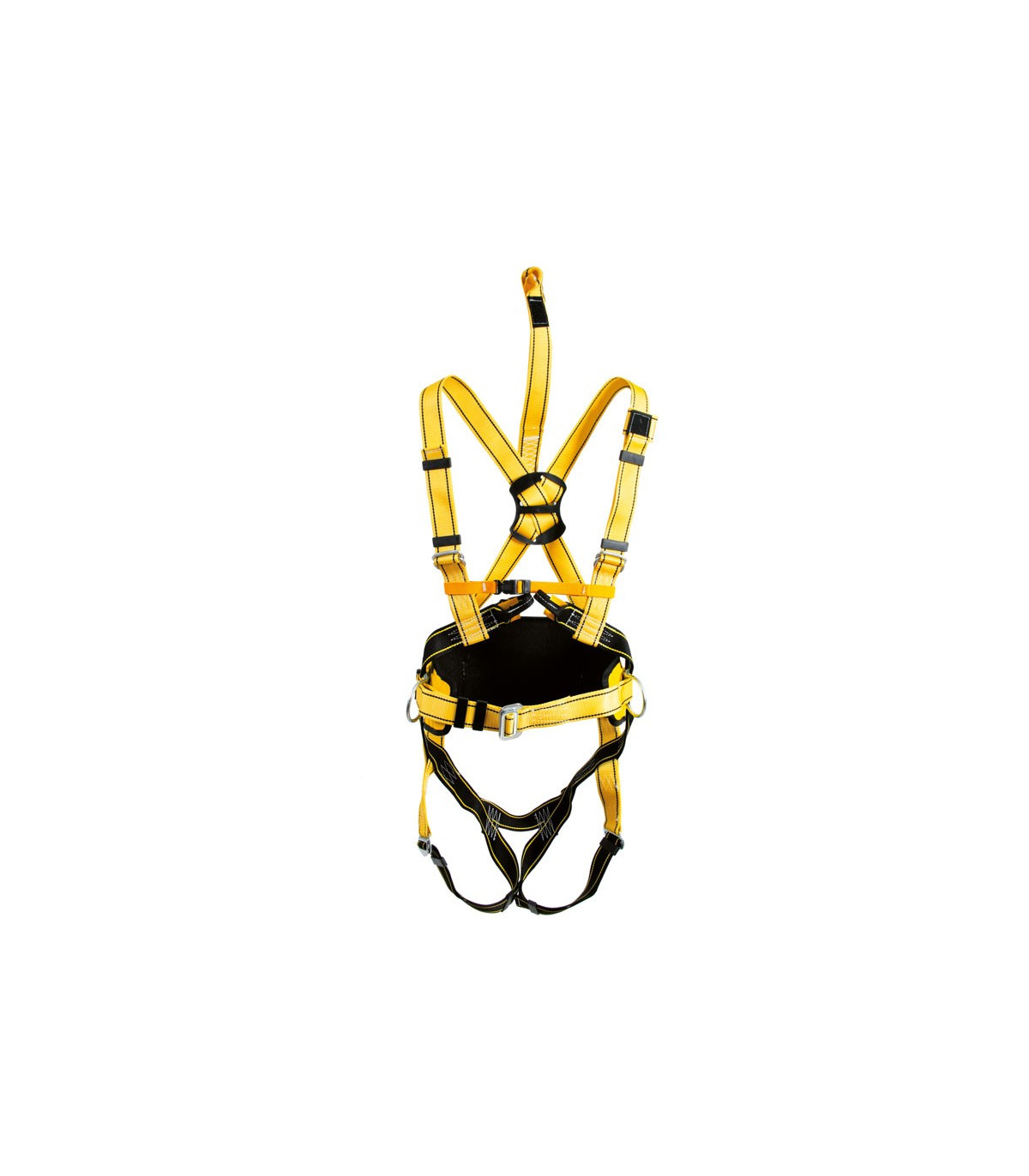

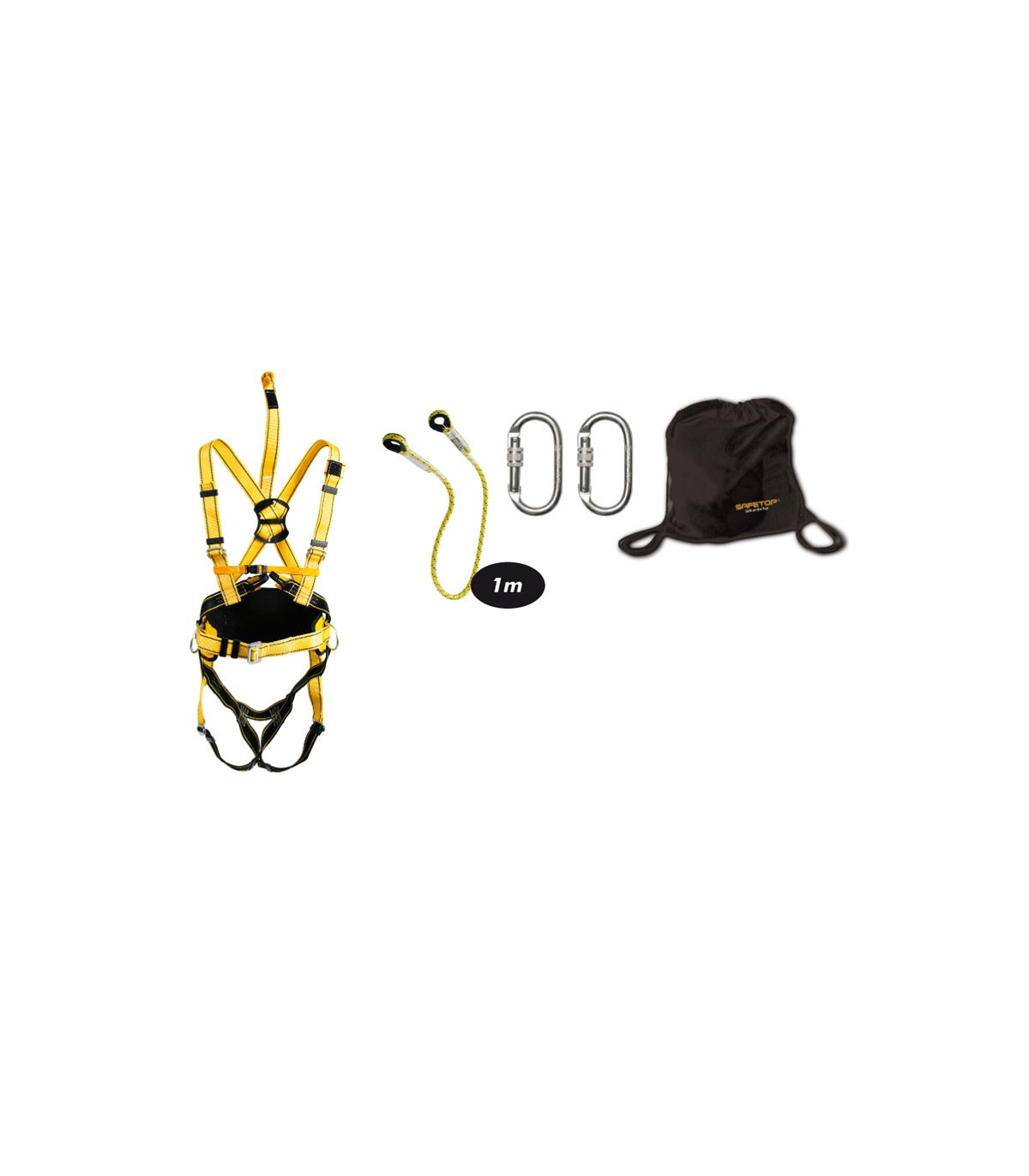

Fall protection equipment with harness Makalu SAFETOP Elbrus

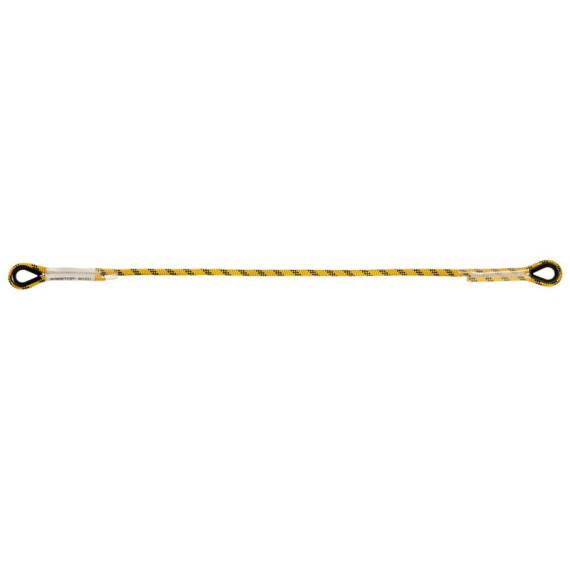

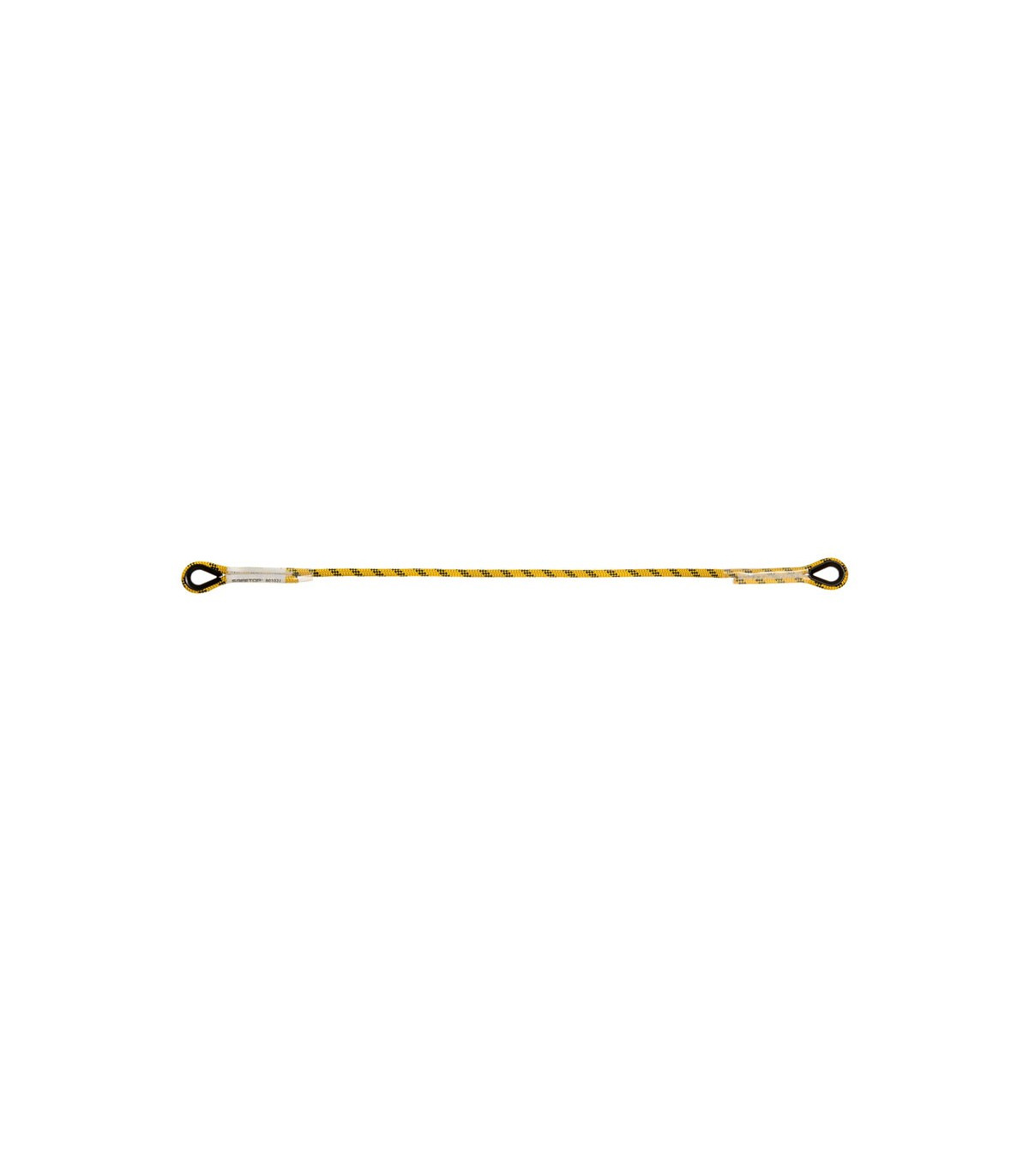

CHARACTERISTICS OF CORD WITH CABLE GUARD

• PPE category III
• made of braided yellow-black polyester for easy visibility
• Anchor or fastening element in a working position.
• Total length (from end cap to end cap): 1 m.
• Diameter: 12 mm.
• Ends manufactured with heat-sealed and reinforced loops on the inside for connecting carabiners.
• The carabiners must be certified according to the EN362 standard.
• The safety rope can be used in connection with an energy absorber as a safety lanyard, according to standard EN354. - As a positioning lanyard, according to standard EN358.

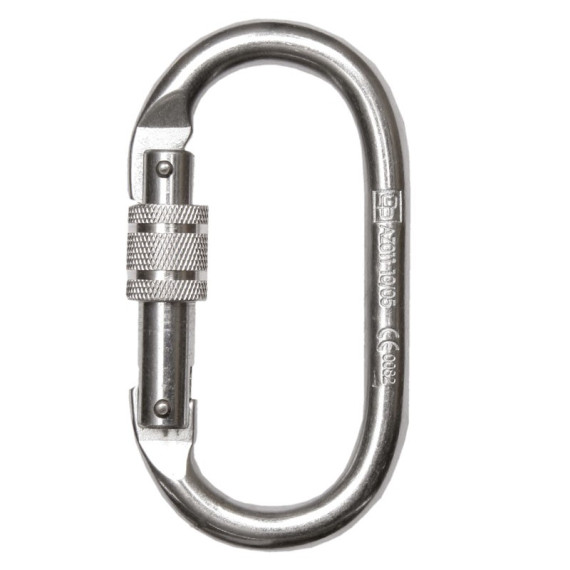

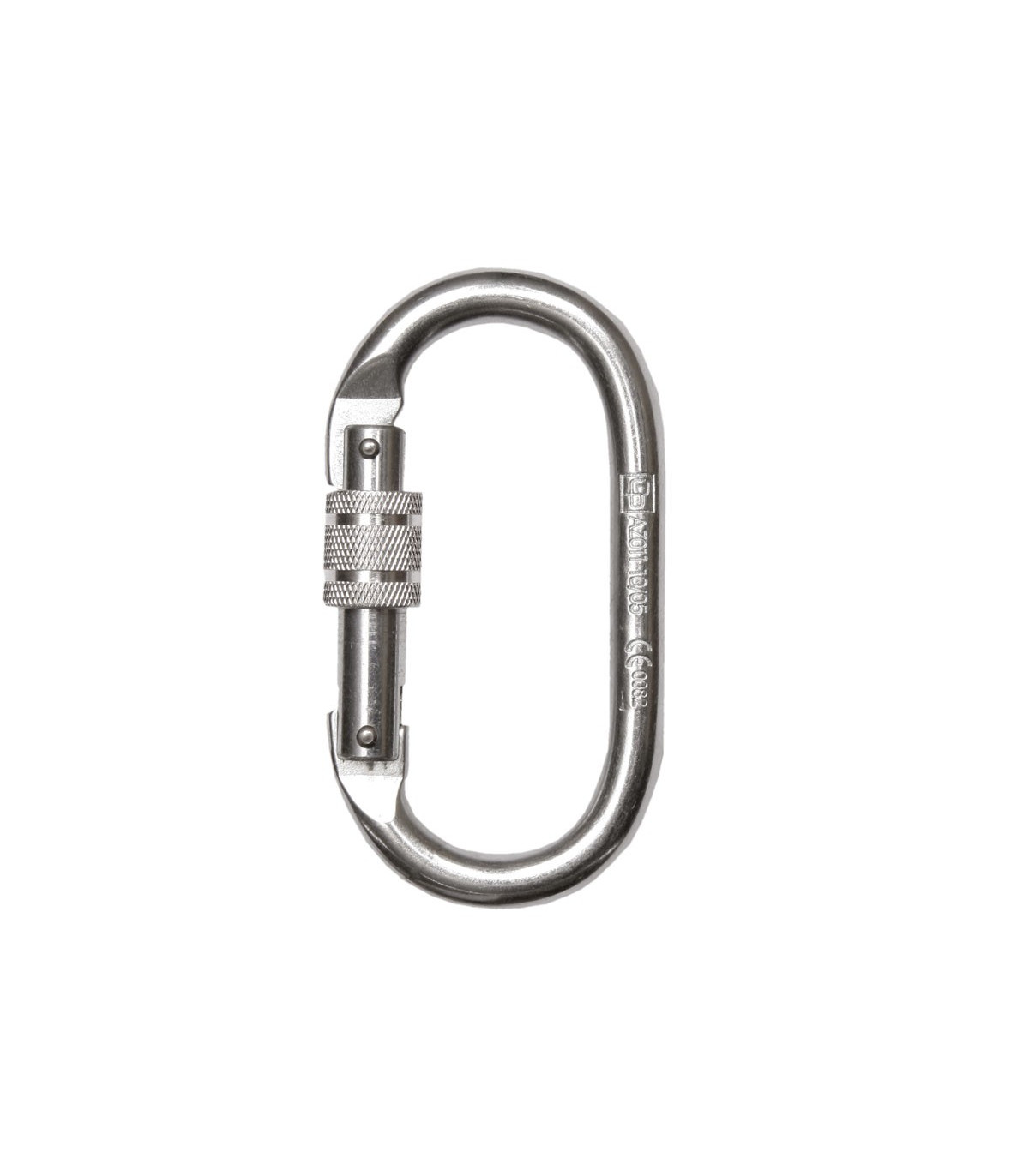

CHARACTERISTICS: STEEL CARABINERS

• PPE category III
• Made of steel with a manual locking mechanism by thread.
• 17 mm aperture
• Maximum resistance: 25 Kn (longitudinal, when the door is closed and locked)
• Dimensions: 108 x 60 mm
• Weight: approximately 170 g
• Connector used as a component

Reviews and lifespan

Reviews: the equipment must be inspected every 12 months by an authorized person or by the manufacturer. The inspections must be recorded in the review sheet attached to the PPE along with the instruction manual.

See the instruction manual to identify the maximum lifespan of the equipment.

Cleaning: Clean with water and soap that does not exceed 30ºC. Do not dry with heat. Lubricate the hinges and levers occasionally after washing.

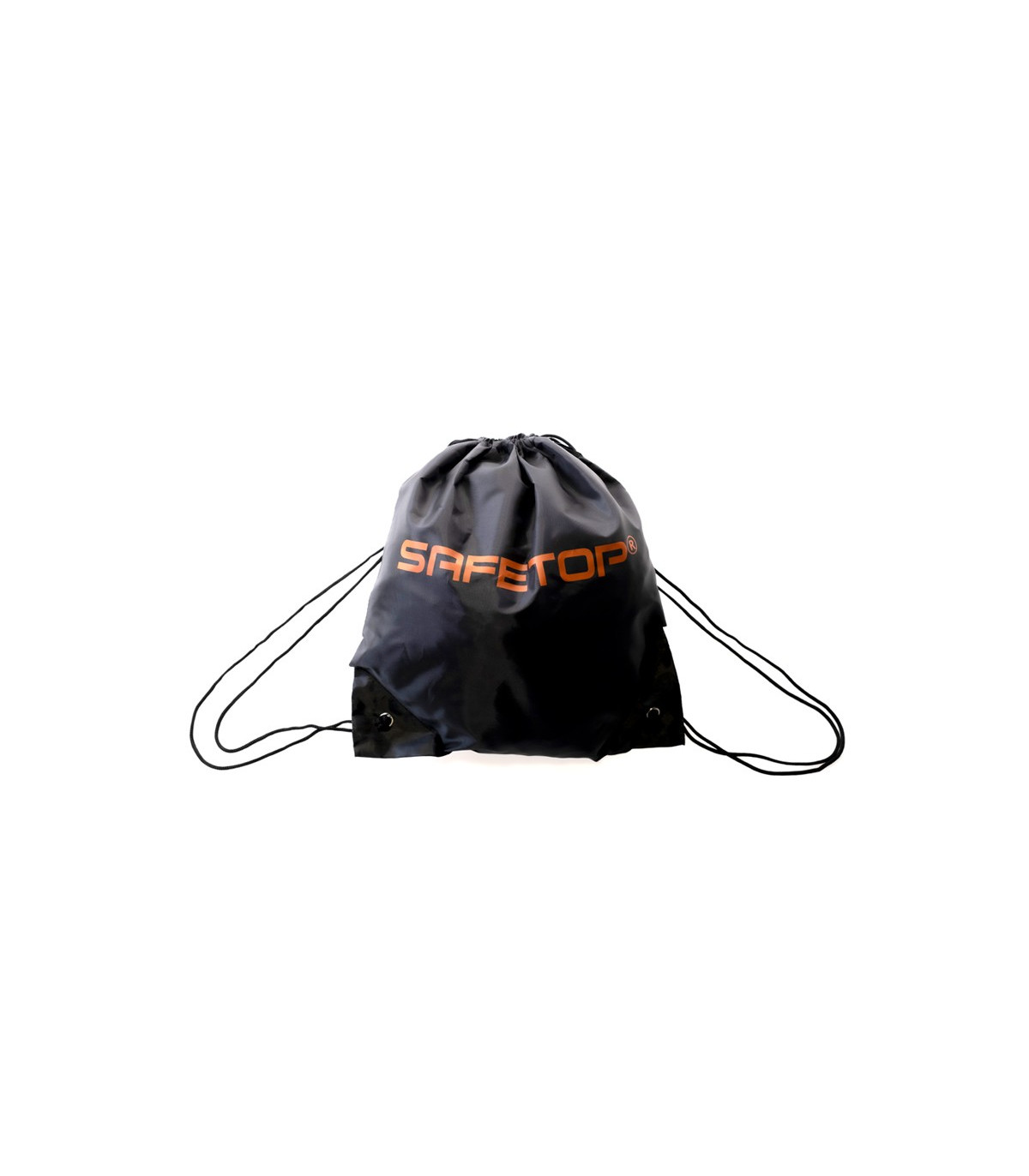

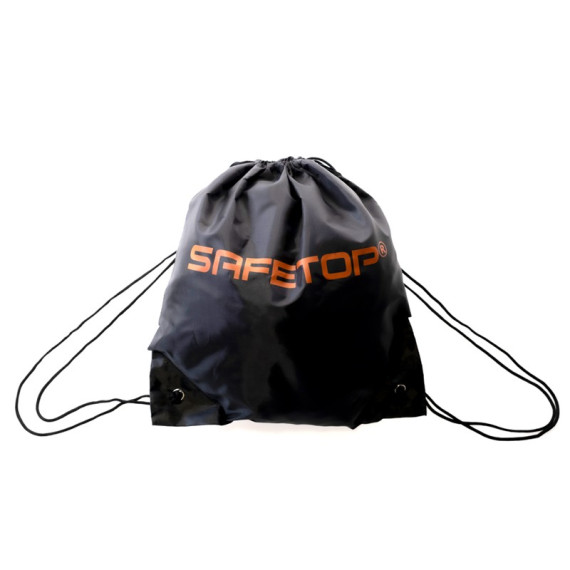

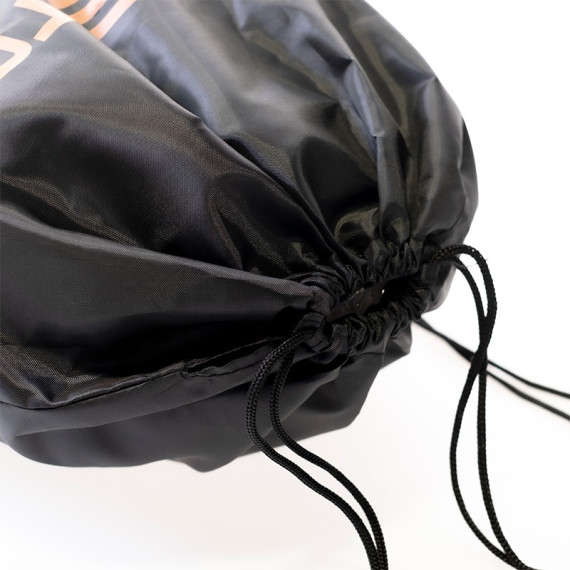

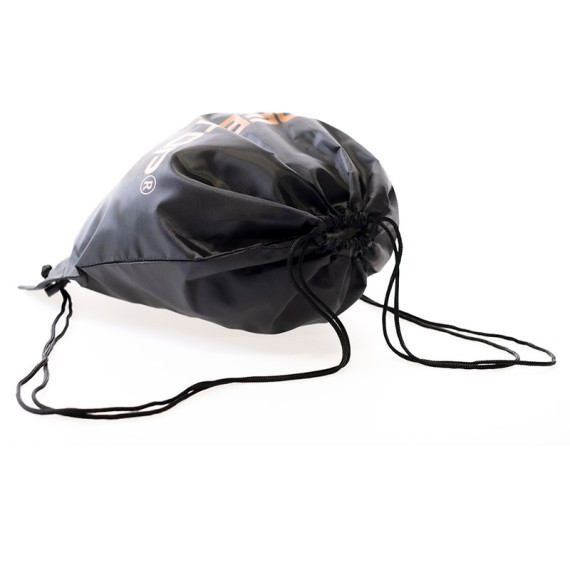

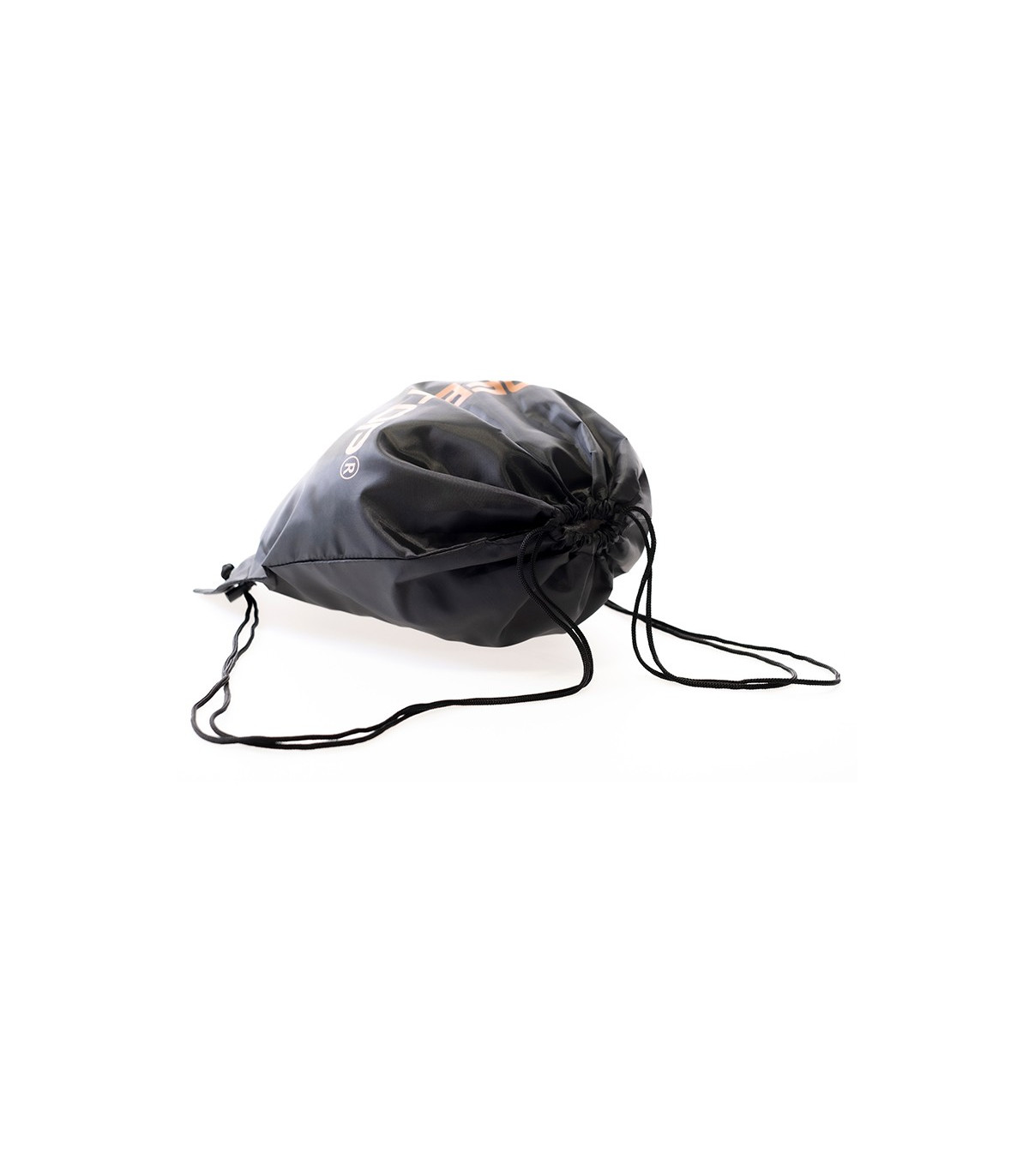

CHARACTERISTICS OF THE EQUIPMENT CARRYING BAG

• Polyester bag, designed to store fall protection equipment.
• In black
• High strength fabric
• Waterproof
• Dimensions: 37x32 cm.

APPLICATIONS

Surface suspension, installation of collective protections, attachment to horizontal lifelines, among others.

STANDARDS/ REGULATIONS

EN361 & EN358 (full leather harness and positioning)

EN354 (tie-down equipment)

EN362 (class B carabiner)
