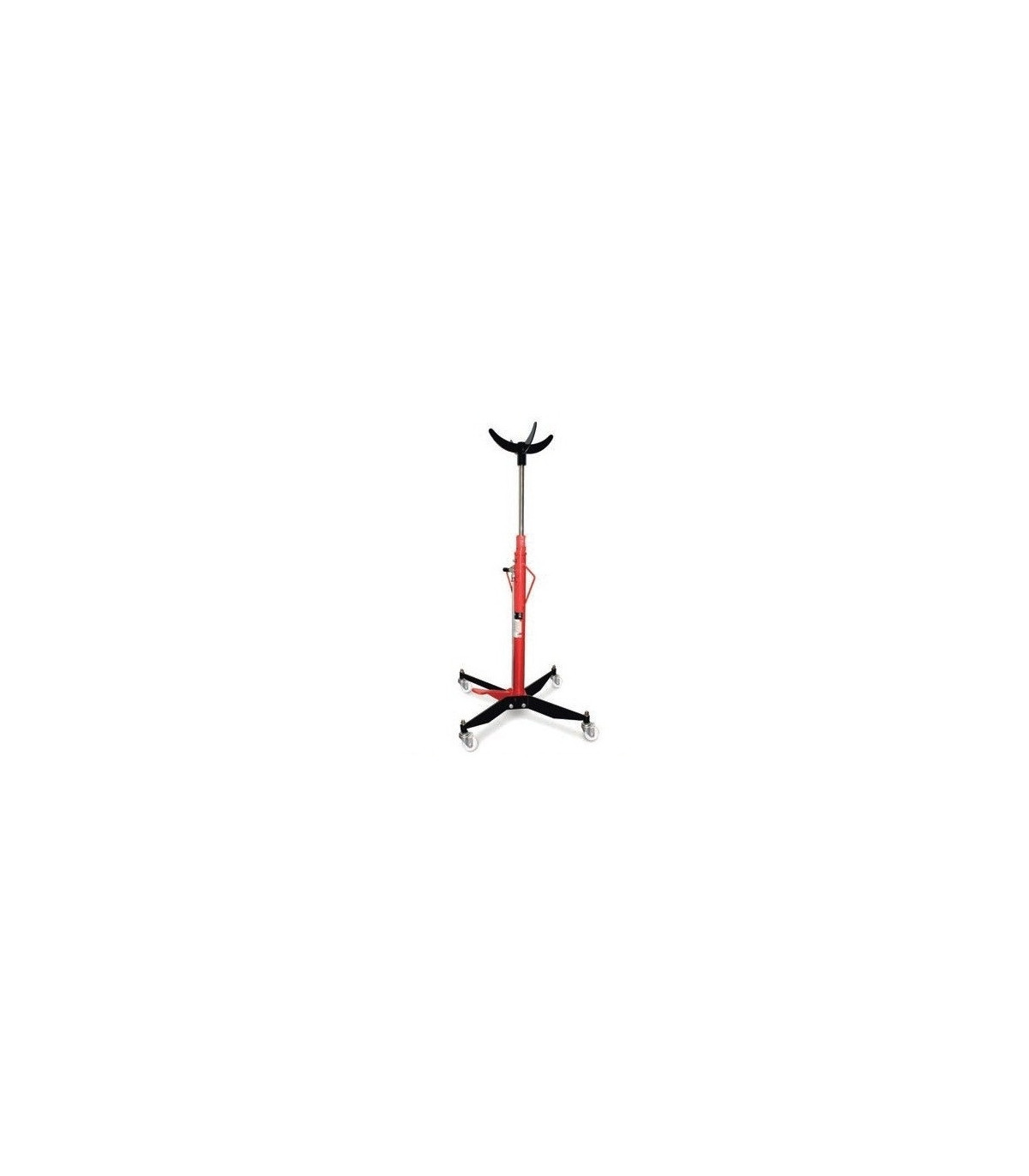

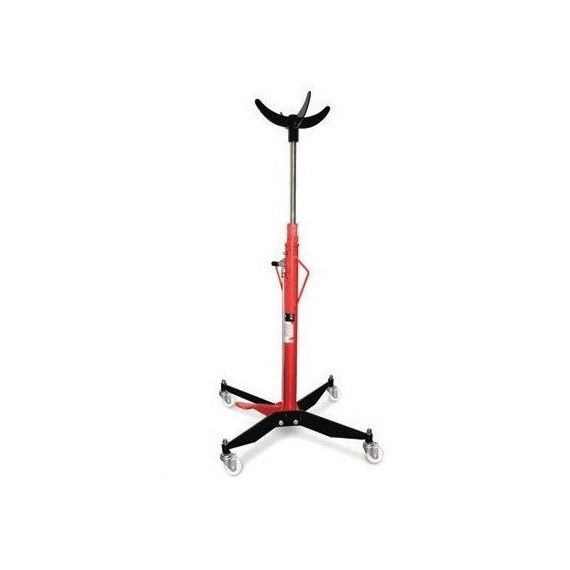

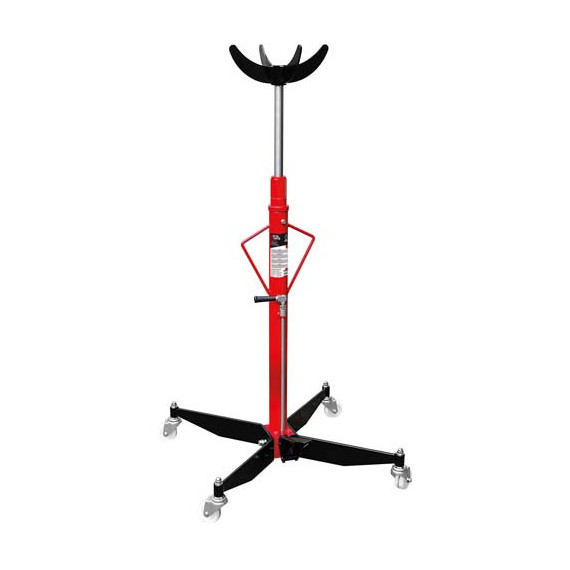

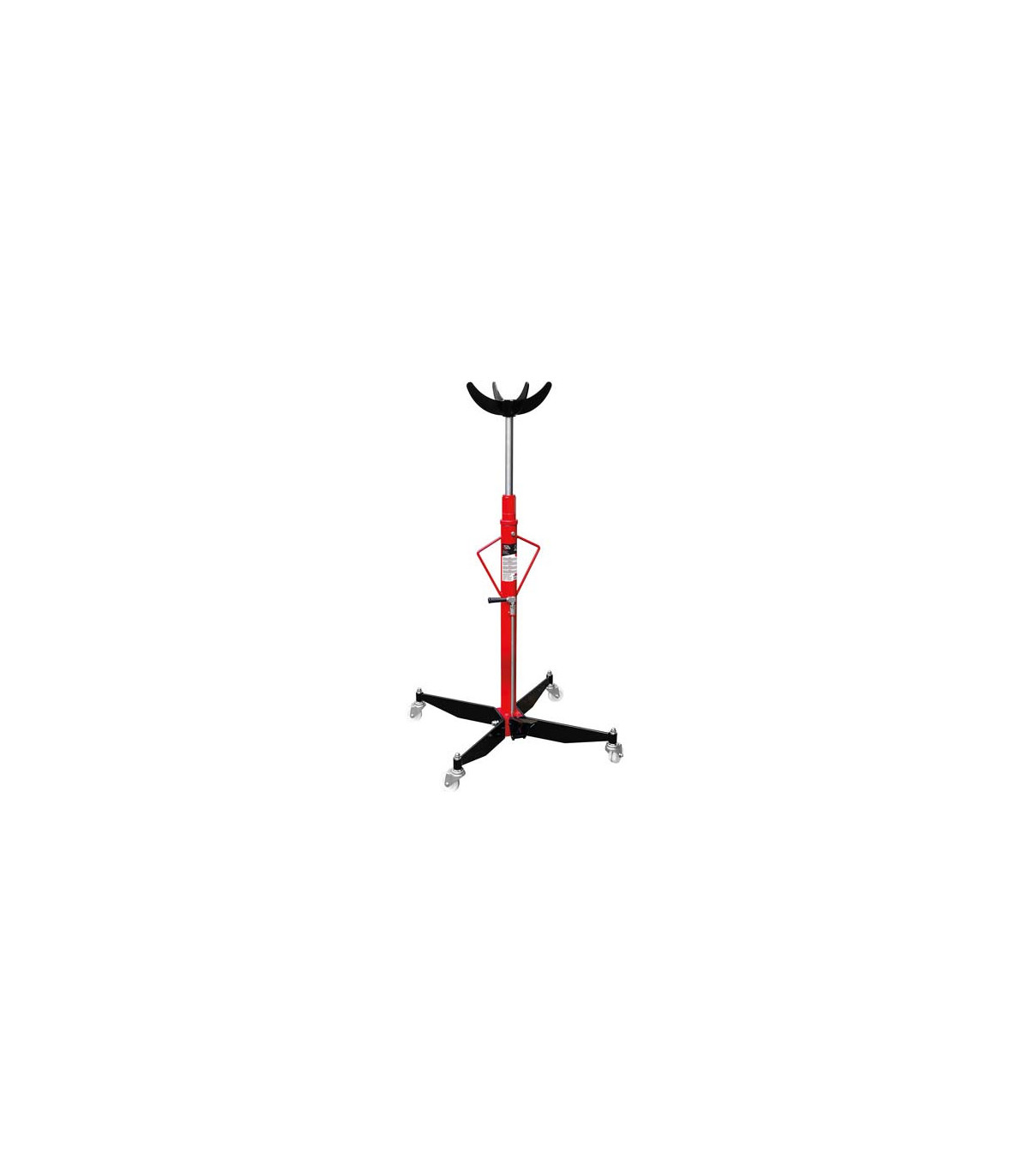

Hydraulic Pit Jack 0.5 Tons CAT755 METALWORKS

Hydraulic Pit Jack 0.5 Tons CAT755 METALWORKS. With a pedal to lift heavy weights while the operator exerts minimal effort. The essential support for work in pits and lifts. This pit jack is designed to hold and manipulate gearboxes, differentials, and other heavy vehicle components, facilitating assembly and disassembly tasks.

FEATURES

This hydraulic pit jack offers stable and precise lifting. The hydraulic pump is conveniently operated with the foot, leaving the hands free to position the part. The base features four swivel wheels for smooth movement along the pit. The support plate (cradle) is adjustable in tilt and comes equipped with securing chains to ensure the load. Descent is controlled for maximum safety.

SPECIFICATIONS

• Maximum capacity 500 kg.
  Load capacity 0.5 T.
  Min height 1,100 mm
  Max height 1,900 mm
  Dimensions (l x w x h) 570 x 570 x 1,100 mm
  Net weight 32 kg

CE REGULATIONS

This product meets the essential safety and health requirements stipulated by European directives, ensuring safe and reliable operation under CE certification.

APPLICATIONS

• Disassembly and assembly of gearboxes, transmissions, and differentials.

• Support for exhaust systems, fuel tanks, and subframes.

• Essential tool for mechanical workshops that work with pits or column lifts.

• Increases safety and efficiency in more complex repairs.
