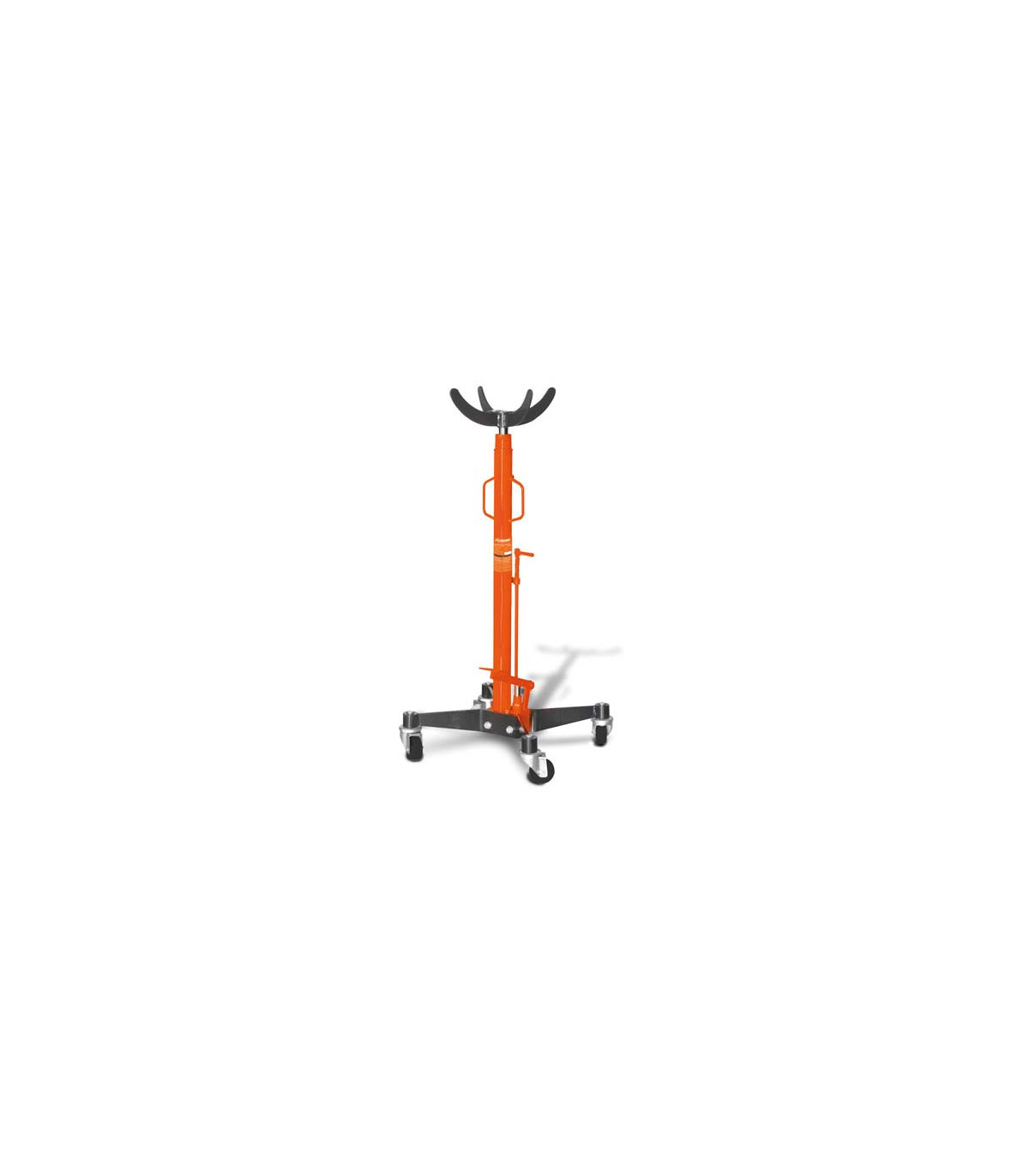

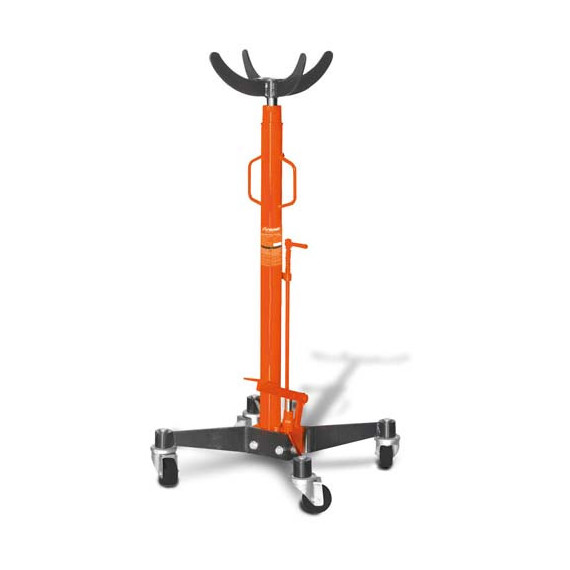

Hydraulic jack for pits GH 600 Pro UNICRAFT

HYDRAULIC JACK FOR PITS adjustable in height. Ideal for the installation and disassembly of gears, discharge systems, axles, and other maintenance operations.

The load is lowered through a manual regulator. It has four swivel wheels to facilitate maneuvering.

FEATURES

Ideal for the installation and disassembly of transmissions, axles, exhaust systems, and for other service and maintenance work.

Continuously lift through a foot-operated hydraulic pump, keeping hands free to hold or work.

The load is lowered through a manual regulator.

Four swivel wheels to facilitate maneuvering.

TECHNICAL DATA

Load capacity 0.6 t

Lifting range 1180 – 1950 mm

VPE 1

Dimensions and weights

Approximate length 500 mm

Approximate width/depth 510 mm

Approximate height 1180 mm

Approximate weight 34 kg

VOLUME

Unit of measurement: piece

Packing unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

• Vehicle repair: It is essential for accessing components located under the chassis, such as transmissions, axles, and suspension systems.
• Preventive maintenance: Allows inspection and adjustment of components without the need to fully lift the vehicle.
• Truck workshops: Used for working on axles, brakes, exhaust systems, and other truck and bus components.
• Railway workshops: Can be used in the repair of wagons and locomotives.
• Agricultural machinery workshops: For performing maintenance tasks on tractors, harvesters, and other heavy equipment.
• Military workshops: Used for maintenance work on military vehicles.
