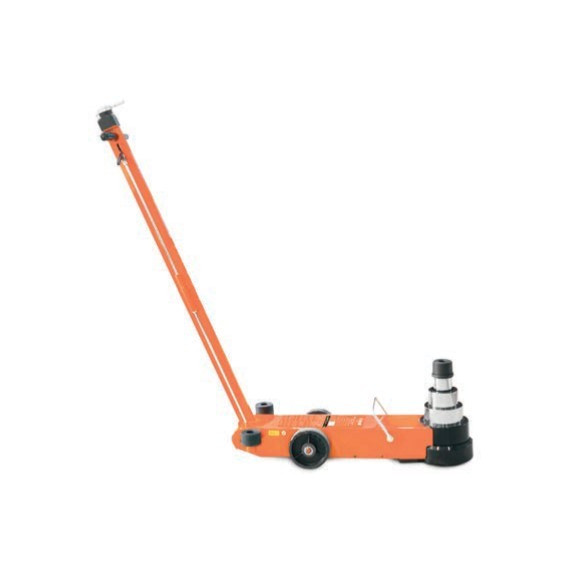

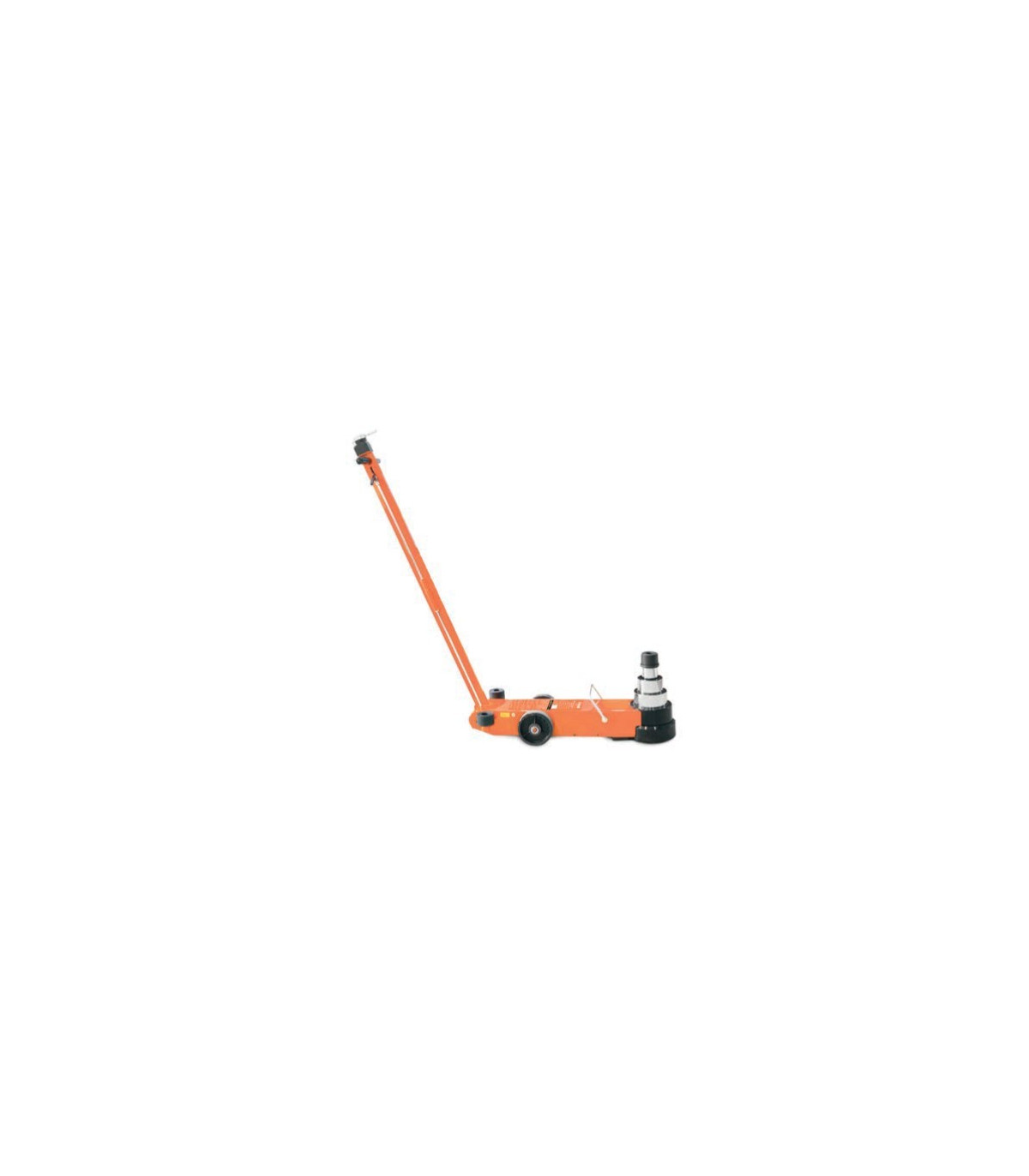

Hydraulic cat with elevation WWH 60000 PH for UNICRAFT workshop

Hydraulic jack with lifting WWH 60000 PH for UNICRAFT workshop. This type of jack is compatible with compressors from 6 to 10 bars. Compact design with sturdy wheels. With a T-handle for easy maneuvering.

FEATURES

Controlled and safe lifting and lowering

To operate with compressed air from an external producer

Hard chrome-plated pistons with an extra smooth surface

Compact construction

With cast iron wheels and a PU layer

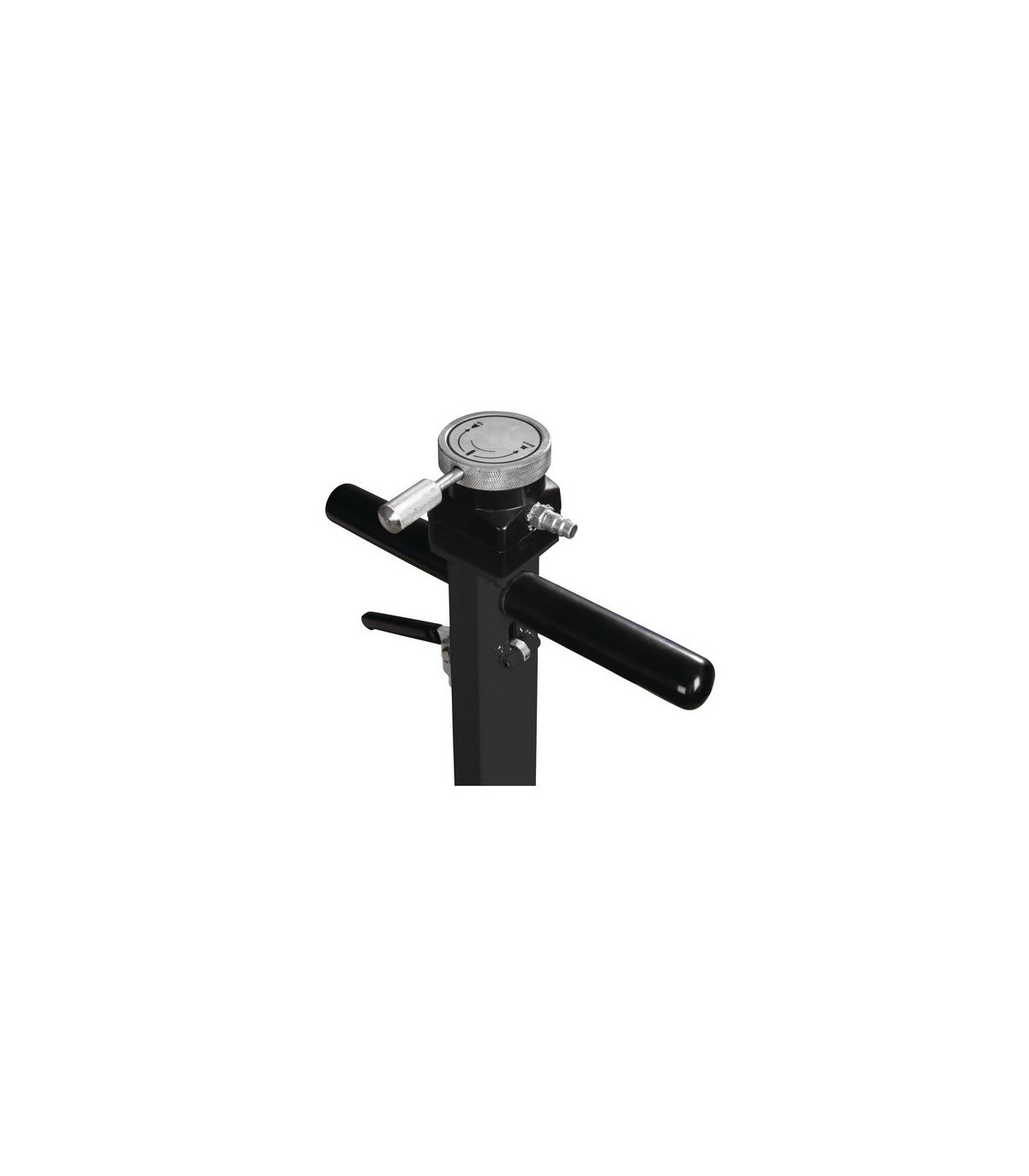

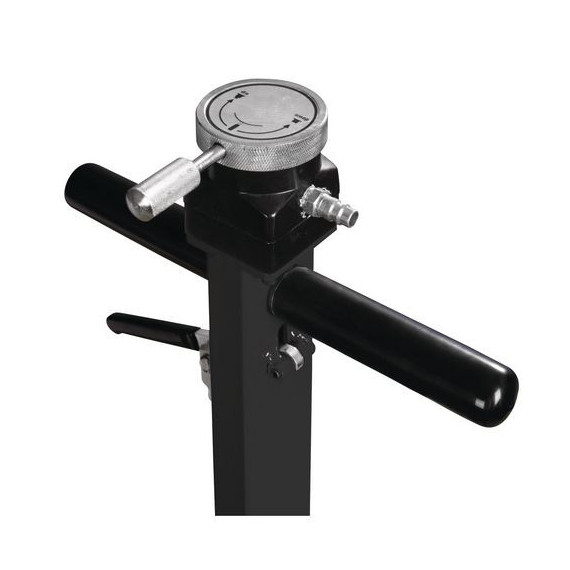

T-handle for easy maneuvering

With a practical carrying handle on the housing

The two cast iron accessories can be used individually to increase the lifting height or can also be stacked on top of each other

TECHNICAL DATA

Load capacity 20 / 40 / 60 t

Final height(s) 312 / 256 / 207 mm

Explanation of the final height(s) without accessories

Height of the fixing piece(s) 45 / 75 mm

Minimum lower height 150 mm

Operating pressure 8 – 12 bar

Air requirement 97 l/Stroke

VPE 1

Dimensions and weights

Approximate length 875 mm

Approximate width/depth 295 mm

Approximate height 1530 mm

Approximate weight 64 kg

SUPPLY VOLUME

Unit of measurement: piece

Packaging unit: 1

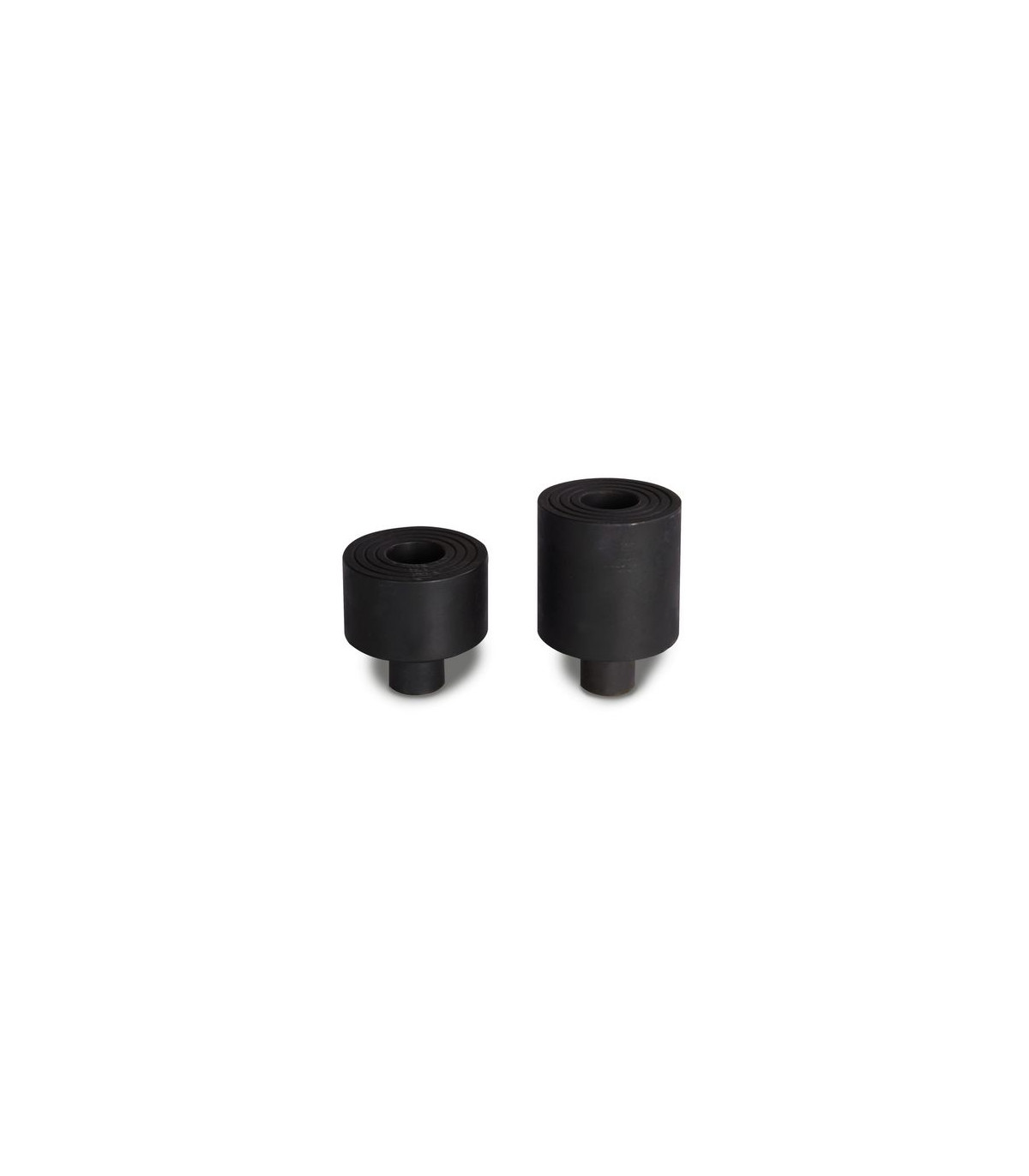

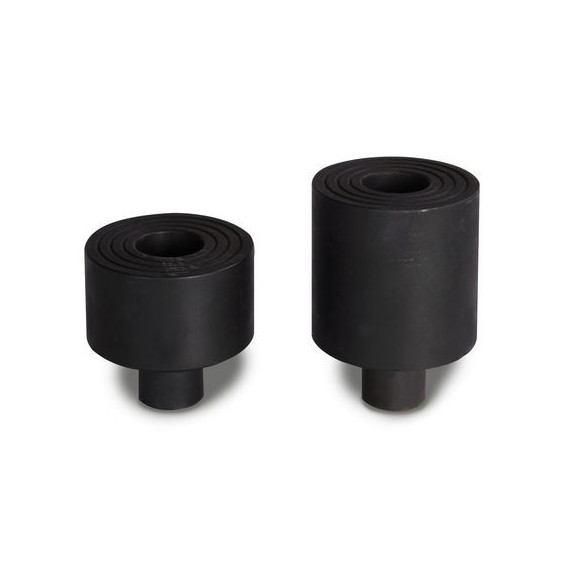

Cast iron accessory, 45 mm

Cast iron accessory, 75 mm

FOR WHAT TYPE OF WORK IS IT SUITABLE

It is used in various industries and workplaces, including:

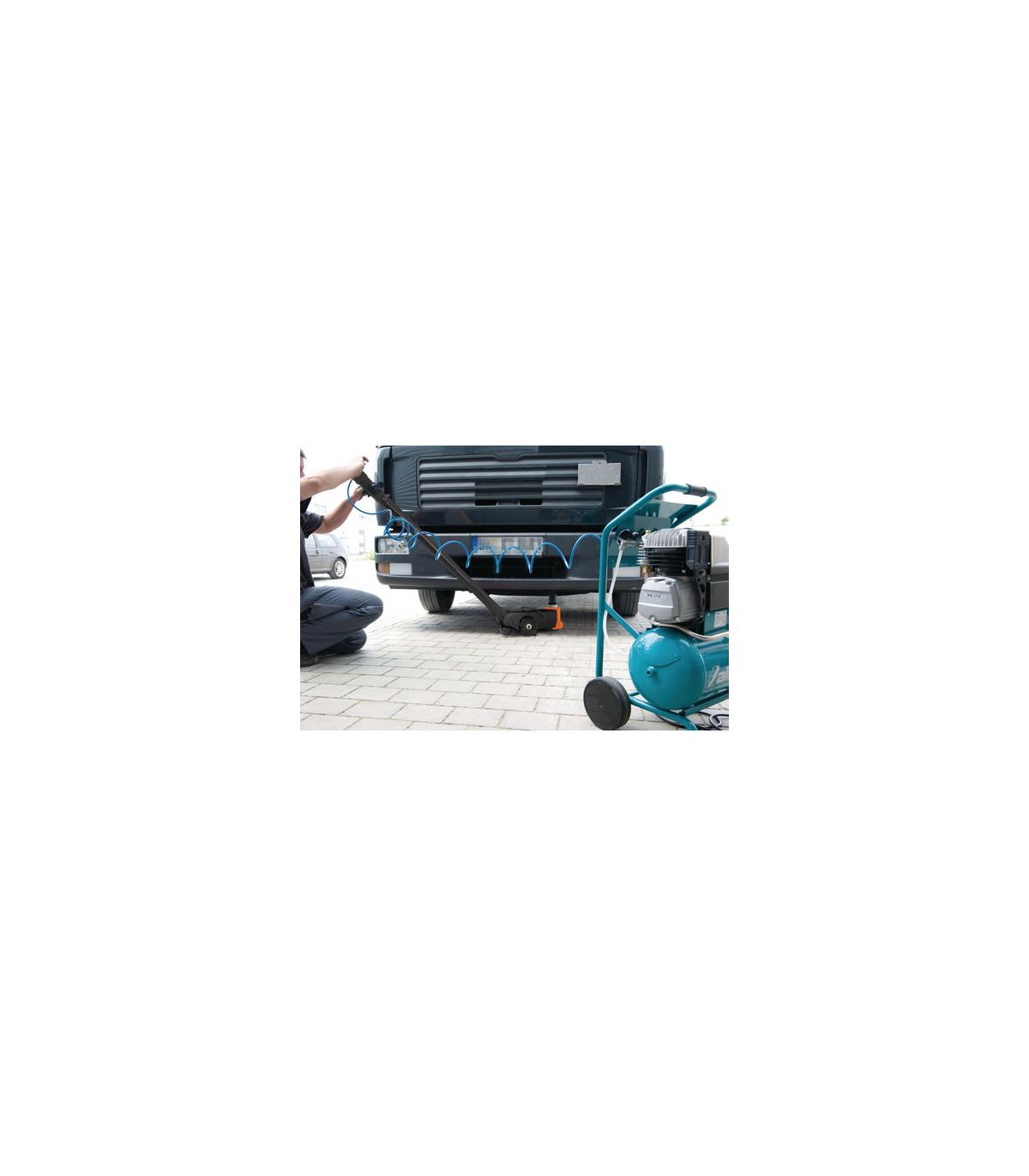

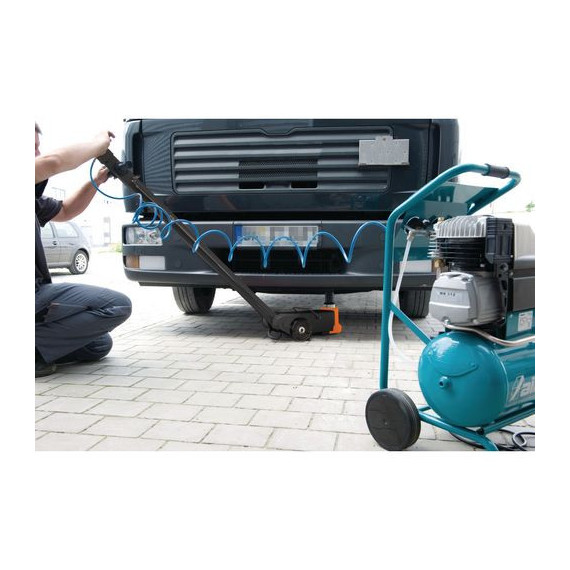

1. Automotive: In workshops to lift vehicles for maintenance and repairs.

2. Logistics, warehouses, and transport: To efficiently move and lift pallets or heavy loads.

3. Construction: Used to lift heavy materials on construction sites, facilitating the work of operators.

4. Manufacturing Industries: Where moving heavy equipment or machinery is required.

5. Aeronautics:

Aircraft maintenance: To lift and move aircraft components.

Aircraft assembly: To position large parts during the manufacturing process.

6. Energy:

Power plants: For maintenance and repair tasks on heavy equipment.

Oil industry: For installation and maintenance work on oil platforms.

This type of jack is valued for its ergonomic design and its ability to lift loads with minimal effort, increasing efficiency and safety at work.
