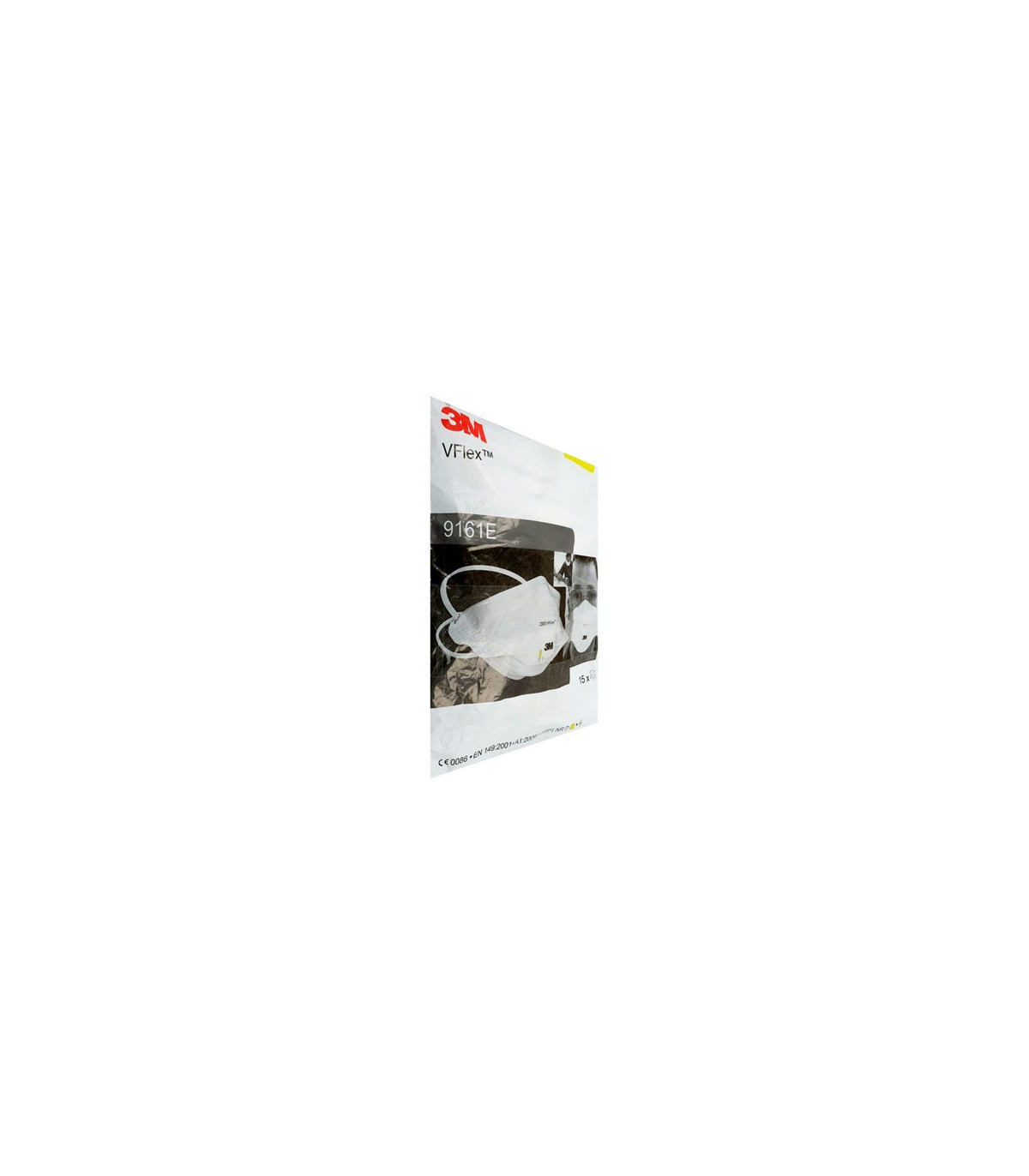

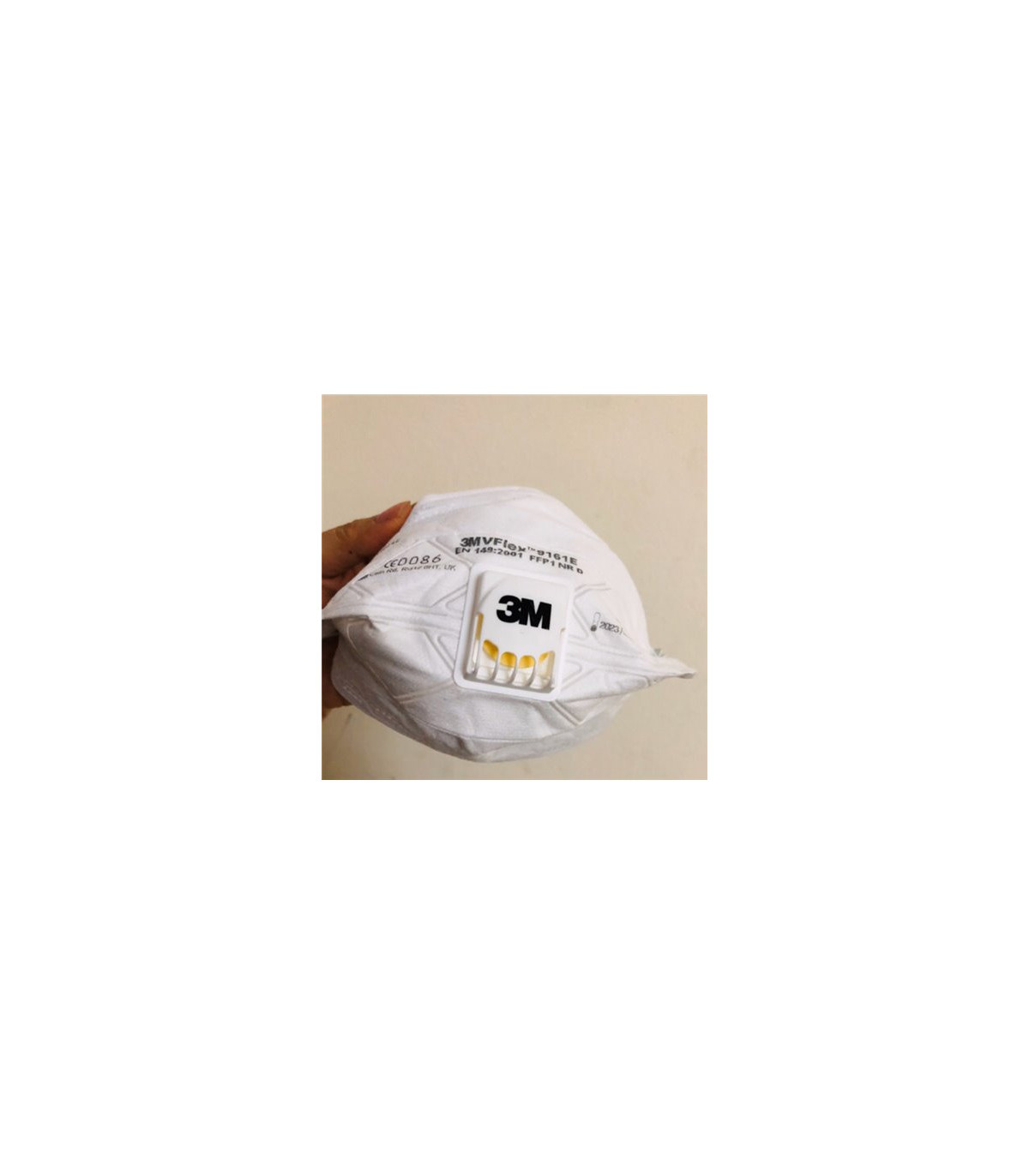

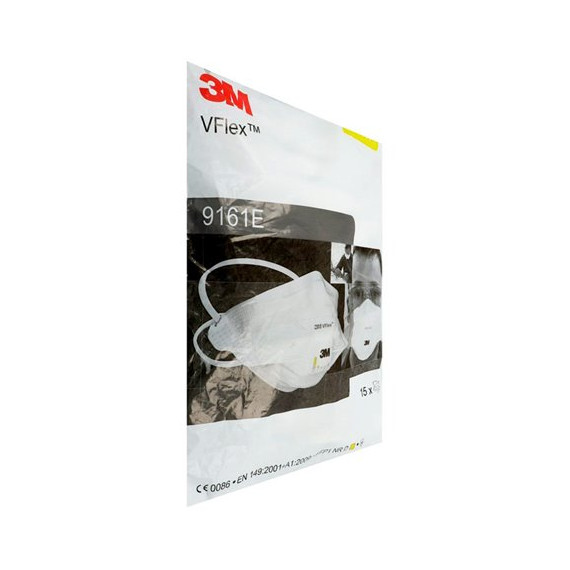

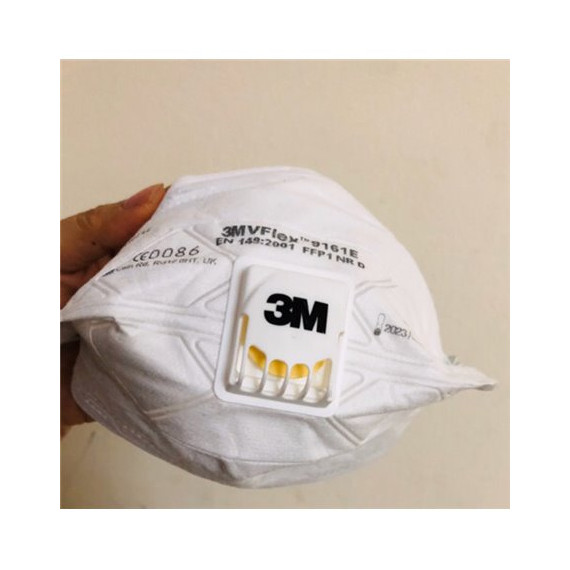

Disposable mask 9161E FFP1 with VFlex valve (15 pcs) 3M

Disposable mask 9161E FFP1 with VFlex valve 3M.

The 3M VFlex particle mask offers economical protection and features a V-shaped fold design that flexes and expands around the mouth for a sense of space and comfort while working, with a patented filter material from 3M and a valve that facilitates breathing.

Filter penetration of 20%.

Confirm approximate supply date with Sekureco.eu beforehand.

FEATURES

• This lightweight and disposable mask folds completely for easy storage.
• Integrated adjustable metal nose clip for a secure and personalized seal, with side tabs for easy placement on the face.

• It is designed to fit perfectly with 3M eye and hearing protection products.
• Available in small and standard sizes to fit different face shapes.
• There are different models with and without a valve.
• The 3M Cool Flow valve makes breathing more comfortable.

BENEFITS

• Economical mask.
• The V-shaped folds flex and expand around the mouth to enhance comfort.
• The patented filter material from 3M helps you breathe more easily.
• The raised front panel maintains its shape and keeps the material away from the mouth.
• The side tabs facilitate placement.
• The integrated and adjustable metal nose clip provides a secure and personalized seal.
• Its fully foldable design allows for convenient and easy storage.

MATERIALS

Adjustment bands: Polypropylene

Staples: Steel

Nose clip: Aluminum

Filtering material: Polypropylene

Exhalation valve: Polypropylene/ polyisoprene

BREATHING RESISTANCE

The breathing resistance of the mask is tested during inhalation (constant flow) and exhalation (cyclic flow). The breathing resistance of the masks should not exceed the following limits:

Maximum breathing resistance FFP1:

Inhalation at 30l/min: 0.6 mbar

Inhalation at 95l/min: 2.1 mbar

Inhalation at 160l/min: 3.0 mbar

APPLICATIONS

For solid and non-volatile liquid particles. Suitable for industries such as: Assembly and mechanics, cleaning, general manufacturing, metallurgy, oil and gas, and transportation.

PLACEMENT INSTRUCTIONS

Placement instructions: Choose the most suitable size from the two available. The normal size is suggested for most users. The small size (S) is indicated for those with smaller faces.

See the figure

Before putting on the mask, ensure your hands are clean. All components of the mask should be inspected to ensure they are not damaged.

1. Using both hands, place your fingers on the upper panel with your thumbs inside the mask and slightly bend the center of the nose clip upwards.

2. Open the mask by pulling the upper and lower panels to shape it. The elastic bands should be at the top.

3. Hold the mask in one hand with the inside facing your face, place it covering your chin and with the nose clip facing up.

4. Pass one band under your ears, leaving it at the nape of your neck, and the other over the crown of your head. The elastics should not be twisted. Adjust the upper and lower panels until they are comfortable, with the edges flat against your face and covering from your chin to your nose. You can use the side tabs (marked as "A") for a better fit.

5. Using both hands, mold the nose clip to the shape of your nose and cheekbones to ensure a good seal. Doing this with one hand may result in a less effective fit and pose a risk. 6. A fit check of the mask should be done every time it is put on and before entering the contaminated area.

NORMATIVE

Products are classified by their filtering efficiency and their maximum total performance against inward leakage (FFP1, FFP2, and FFP3), as well as by their utility and resistance to obstruction. Among the performance tests of this standard are the filter penetration test; practical behavior test; flammability test; breathing resistance test; and total inward leakage test.

Reusable products are also subjected to cleaning and storage tests, and mandatory obstruction resistance tests (the latter are optional for non-reusable products). You can purchase a complete copy of the EN 149:2001+A1:2009 standard through your country's standardization body.
