Emergency signal Fireproof blanket (text and pictogram) COFAN

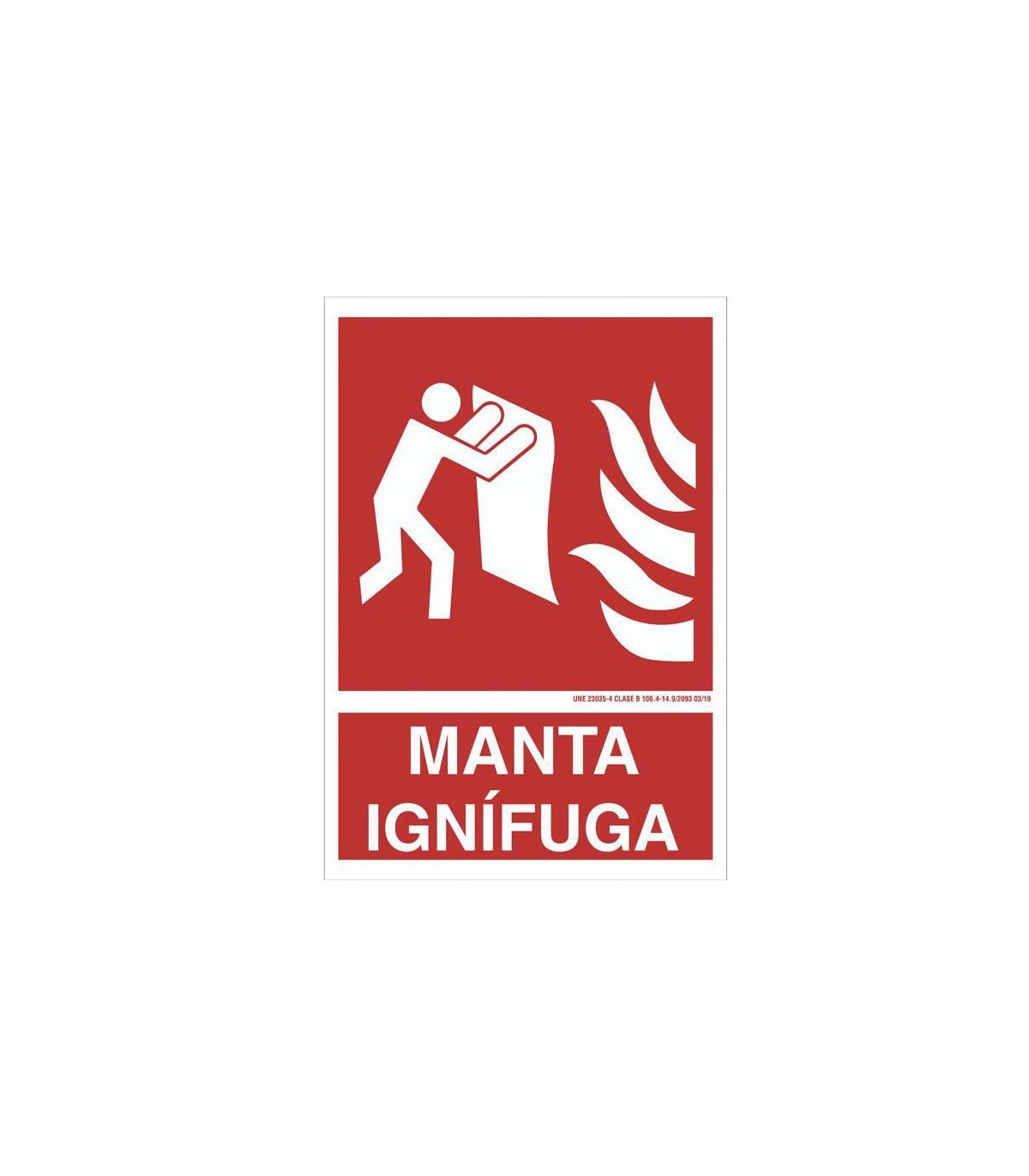

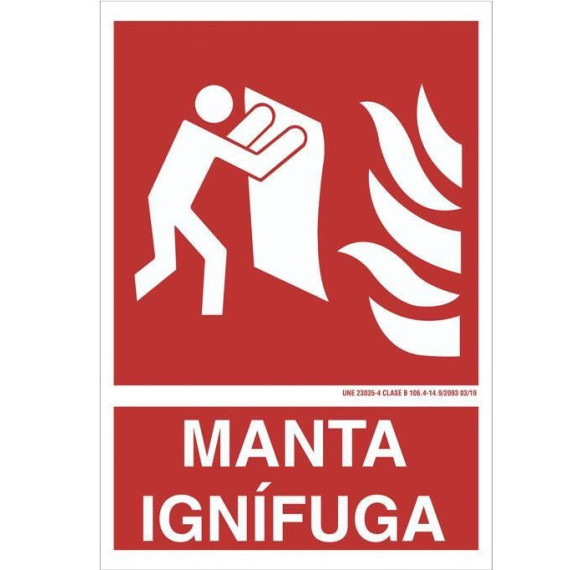

Emergency signal with text and pictogram Fire blanket COFAN. The sign consists of text and a pictogram on a red background as a safety color. For industrial use.

Therescue signIt is made on a luminescent sheet (after absorbing light, the product emits it in the dark, so it does not need any electrical source and the product can be charged an indefinite number of times).

This type of signage is installed in different types of industries as a measure of alert and safety, while serving the purpose of keeping users and workers informed about rescue actions in case of an emergency.

It is common to find this type of signage in a variety of industries, including the chemical industry, the oil industry, the construction industry, the food industry, the textile industry, and many others. It is important to have fire-fighting equipment in any place where there is a risk of fire.

Material:

Luminescent

Dimensions:

148 x 105 mm

210 x 148 mm

297 x 210 mm

420 x 297 mm

PRODUCT IDENTIFICATION

According to standard UNE 23035/4:

• Name or brand of the manufacturer
• Manufacturing date
• Denomination (class A or class B as applicable)

According to RIPCI 513:

• Name or brand of the manufacturer

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

All NMZ signage undergoes various internal and external light response tests that ensure compliance with the light intensity values outlined in the UNE 23035 standard.

CLASS A:

CLASS B:

CHARACTERISTICS

PVC SUPPORT MATERIALS

According to UNE standard 53127:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B.
• White lacquered aluminum with a thickness of 0.6mm.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• Without appreciable lead and phosphorus content (less than 0.01%)
• Non-toxic.

PICTOGRAMS

According to regulations:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to standard UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Composed of pigments.
• Unlimited charge and discharge photo-luminescent cycles

COLOR

Tones according to standard:

• UNE EN ISO 7010
• UNE 23033/1
• Ink with great adhesion and resistance.
• It allows for great flexibility in the final product.
• Non-flammable. Non-toxic.

FINAL THICKNESS

Class A

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%).

Class B

• PVC 0.8 mm (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to standard UNE 23033/1

COLOR PERCENTAGES

• According to standard UNE 23033-1

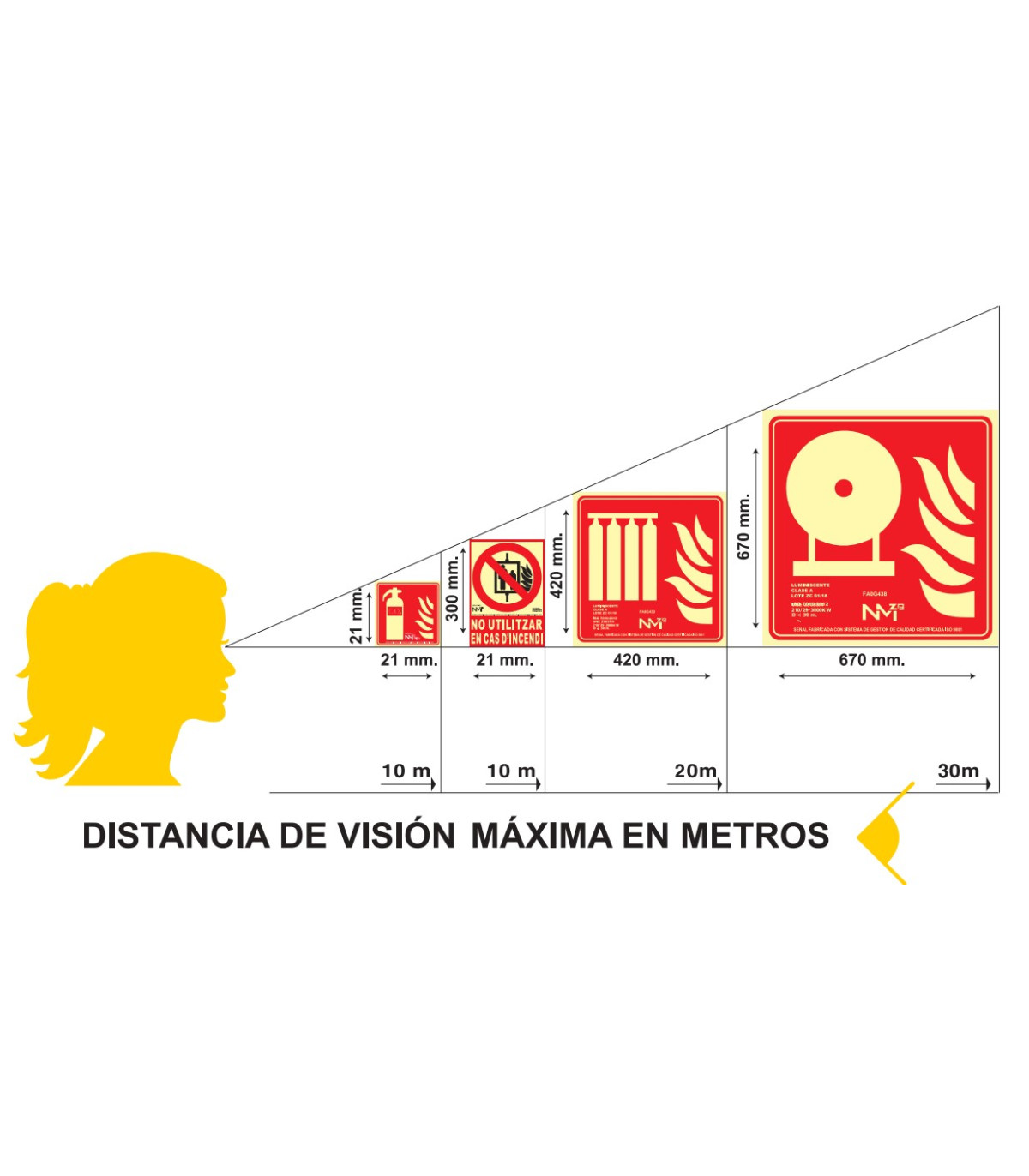

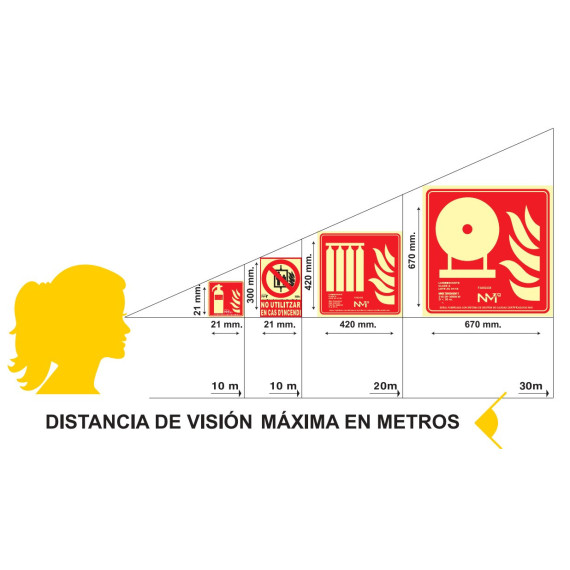

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

To calculate the necessary dimensions of a signal, the following formula will be applied, up to a maximum distance of 50 m:

S ≥ L2 / 2000

"S" represents the surface area of the signal in square meters, and "L" represents the distance in meters from which the signal can be perceived.

MEASURES

CLASS B (PVC 0.7 mm)

• 148 x 105 mm

  210 x 148 mm

  297 x 210 mm

  420 x 297 mm

APPLICATIONS

Oil industry

Construction industry

Food industry

Textile industry

REGULATIONS

The UNE 23035-4 standard from December 2003 requires signs to meet certain qualities of light intensity and resistance to pigment fading. Both the inks and the photoluminescent PVC used in the production of our signs fully comply with this standard. Since safety signage can help save lives and is mandatory, use the best possible signage. Usage Recommendations: Minimum sizes to be used based on the meters.

STORAGE, CLEANING, AND CONSERVATION

The working temperature should not exceed 45º C. Higher temperatures may deform the supporting material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid using abrasive products. It is recommended to clean them with water and neutral detergents.

The technical building code – Basic document on fire safety requires that photoluminescent signage must comply with the UNE 23035 standard.

In order to preserve the functionality for which the signaling systems have been designed, SEKURECO recommends keeping the signs free of dust, dirt, or any residue or object that obstructs their visibility and identification.

For cleaning, it is recommended to use soapy solutions preferably, avoiding the use of solvents or abrasive products that may damage the surface of the sign.

Photoluminescent signs should be positioned in such a way that they receive energy from a natural or artificial light source to ensure their proper functioning.

According to RD 513/2017 (TABLE III), luminescent signaling systems must undergo an annual inspection/review conducted by specialized personnel from the manufacturer, a maintenance company, or by the user or owner personnel of the installation.

Once the useful life period of the signals that make up the signaling system has elapsed, an inspection of these elements will be carried out following the guidelines outlined in RD 513/2017 and UNE 23035-2.

INSTALLATION SIGNAL

Check out our blog to learn how to install a sign or poster:https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html

The recommended INSTALLATION HEIGHT ranges from 2 to 2.50 meters, always maintaining a separation distance of 0.30 meters from the ceiling.

Photoluminescent signs should be positioned in a way that they receive energy from a natural or artificial light source to ensure their proper functioning.

The FIXING of the signaling element must be done on a firm surface and free of dirt.

The signal can be secured using MECHANICAL ELEMENTS (screws, rivets, etc...) or ADHESIVES (mounting adhesive, glues, silicones…) carefully, avoiding dirt on the visible surface or deformation of it.

The EVACUATION signage must be installed in such a way that from any point likely to be occupied in the premises, an evacuation can be initiated. Therefore, it is recommended to install directional signs on all routes, intersections, stairs, etc., that serve as pathways.

The signage on DOORS will be placed above the lintel with the appropriate label (“EXIT,” “EMERGENCY EXIT,” “NO EXIT,” …).

The signage for FIRE PROTECTION means, rescue, and/or assistance will be carried out on the same elements to be signaled whenever possible.
