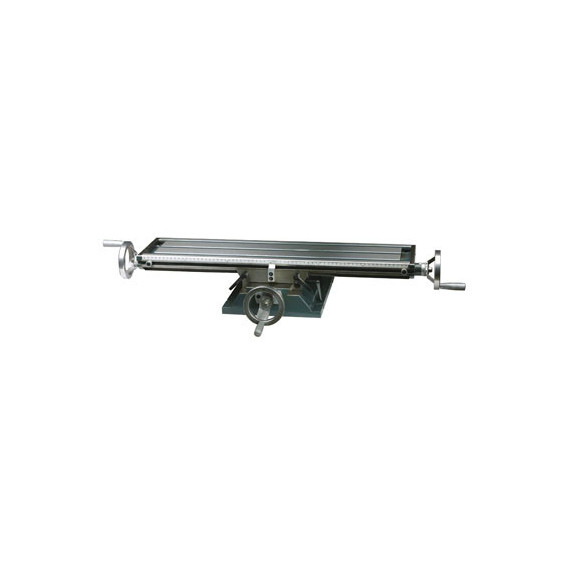

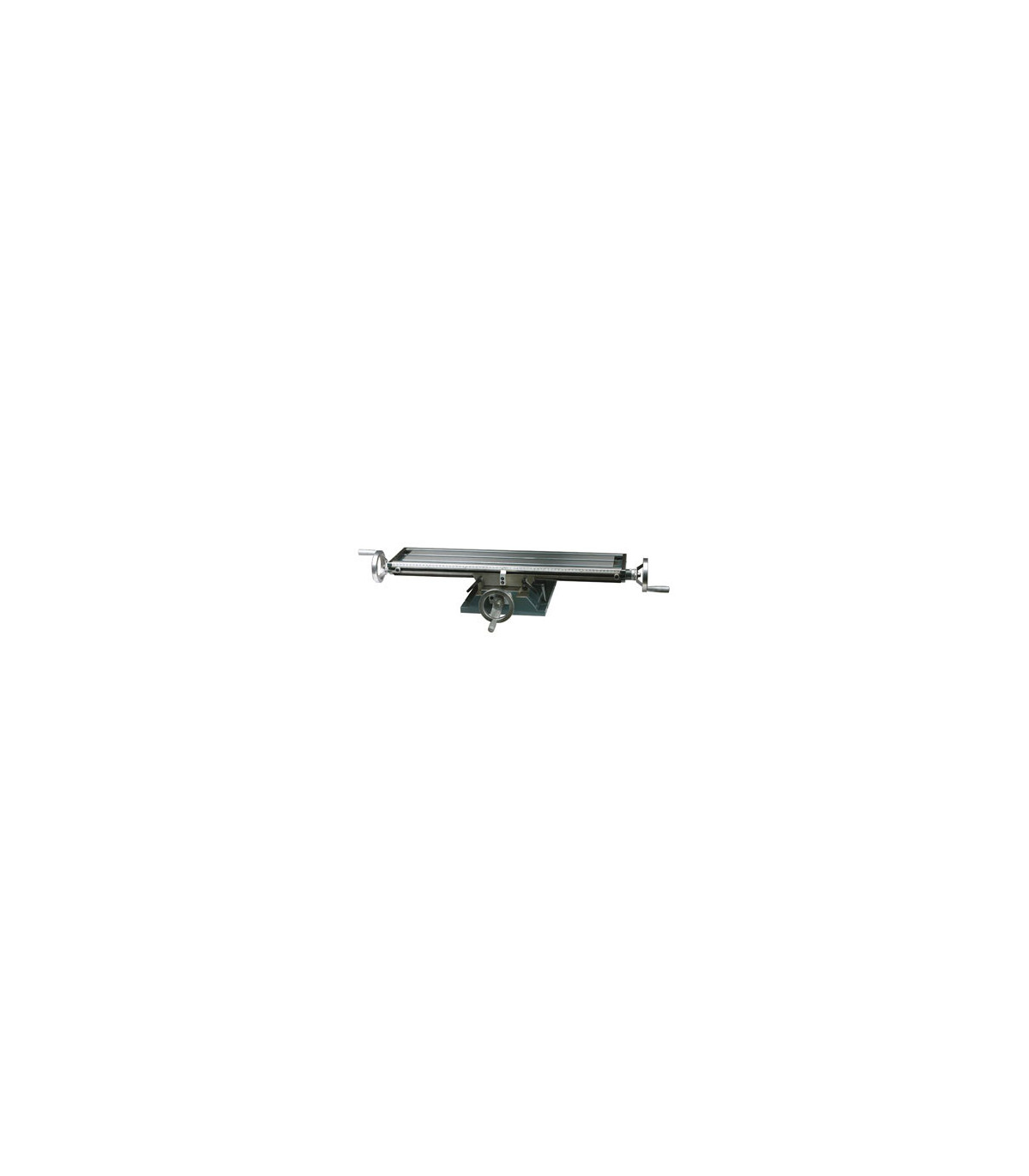

KT-179 Coordinate Table - Control and Accuracy for Drills | METALWORKS

KT-179 Coordinate Table - Control and Accuracy for METALWORKS Drills. Robust KT-179 coordinate table, ideal for column drills and machine tools. It offers precise motion control for drilling and milling tasks.

Adjustable scale on the handwheel at 0.05 mm. Cooling grooves. T-slot. X-axis travel 280 mm Y-axis travel 175 mm Net weight 32 kg.

FEATURES

The KT-179 coordinate table is a high-quality tool that provides precise manual control of movement in two axes (X and Y). Its robust design, made from high-strength cast iron, ensures the stability needed for accurate and repeatable drilling. It is an essential accessory for workshops looking to optimize precision and efficiency in their machining processes.

SPECIFICATIONS

• Type: Coordinate table

• Material: Cast iron

• Movement: X-Y with dovetail guides

• Feed screws: Precision threads for fine movements

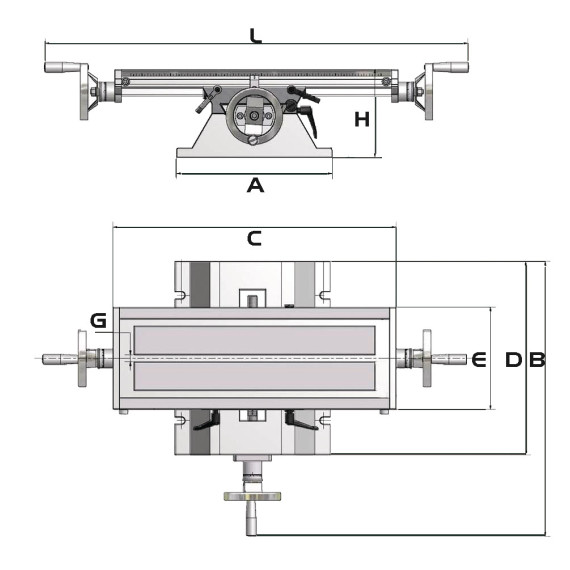

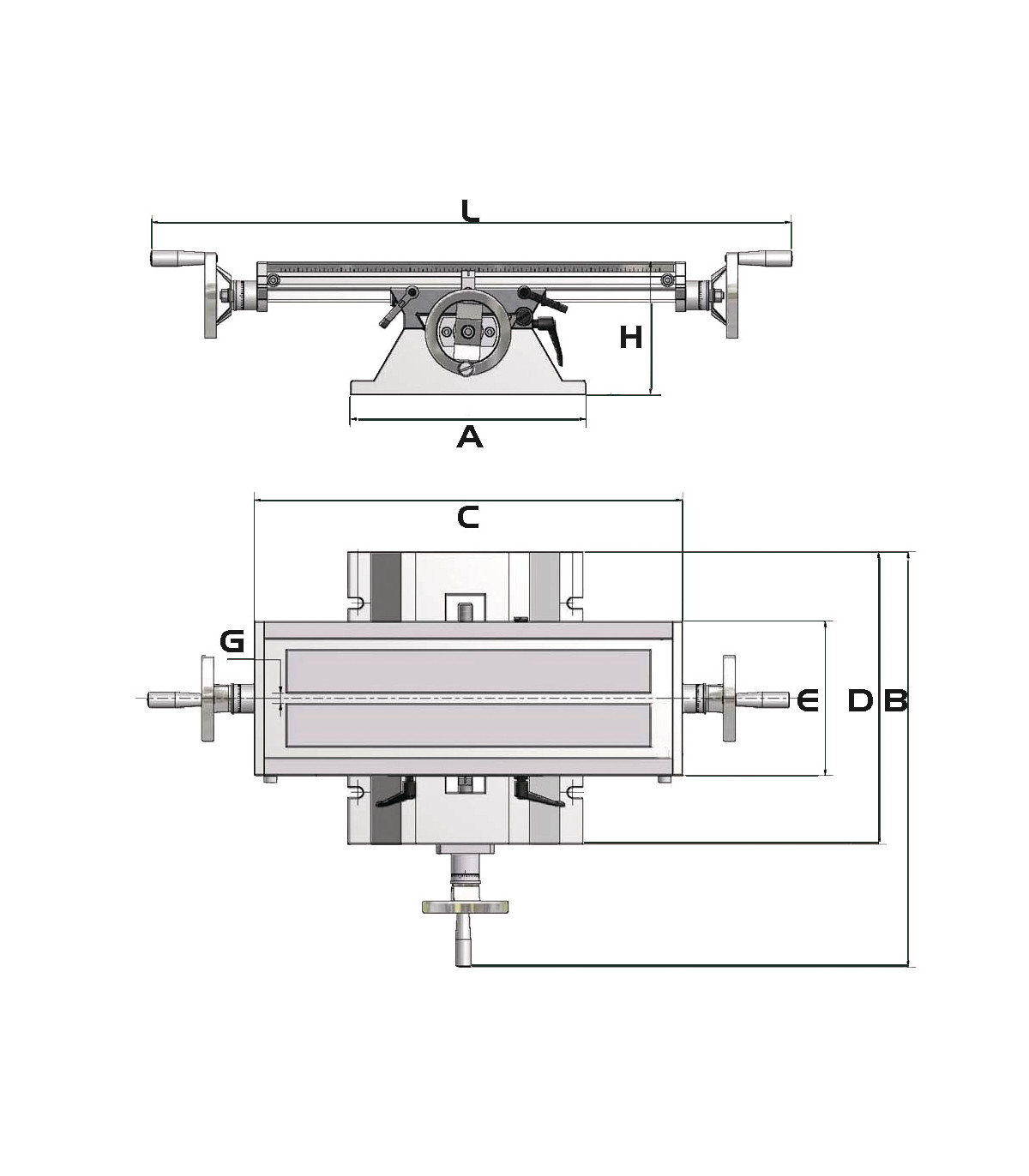

• Dimensions: Total length 945 mm Total width 483 mm Total height 148 mm T-slot size 12 mm Table length 500 mm Table width 180 mm Maximum load 55 kg Pedestal width 274 mm Pedestal length 340 mm

• Clamping slots: Standard for T-slot screw fixation

APPLICATIONS

• Machining parts: To create holes and slots precisely.

• Mold and tooling manufacturing: Exact positioning of parts.

• Locksmith and metalworking shops: For work that requires precision.

• Series drilling: Manual automation of processes.

• Machinery repair: For creating new anchoring points.
