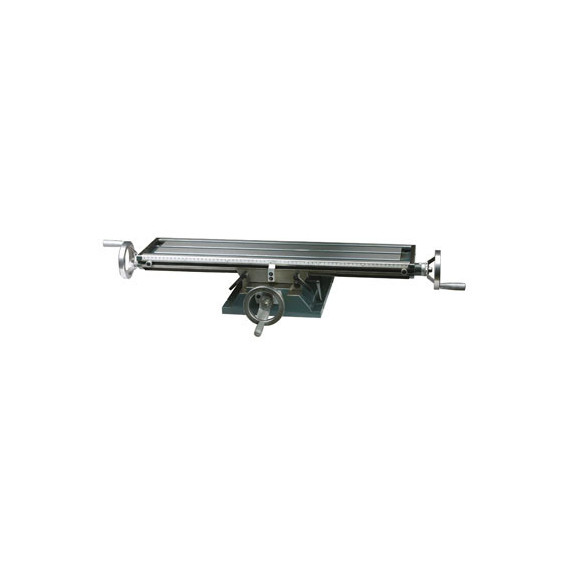

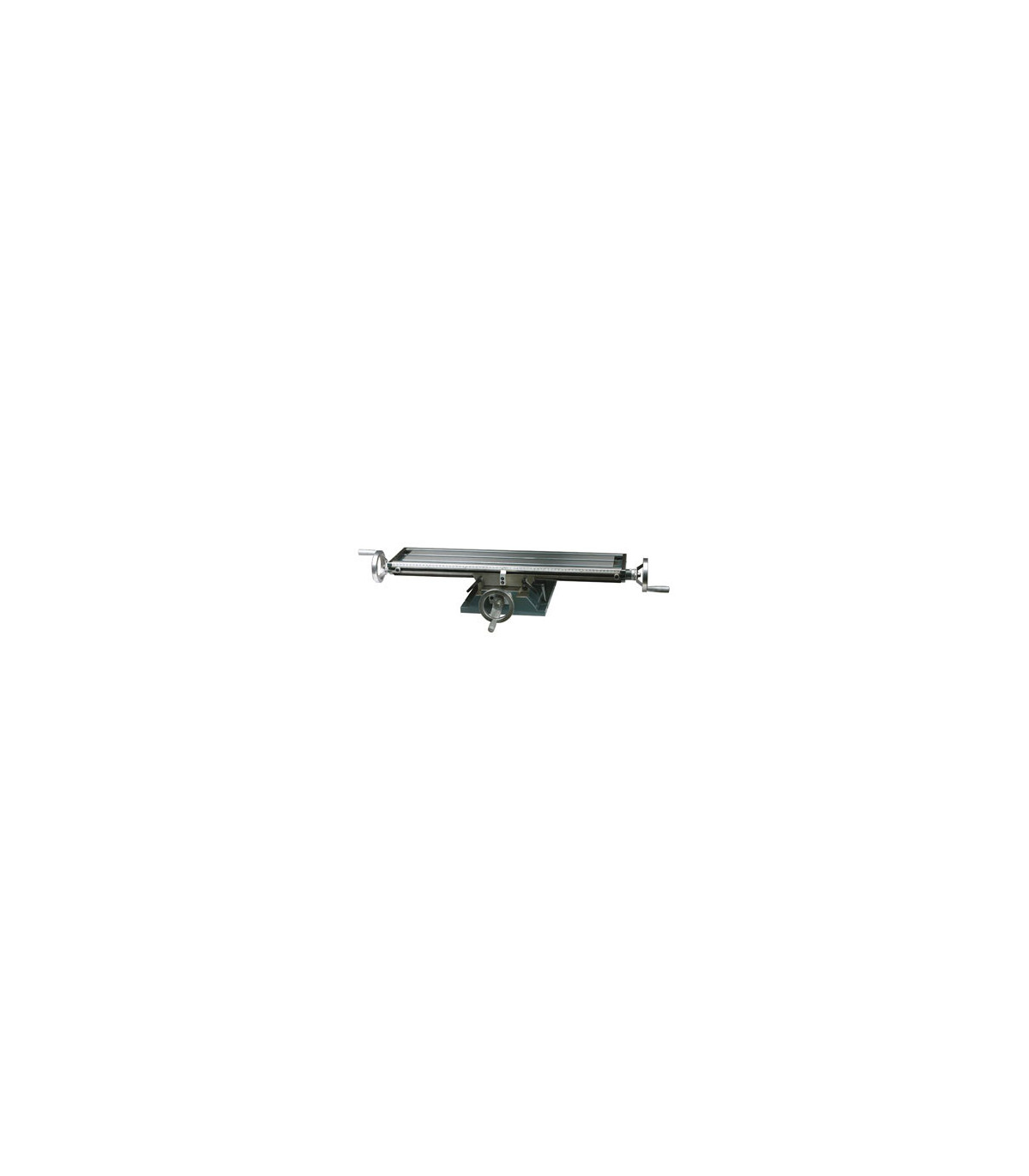

KT-120 Coordinate Table - Positioning for Drills | METALWORKS

KT-120 Coordinate Table - Positioning for Drills METALWORKS. Compact and versatile KT-120 coordinate table, ideal for bench drills. Allows precise positioning of small and medium parts. Scale on adjustable handwheel in 0.05 mm. Cooling grooves. Dove tail. Total length 506 mm Total width 400 mm Total height 140 mm T-slot size 10 mm Table length 400 mm Table width 120 mm Maximum load 40 kg Pedestal width 220 mm Pedestal length 280 mm

Net weight 22 kg.

FEATURES

This coordinate table is a fundamental accessory for any bench drill, allowing precise control of movement on the X and Y axes. Its compact size makes it perfect for workshops with limited space or for working with small parts. The structure is robust, ensuring precise and stable drilling, improving the efficiency and quality of work.

SPECIFICATIONS

• Type: Coordinate table

• Material: Cast iron

• Movement: X and Y axes with graduated dials

• Travel: X axis travel 220 mm Y axis travel 165 mm

• T-slots: For secure clamping of the workpiece

• Compatibility: Bench drills and other machine tools

APPLICATIONS

• Modeling and prototyping workshops: For machining small parts.

• Electronics and microelectronics: Drilling of housings and supports.

• Component manufacturing: Series work on small-sized parts.

• Precision machining: For work requiring high accuracy.

• Advanced DIY: For professional quality finishes.
