KT-180 Coordinate Table - METALWORKS Milling and Drilling Table. The KT-180 coordinate table is large and robust, ideal for milling and drilling work on bulky parts with maximum precision.

FEATURES

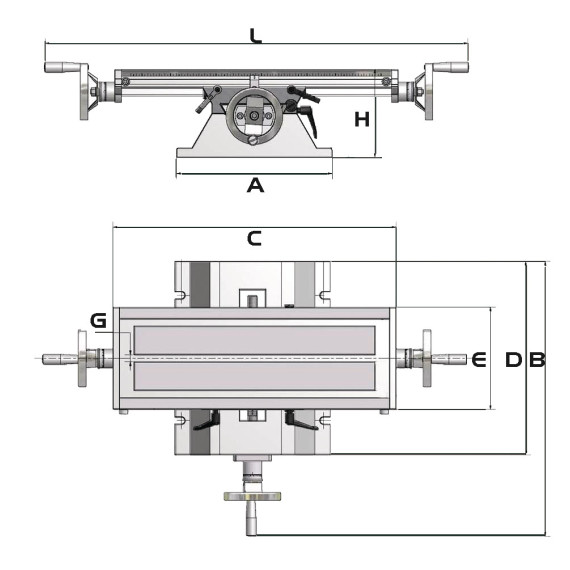

Adjustable scale on handwheel in 0.05 mm. Cooling grooves. Dove tail. Total length 748 mm Total width 483 mm Total height 169 mm T-slot size 12 mm Table length 700 mm Table width 180 mm Maximum load 55 kg Pedestal width 274 mm Pedestal length 340 mm X-axis travel 480 mm Y-axis travel 175 mm Net weight 49 kg.

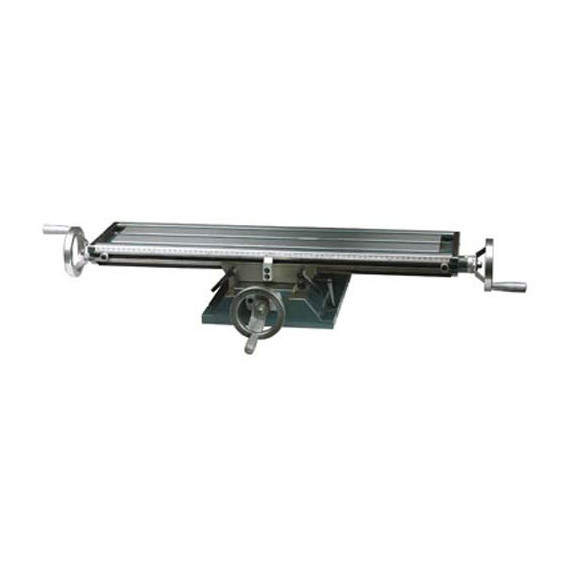

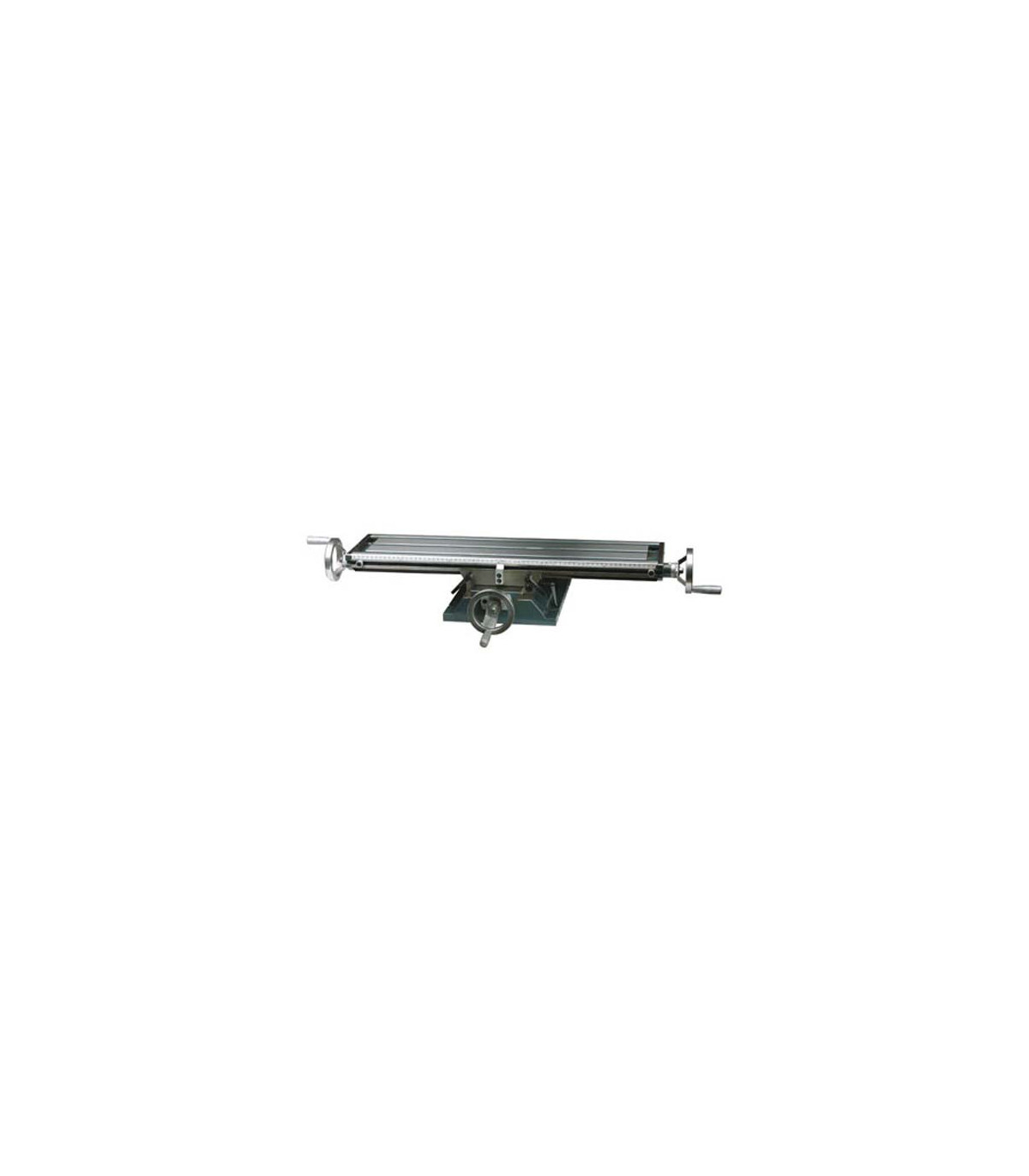

The KT-180 coordinate table is a high-capacity milling table designed for use with column drills and milling machines. Its dimensions and robust cast iron construction allow for working with larger and heavier parts, ensuring unmatched stability. The high-precision spindles and graduated dials provide millimeter control of movement, essential for demanding projects.

SPECIFICATIONS

• Type: High-capacity coordinate table

• Material: Solid cast iron

• Movement: X-Y axes

• Travel: X-axis travel 480 mm Y-axis travel 175 mm

• Weight: 49 kg

• Compatibility: Large column drills and milling machines

APPLICATIONS

• Heavy manufacturing industry: Machining large and robust parts.

• Mold shops: Creation of large molds.

• Machinery construction: Manufacturing of bases and structures.

• Industrial equipment repair: For aligning and drilling bulky components.

• Milling workshops: Series work with large dimension parts.
