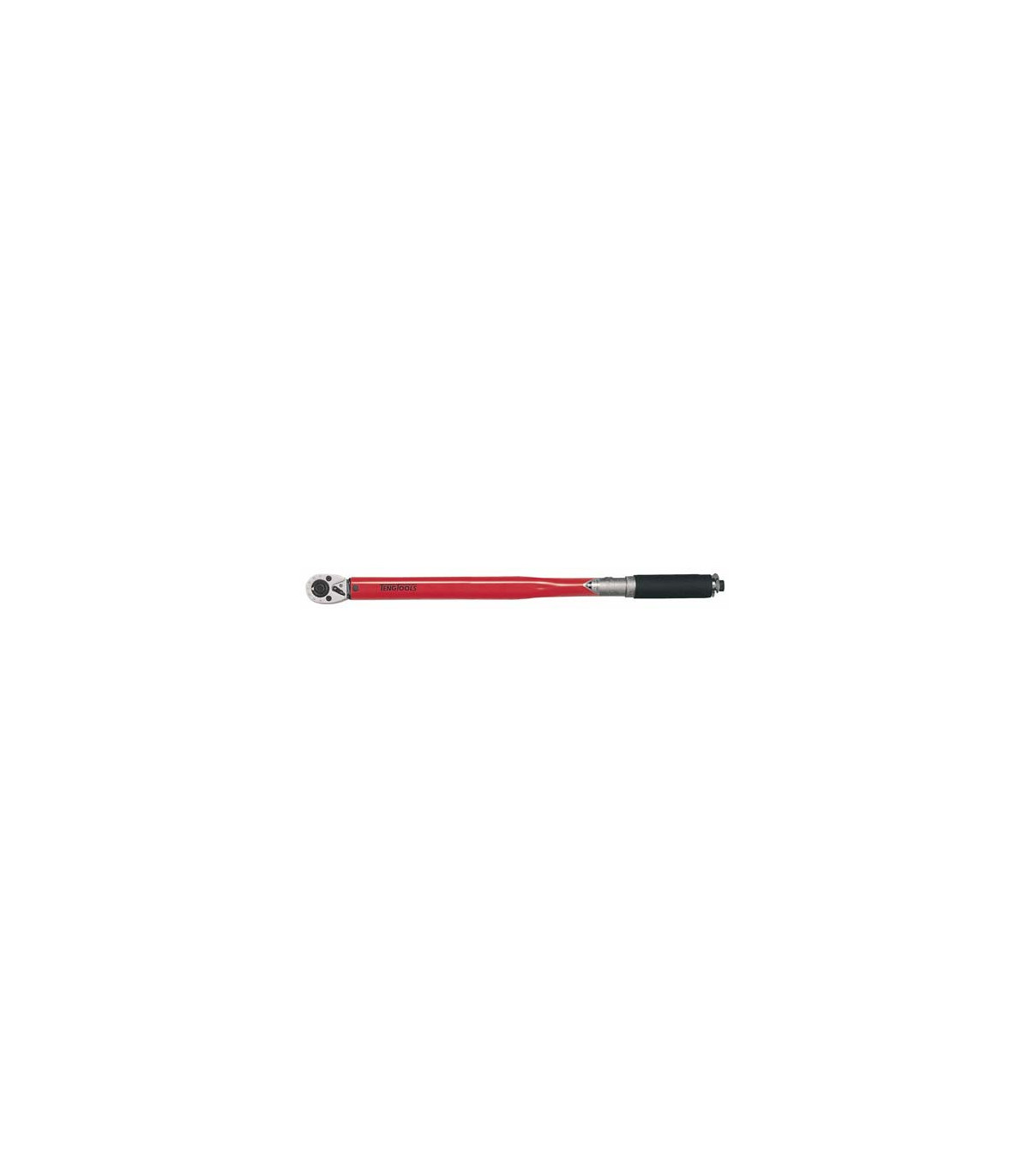

Bidirectional torque wrench 1/2" 40-210 Nm TENG TOOLS

The TengTools 1292AG-ER 1/2″ torque wrench offers professional-level precision and versatility, designed for tightening both clockwise and counterclockwise. With a torque range of 40-210 Nm and an accuracy of ±4%, it delivers reliable performance across a wide range of demanding applications that require precise and consistent torque values. The torque wrench features a secondary scale ranging from 30 to 150 ft-lb, allowing work with measurements in both Nm and ft-lb. This feature provides flexibility when switching between metric and imperial units, according to the standards required for the job. This torque wrench is designed with a click mechanism that emits a clear signal upon reaching the set torque, helping to prevent over-tightening and ensuring that screws are securely fastened. It also includes an integrated angular gauge, allowing for precise adjustments after tightening when necessary. The reversible 24-tooth ratchet mechanism, compliant with DIN 3122 standards, has a swing arc of 15° and its push square drive allows for easy direction changes for efficient bi-directional use. The rotating lock system ensures that the set torque is securely maintained and prevents accidental adjustments during use. The handle is clearly marked to indicate where to place the hand, facilitating a precise and consistent application of torque. Measuring 465 mm in length, the wrench provides excellent leverage while being easy to handle. It comes in a sturdy case for added protection and convenience during transport. Each torque wrench has a unique assigned number and is individually tested to meet ISO 6789 standards. Additionally, it includes a Declaration of Conformity to ensure accuracy.

In accordance with DIN3122 regulations. Bi-directional torque wrench for right or left tightening. Reversible by lever, torque control for left tightening. Equipped with angle control, post-hardening head degree scale, etc. Graduated in Nm and ft-lb. Accuracy ±4%. Individual calibration certificate included with each wrench.

FEATURES

1/2″ torque wrench

±4% accuracy

Designed for fastening both clockwise and counterclockwise.

Click-type mechanism with audible torque signal

Integrated angular gauge for post-tightening adjustments

Primary scale in Nm with additional reference scale in ft-lb

Reversible 24-tooth ratchet mechanism (DIN3122) with a swing arc of 15°

Push square drive for easy direction changes

Rotating lock to secure the set torque

Marks on the handle for correct force application

Measures 465 mm long and comes in a durable storage case.

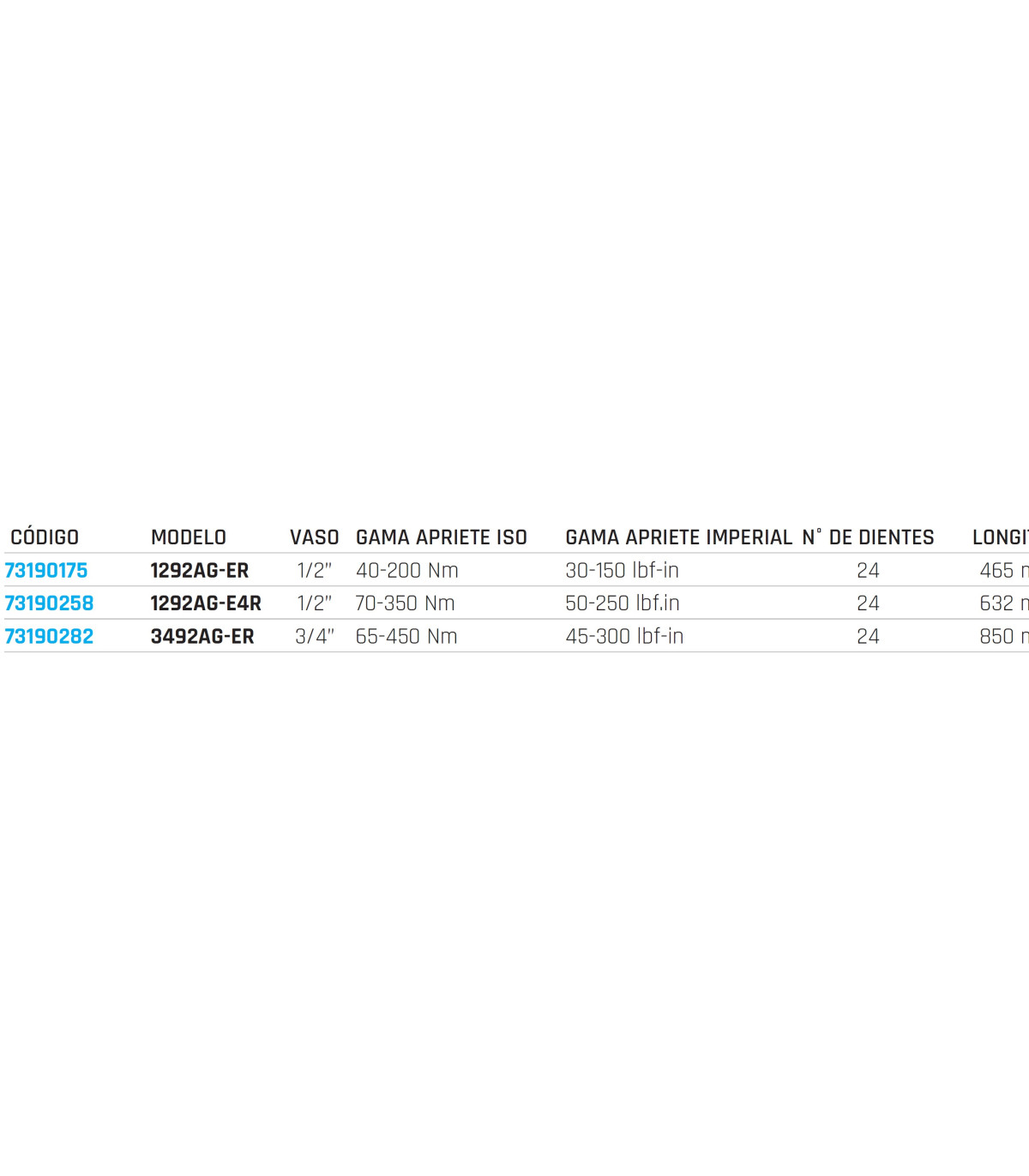

TECHNICAL DATA

APPLICATIONS

Torque tool for use in various industries.

REGULATIONS

In accordance with DIN3122 regulations
