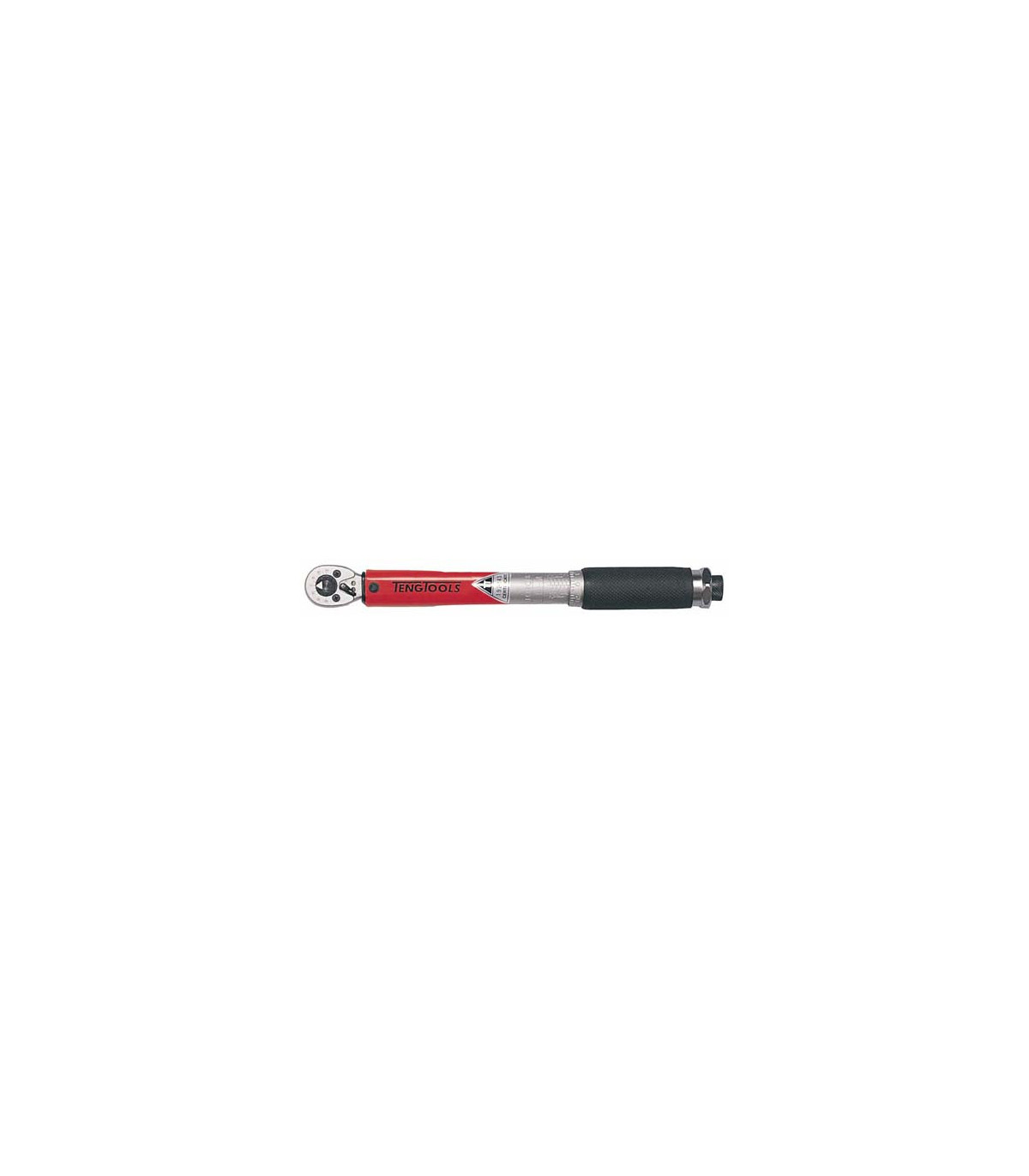

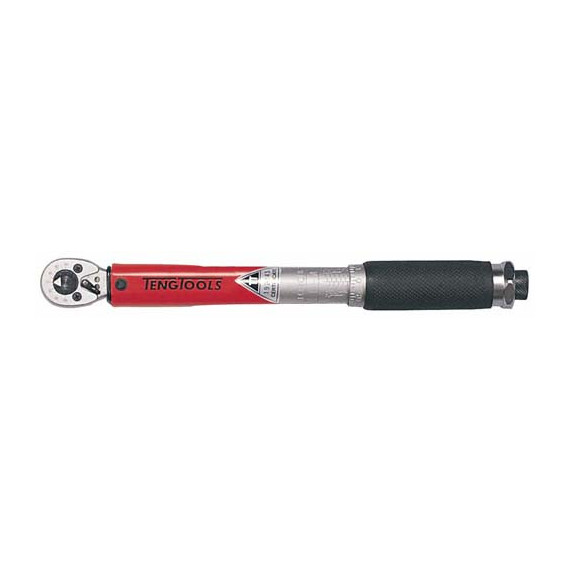

Torque wrench with ratchet (70-350 Nm) TENG TOOLS

The TengTools 1292AG-E4R 1/2″ torque wrench offers precise torque control, with a range of 70 to 350 Nm and an accuracy of ±4%, ideal for demanding maintenance and assembly of equipment with larger fasteners and components that require precise torque values. The wrench features an easy-to-read dual scale, displaying measurements in Nm and ft/lb, making it versatile for various applications in the automotive, aerospace, and heavy machinery sectors. This bidirectional tool incorporates an integrated angular gauge, easy to use, which simplifies adjustments after tightening. A robust click mechanism provides a clear and precise indication when the desired torque is reached. To ensure consistent use, the wrench has markings on the handle indicating where to place the hand. Its rotary locking system maintains the set torque, preventing accidental changes during use. The reversible 24-tooth ratchet mechanism, compliant with DIN 3122 standards, has a 15° swing arc for precise tightening both clockwise and counterclockwise. The square drive further facilitates its adaptation. The tool is stored in a protective case, making it easy to transport and store. Each torque wrench has a unique assigned number and is individually tested to meet ISO 6789 standards. Additionally, it includes a Declaration of Conformity to ensure accuracy.

According to DIN3122 standards. With the ratchet, the torque wrench can be used for both tensioning and final torque checking. Reversible with a lever, but only for right-hand tightening for tension checking. Equipped with a gauge for post-tensioning. Graduated in Nm and ft-lbs. Locking adjustment. Accuracy ± 4%. Matte finish. Rubber handle. Degree scale for post-tensioning of cylindrical jaws. 1/2 70-350 Nm 50-250 lbf-in 24 632 mm 2.4 kg

FEATURES OF THE 1/2" BIDIRECTIONAL TORQUE WRENCH (70-350 Nm)

1/2″ torque wrench

±4% accuracy

Designed for fastening in both clockwise and counterclockwise directions.

Click-type mechanism with audible torque signal

Integrated angular gauge for post-tightening adjustments

Primary scale in Nm with additional reference scale in ft-lb

Reversible 24-tooth ratchet mechanism (DIN3122) with a 15° swing arc

Square drive for easy direction changes

Rotary locking to secure the set torque

Markings on the handle for correct force application

Measures 465 mm in length and comes in a durable storage case.

TECHNICAL DATA

APPLICATIONS

Tensioning tool for use in different industries

NORMATIVE

According to DIN3122 standards
