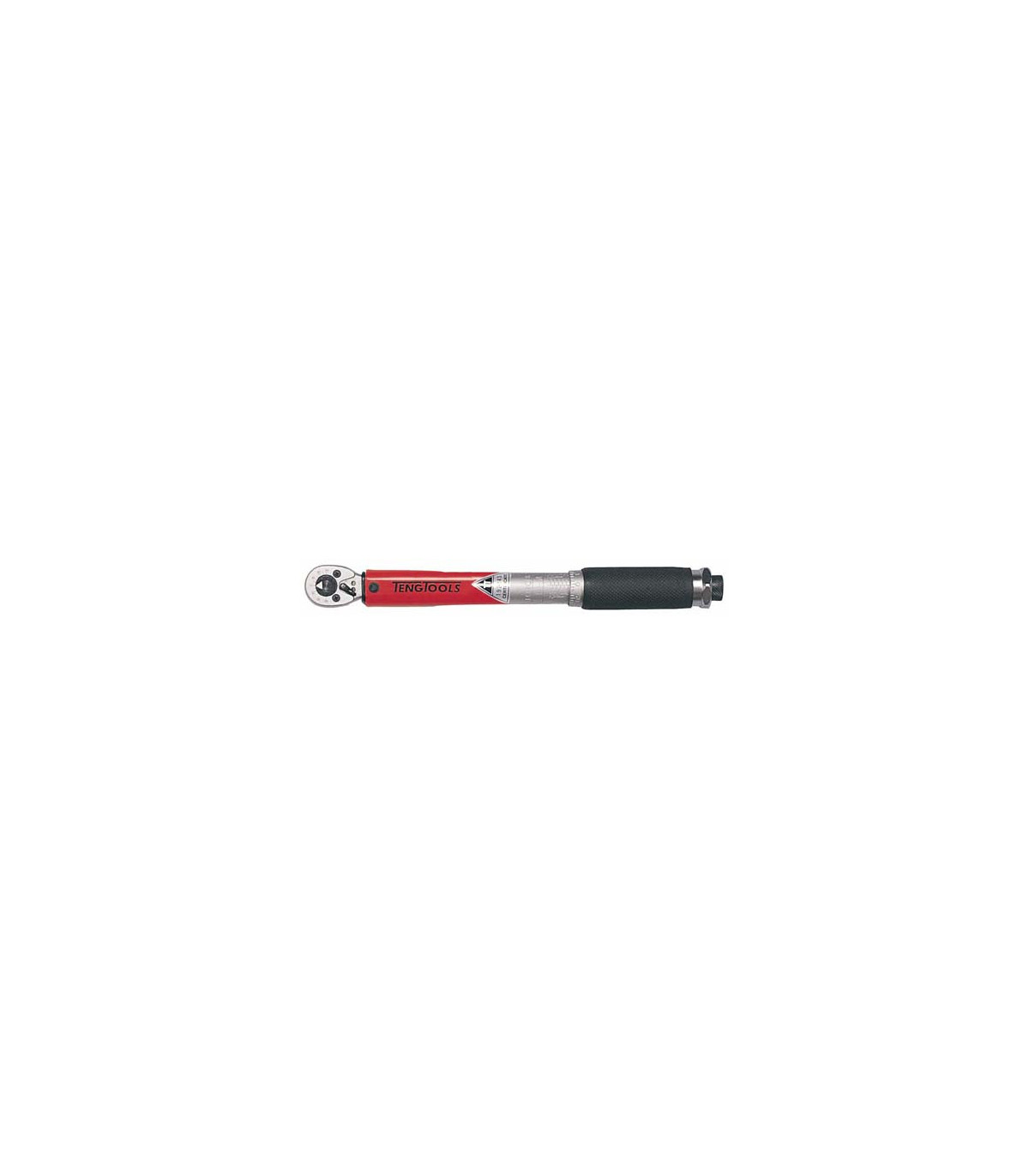

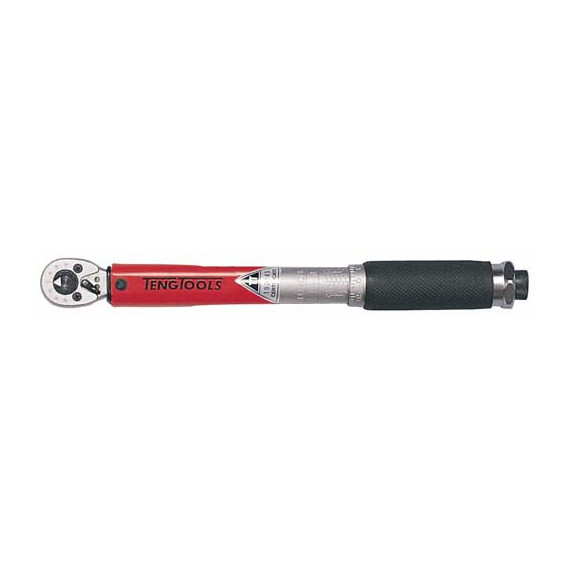

Torque wrench with ratchet 3/4" 65 - 450 Nm 3492AG-E TENG TOOLS

The TengTools 3492AG-E torque wrench with a 3/4″ drive is ideal for applications requiring a torque range of 65 to 450 Nm, such as the powerful tightening of large fasteners in the maintenance of industrial machinery and heavy vehicles. The reversible ratchet mechanism with 24 teeth, compliant with DIN 3122 standards, has a swing arc of 15° and an accuracy of ±4%. It is specifically designed for clockwise tightening of right-hand threads and incorporates an integrated angular gauge to facilitate post-tightening. The change lever allows for quick direction changes with one hand. Among its notable features are a precise click mechanism that clearly indicates when the desired torque is reached, an easily readable secondary scale in ft/lb, and a handle marked to indicate where to apply pressure. The rotating lock ensures that the torque setting is not accidentally altered during use. Its robust design, with a length of 850 mm and a weight of 3840 g, ensures durability in demanding environments. It comes in a protective case for safe transport. Each torque wrench is assigned a unique number and is individually tested to meet ISO 6789 standards and comes with a "Declaration of Conformity" to ensure accuracy.

According to DIN3122 standards. With the ratchet, the torque wrench can be used for both tightening and final torque checking. Reversible with a lever, but only for right-hand tightening for tension checking. Equipped with a gauge for post-tensioning. Graduated in Nm and ft-lbs. Adjustment with locking. Accuracy ± 4%. Matte finish. Rubber handle. Degree scale for post-tensioning cylindrical jaws. 3/4 90-450 Nm 67-340 lbf-in 24 850 mm 3.84 kg.

FEATURES OF THE 3/4" BIDIRECTIONAL TORQUE WRENCH (65-450 Nm)

Equipped with an integrated angular gauge for easier post-adjustment.

Click-type mechanism to indicate when the required torque is reached

Additional ft/lb reference scale

Marked to show the correct place to apply pressure.

Rotating lock function to ensure the set torque is maintained

Reversible 24-tooth ratchet mechanism (DIN3122) providing 15° increments

Designed for tightening fasteners clockwise

Accuracy of +/- 4% and compliant with ISO6789 for guaranteed precision.

Each torque wrench has its own individual certification number.

Supplied in a handy storage case.

TECHNICAL DATA

APPLICATIONS

Torque tool for use in various industries

REGULATIONS

According to DIN3122 standards

Specifies the characteristics of ratchet and torque wrenches, such as their length, head width, operating angle, and torque test load, to ensure they meet high standards of quality and safety.
