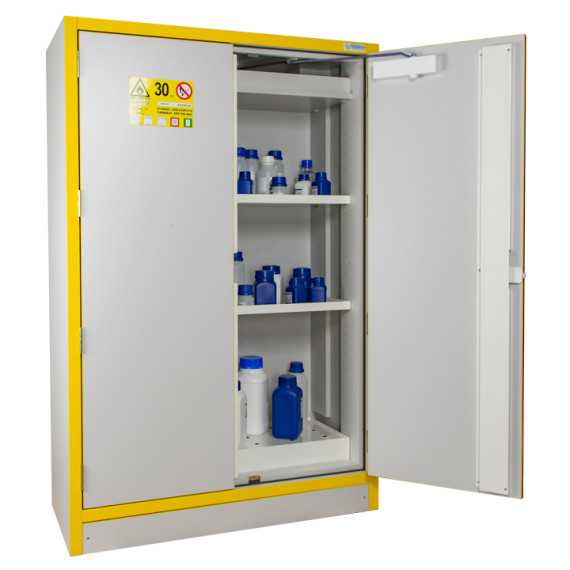

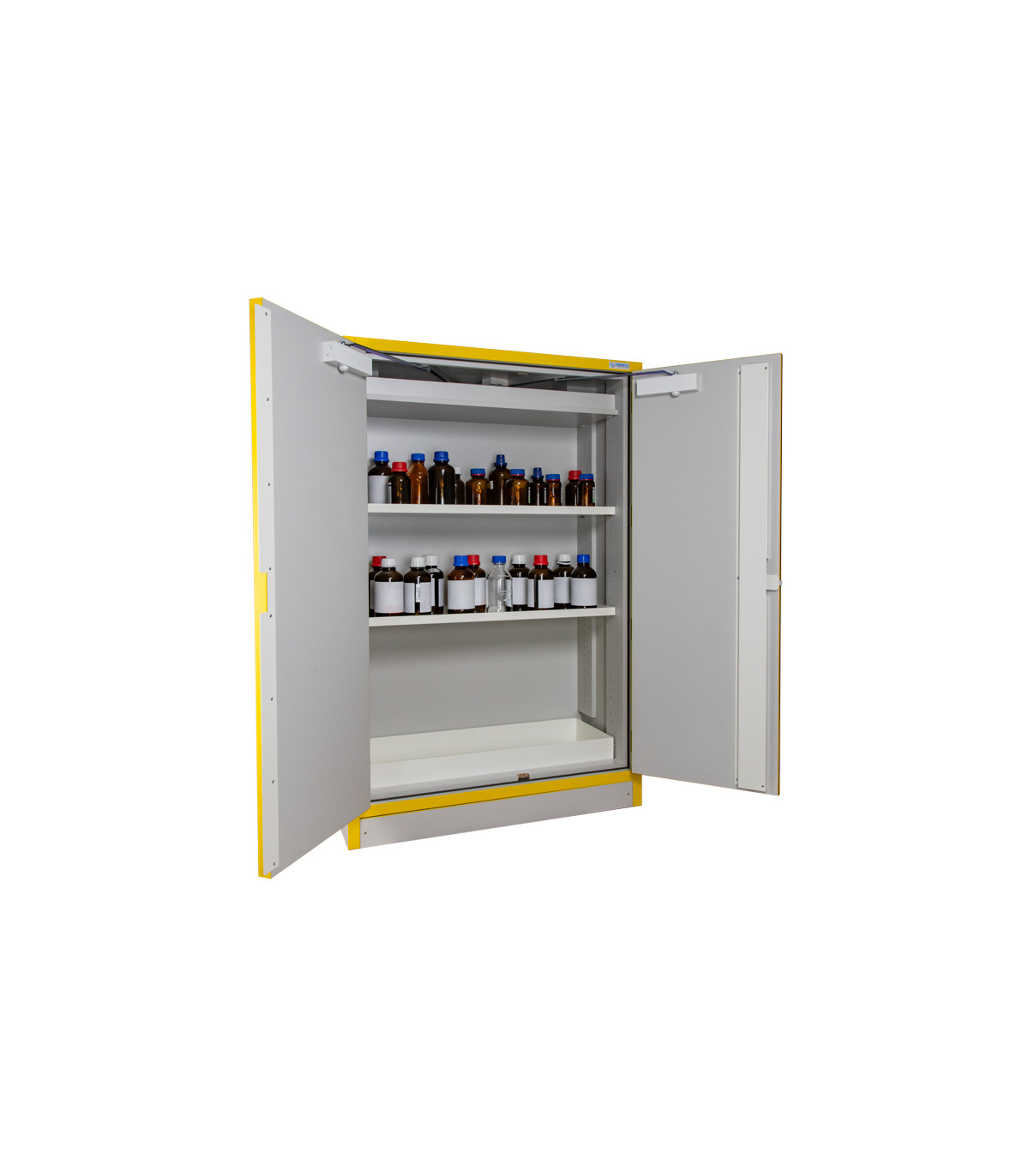

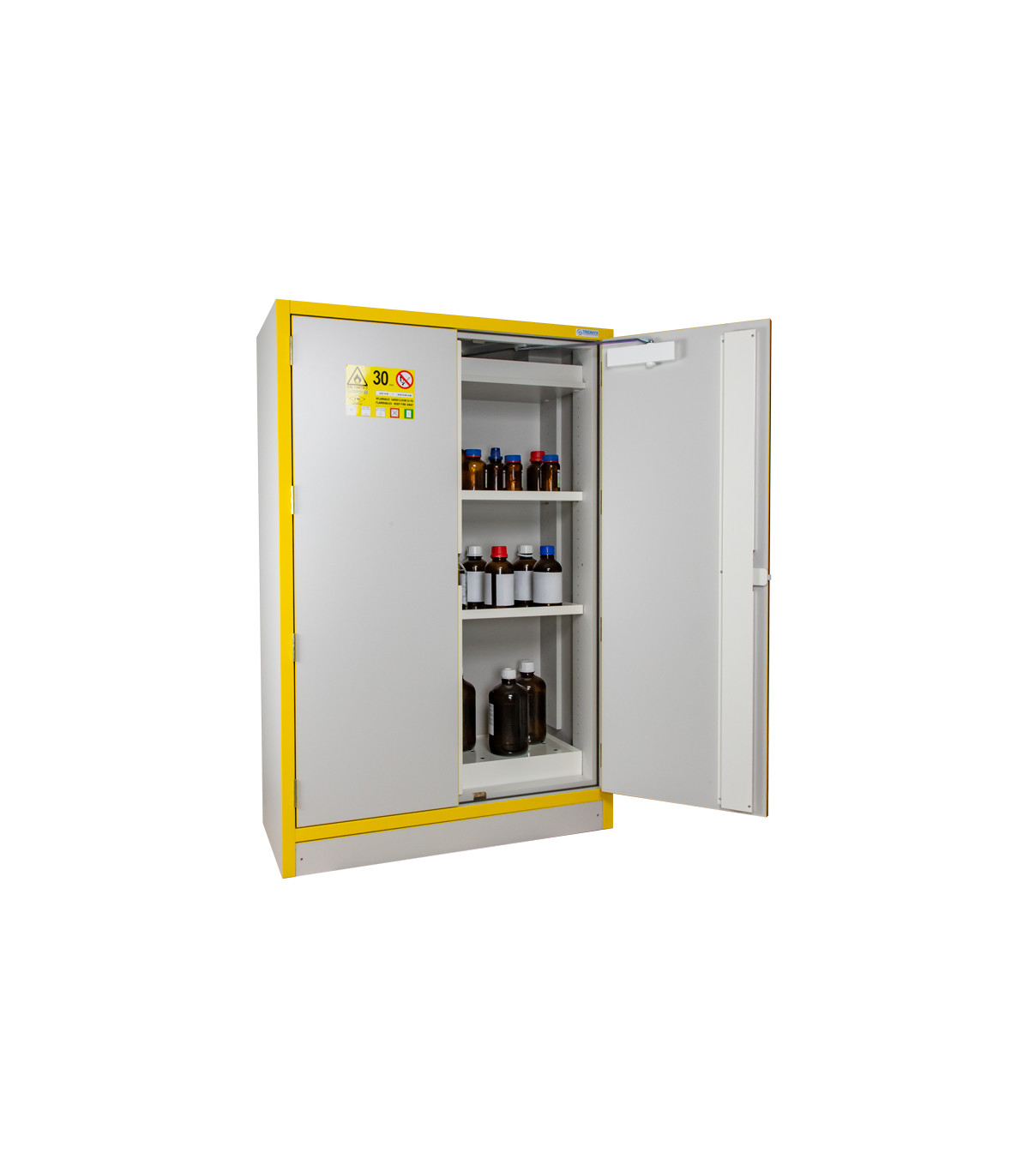

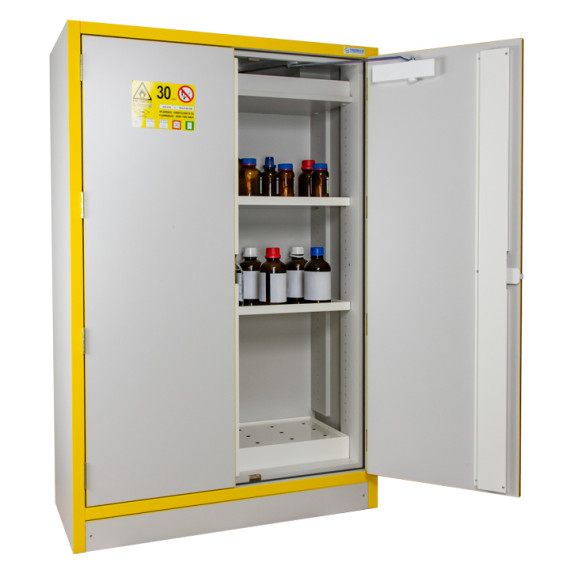

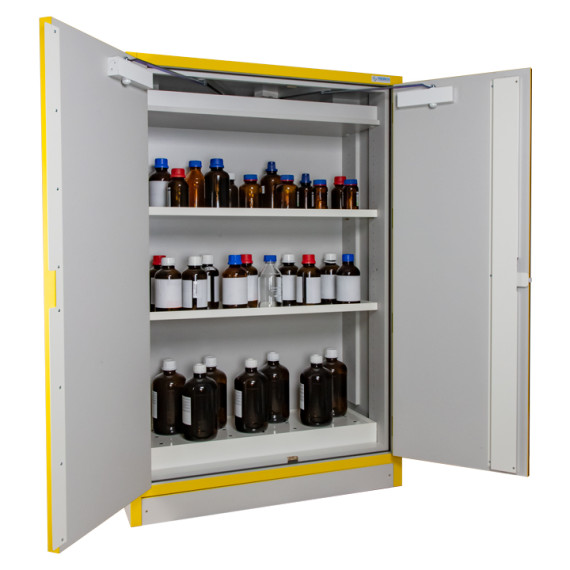

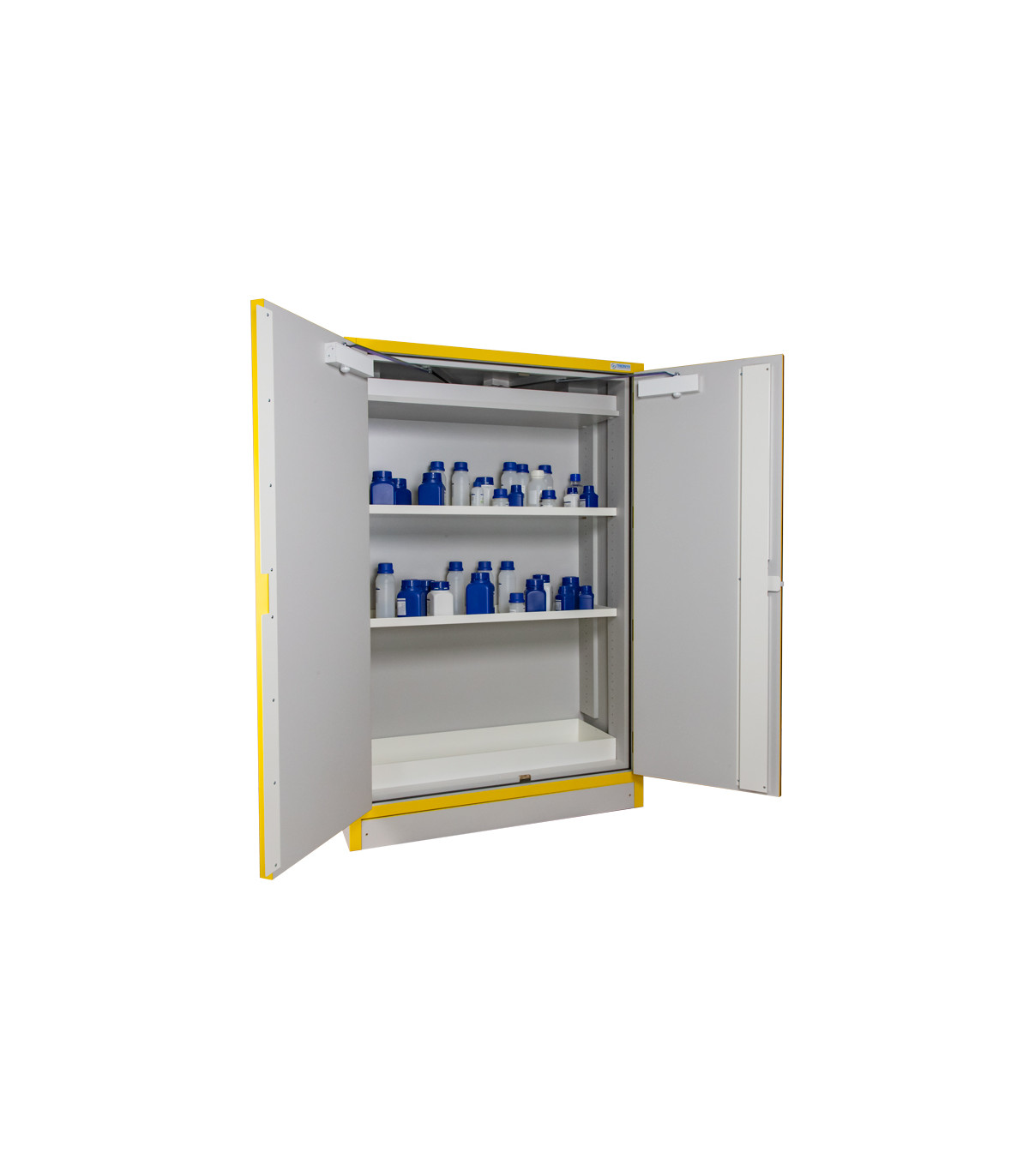

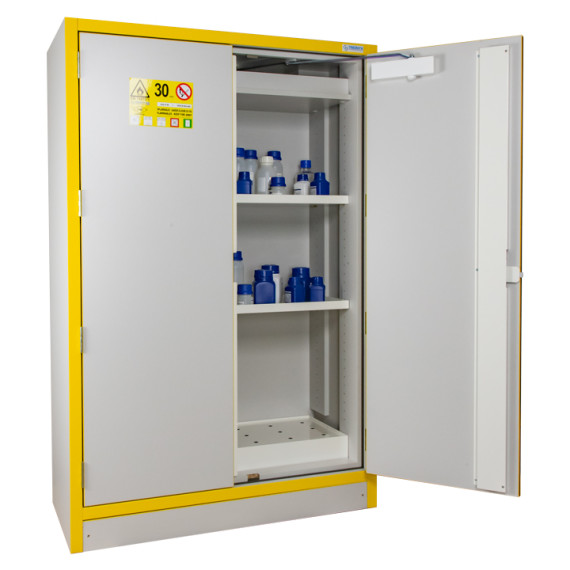

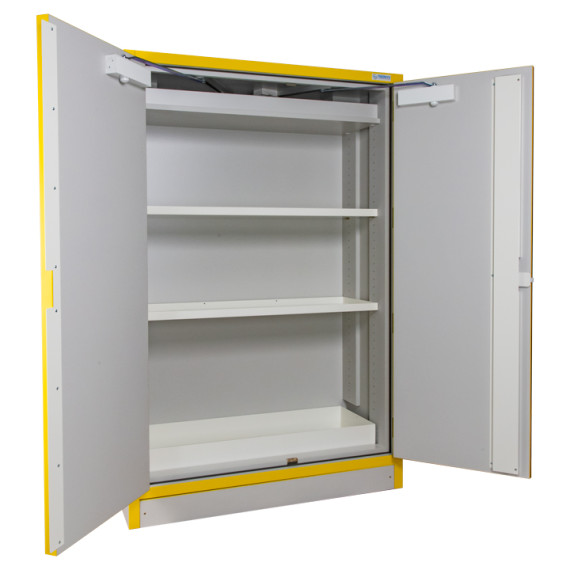

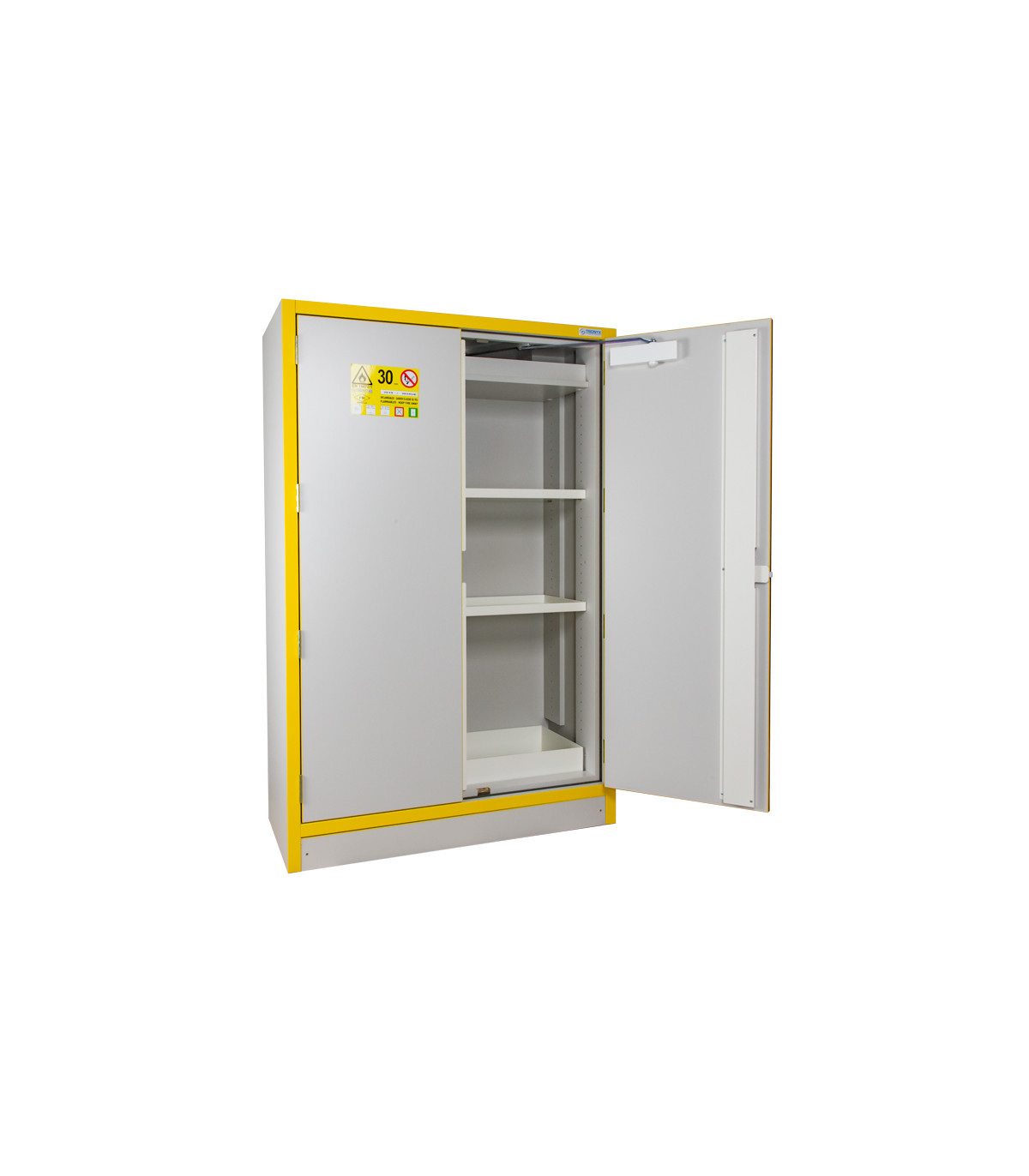

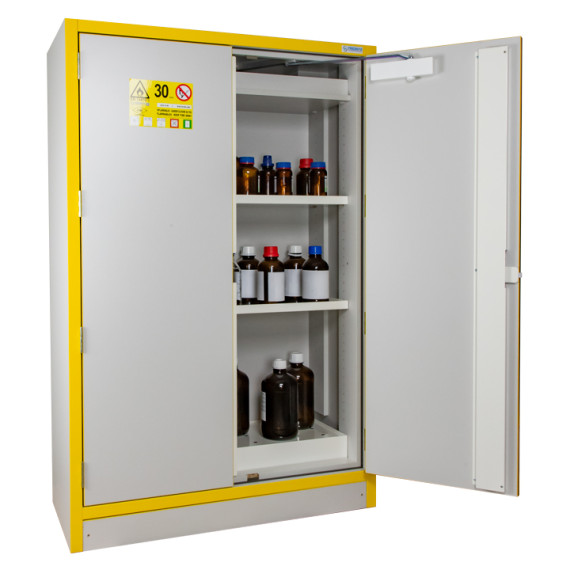

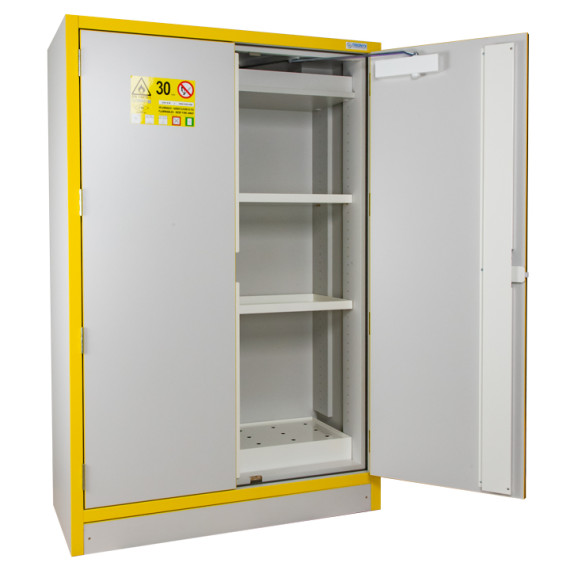

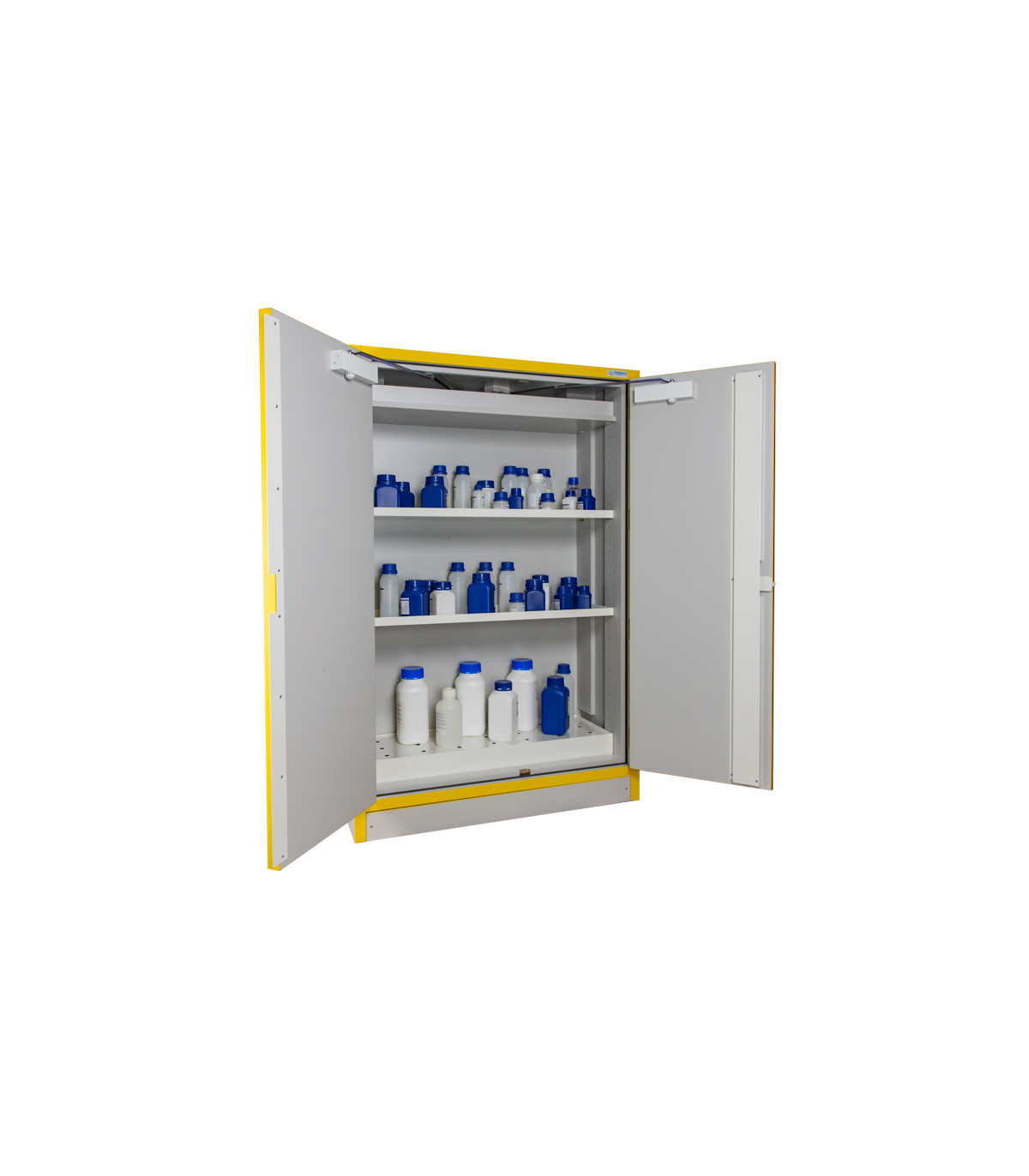

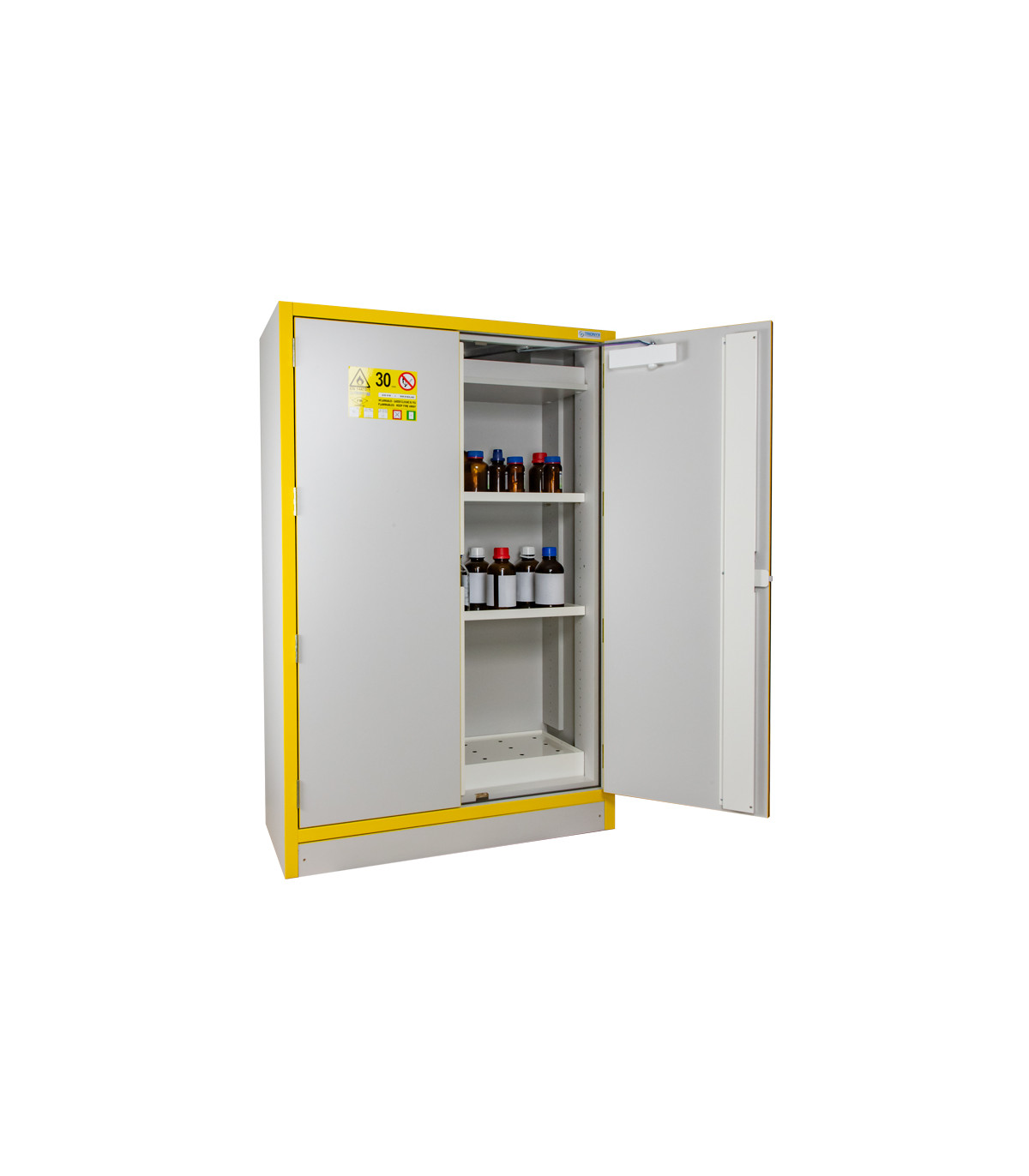

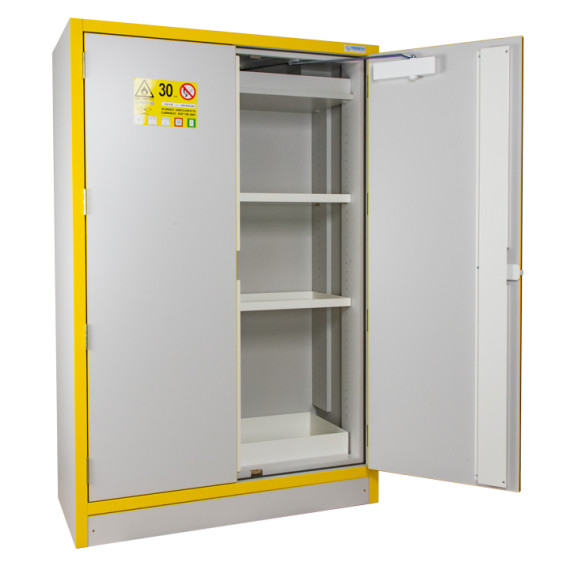

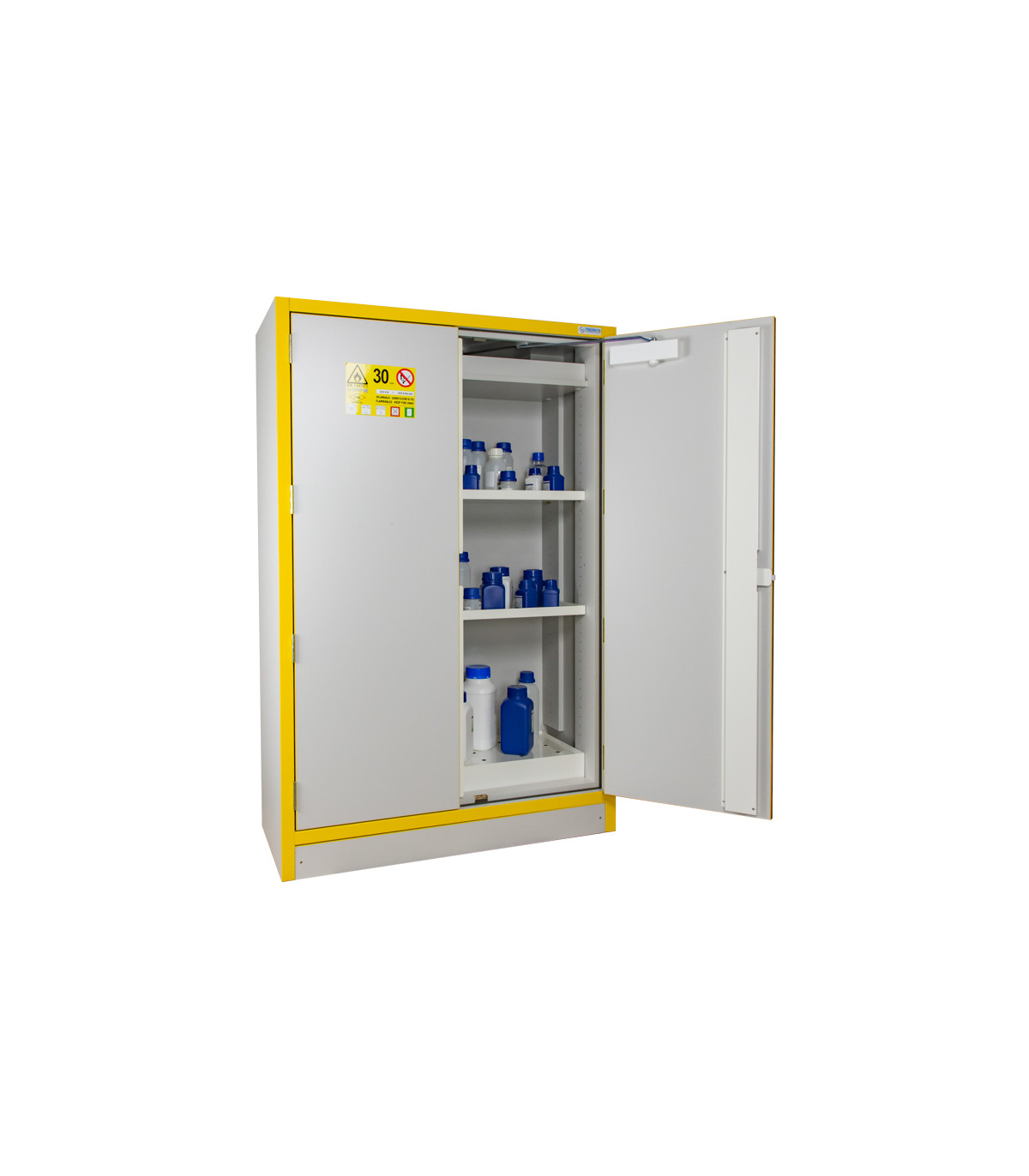

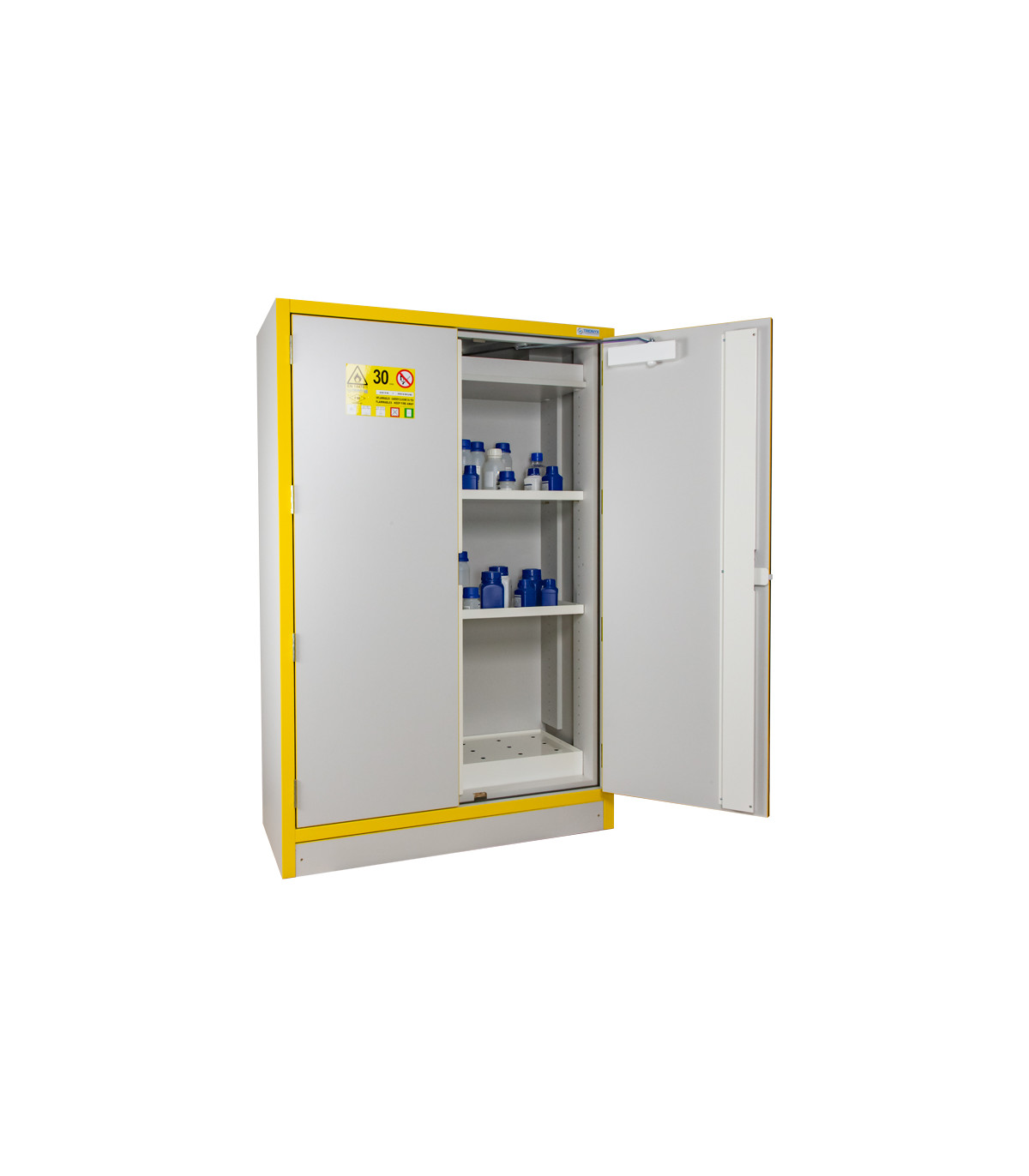

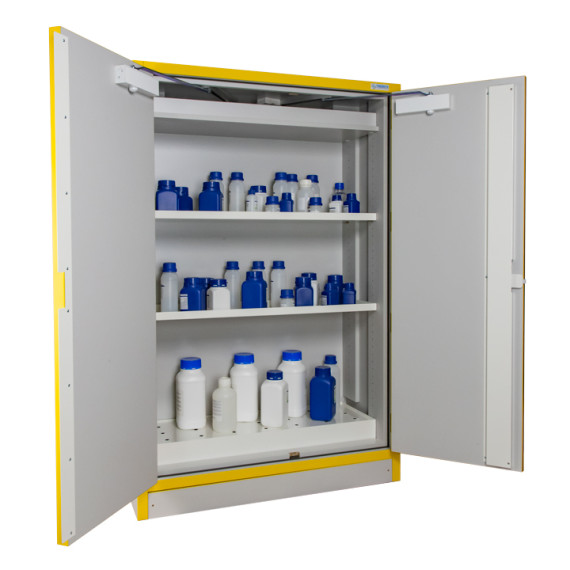

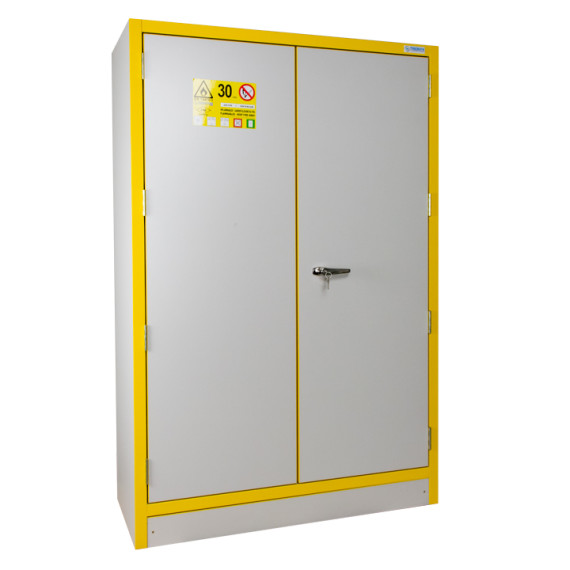

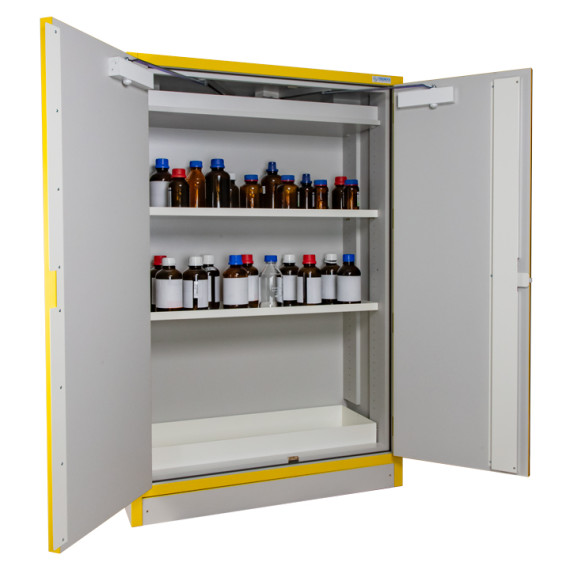

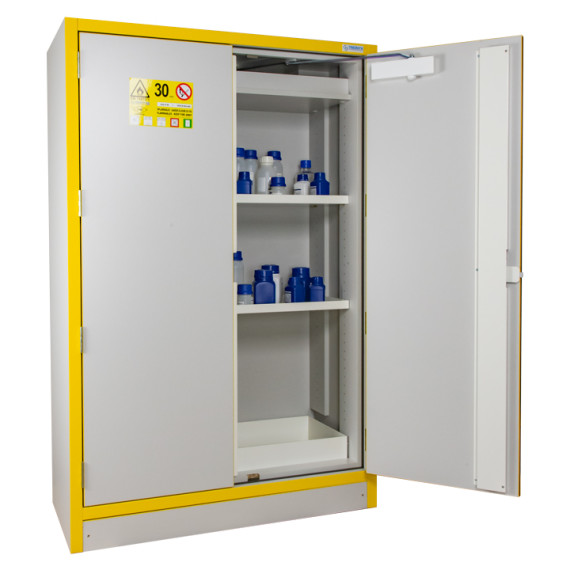

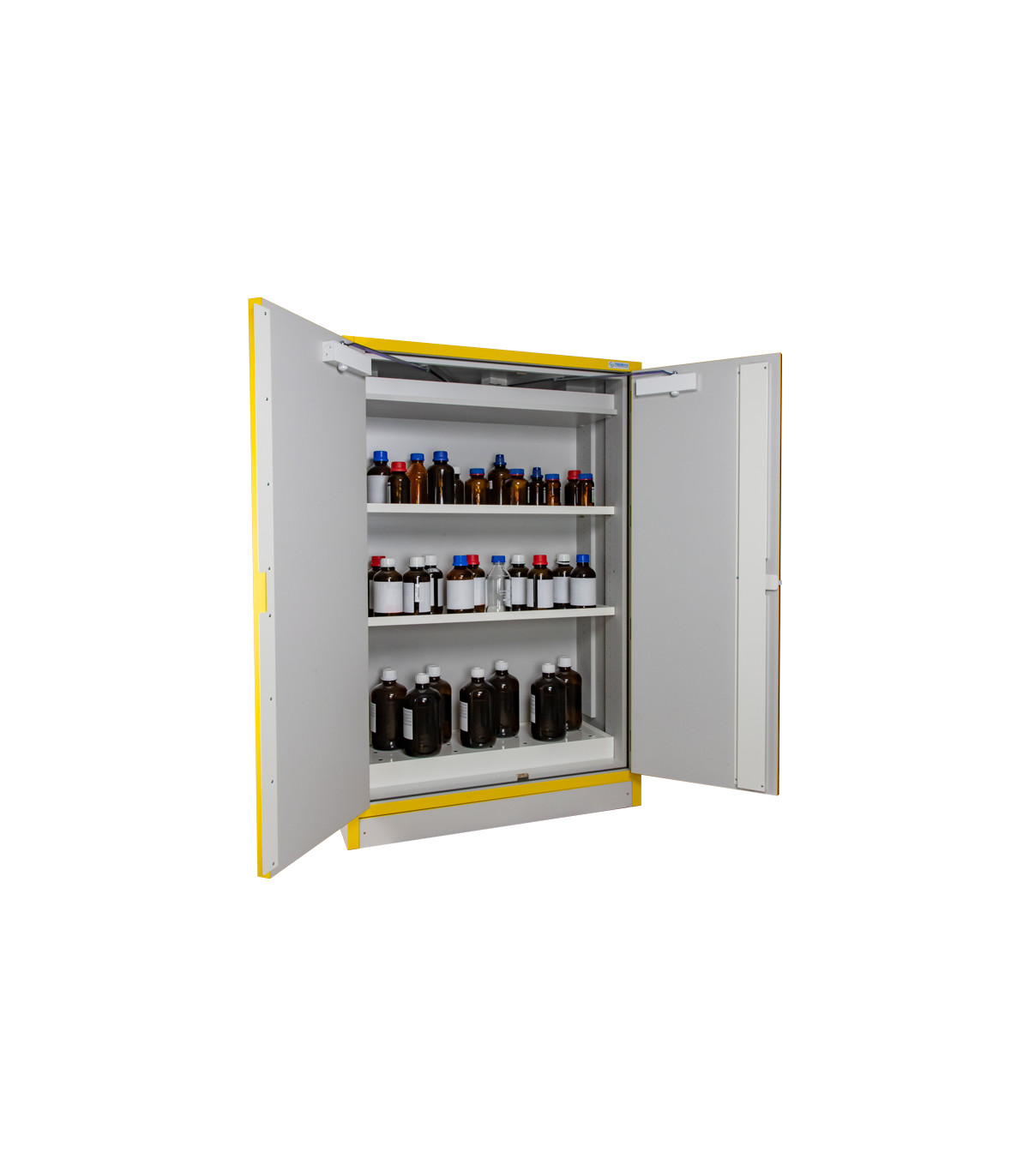

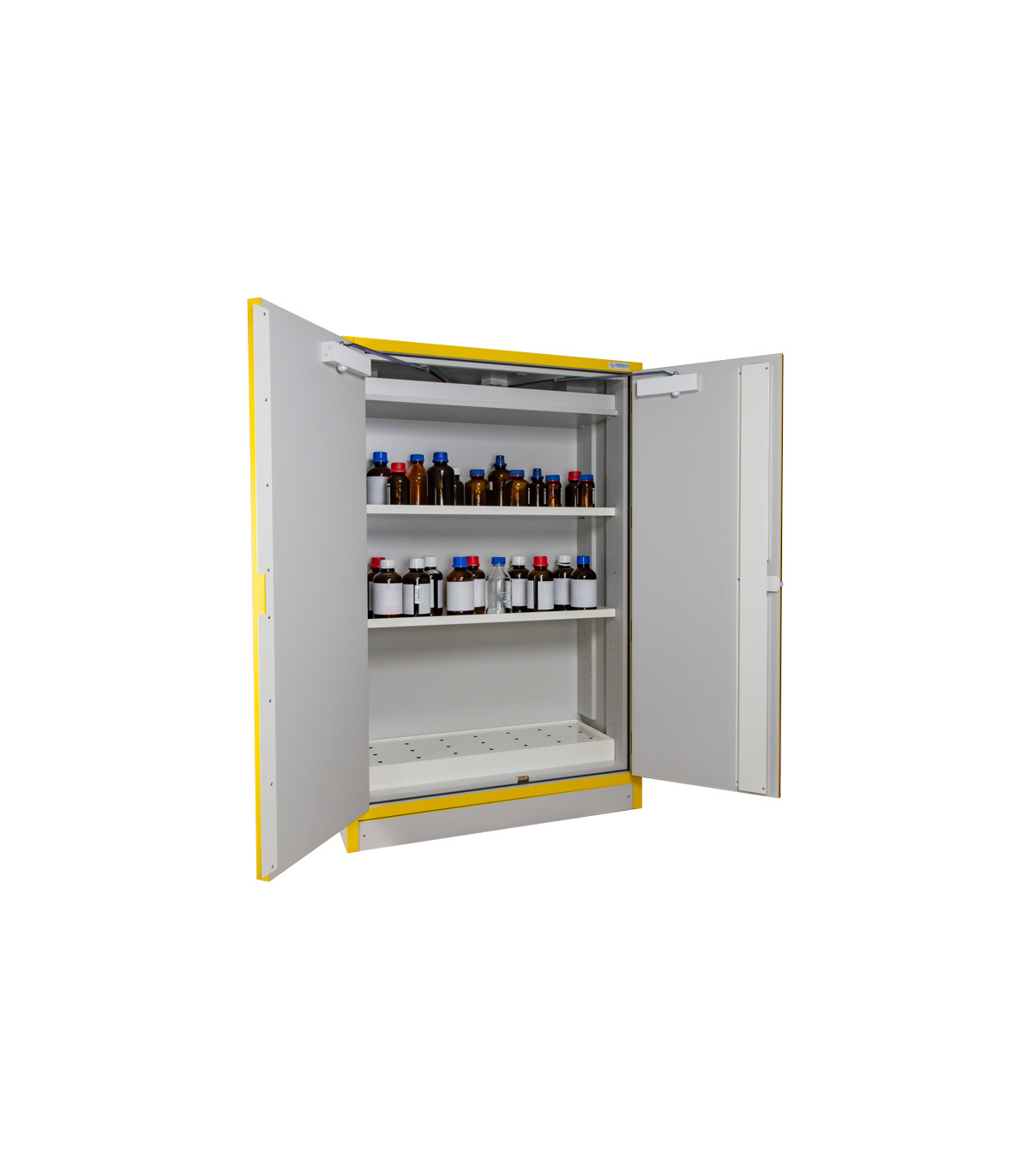

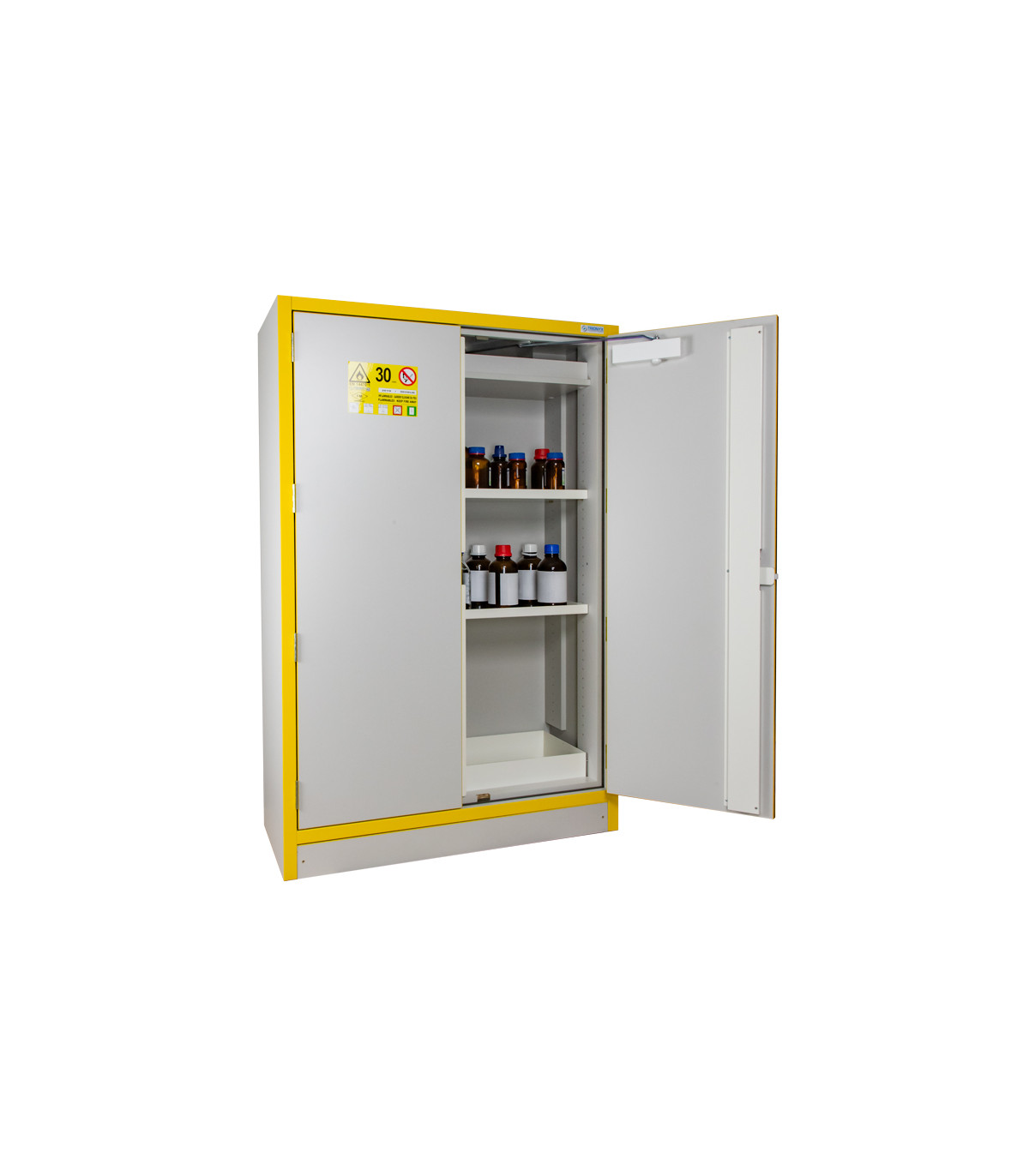

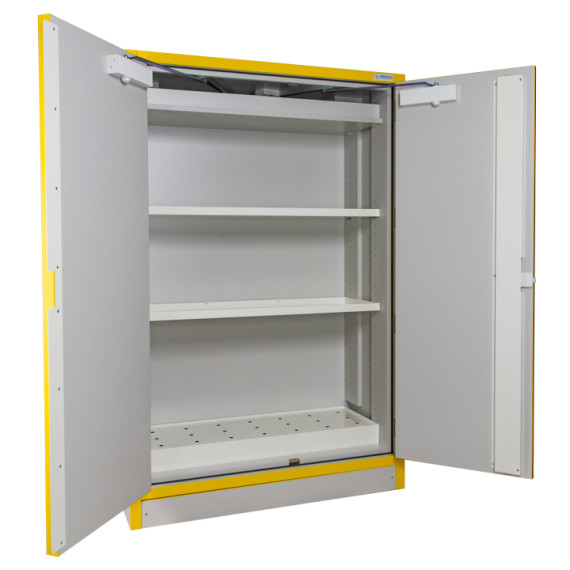

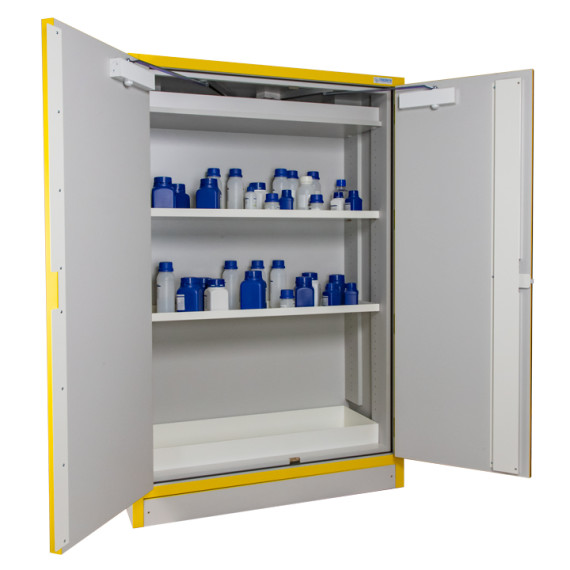

High-security cabinet with 2 doors for flammable products 30 Minutes ECOSAFE

2-door equipped cabinet. High-security cabinet according to EN 14470-1 and FM - (1) Type tested and approved for 10 minutes according to FM 6050 (Factory Mutual International).

For the storage of flammable products. Fire resistance of 30 minutes according to the ISO 834 fire heating curve.

FEATURES

• Fire resistance of 30 minutes according to the ISO 834 fire heating curve.
• Area of the pedestal not accessible by a forklift when removing the panel (except for models under the bench).
• Self-closing doors with the possibility of keeping the doors open.
• If the temperature rises to 47 °C, a fuse automatically closes the door(s).
• Built from melamine: good chemical resistance in general.
• Gray structure (RAL 7035), yellow edges (RAL 1023).
• Safety labeling according to EN 14470-1.
• Height-adjustable containment shelves (step every 32 mm).
• Removable lower containment sump.
• Connection with forced ventilation / filtration system.
• The thermo-expandable seals of the doors help maintain the internal body fireproof.
• Adjustable leveling feet to improve stability.
• Additional containment shelf. - Perforated cover plate for containment collector.
• PVC containment shelf and containment collector. - Easy connection with an exhaust system or a filtration box.

BENEFITS

• Air intake and exhaust ducts of Ø 100 mm for natural ventilation.
• In case of fire, a thermal fuse automatically seals the ventilation system.
• Self-closing doors.
• Doors with a three-point locking mechanism with a key.

TECHNICAL DATA

• Industrial absorbent mat (P/N: JF10D).
• Compliance: EN 14470-1, FM 6050
• Cabinet materials: melamine
• Door color: light gray RAL 7035
• Number of doors: 2
• Type of doors: swinging door
• Hinges: left and right hinges
• Door closure: automatic lock
• Ventilation diameter (mm): 100
• Number of compartments: 1
• Shelves: 2
• Retention trays: 1
• Retention capacity (L): 31
• External dimensions h x w x d (mm): 1731 x 1092 x 457
• Internal dimensions h x w x d (mm): 1330 x 978 x 325
• Shipping dimensions h x w x d (mm): 1950 x 1200 x 800
• Permissible load: 50
• Storage capacity (L): 170
• Weight (kg): 210.00

ADVANTAGES

• Fire resistance of 30 minutes according to the standard ISO 834 curve.

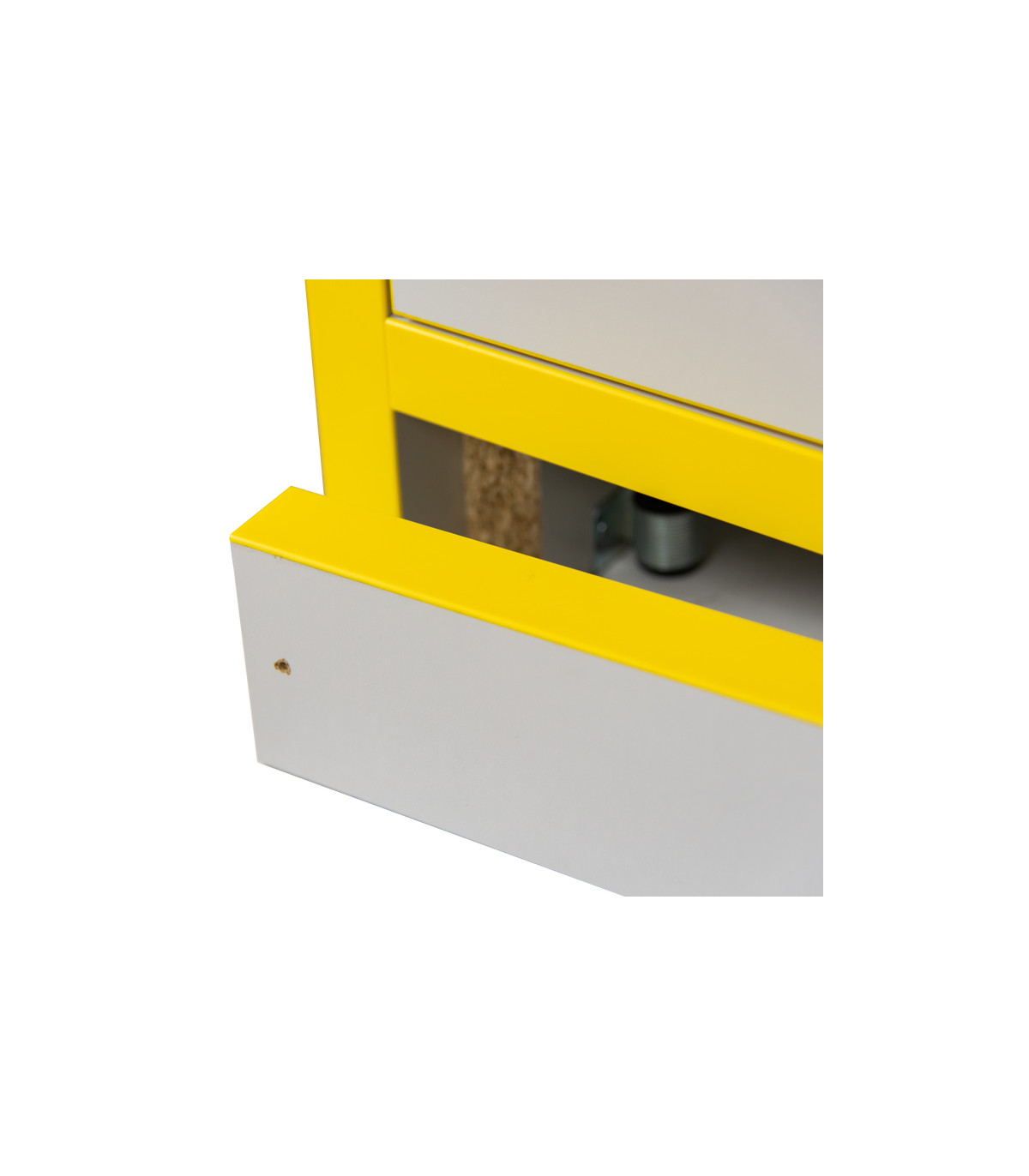

• Base with cover for easy movement with a pallet jack when empty, except for "under furniture" models.
• If the temperature rises to 47°C, a fuse link automatically closes the door(s).

PASSIVE SAFETY

• Insulated panel construction with high resistance to chemical attack.
• Light gray RAL 7035 frame with yellow RAL 1023 silver fields.
• Standardized labeling
• Height-adjustable retention shelves with a step of 32 mm.

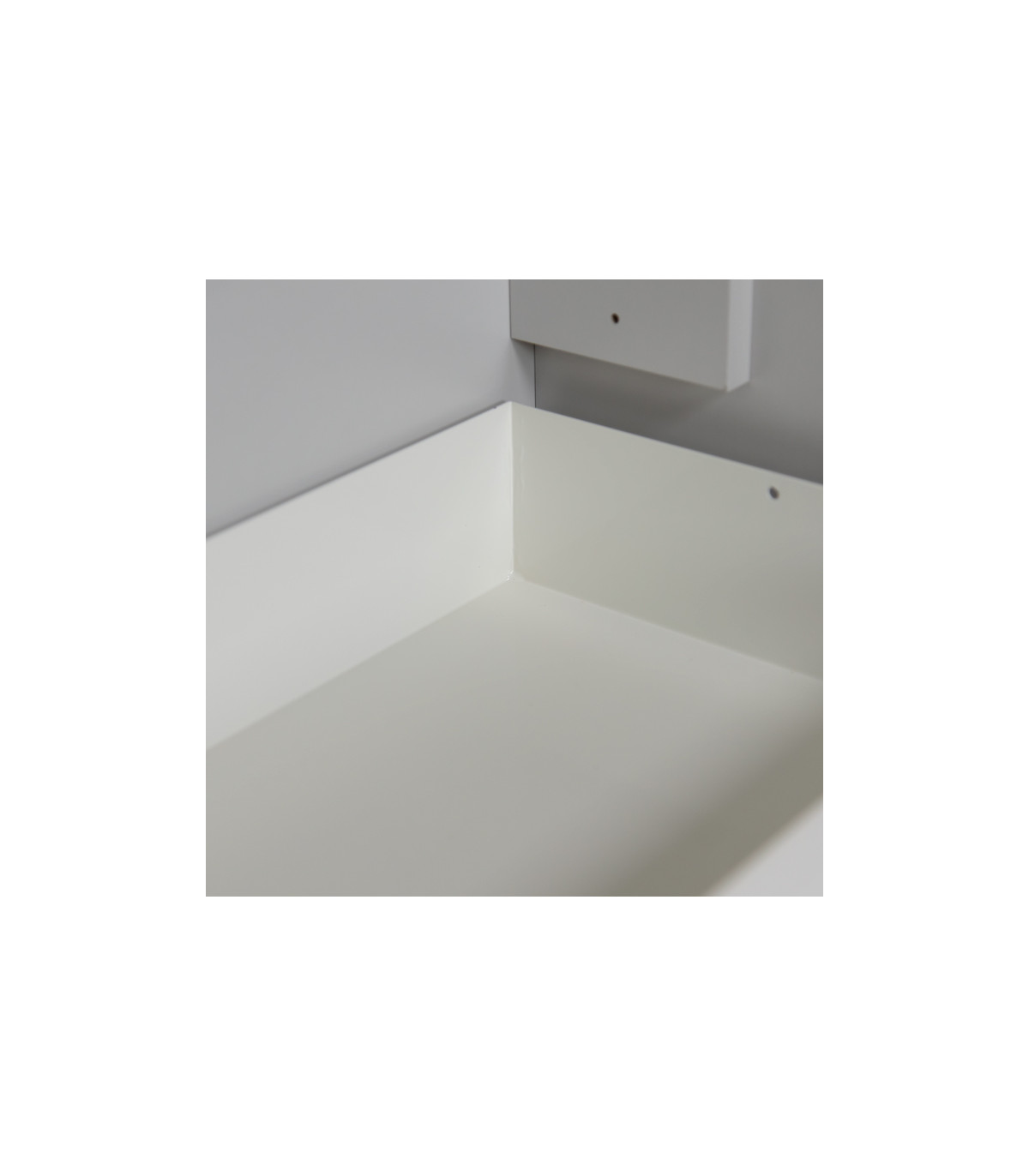

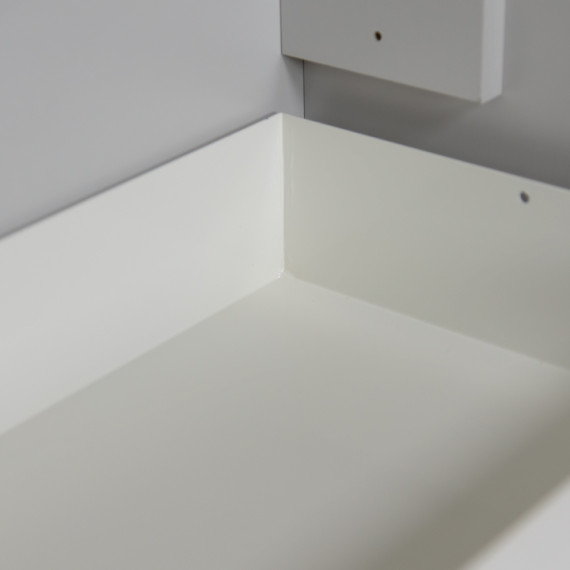

• Removable containment sump at the bottom. The containment sump must be placed at the bottom of your cabinet. If you wish to use it as storage space, you must first place a perforated cover plate (see options) corresponding to your containment sump.

ACTIVE SAFETY

• Ø 100 mm ventilation holes for possible connection.
• Self-closing door(s) with predominance of the leaves.
• Door(s) retention system in the open position with automatic thermal closure at 47°C.
• Ventilation ducts with thermal fuse system to isolate the contents of the cabinet in case of fire.
• 3-point key lock.
• Anti-spark locking system.

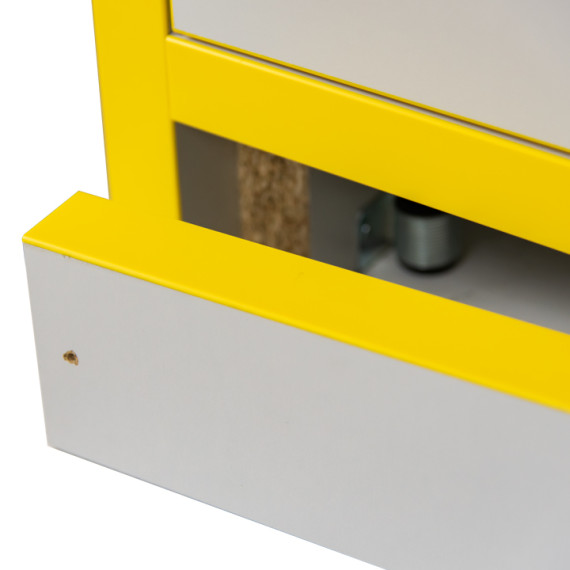

• Adjustable leveling feet.
• Thermo-expandable door seals.

OPTIONS

• Additional shelf.

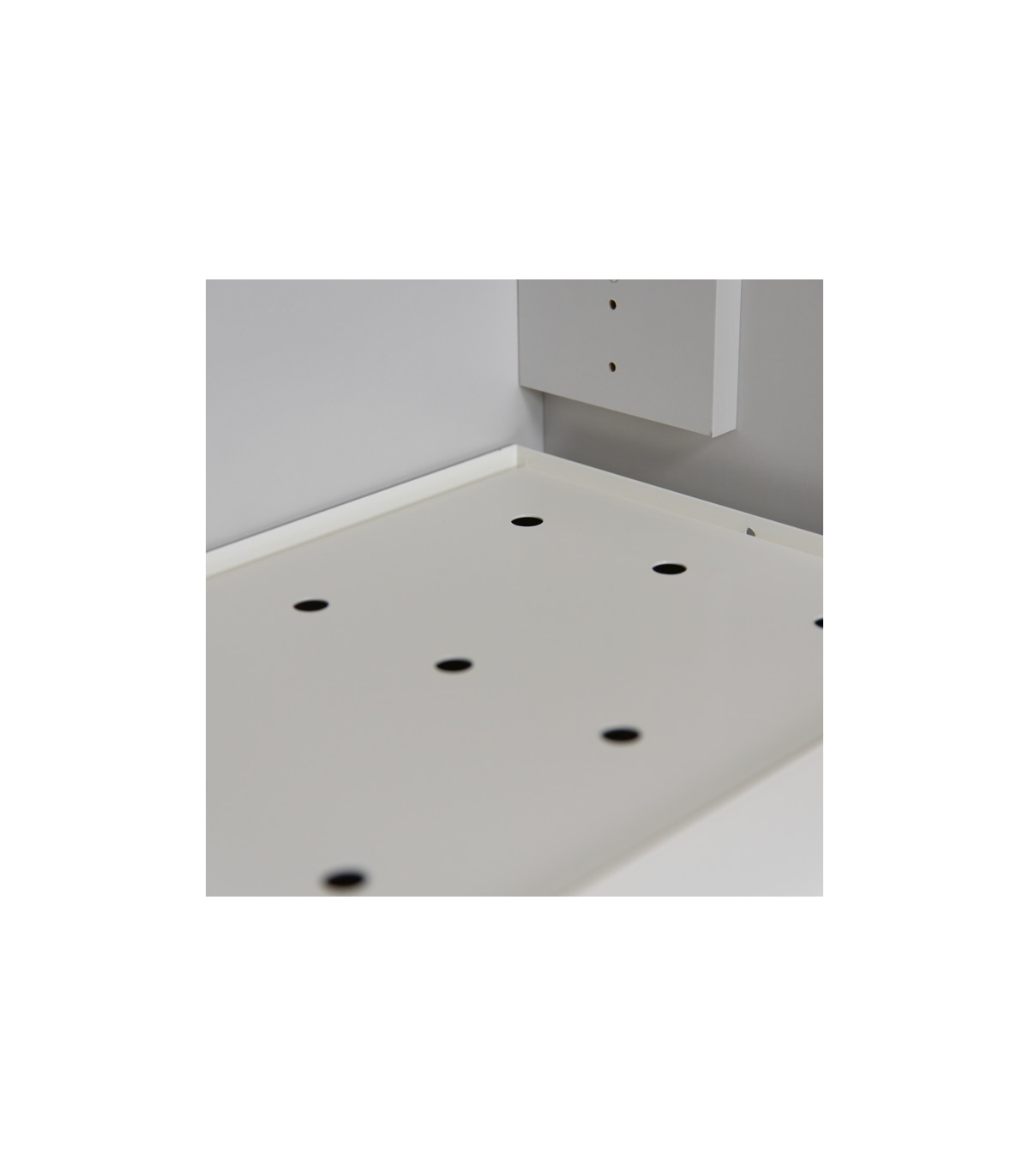

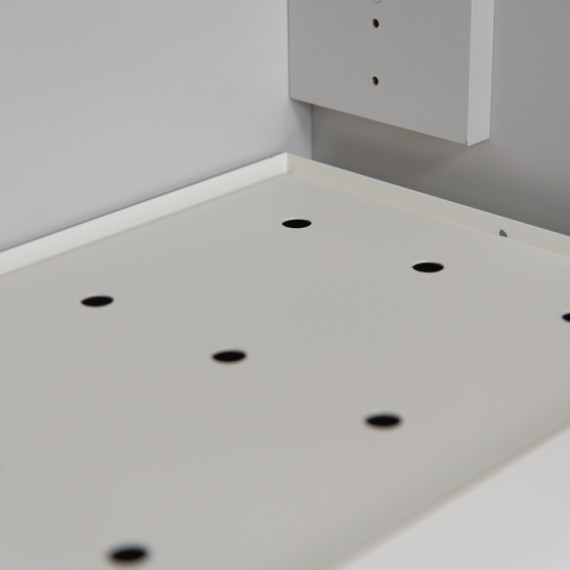

• Perforated cover for containment sump.

• Sliding drawer/Containment sump.

• PVC covers.

• Ventilation or filtration boxes.

• Absorbent mats to place at the bottom of the containment sump (packs of 10 sheets reference JF10D).

REGULATIONS AND CERTIFICATION

Compliance: EN 14470-1, FM 6050

• Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).

• Tested and approved according to FM 6050 (Factory Mutual International).

• Standardized warning labels according to ISO 3864 and ISO 7010, NF X08.003, Directive 92/58/EEC, EN 14470-1 (04-2004) and FM specifications.

• Fire test by an accredited French testing laboratory according to EN:17025 by COFRAC, according to the standard ISO 834 curve.
