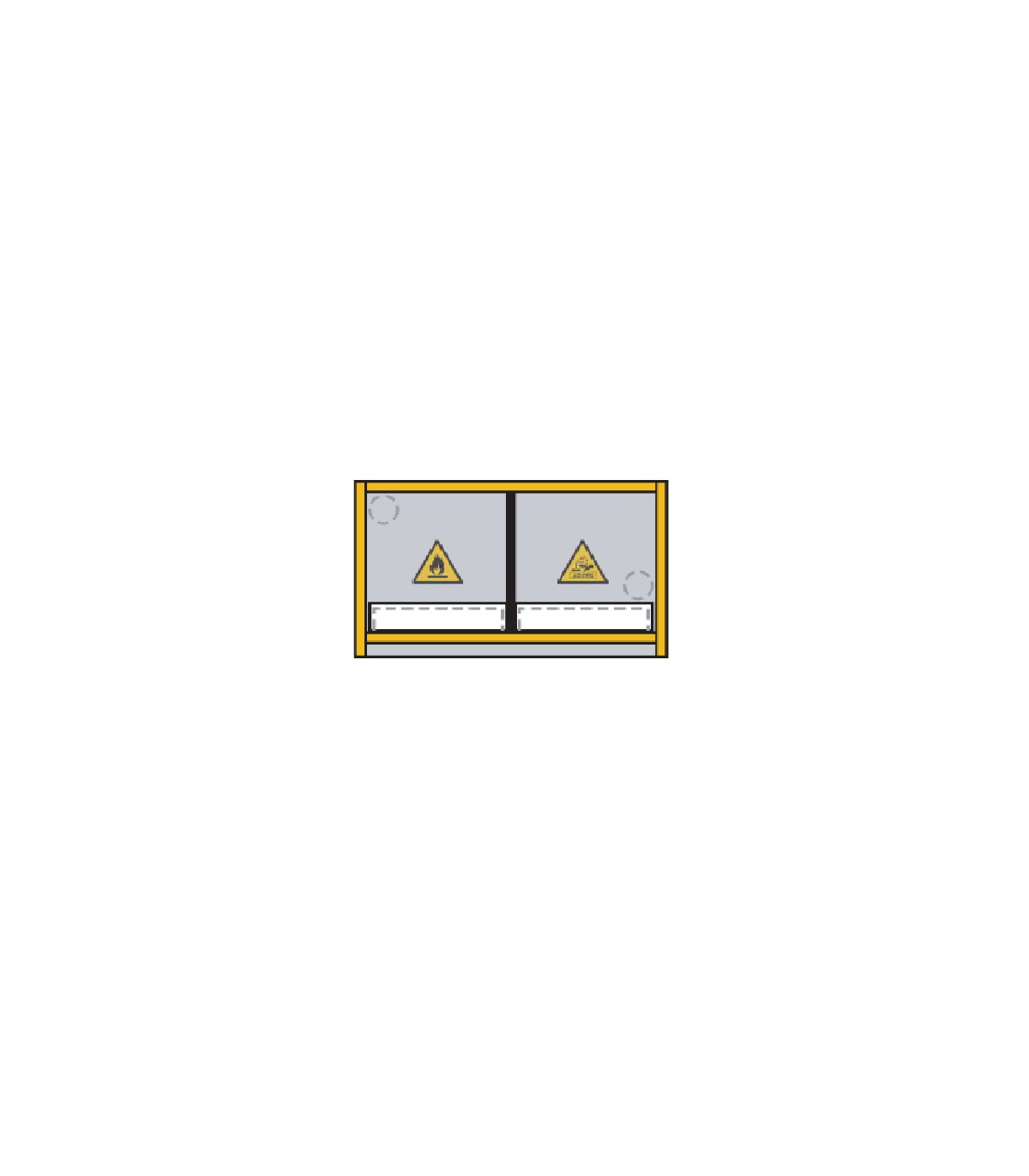

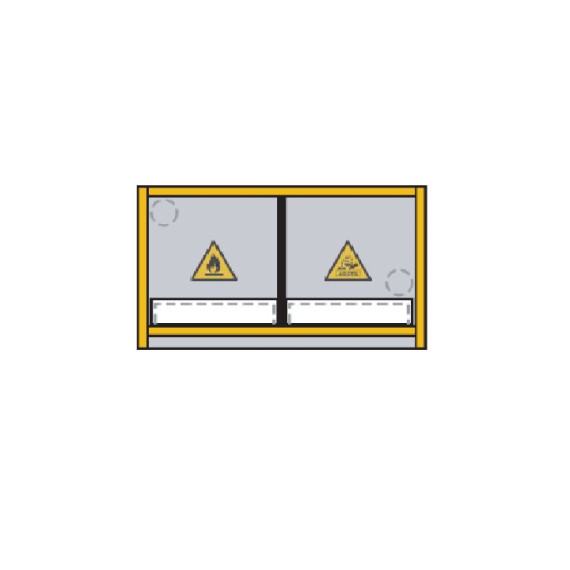

Multi-risk cabinet 30 Minutes with 2 compartments and 2 grids ECOSAFE

Multi-risk cabinet 30 Minutes with 2 compartments and 2 grids ECOSAFE 3032M11

Rotating doors and left and right hinges. For toxic/harmful products and also for mixed chemical products.

FEATURES

• Passive safety - Built from melamine: resistant to corrosion and generally good chemistry.
• Gray structure (RAL 7035), yellow edges (RAL 1023).
• Safety labeling according to EN 14470-1. Removable lower containment collector with perforated lid.
• Active safety - Air inlet and outlet ducts of Ø 100 mm for natural ventilation or connection with forced ventilation/filtration system.
• Self-closing doors. - Doors with a three-point locking mechanism that can be locked (one-point locking system for drawer cabinets).
• Spark-proof locking system (except for drawer cabinets). - Adjustable leveling feet to improve stability.

BENEFITS

• Fire resistance of 30 minutes according to the ISO 834 fire heating curve.
• Suitable for all types of chemicals commonly used in laboratories and industries.
• Double ventilation with built-in flame suppressors.

TECHNICAL DATA

• Cabinet materials: melamine
• Door color: light gray RAL 7035
• Number of doors: 2
• Type of doors: rotating doors
• Hinges: left and right hinges
• Door closure: automatic locking
• Ventilation diameter (mm): 100
• Number of compartments: 2
• Retention trays: 2
• Grid: 2
• Retention capacity (L): 41
• External dimensions h x w x d (mm): 635 x 1115 x 630
• Internal dimensions h x w x d (mm): 366 x 1001 x 419
• Shipping dimensions h x w x d (mm): 835 x 1200 x 800
• Permissible load: 30
• Storage capacity (L): 2
• Weight (kg): 108.00

ADVANTAGES

- Fire resistance of 30 minutes according to ISO 834 fire heating curve.

- Suitable for all types of commonly used chemicals in laboratories and industries.

- Double ventilation with built-in flame suppressors.

APPLICATIONS

Suitable for all types of chemicals commonly used in laboratories and industries.

CERTIFICATION AND REGULATIONS

• - Type 30 tested and approved according to EN 14470-1 (04-2004) and EN 1363-1 (06-2000).
• - (1) Type 10 minutes tested and approved according to FM 6050 (Factory Mutual International) (except models 7031T and 7032T).
• - Standardized labeling according to ISO 3864 and EN 14470-1 (04-2004), European directive 92/58/EEC, and FM regulations.

OPTIONS

- Self-retracting shelf.

- PVC containment sump, highly recommended for corrosives.

- Easy connection with an exhaust system or a filtration box.

- Industrial absorbent mat (P/N: JF10D).
