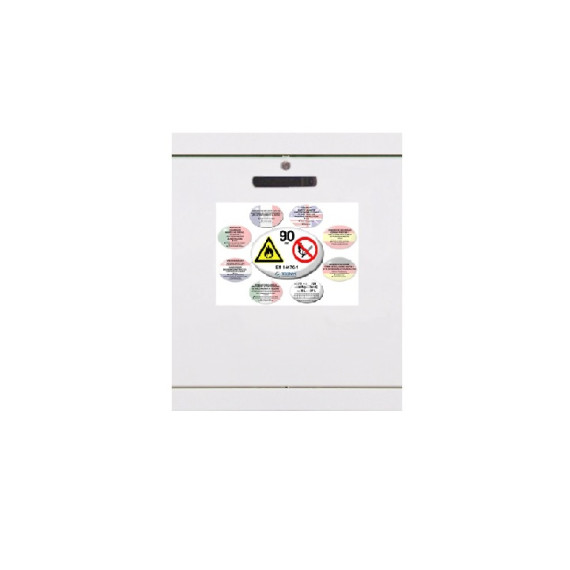

105-Minute Security Cabinet with 1 Drawer and 1 Door for Flammable Products ECOSAFE

105 Minute safety cabinet with 1 drawer and 1 ECOSAFE door for flammable and corrosive products.

(1) Type tested and approved for 10 minutes according to FM 6050 (Factory Mutual International). Tested and approved by an independent European laboratory.

FEATURES

• Double wall construction: Outer shell made of high-quality steel sheet (12/10).
• Epoxy coating RAL 9010.
• Internal body constructed in white (RAL 9010) based on melamine wood.
• Thermal insulation panel between the walls to prevent heat bridges.
• Removable lower containment sump.
• Adjustable containment shelves.
• Grounding connection.
• Air intake and exhaust ducts of Ø 100 mm for natural ventilation or connection with forced ventilation/filtration system.
• In case of fire, a thermal fuse automatically seals the ventilation system.
• The thermo-expandable seals of the doors help maintain the internal body fireproof.
• Separate door locking with cylinder locks.
• Automatic closing door(s) with the possibility to keep the door(s) open. If the temperature rises to 47 °C, the fuse link automatically closes the door(s).

BENEFITS

• Fire resistance for 105 minutes (type 90 approved) according to the ISO 834 fire heating curve.

TECHNICAL DATA

• Cabinet materials: Steel 12/10 and internal walls in melamine
• Door color: white RAL 9010
• Number of doors: 1
• Type of doors: sliding doors
• Door closure: automatic closure
• Ventilation diameter (mm): 100
• Number of compartments: 1
• Retention sumps: 1
• Retention capacity (L): 20
• External dimensions h x w x d (mm): 670 x 635 x 615
• Internal dimensions h x w x d (mm): 460 x 490 x 380
• Shipping dimensions h x w x d (mm): 900 x 1200 x 800
• Storage capacity (L): 30
• Weight (kg): 155.00

CERTIFICATION AND REGULATIONS

- Tested and approved according to EN 14470-1 (04/2004) and EN 1363-1 (06/2000).

- Standardized labeling according to ISO 3864 and EN 14470-1 (04/2004) and European directive 92/58/EEC. - (1) Type 10 minutes tested and approved according to FM 6050 (Factory Mutual International).

OPTIONS

• structure and shelves in white (RAL 9010); doors in yellow (RAL 1023)

APPLICATIONS

Storage of flammable, corrosive, and toxic materials.
