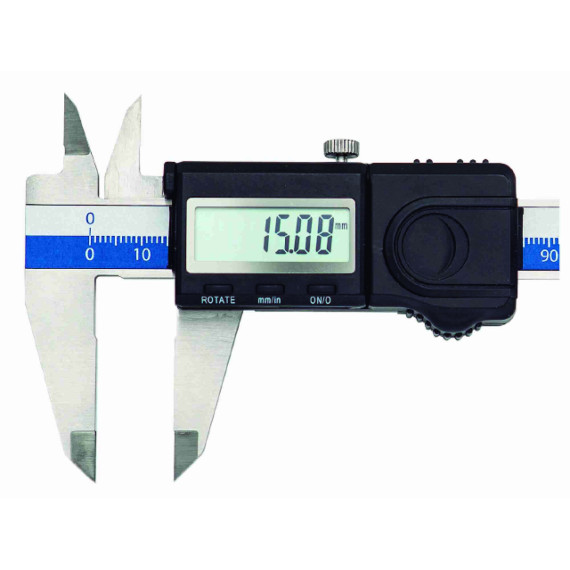

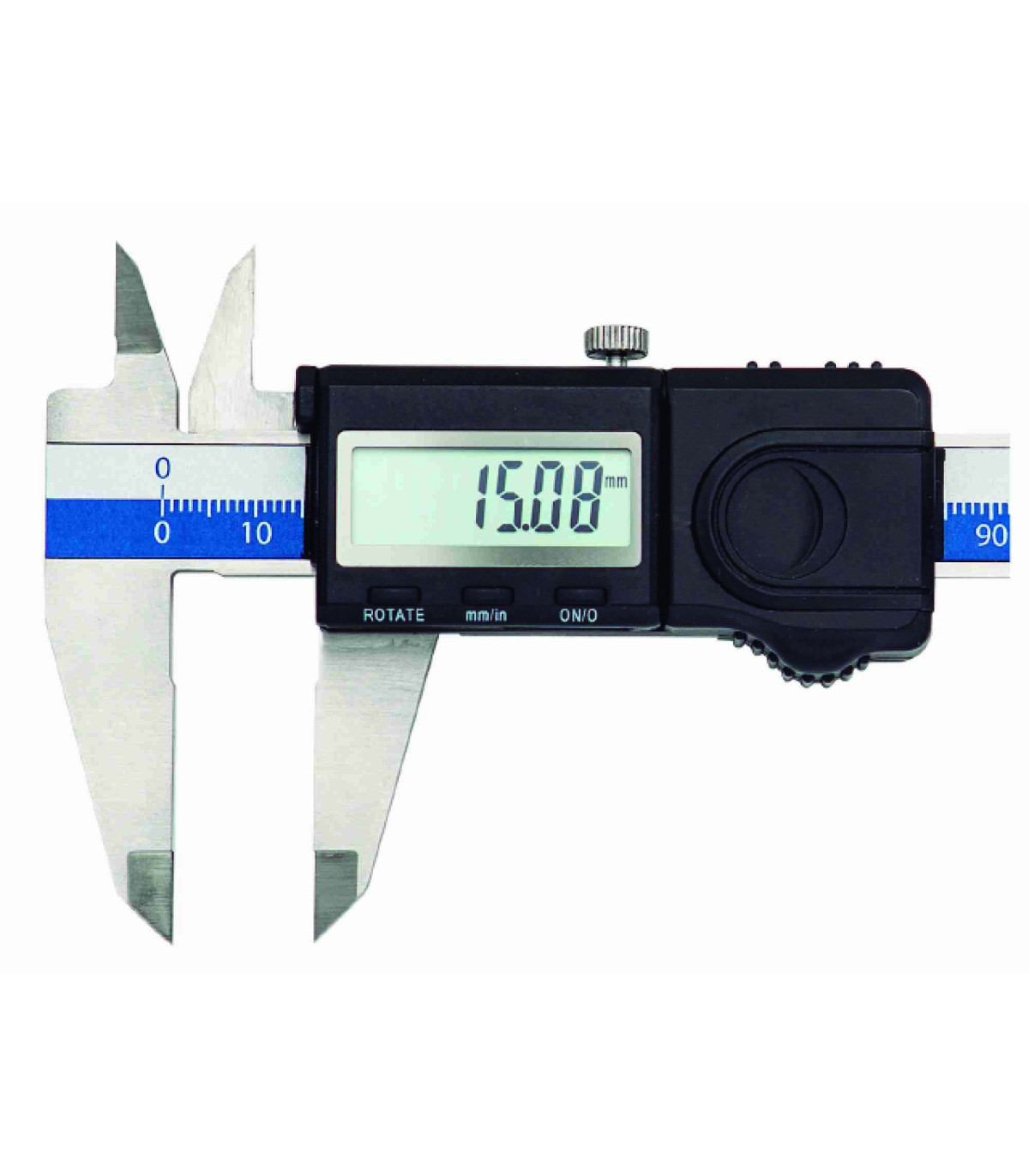

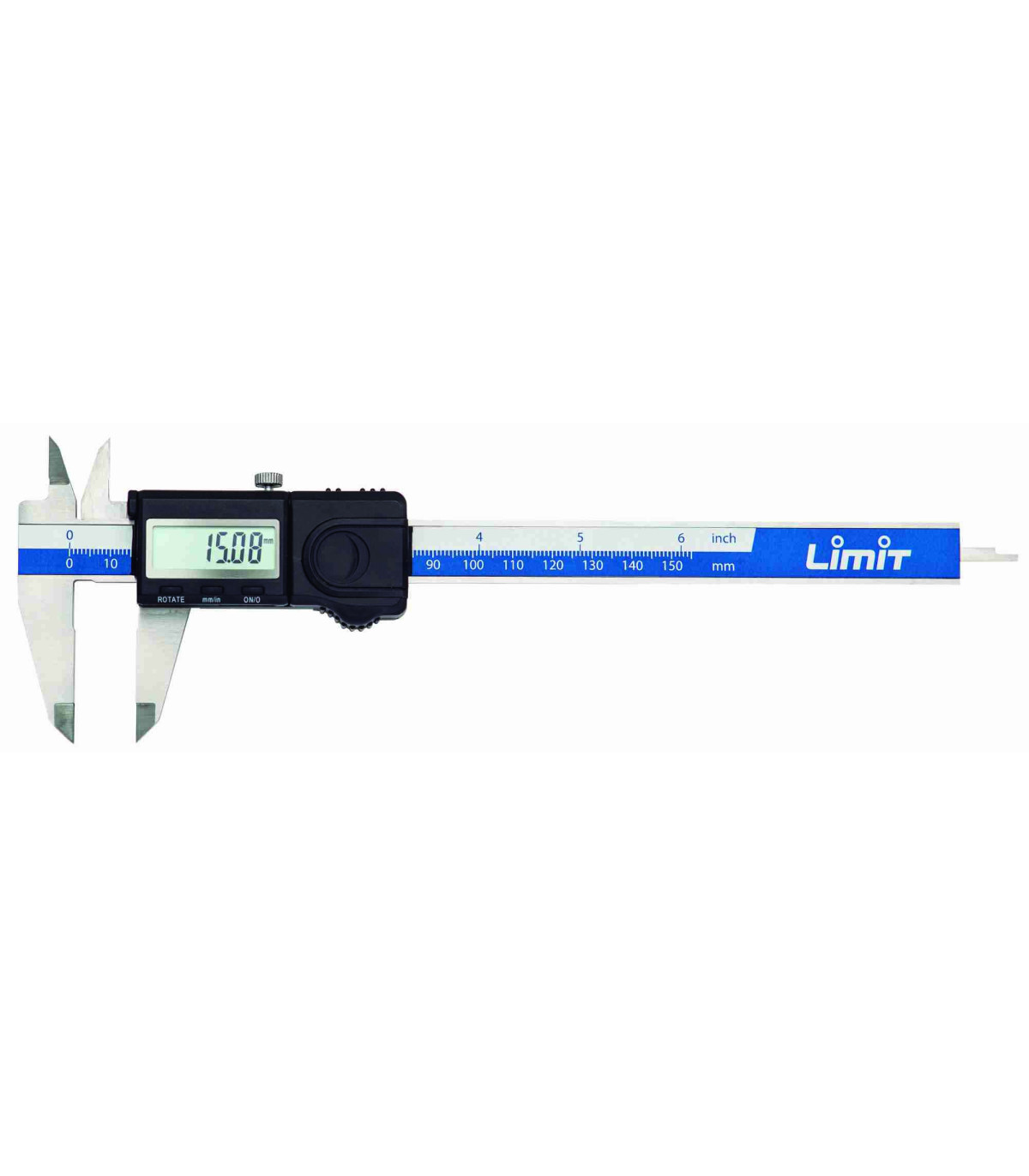

Digital King Size Caliper with reversible LCD screen LIMIT

Digital Caliper with reversible LCD screen LIMIT. The LIMIT Digital Caliper features a reversible LCD screen, ideal for measurements in tight spaces. Its stainless steel jaws ensure stability and precision. It offers versatile functions, switching between metric and imperial units and includes a depth gauge. Manufactured according to DIN 862, it comes with a case with a certificate and a CR2032 battery. Its flexible design allows for comfortable readings from any angle.

FEATURES

• With a unique flexible screen.

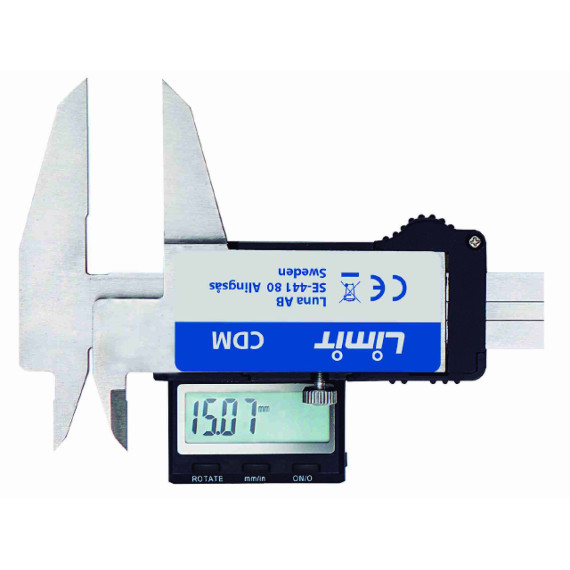

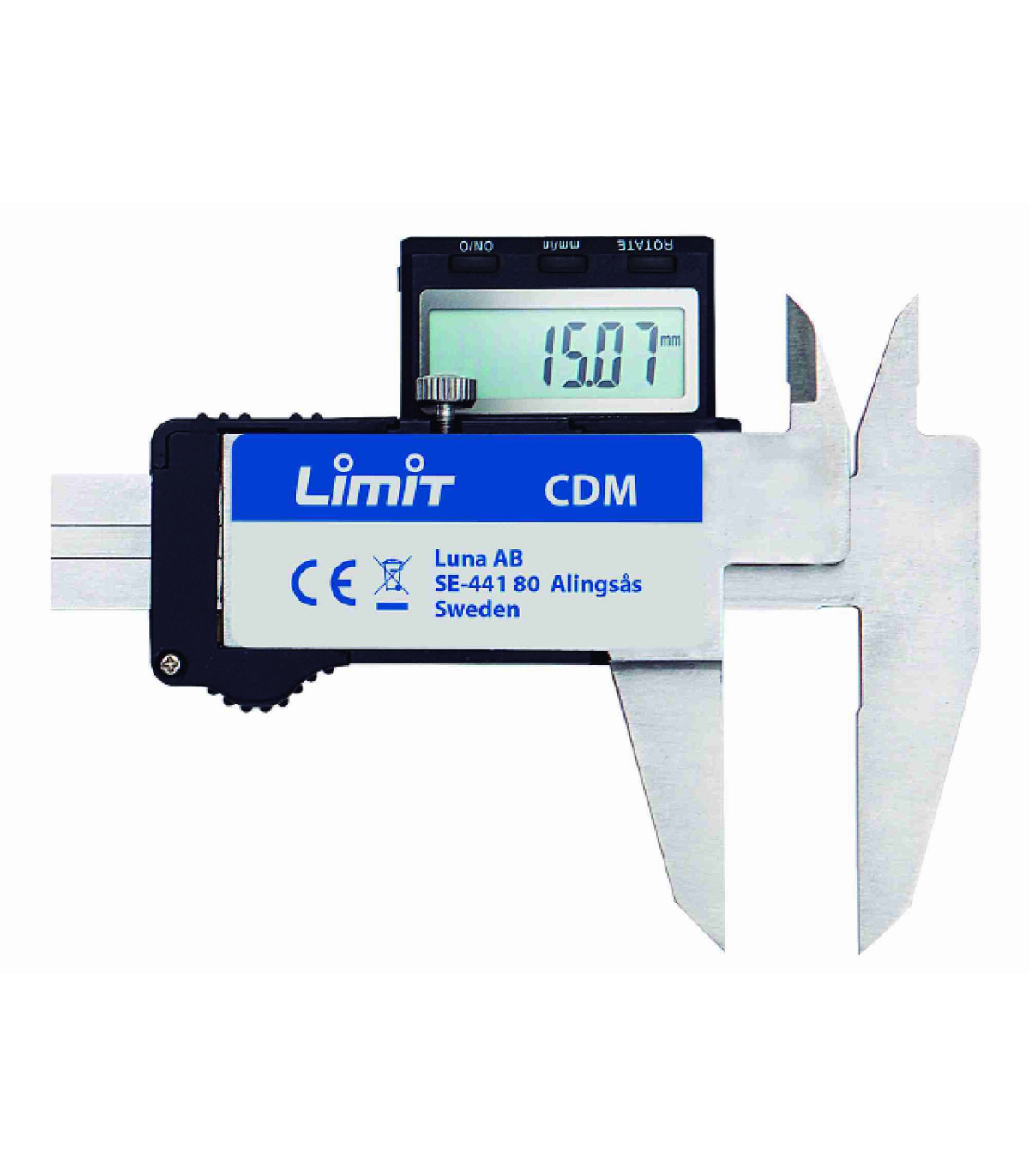

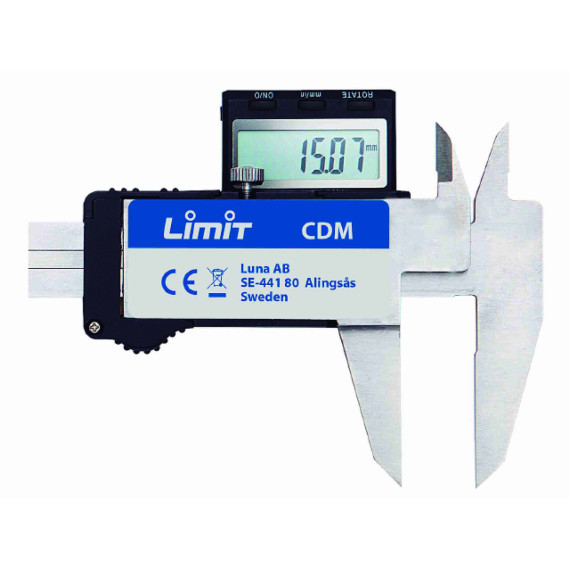

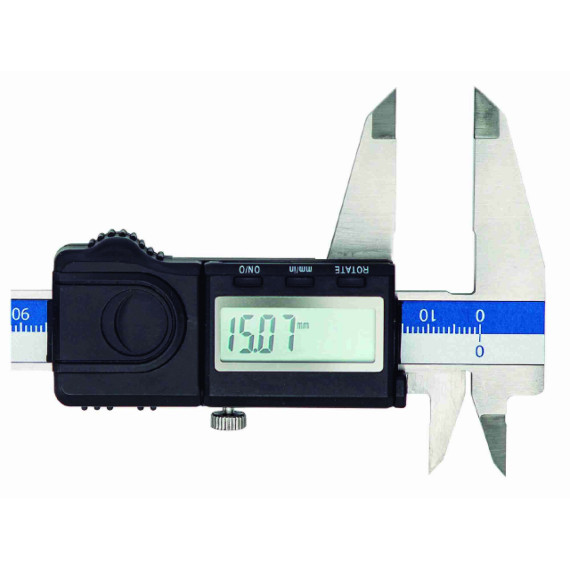

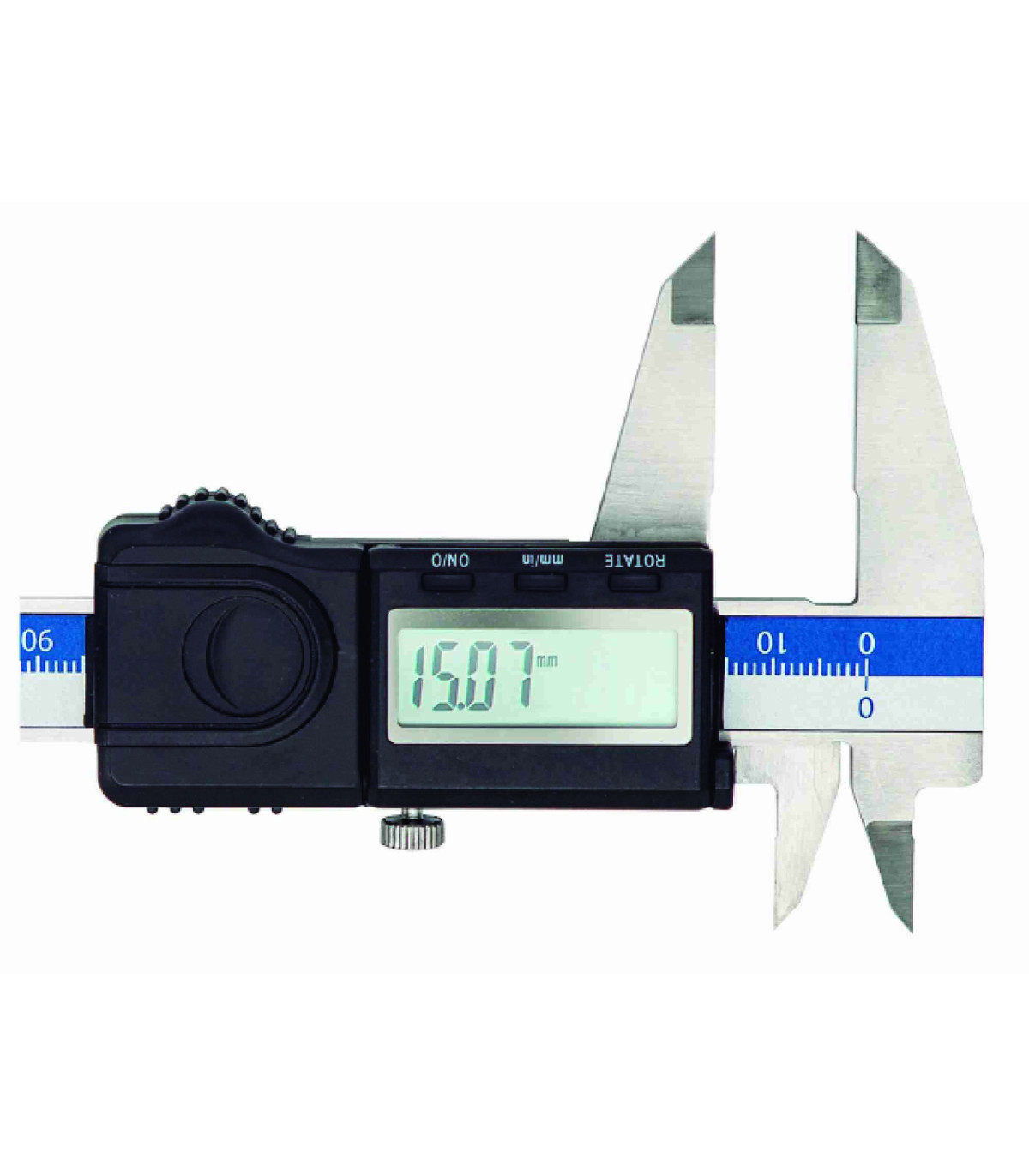

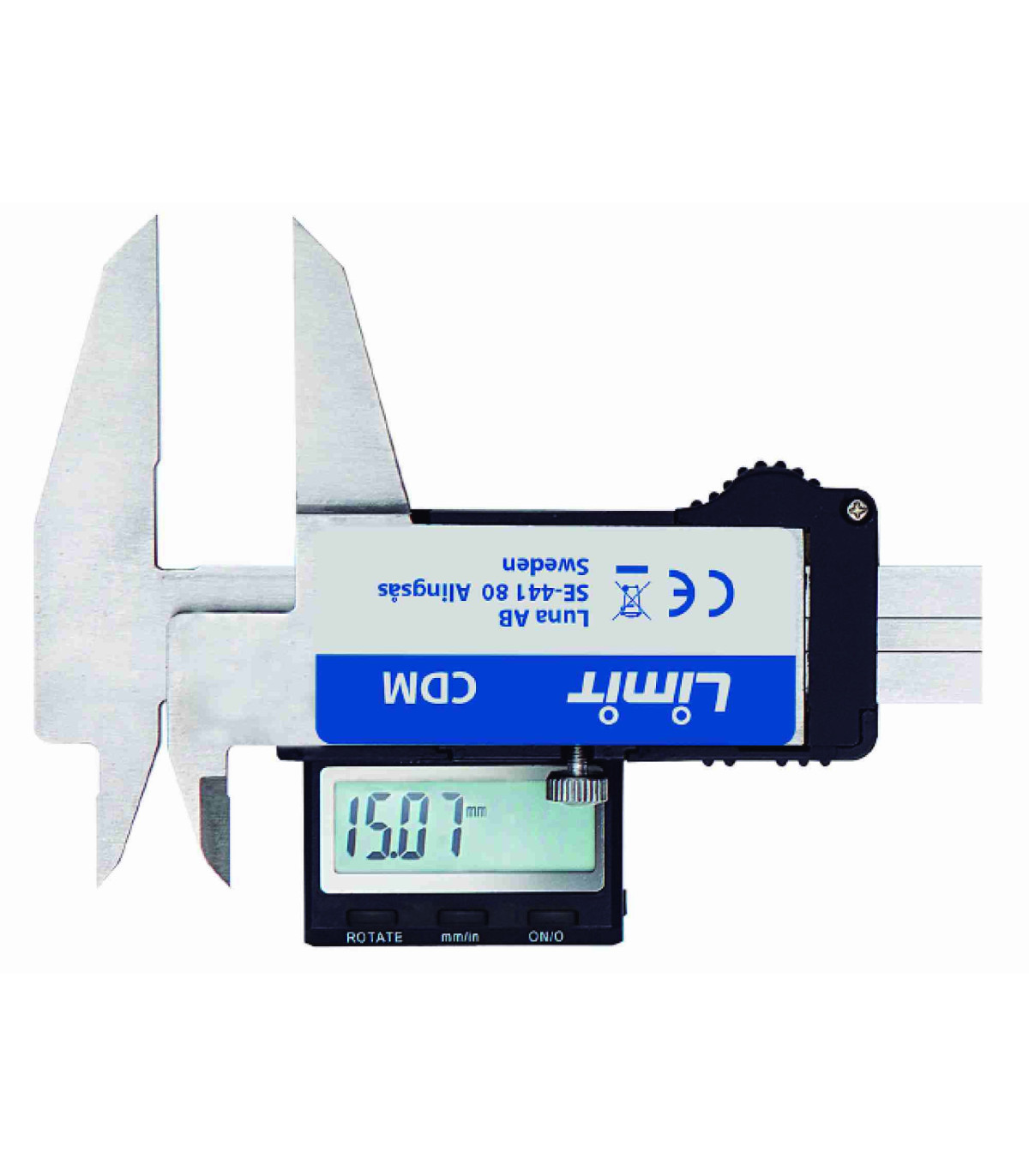

• Thanks to its foldable rotating screen, it can be used with either the right or left hand, and for measurements from above and below.
• This means you can read the measurement on the screen even in tight spaces, such as inside a machining center or a CNC lathe.
• With Absolute system and temporary zero point adjustment.
• Measurement jaws made of stainless steel, tempered and precisely ground.
• Jaw thickness of 3.5 to 4 mm providing great stability.
• LCD screen with clear digits 7.5 mm high.
• 4 functions.
• Processor with update speed (1.5 m/s).
• Switching between metric and imperial systems.
• Equipped with a rectangular depth gauge and tips for internal measurements.
• Manufactured according to DIN 862.
• Supplied in a case with inspection certificate.
• CR2032 battery included.

TECHNICAL DATA

ABS Function: Yes

Depth gauge: Rectangular

Leg thickness: 3.6 mm / 3.8 mm

Update speed: 1.5 m/s

External leg length: 40 mm / 50 mm / 60 mm

Measuring length: 150 mm / 200 mm / 300 mm

Digit height: 7.5 mm

Resolution: 0.01 mm

Internal leg length: 21 mm / 24 mm / 26 mm

Units of measurement: inches, mm

Inaccuracy: ±0.02 mm / ±0.03 mm / ±0.04 mm

Repeatability: ± 0.01 mm

ETIM class code: EC000157

Lock type: Locking screw

Design: Digital

STANDARDS

- DIN 862: This standard ensures that measuring tools are accurate and reliable, which is essential in various industrial and construction applications. Rules and tapes that comply with this standard must have a clear and legible graduation, as well as a durable material to ensure longevity.

FOR WHAT TYPE OF WORK IS IT SUITABLE

• Mechanical engineering
• Metallurgy
• Carpentry
• Parts manufacturing
• Quality control
• Prototype design
• Electronics
