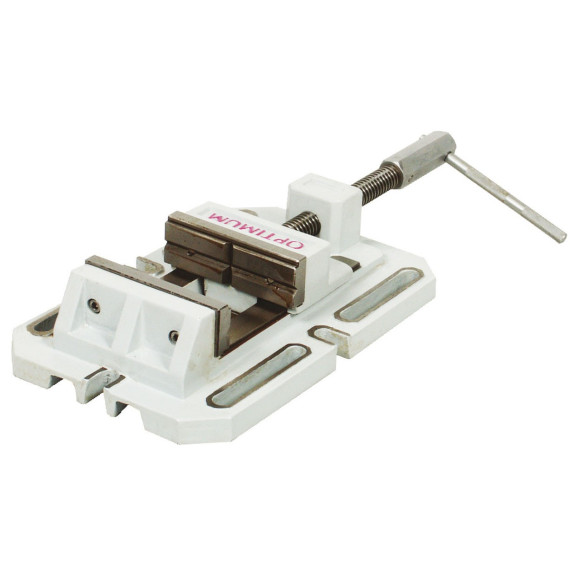

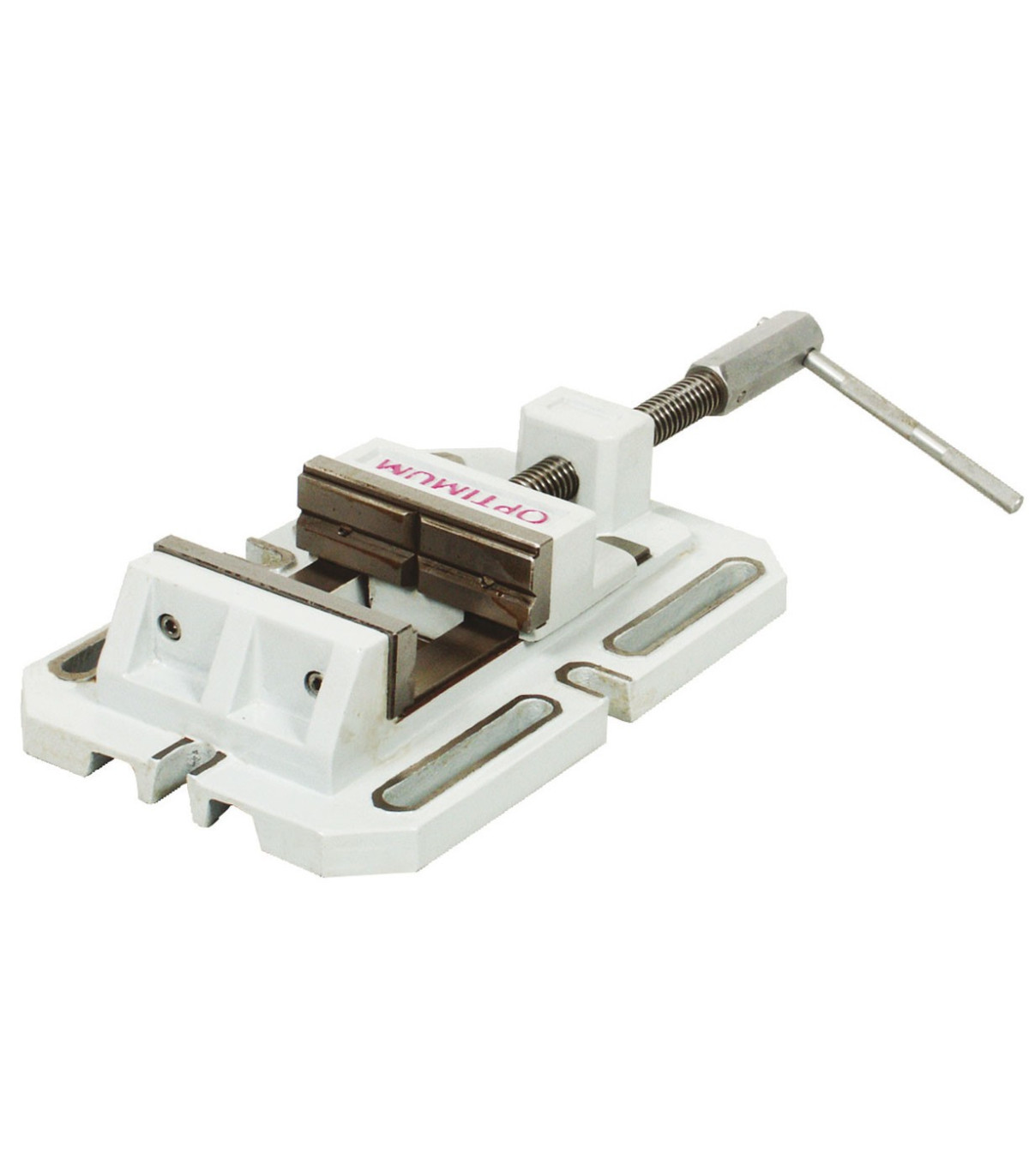

Industrial clamp BSI in various OPTIMUM sizes.

Industrial BSI vice in various OPTIMUM sizes. The OPTIMUM industrial BSI vice is available in various sizes and offers replaceable prism jaws. Its design prevents tilting and allows for multiple mountings, weighing 8.7 kg.

FEATURES

• Industrial quality vices
• Replaceable prism jaws
• Long guides on the moving jaw prevent tilting.
• Many mounting options on the drill table thanks to the slots
• Precision ground prism jaws
• Premium gray finish
• Rasped guide surfaces

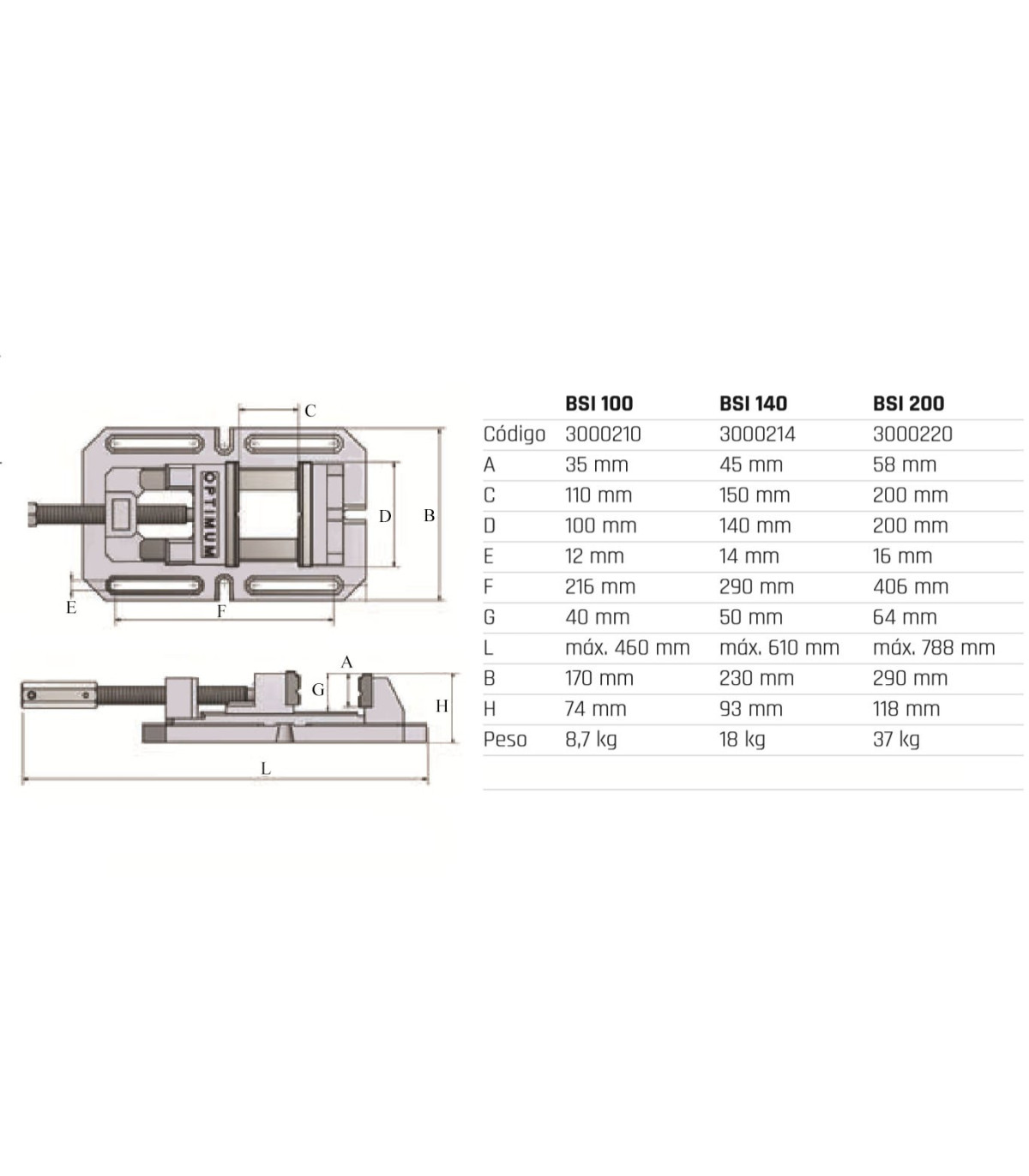

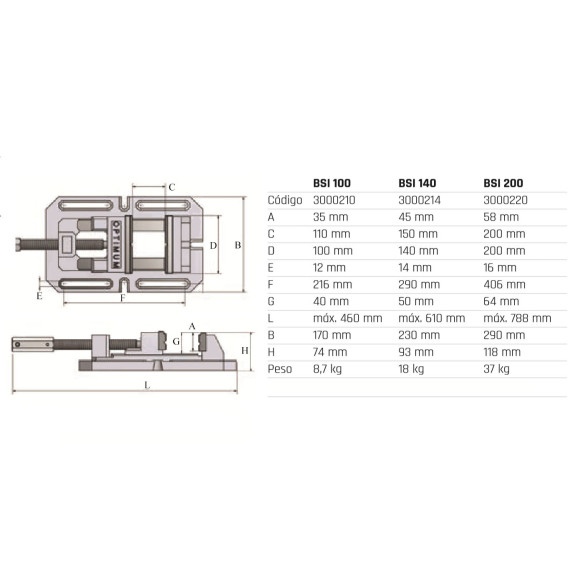

TECHNICAL SPECIFICATIONS

Jaw height 35 millimeters

Jaw width 100 millimeters

Jaw depth 110 millimeters

Deep hole width 12 millimeters

Length without handle 216 millimeters

Clamping height 40 millimeters

Construction height 74 millimeters

VPE 1

Dimensions and weights

Maximum length 460 millimeters

Width/depth approx. 170 millimeters

Approximate weight 8.7 kilograms

WHAT TYPE OF WORK IS IT SUITABLE FOR

The OPTIMUM industrial BSI vice in various sizes is suitable for:

• Metallurgy
• Machining workshops
• Wood industry
• Prototype manufacturing
• Craftsmanship
• Repair
