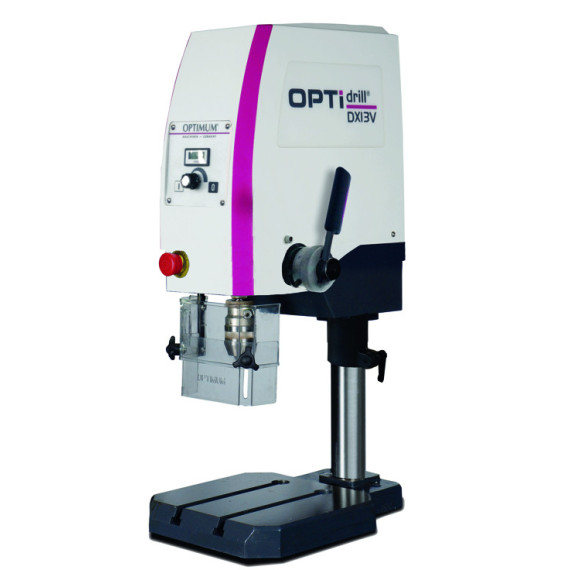

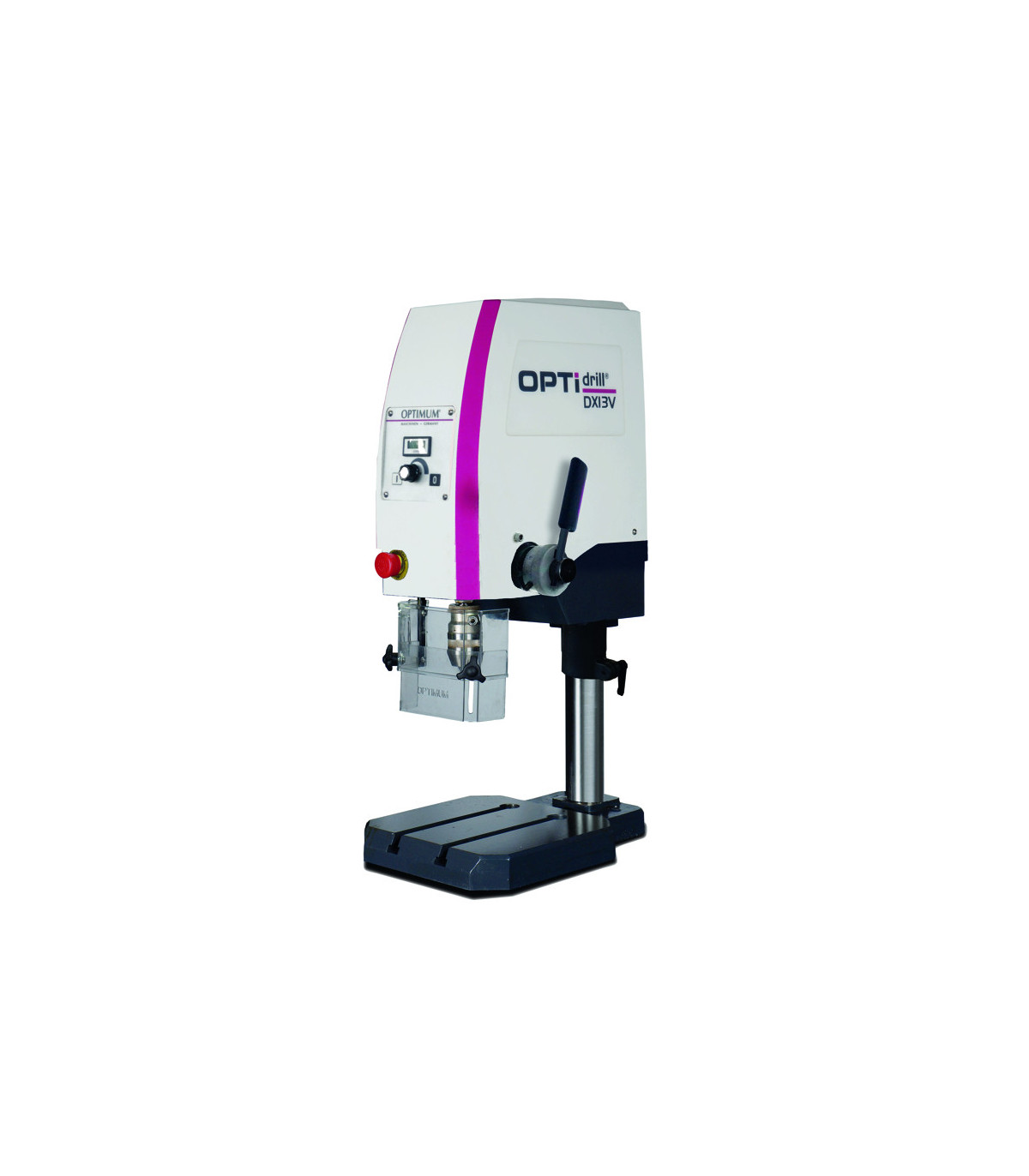

Table drill with speed control DX13V OPTIMUM

Table drill with speed control DX13V OPTIMUM. Adjustable height of the chuck guard with safety micro switch. Membrane keyboard with high-contrast LED display, dirt and water-resistant.

The best power transmission through aluminum pulleys

Integrated digital speed indicator in the housing, speed control via potentiometer

Impact switch for emergency stop

Spindle drill with precision ball bearings

High-quality OPTIMUM keyless chuck as standard

Concentricity precision guaranteed to be less than 0.03 mm measured at the drilling spindle

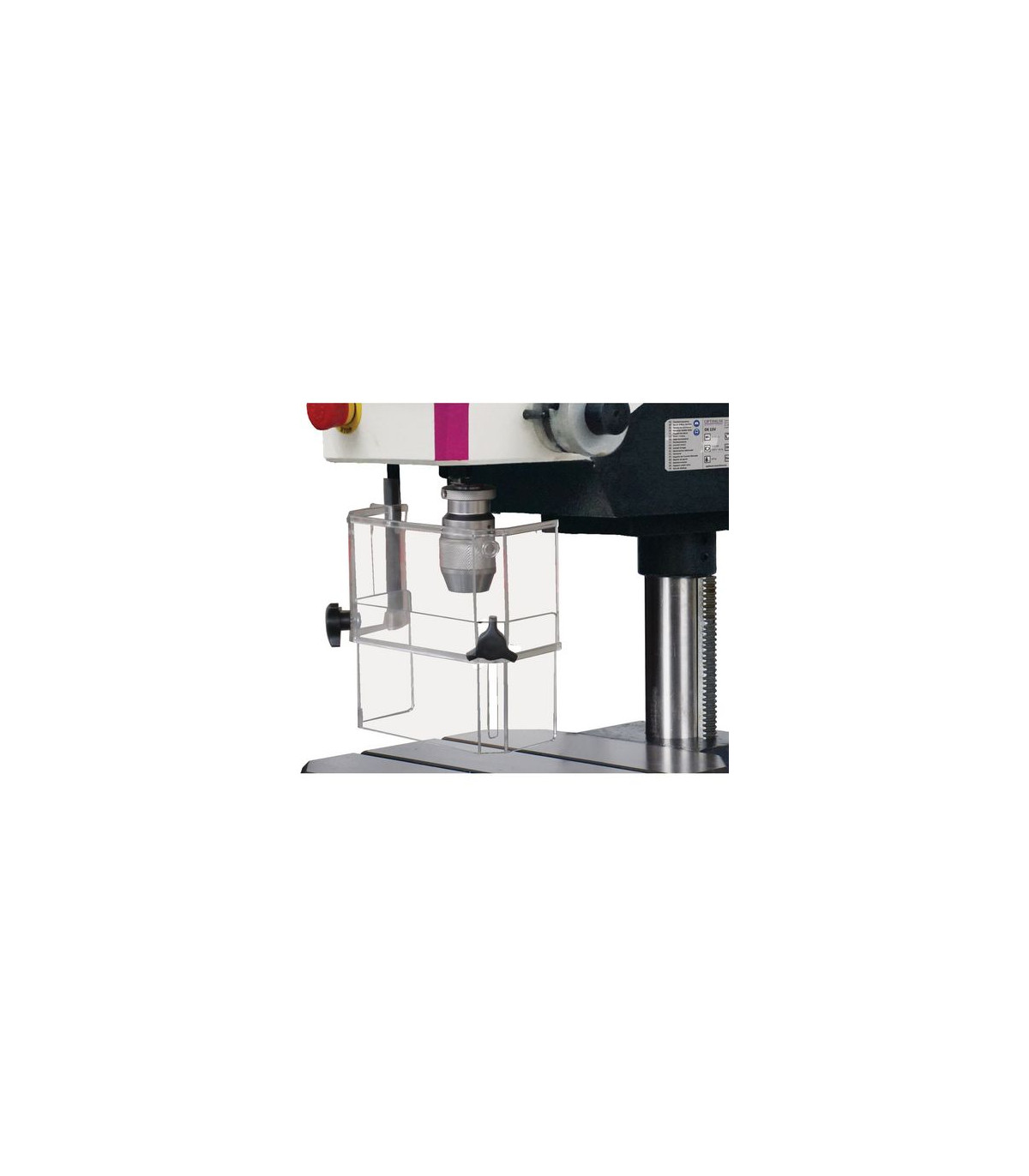

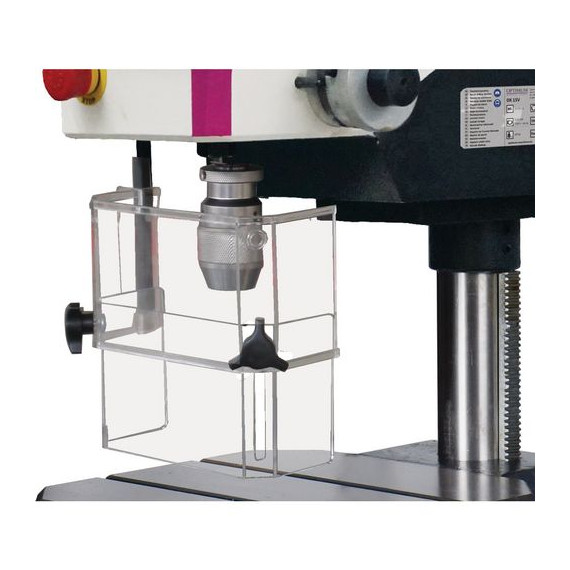

Adjustable height feed guard with micro switch

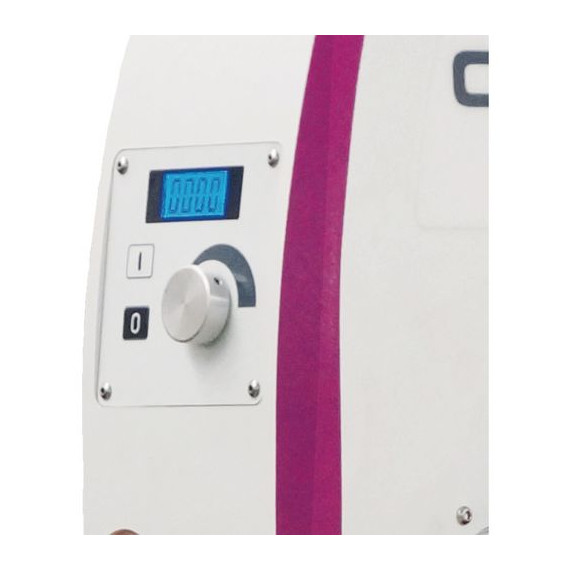

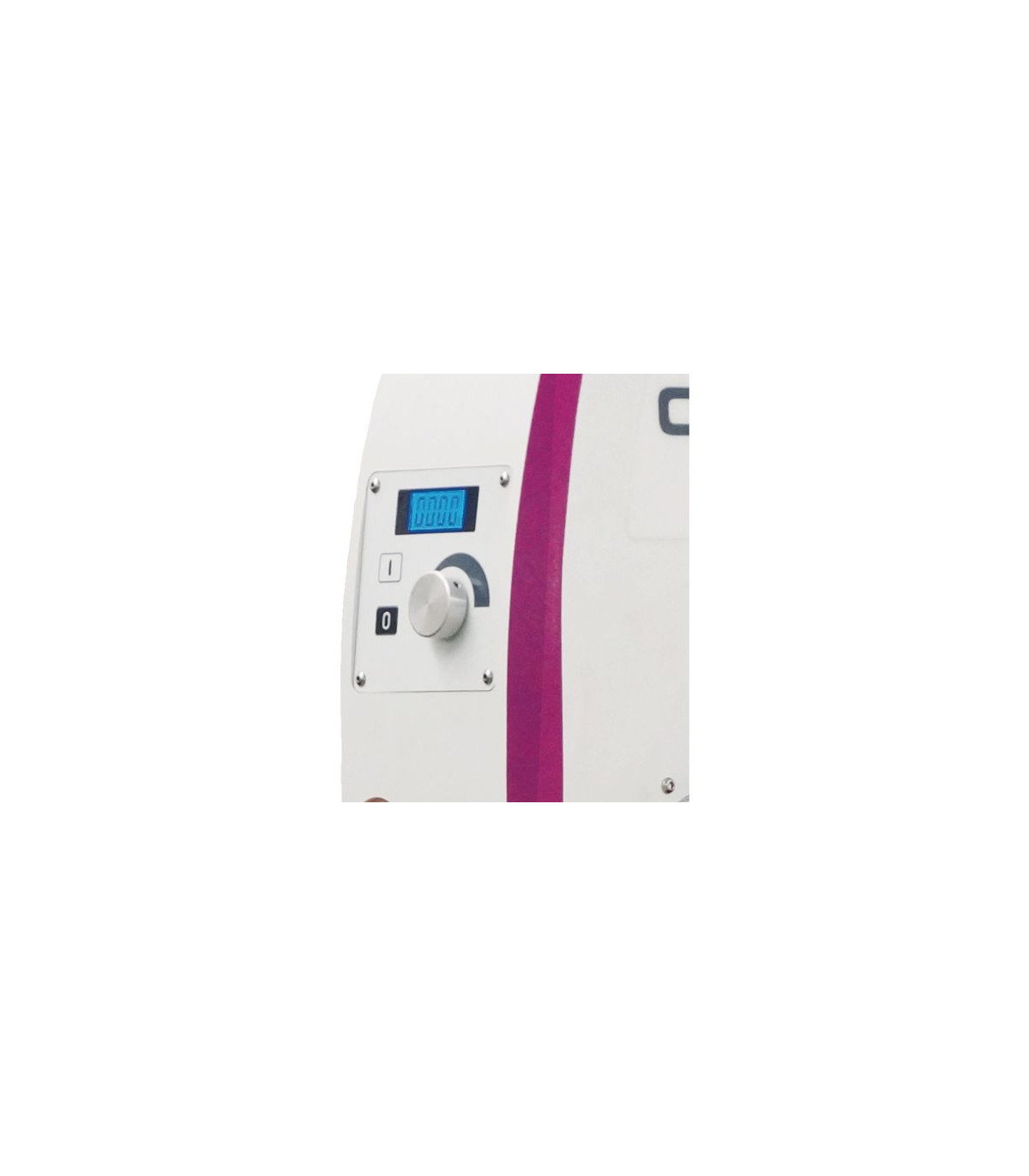

Dirt and water-resistant membrane keyboard, easy to clean

Precision machined drilling table with parallel T-slots

Thick-walled cast iron column for high absorption and power stability

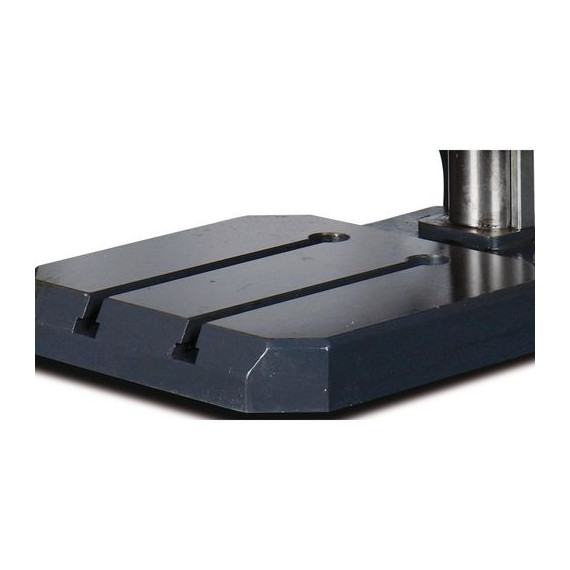

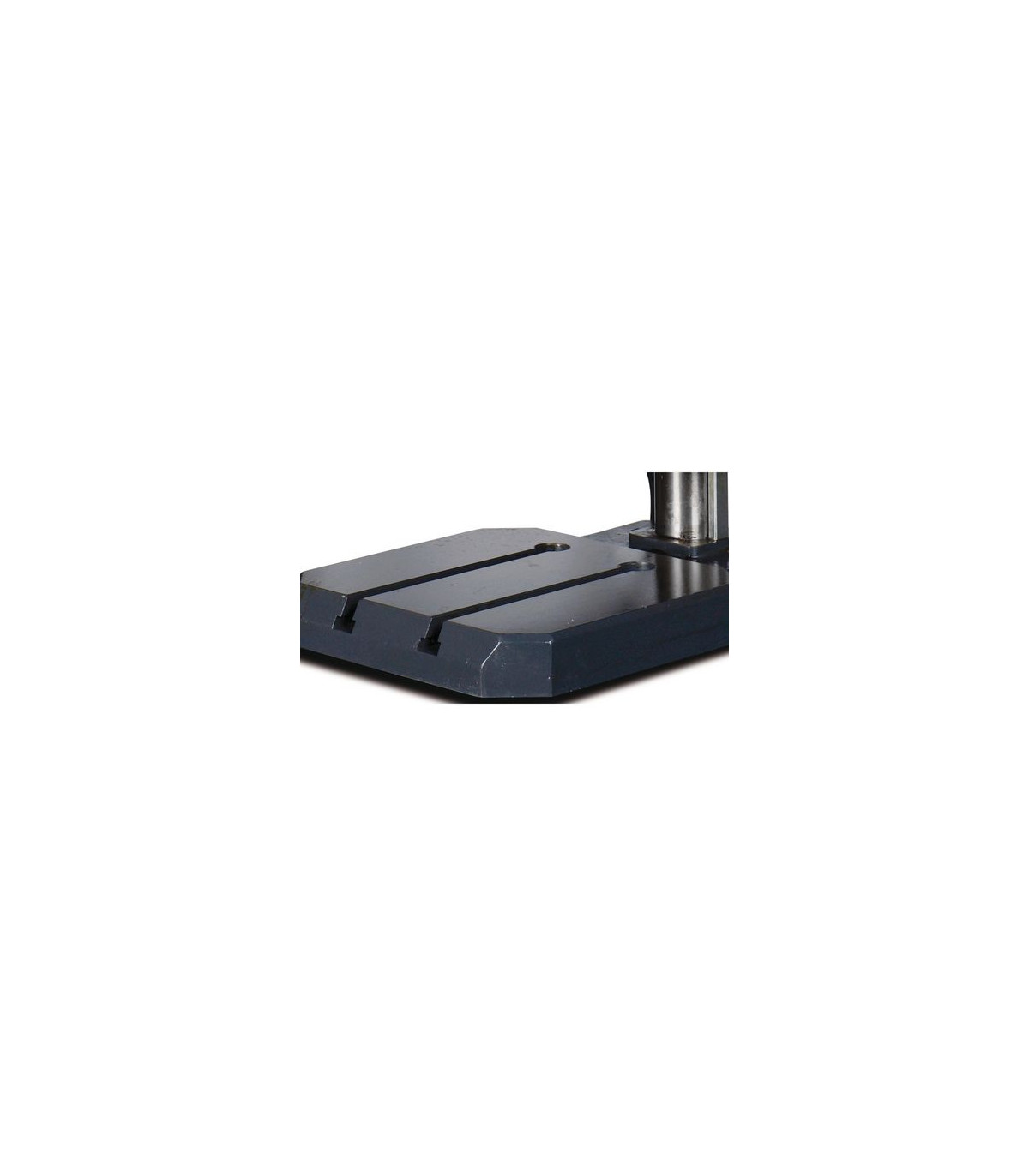

Massive base plate, large dimensions, heavily ribbed at the back

EMC filter class C2

DX 13V

Height-adjustable drill head

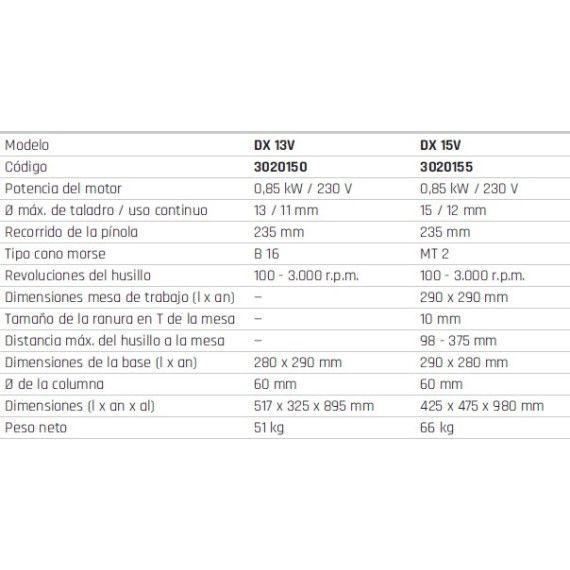

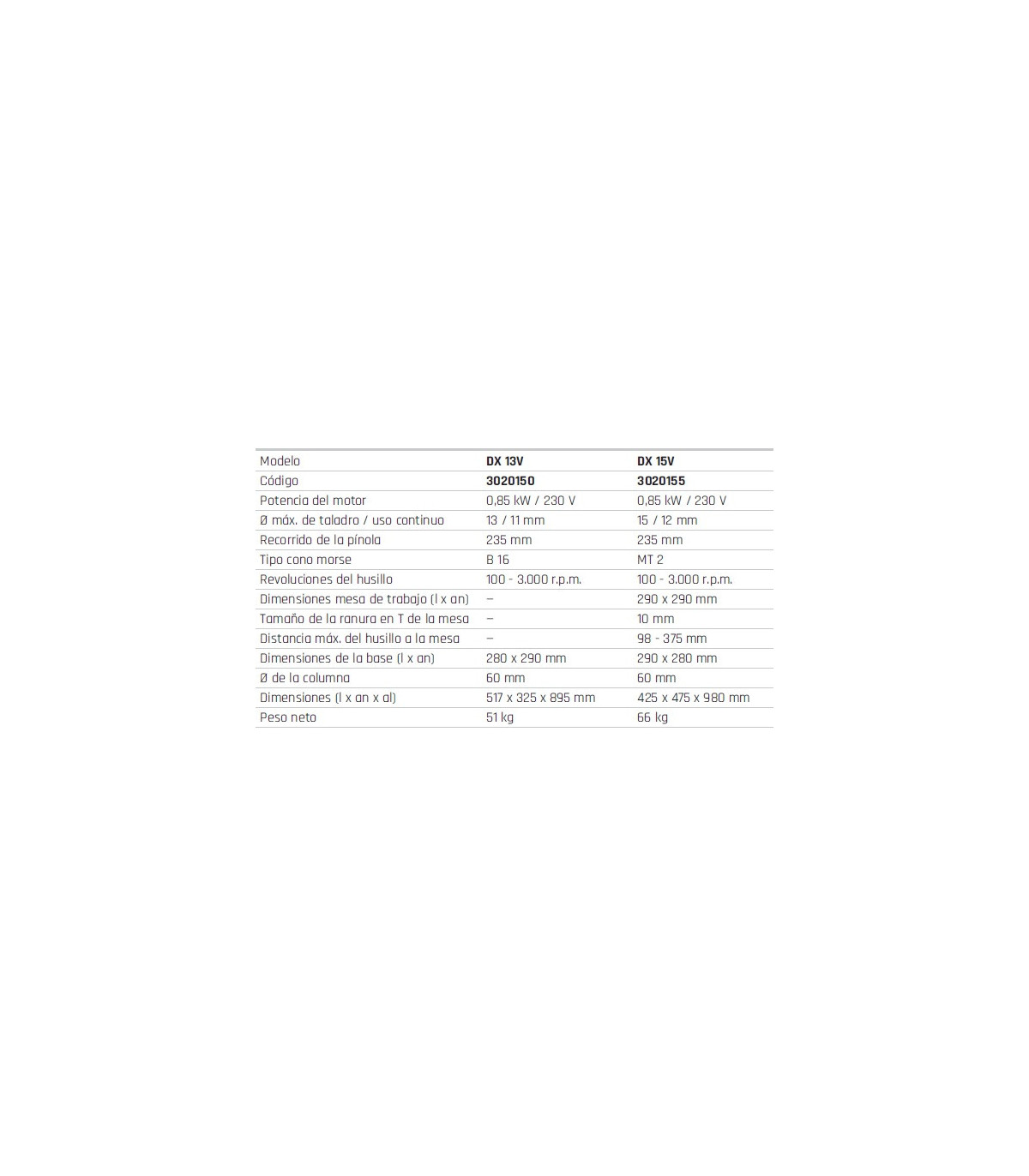

TECHNICAL DATA

Dimensions and weights

Column diameter 60 mm

Approx. length 517 millimeters

Approx. width/depth 325 millimeters

Approx. height 895 mm

Approx. weight 51 kg

Drilling performance

Steel drilling performance (S235JR) 13 millimeters

Continuous steel drilling performance (S235JR) 11 millimeters

Electrical data

Supply voltage 230 V

Network frequency 50 Hz

Machine base

Minimum distance from chuck - machine base 92 millimeters

Maximum distance from chuck - machine base 297 millimeters

Working area length 280 millimeters

Working area width 290 millimeters

T-slot size of the machine base 14 millimeters

Number of T-slots on the machine base 2

T-slot spacing on the machine base 100 millimeters

Motor(s)

Spindle motor drive output 0.85 kW

Speed range

Speed range 100 – 3000 min¯¹

Speed control electronically adjustable

Spindle

Stroke length 60 mm

Spindle chuck B16

Reach 235 millimeters

Standards and certifications

Standard DIN EN 55011

EMC class C2

VPE 1

PACKAGING

Unit: pc(s).

Packaging unit: 1

Keyless chuck (1 - 13 mm)

FOR WHAT TYPE OF WORK IS IT SUITABLE

Metalworking industry

Automotive industry

Aerospace industry

Mold and die industry

Industrial maintenance
