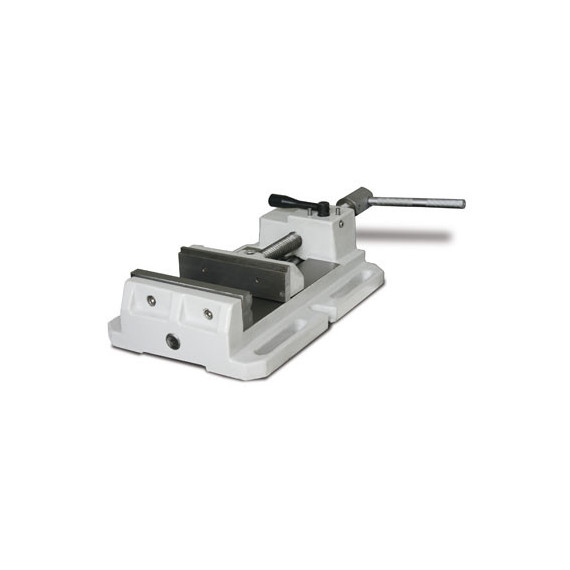

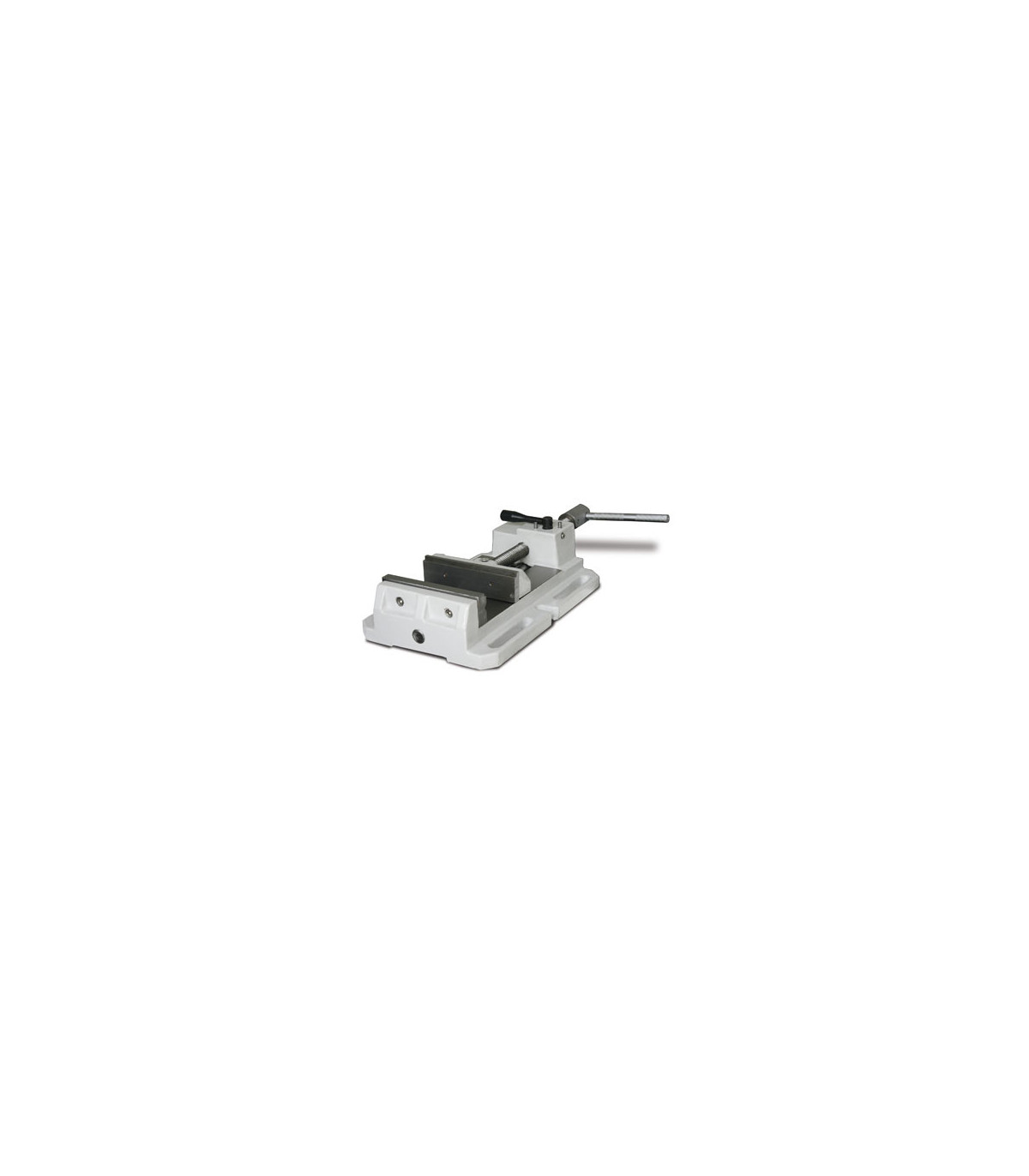

BSI-Q OPTIMUM quick-release industrial clamp

BSI-Q OPTIMUM industrial quick-clamp vise. The BSI-Q OPTIMUM industrial quick-clamp vise offers superior quality with replaceable prismatic jaws and a quick lock. Its design prevents tilting and allows for multiple mountings. It weighs 5.5 kg.

FEATURES

• Industrial quality vises
• Locking with quick release
• Replaceable prismatic jaws
• Long guides on the movable jaw prevent tilting.
• Precision ground prismatic jaws
• Many mounting options on the drill table thanks to the grooves
• Premium gray finish
• Rasped guide surfaces

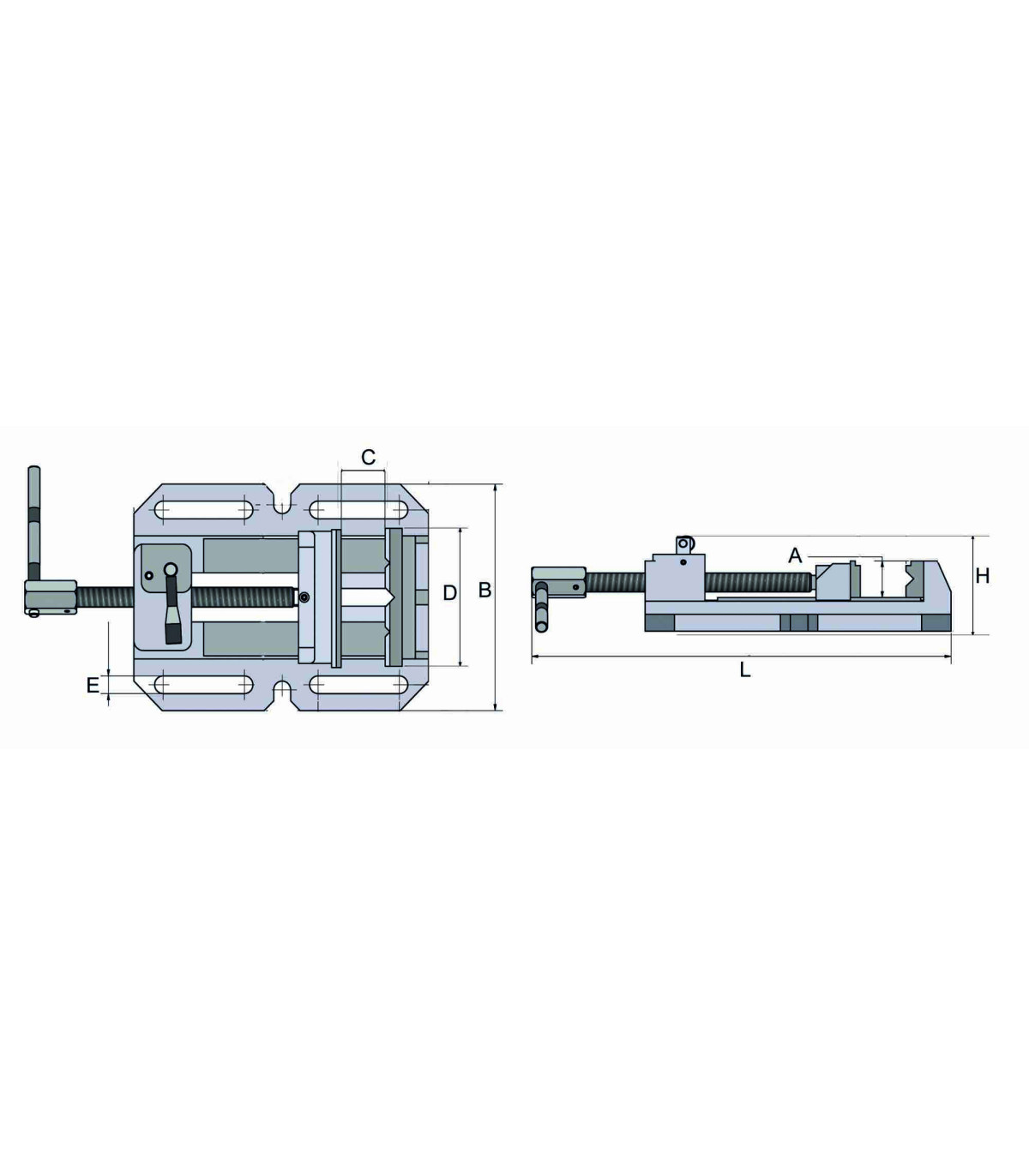

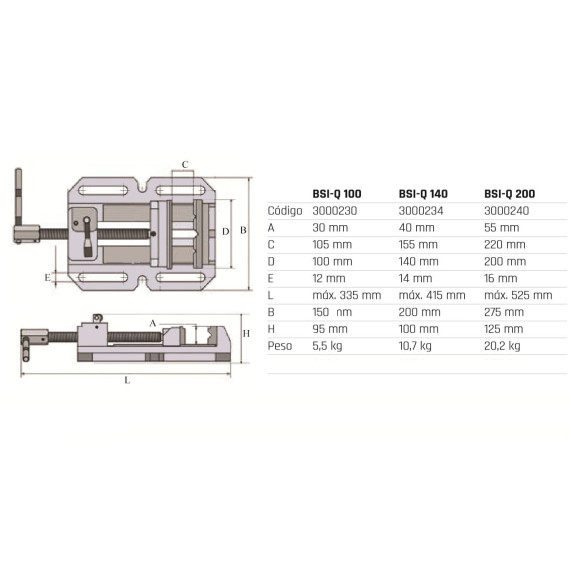

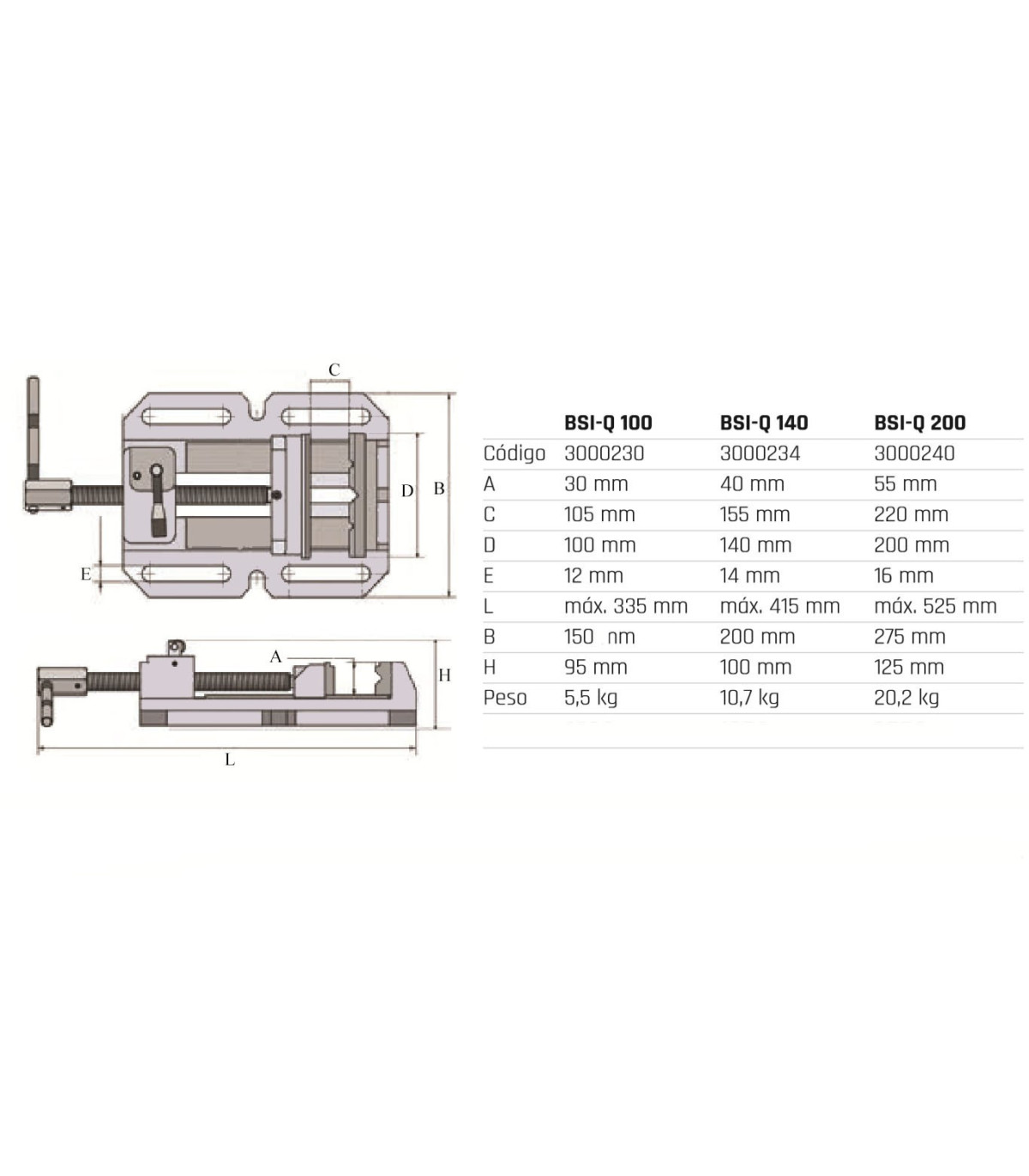

TECHNICAL SPECIFICATIONS

Jaw height 30 millimeters

Jaw width 100 millimeters

Length 105 millimeters

Deep hole width 12 millimeters

Construction height 95 millimeters

VPE 1

Dimensions and weights

Maximum length 335 millimeters

Width/depth approx. 150 millimeters

Approximate weight. 5.5 kilograms

WHAT TYPE OF WORK IS IT SUITABLE FOR

The BSI-Q OPTIMUM industrial quick-clamp vise is suitable for:

• Metallurgy
• Machining workshops
• Wood industry
• Prototype manufacturing
• Craftsmanship
• Repair
