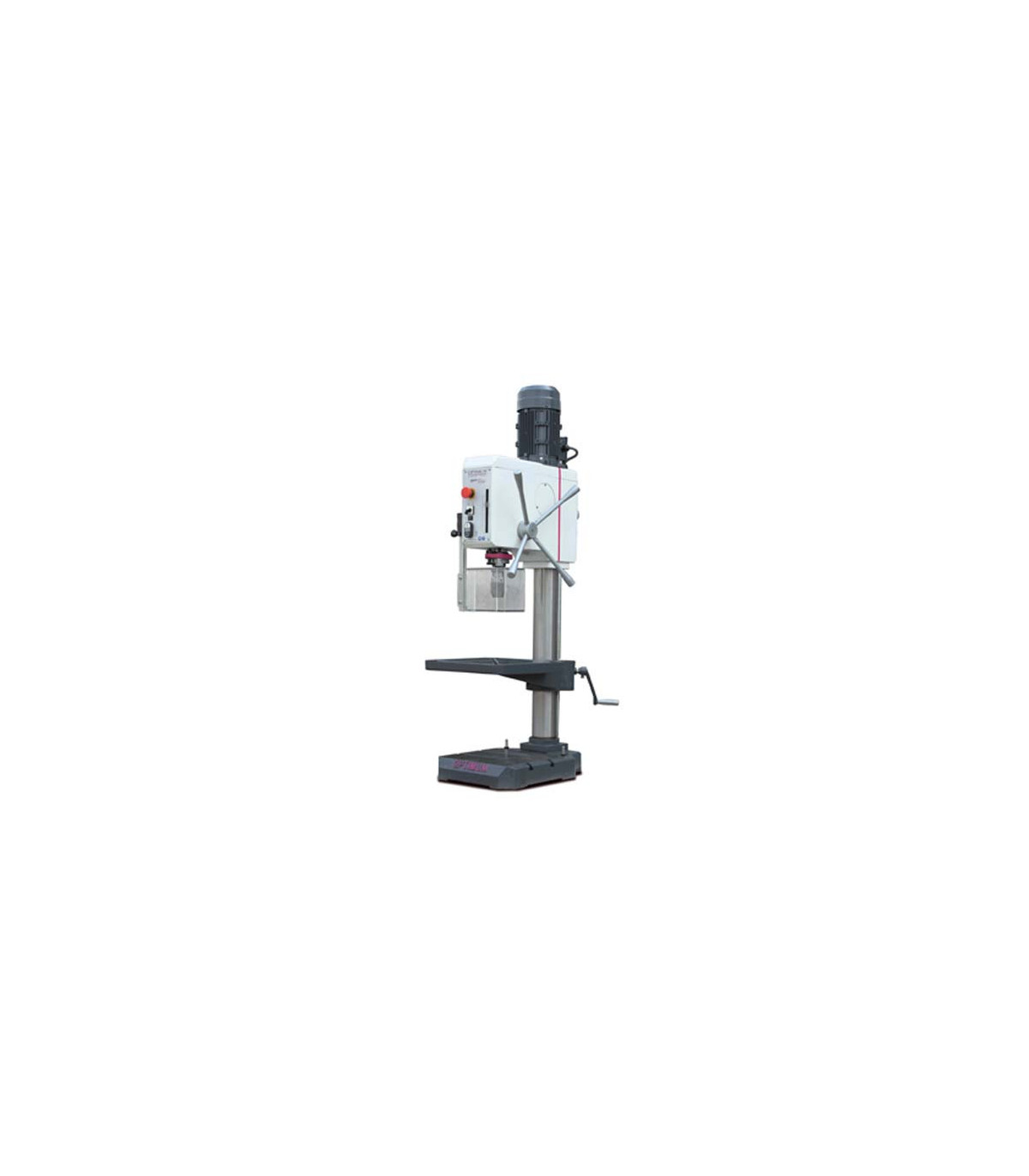

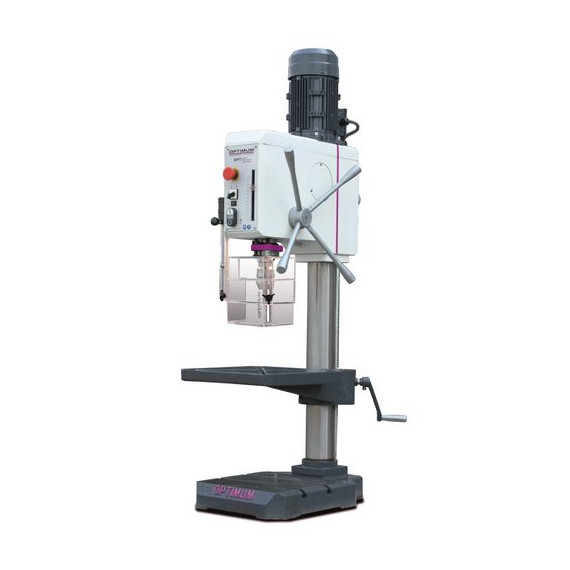

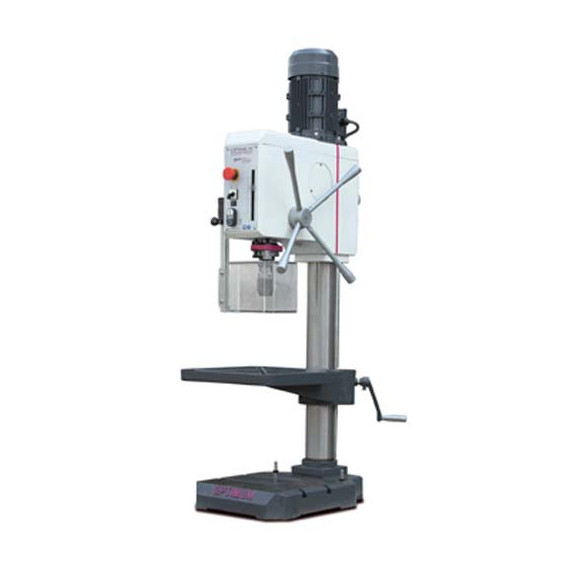

Bench drill with polyamide gears DH26GT OPTIMUM

Bench drill with polyamide gears DH26GT OPTIMUM. With drill ejector device.
Does not include Morse taper or chuck.

• Strong/hard/heavy, monoblock iron construction.
• High real operating precision due to the tempered and ground spindle.
• Drill with adjustable depth stop and millimeter scale.
• Low-maintenance gearbox with grease lubrication.

INCLUDED ACCESSORIES MK 3-B 16 adapter, table with 2 T-slot nuts.

FEATURES

High concentricity due to hardened and ground main spindle

Low-maintenance gearbox with grease lubrication

Gearbox with PA6 gears

Wide speed range

Heavy and solid cast construction

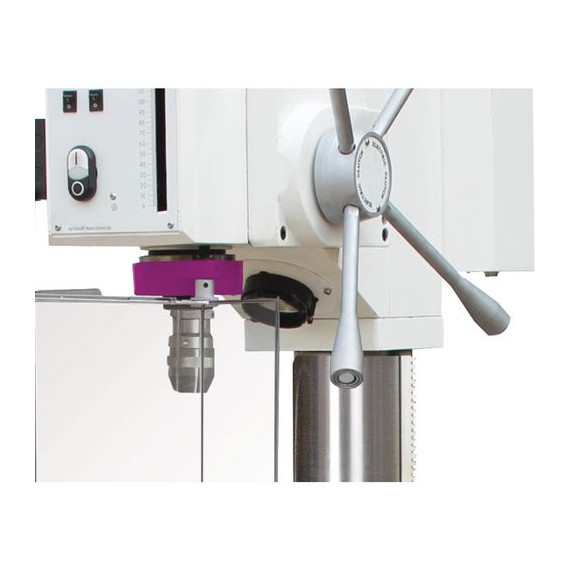

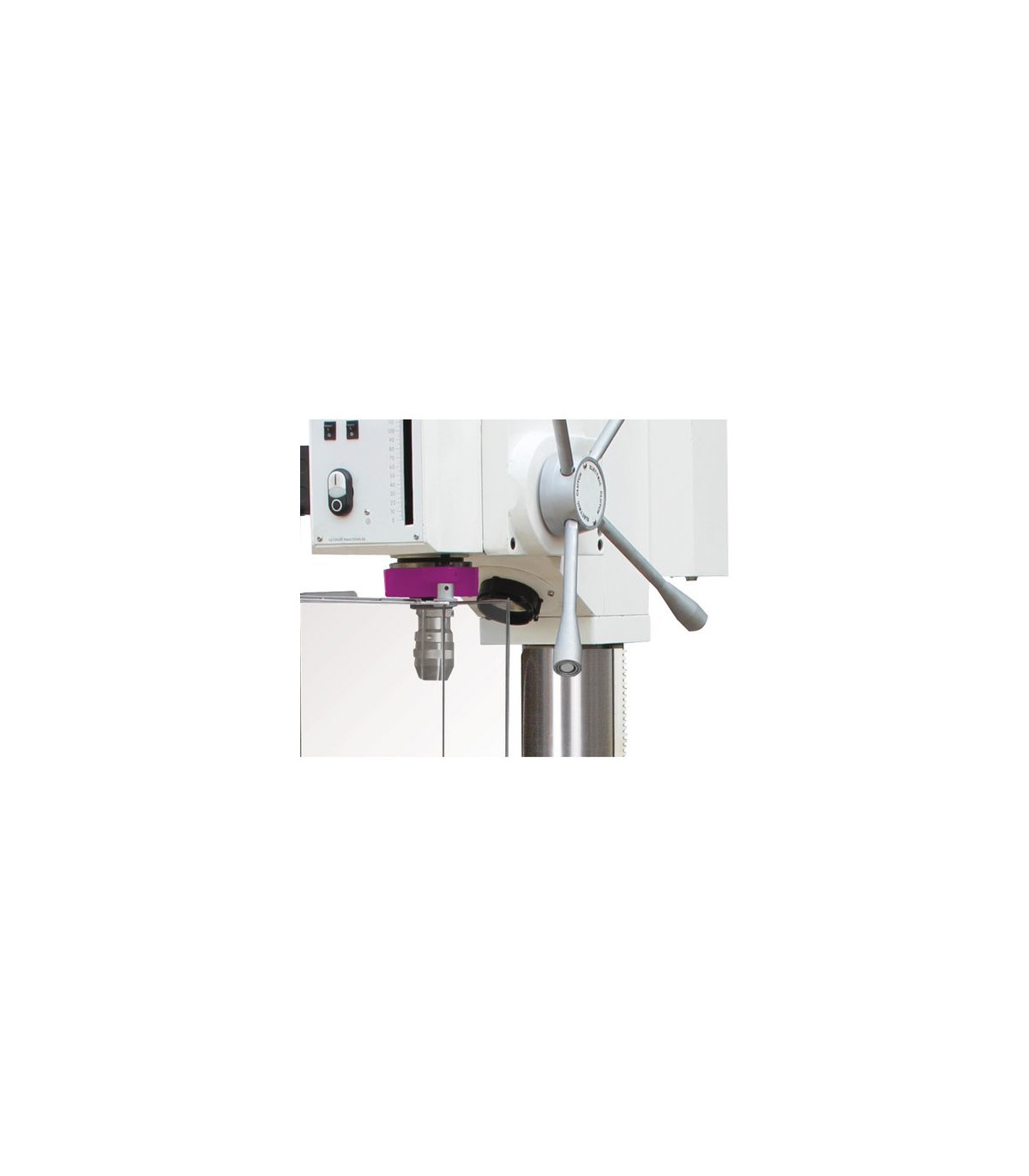

Large adjustable height protective screen with safety switch for maximum user protection

Adjustable drilling depth stop with millimeter scale

Forward/reverse operation

Integrated machine light in the drilling head

Integrated ejector for easy tool change

Precision machined drilling table with diagonal T-slots and complete cooling water channel

Thick-walled cast iron column for high absorption and power stability

Massive base plate, large dimensions, and heavily ribbed at the back

TECHNICAL DATA

Dimensions and weights

Column diameter 92 millimeters

Approx. length 610 millimeters

Approx. width/depth 380 millimeters

Approx. height 1430 millimeters

Approx. weight 158 kg

Drilling performance

Steel drilling performance (S235JR) 24 millimeters

Continuous steel drilling performance (S235JR) 21 millimeters

Drilling table

Working space length 380 millimeters

Working space width 380 millimeters

Type of T-slot Diagonal

T-slot size 14 millimeters

Number of T-slots 2

Rotation 360 °

Load capacity 80 kg

Maximum distance from spindle - drilling table 450 millimeters

Electrical data

Supply voltage 400 V

Network frequency 50 Hz

Machine base

Maximum distance from spindle - machine base 610 millimeters

Length of working area 350 millimeters

Width of working area 356 millimeters

Size of T-slot on machine base 14 millimeters

Number of T-slots on machine base 2

Spacing of T-slots on machine base 120 millimeters

Motor(s)

Spindle motor drive output 1.1 / 1.5 kW

Speed range

Speed range 75 – 2900 min¯¹

Number of gears 8 steps

Spindle

Stroke 127 millimeters

Spindle chuck MK 3

Reach 235 millimeters

VPE 1

PACKAGING

Unit: pc(s).

Packaging unit: 1

MK3-B16 adapter

FOR WHAT TYPE OF WORK IS IT SUITABLE

Metalworking industry

Automotive industry

Aerospace industry

Mold and die industry

Industrial maintenance
