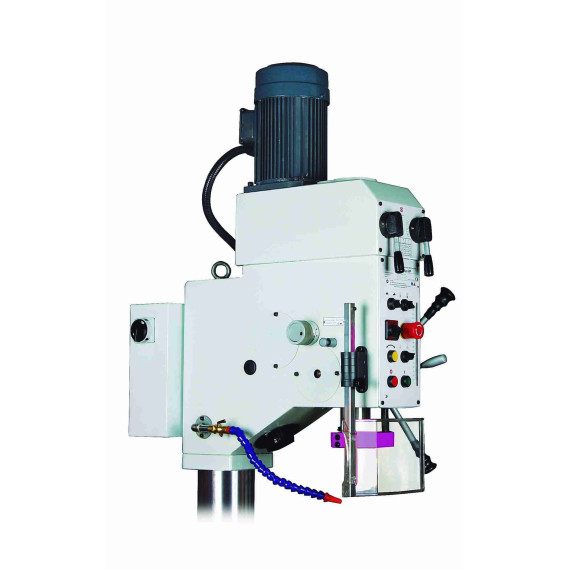

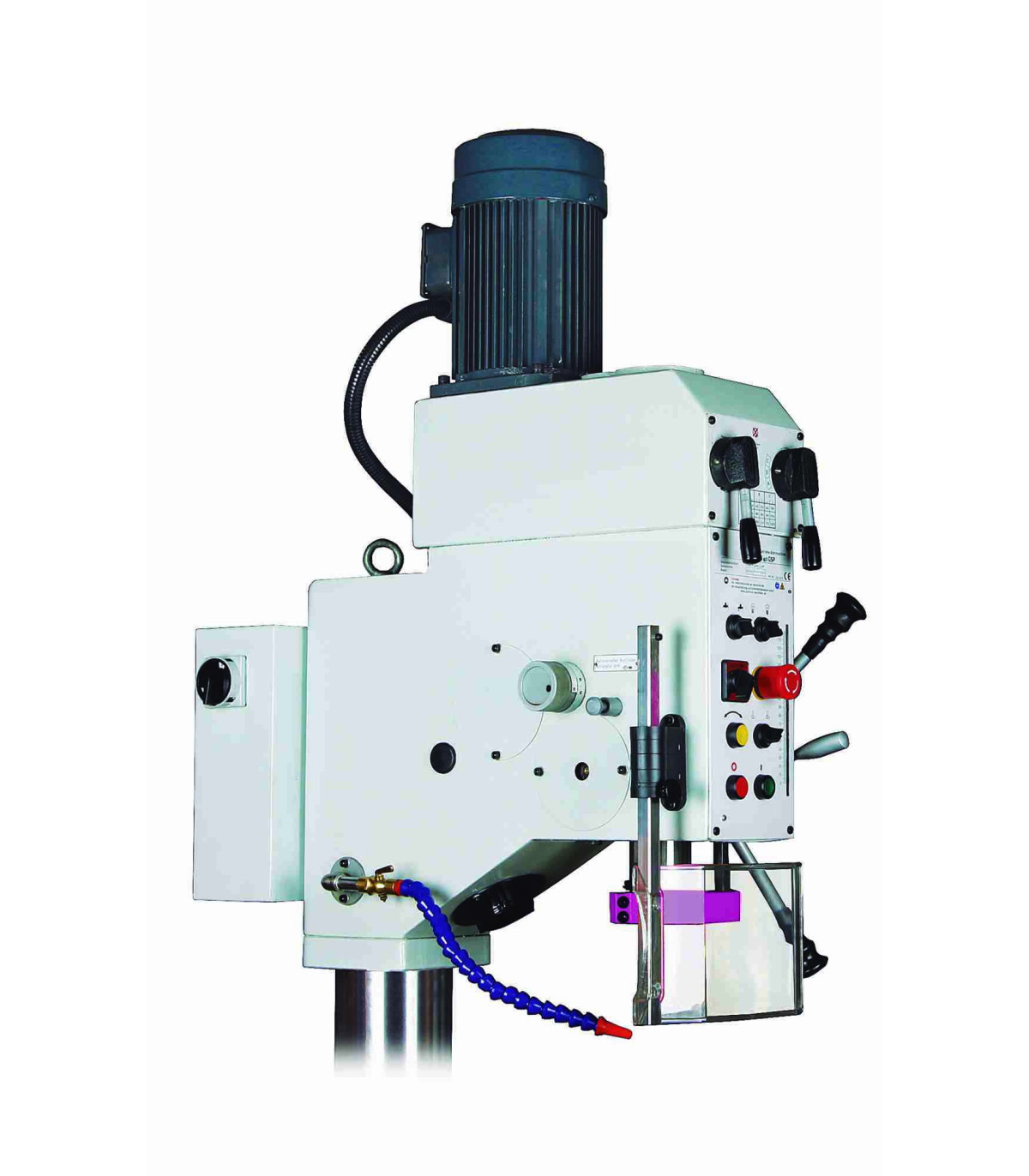

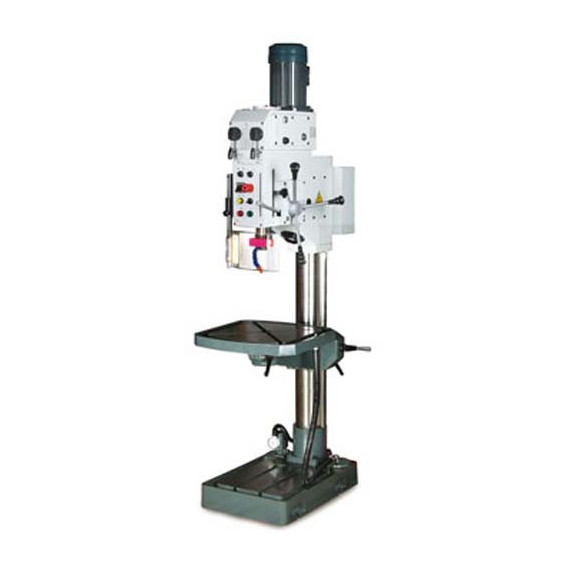

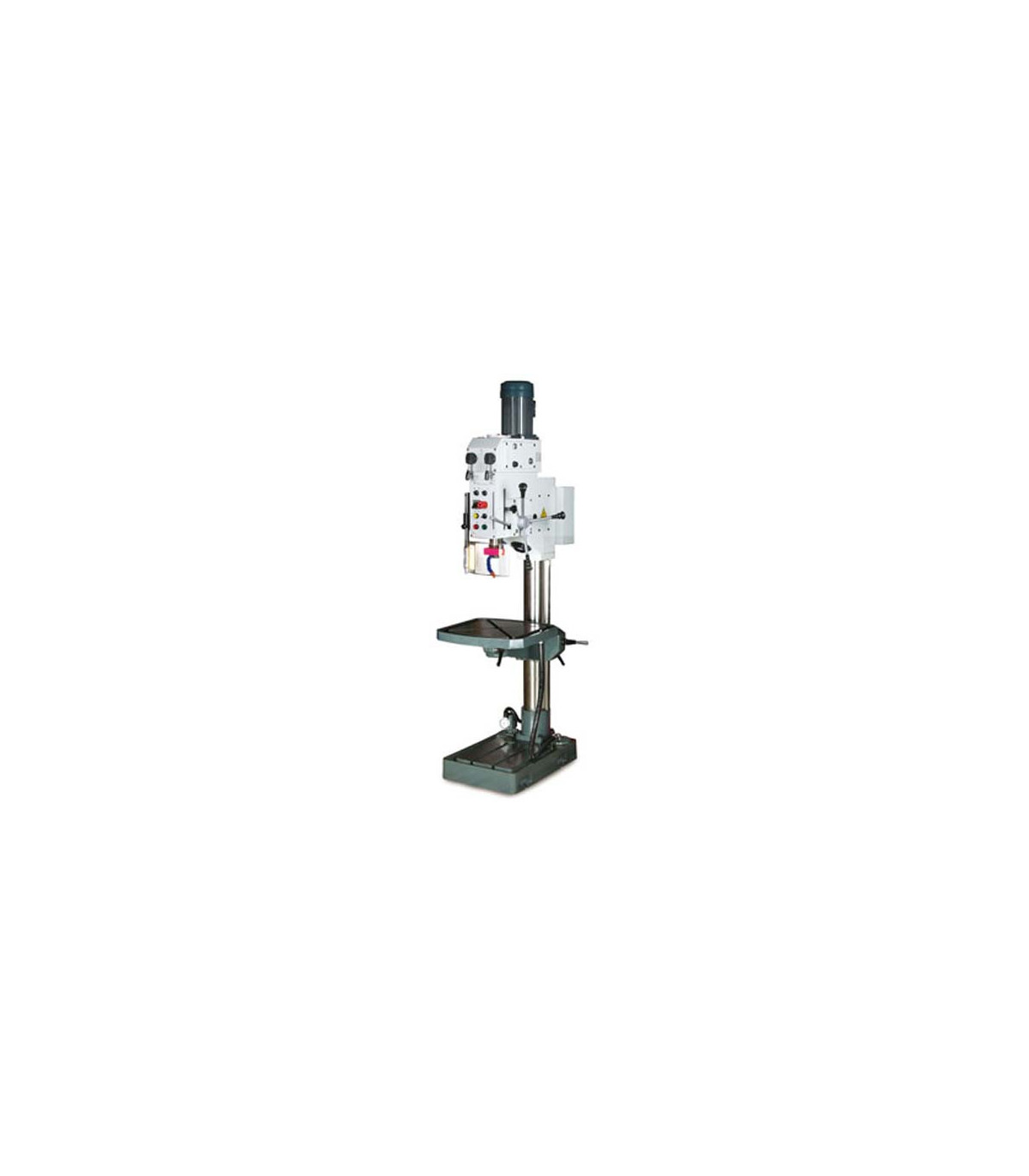

Drill with cooling system B 40 GSP OPTIMUM. The B 40 GSP OPTIMUM drill stands out for its robust cast construction, automatic lubrication, and high concentricity. It incorporates an efficient cooling system, a machined table, and an adjustable stop.

FEATURES

• Solid and heavy cast construction
• Automatic lubrication of gears via oil pump
• High concentricity thanks to the tempered and ground main spindle
• Threading accessory

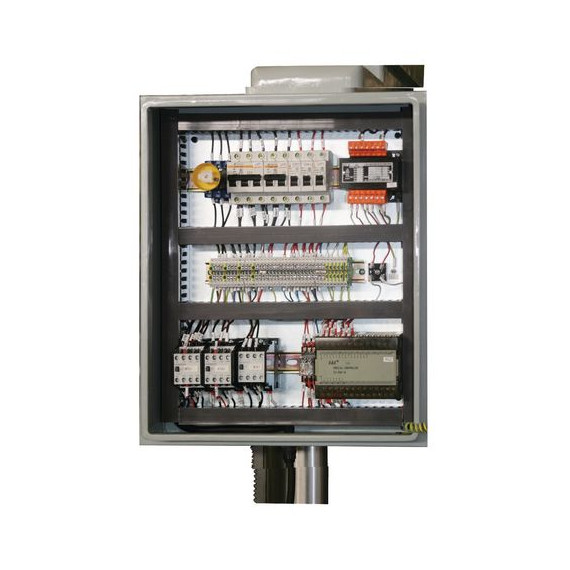

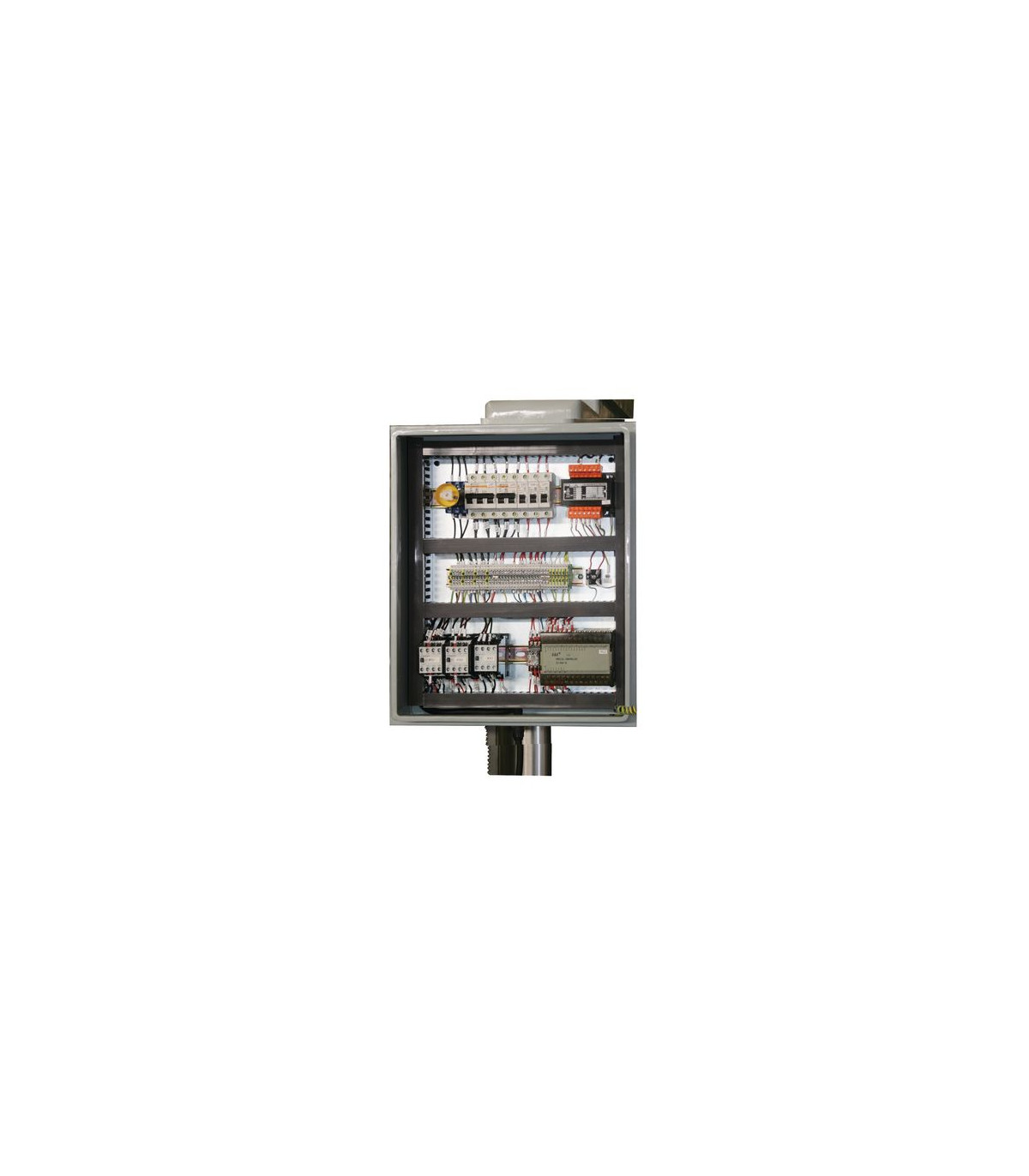

• Main switch and motor protection switch
• Adjustable drilling depth stop with millimeter scale
• Integrated machine light in the drilling head

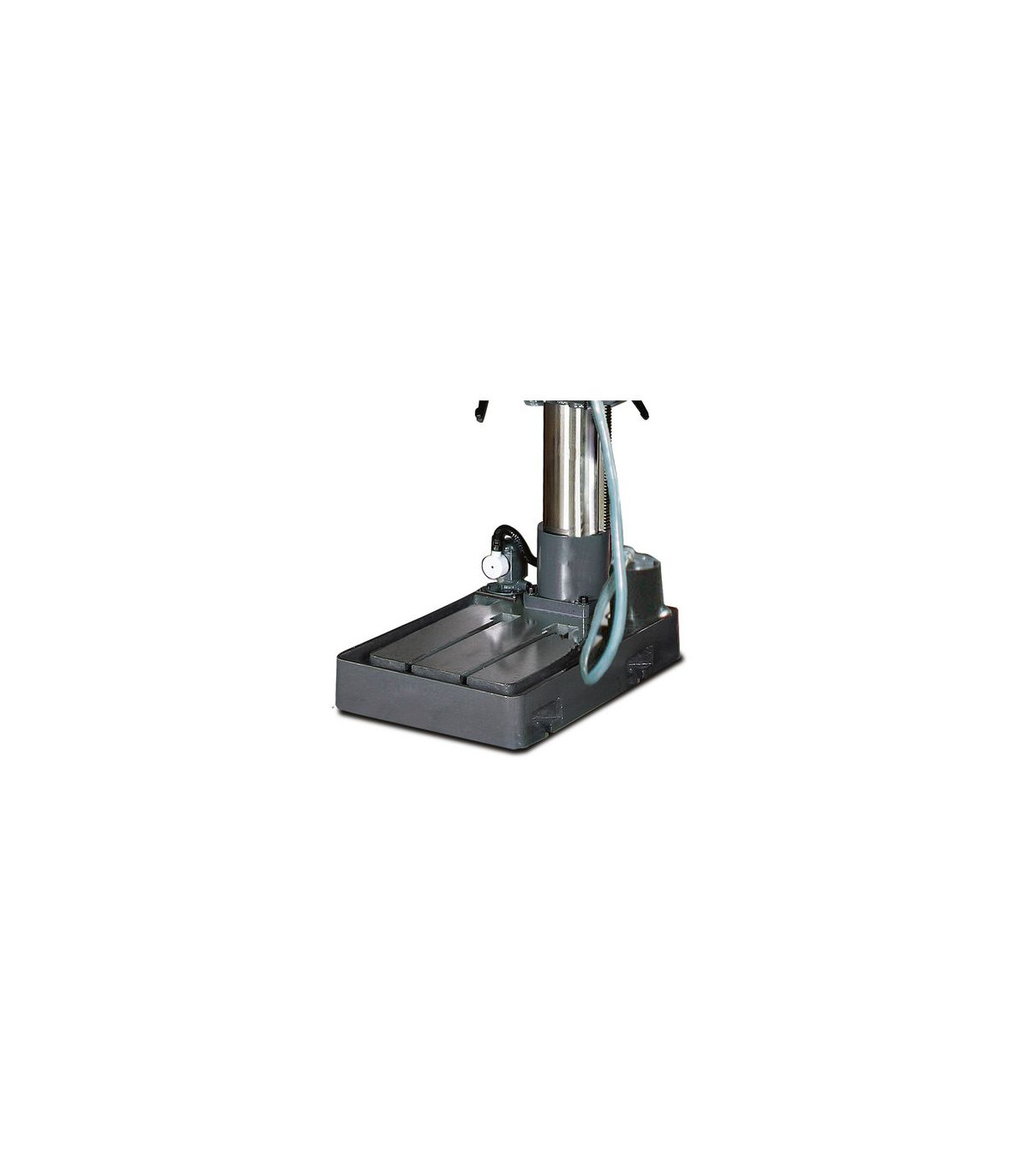

• Precision machined drilling table of large dimensions with diagonal T-slots and circumferential cooling water channel
• Integrated ejector for easy tool change
• Cooling device and chip filter according to the Machinery Directive
• Thick-walled cast iron column for high power absorption and stability

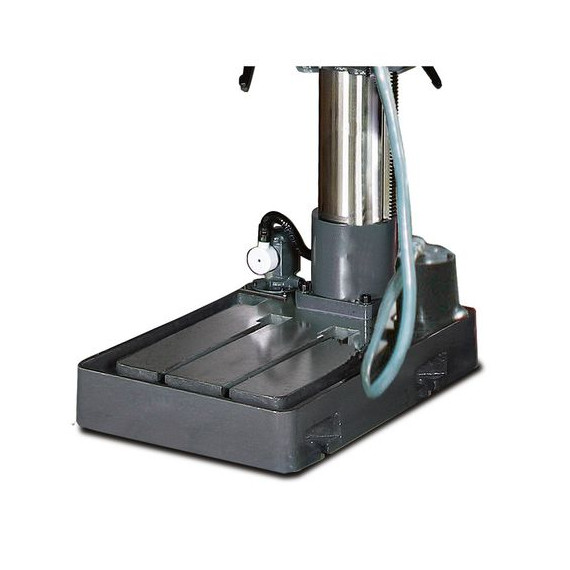

• Solid base plate, large dimensions, extremely stable.

B 40GSM Optical Drill

• Pneumatic power supply

OPTIdrill B 40GSP

• Manual pneumatic power supply

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Column diameter 150 millimeters
• Approx. length 935 millimeters
• Approx. width/depth 530 millimeters
• Approx. height 2280 millimeters
• Approx. weight. 465 kilograms

Drilling performance

• High-performance steel for drilling (S235JR) 35 millimeters
• High-performance steel for continuous drilling (S235JR) 30 millimeters
• Steel for threading (S235JR) M 24

Drilling table

• Working space length 560 millimeters
• Working space width 560 millimeters
• T-slot type diagonal
• T-slot size 18 millimeters
• Number of T-slots 2
• Rotation 90°
• Load capacity 250 kilograms
• Maximum distance between the spindle and the drilling table 780 millimeters

Electrical data

• Supply voltage 400 volts
• Network frequency 50 Hz

Machine base

• Maximum distance from the spindle to the machine base 1320 millimeters
• Length of the working area 510 millimeters
• Width of the working area 500 millimeters
• T-slot size of the machine base 18 millimeters
• Number of T-slots of the machine base 2
• Spacing of T-slots of the machine base 150 millimeters

Motor(s)

• Spindle motor drive output 0.85 / 1.5 kW
• Coolant pump drive motor output 40 watts

Speed range

• Speed range 50 – 1450 min¯¹
• Number of gears 18 steps

Spindle

• Pneumatic stroke 180 millimeters
• Spindle chuck MT 4
• Reach 350 millimeters
• Pneumatic feed speed 0.1 / 0.2 mm/revolution
• Pneumatic feed gears 2 steps
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

• Keyless chuck 1 - 16 mm
• Morse cone MK 4/B16

FOR WHAT TYPE OF WORK IT IS SUITABLE

The Drill with cooling system B 40 GSP OPTIMUM is suitable for:

• Metallurgy
• Machining workshops
• Wood industry
• Prototype manufacturing
• Craftsmanship
• Repair
