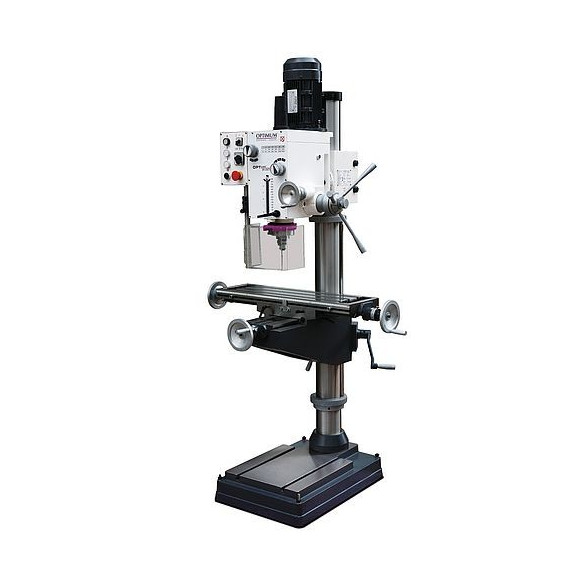

Vertical gear drill with DH 40 CT OPTIMUM coordinate table

Vertical gear drill with DH 40 CT OPTIMUM coordinate table. The DH 40 CT OPTIMUM vertical gear drill allows for precise drilling with millimeter adjustment. Its thick column absorbs vibrations, while the polished gears ensure smooth operation. With a tiltable head of ± 60° and rotation to the right and left, it offers great versatility. Its two-stage motor drives the spindle, and the height-adjustable table allows for comfortable use. With six speeds and a weight of 340 kg, it is ideal for demanding work in workshops.

FEATURES

• Precise drilling, millimeter adjustable
• Thick and stable column that absorbs vibrations
• The wheels that make up the gears are polished and oil-coated, providing the motor with smooth operation and great transmission capacity.
• Drilling head with a tilt of ± 60 °
• Allows rotation to the right and left
• Two-stage electric motor for spindle drive.
• The drilling head can be adjusted vertically on the column using a crank with a toothed rack
• Large solid table adjustable in height
• Adjustable table guides using wedges

TECHNICAL SPECIFICATIONS

Dimensions (l x w x h): 1,060 x 745 x 2,090 mm

Distance from the chuck to the column: 280 mm

Max. distance from the spindle to the base: 1180 mm

Max. distance from the spindle to the table: 920 - 1,180 mm

Base dimensions (l x w): 495 x 375 mm

Table dimensions (l x w): 730 x 210 mm

T-slot dimensions of the base: 14 mm

T-slot dimensions of the table: 14 mm

Number of speeds: 6 speeds x2

Net weight: 340 kg

Motor power (2 stages): 1.1 - 1.5 kW / 400 V

Quill travel: 120 mm

Spindle revolutions: 95 - 3,200 r.p.m.

Morse taper type: MT 4

Voltage: 400 V/3Ph

Column diameter: 115 mm

WHAT TYPE OF WORK IS IT SUITABLE FOR

The DH 40 CT OPTIMUM vertical gear drill with coordinate table is suitable for:

• Metallurgy
• Machining workshops
• Wood industry
• Prototype manufacturing
• Craftsmanship
• Repair
