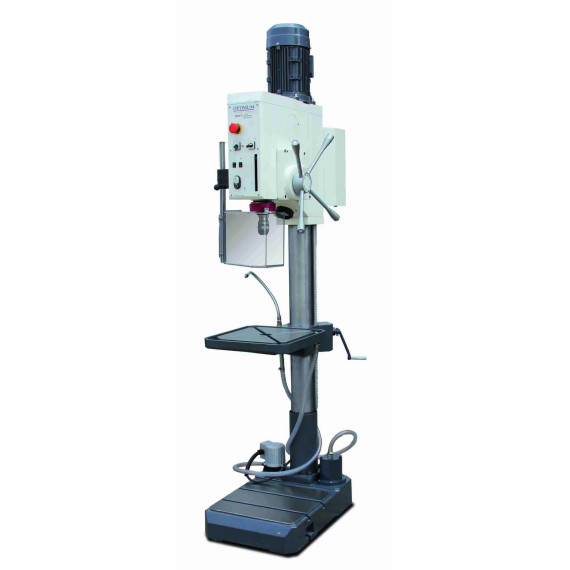

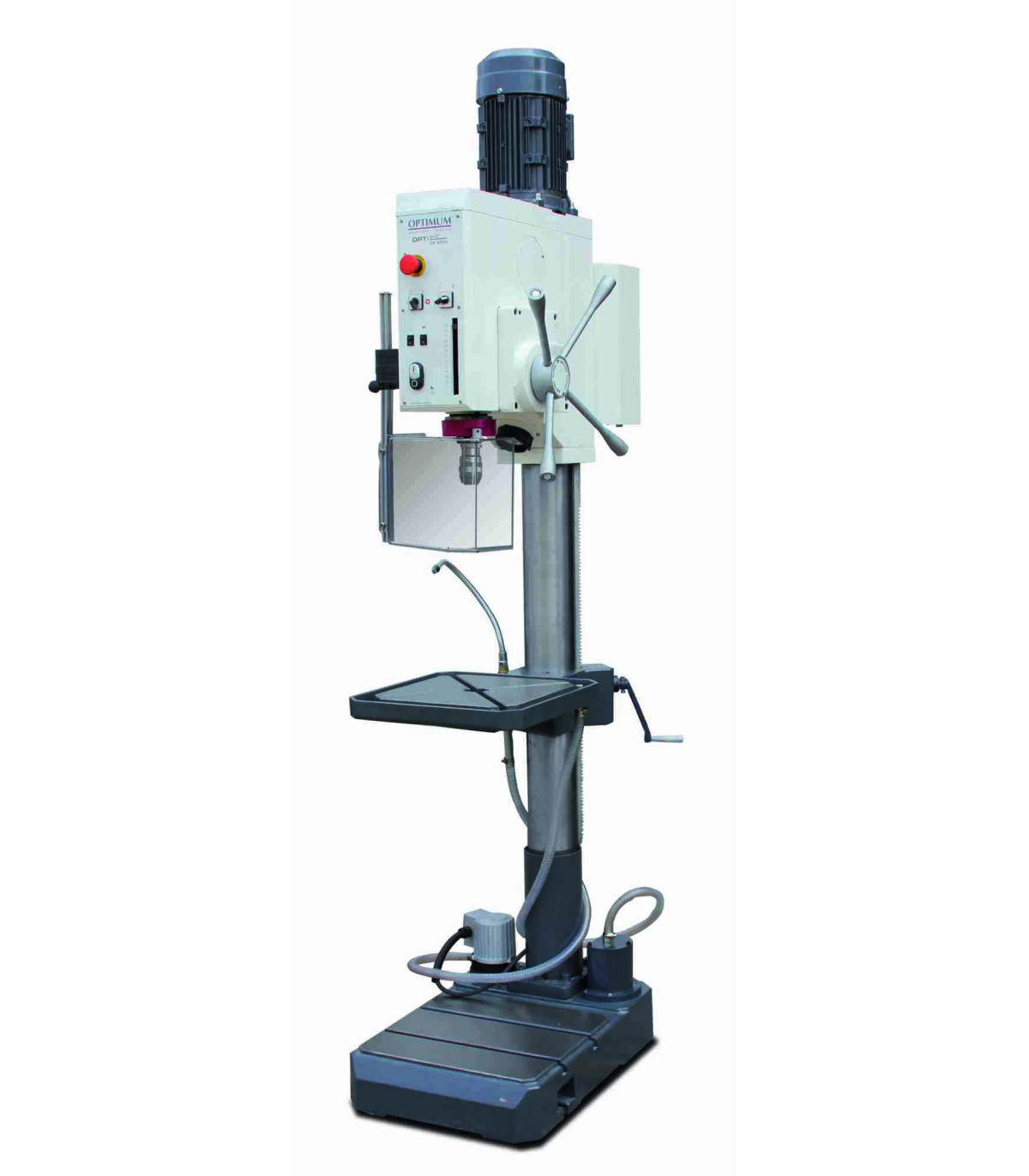

Vertical drill by gear with DH 32 GS OPTIMUM drill device.

Vertical gear drill with DH 32 GS OPTIMUM drill device. The DH 32 GS vertical drill from OPTIMUM stands out for its high concentricity, low-maintenance gearbox, and wide speed range. Its robust construction and adjustable screen ensure safety and precision.

FEATURES

• High concentricity thanks to the tempered and ground main spindle
• Low-maintenance gearbox with grease lubrication
• Gearbox with PA6 gears
• Wide speed range
• Solid and heavy cast construction
• Large height-adjustable protective screen with safety switch for maximum user protection.
• Adjustable drilling depth stop with millimeter scale
• Forward/reverse operation
• Integrated machine light in the drilling head

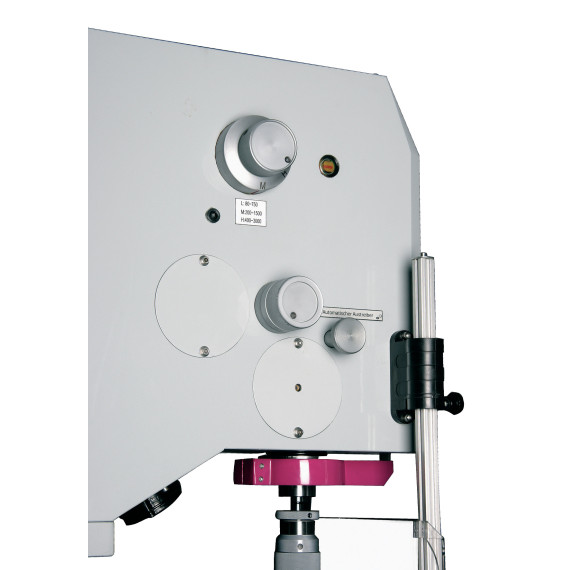

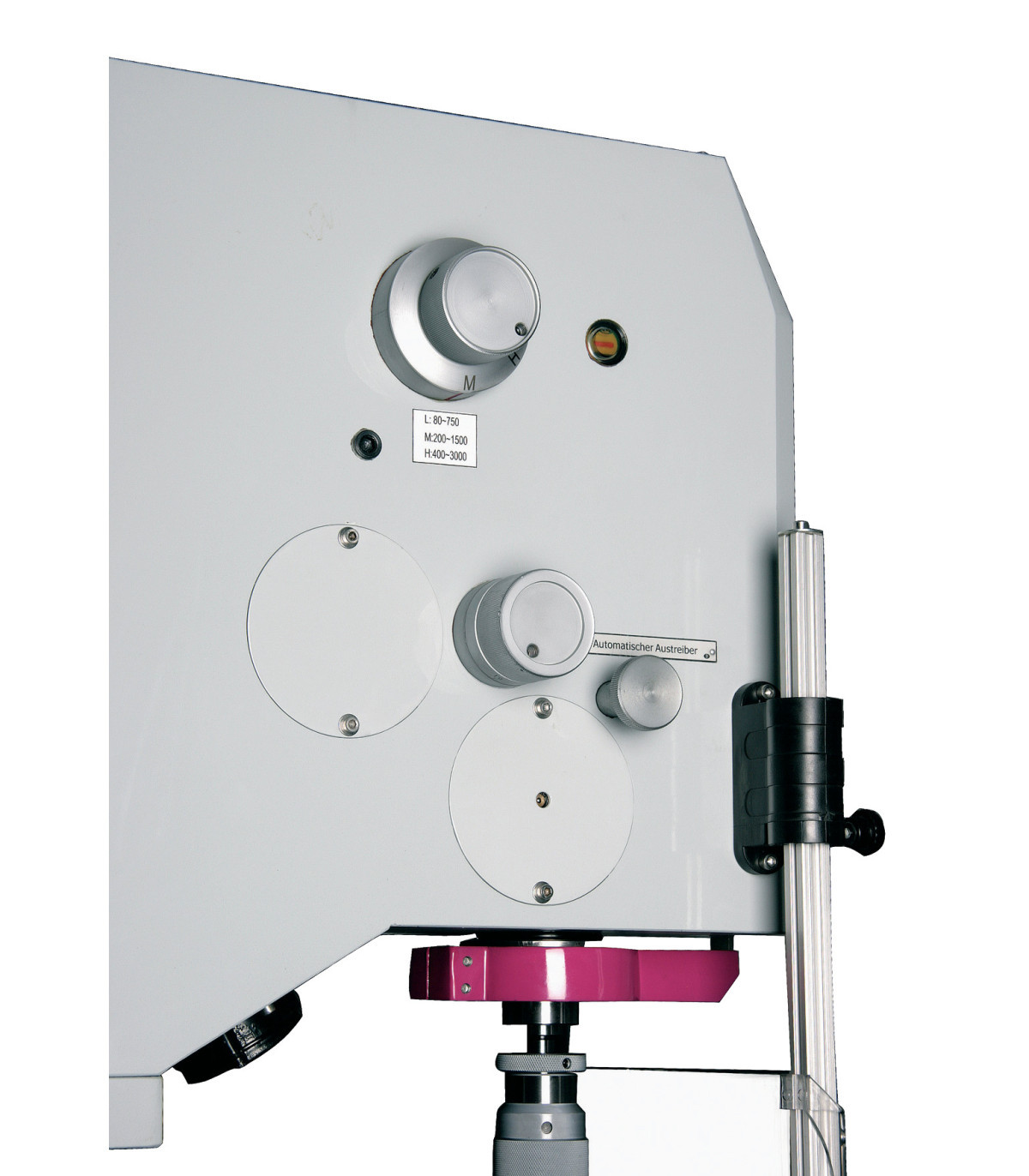

• Integrated ejector for easy tool change
• Precision machined drilling table with diagonal T-slots and surrounding cooling water channel
• Thick-walled cast iron column for high power absorption and stability
• Massive base plate, large dimensions, and strong ribs on the back.

OPTIdrill DH 32G

• Touch function
• Automatic quill feed
• Cooling device and chip filter according to the Machinery Directive
• Optional foot switch available to switch between right-left rotation and threading (item number 3050032)

TECHNICAL SPECIFICATIONS

Dimensions and weights

• Column diameter 115 millimeters
• Approx. length 725 millimeters
• Approx. width/depth 450 millimeters
• Approx. height 2200 millimeters
• Approx. weight 312 kilograms

Drilling performance

• High-performance steel for drilling (S235JR) 30 millimeters
• High-performance steel for continuous drilling (S235JR) 26 millimeters
• Steel for threading (S235JR) M 16 x 2 mm

Drilling table

• Working space length 400 millimeters
• Working space width 420 millimeters
• T-slot type diagonal
• T-slot size 14 millimeters
• Number of T-slots 2
• Rotation 360°
• Load capacity 120 kilograms
• Maximum distance between spindle and drilling table 820 millimeters

Electrical data

• Supply voltage 400 volts
• Network frequency 50 Hz

Machine base

• Maximum distance from spindle to machine base 1270 millimeters
• Length of working area 450 millimeters
• Width of working area 395 millimeters
• T-slot size of machine base 14 millimeters
• Number of T-slots of machine base 2
• T-slot spacing of machine base 150 millimeters

Motor(s)

• Spindle motor drive output 1.5 / 2.2 kW
• Coolant pump drive motor output 40 watts

Speed range

• Speed range 75 – 2000 min¯¹
• Number of gears 8 steps

Spindle

• Quill stroke 125 millimeters
• Spindle chuck MT 4
• Reach 285 millimeters
• Quill feed speed 0.05 / 0.1 mm/rev
• VPE 1

COMPONENTS/PACKAGING

Unit: pcs.

Packaging unit: 1

Adapter MK4-B16

FOR WHAT TYPE OF WORK IT IS SUITABLE

The vertical gear drill with DH 32 GS OPTIMUM drill device is suitable for:

• Metallurgy
• Machining workshops
• Wood industry
• Prototype manufacturing
• Craftsmanship
• Repair
