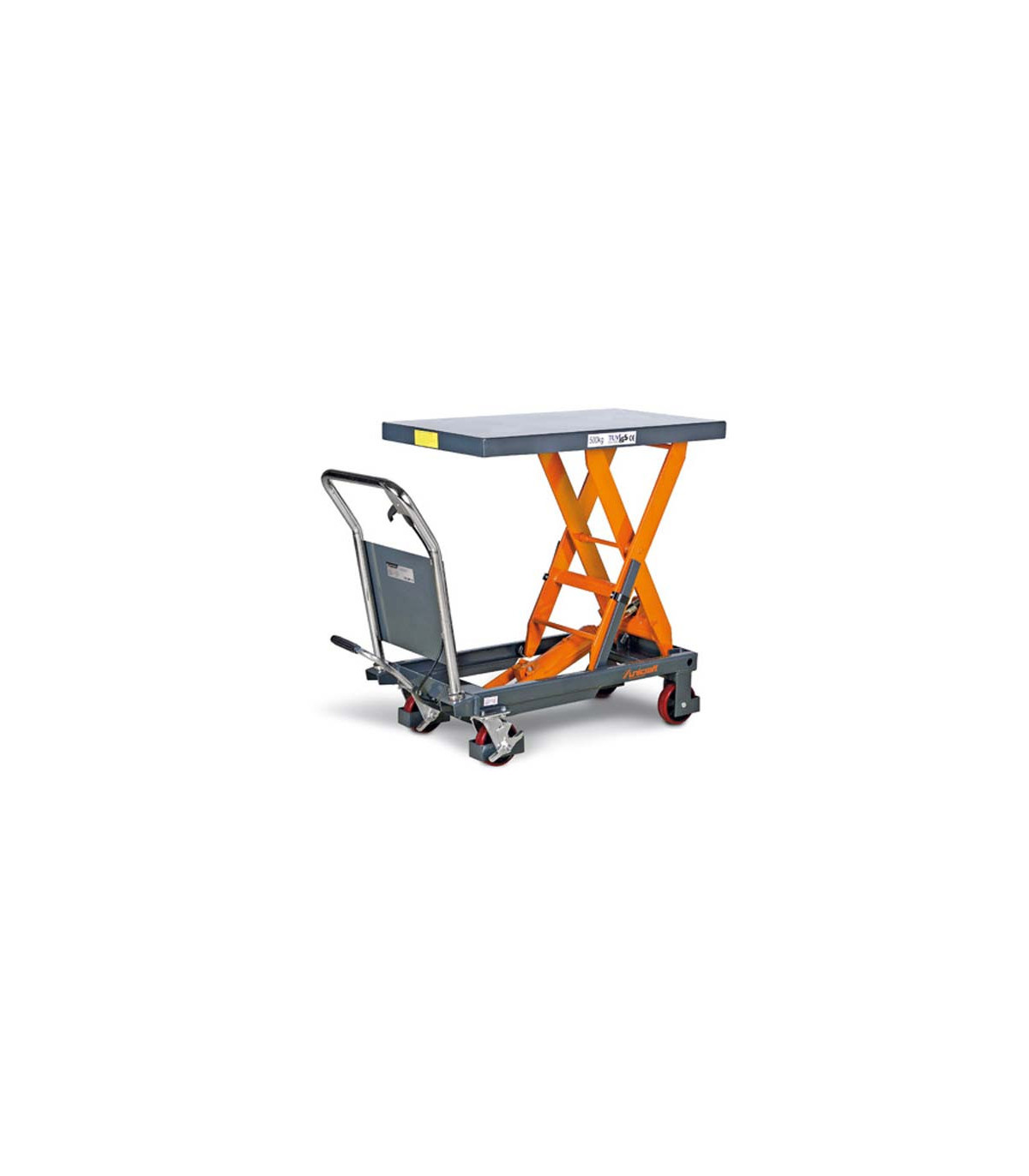

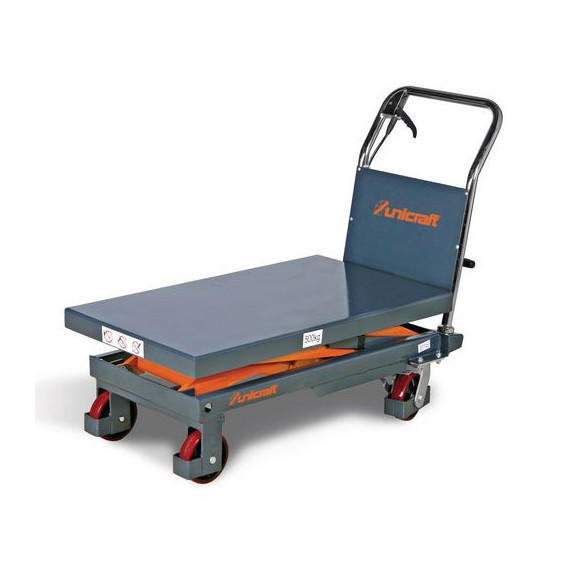

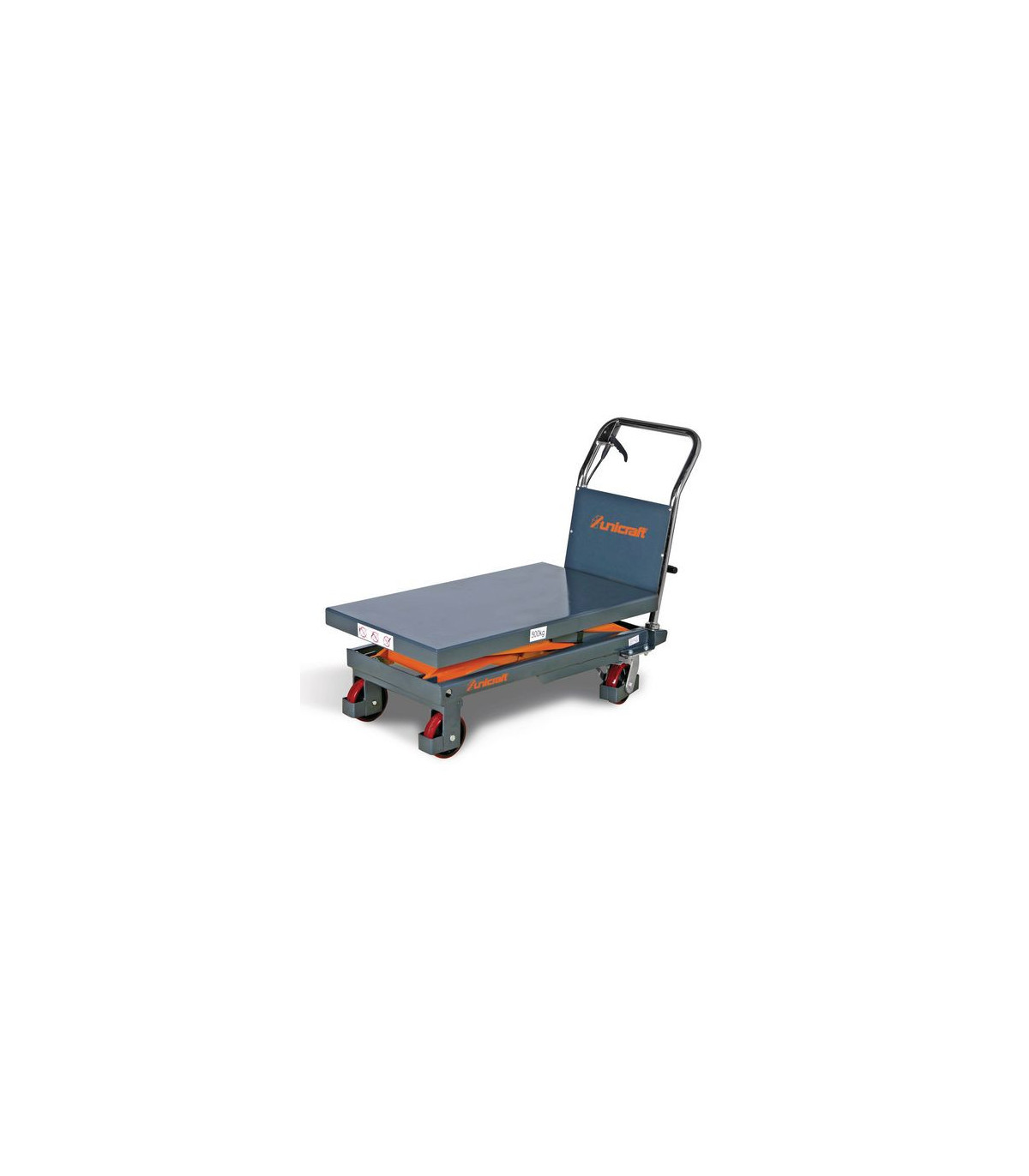

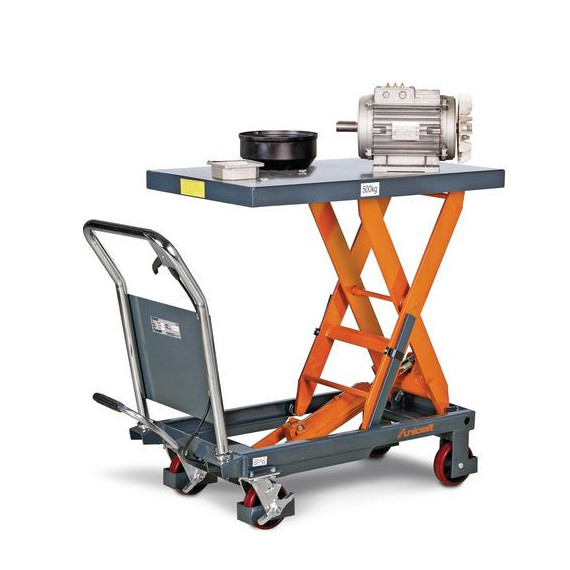

Scissor lift table FHT with a capacity of 500 kg UNICRAFT

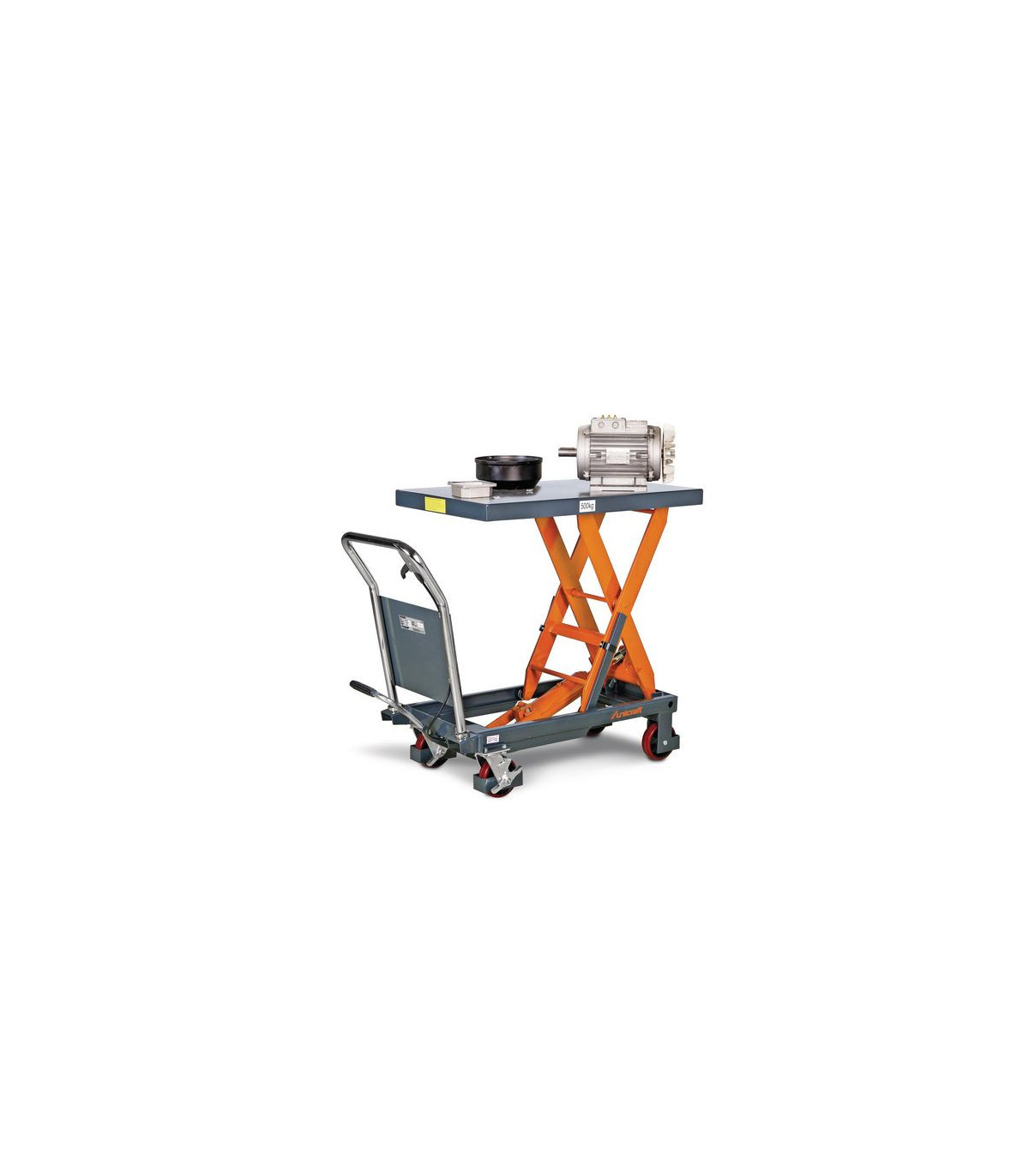

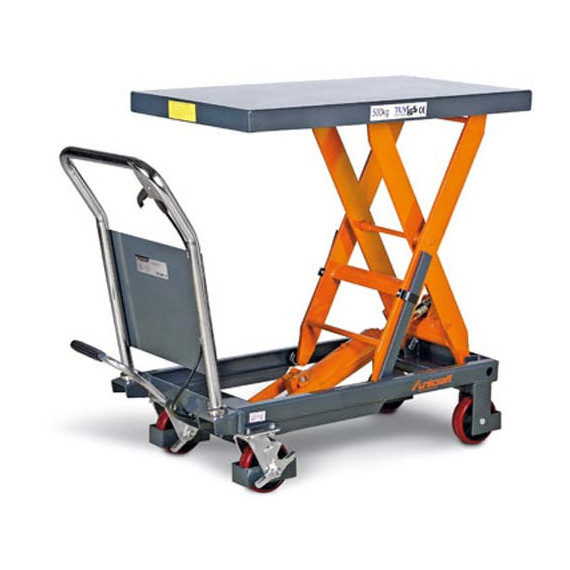

FHT scissor lift table with a capacity of 500 kg UNICRAFT. The FHT scissor lift table from UNICRAFT, with a capacity of 500 kg, features a robust steel construction and hydraulic lift operated by a foot lever. Its descent is manual and it is equipped with wheels of Ø 127 mm with brakes and safety protection. The overload valve ensures the safety of the operator and the pump. With a stroke of 13 mm and a minimum platform height of 340 mm, it is ideal for assembly, maintenance, material transport, loading, and unloading in mechanical workshops. This table combines functionality and safety in every use.

FEATURES

• Robust steel construction

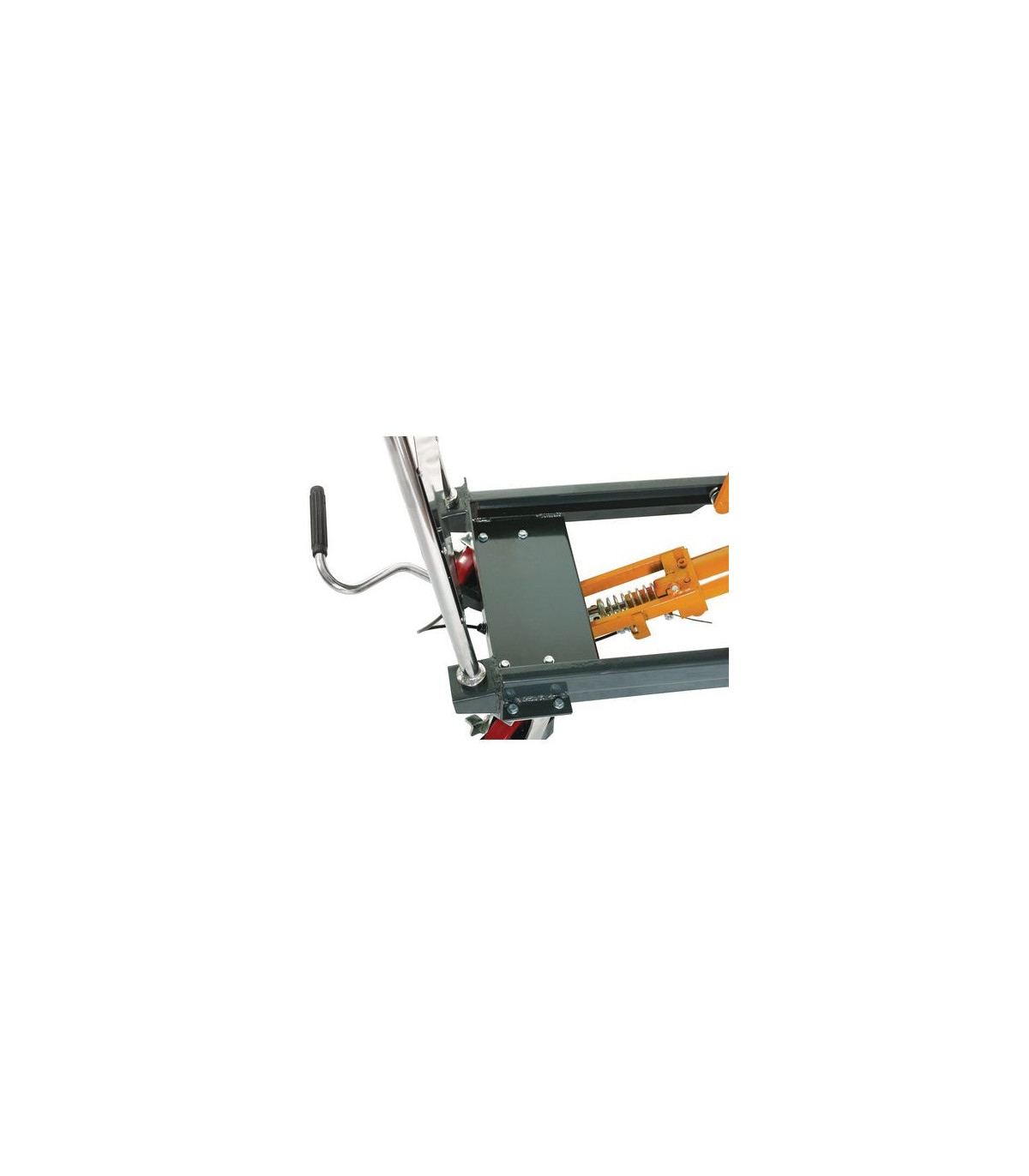

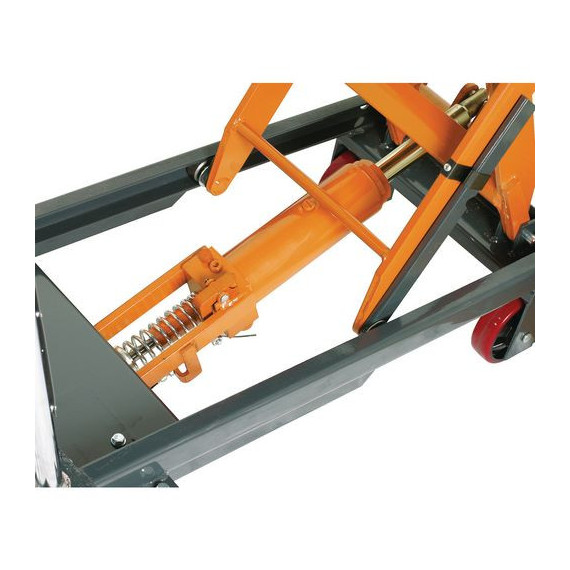

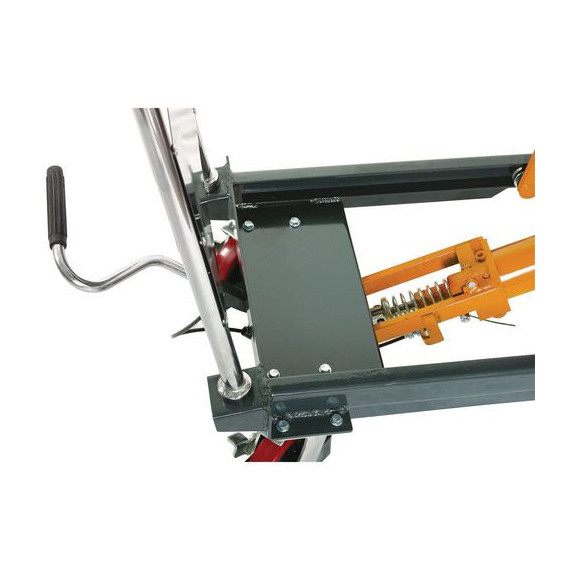

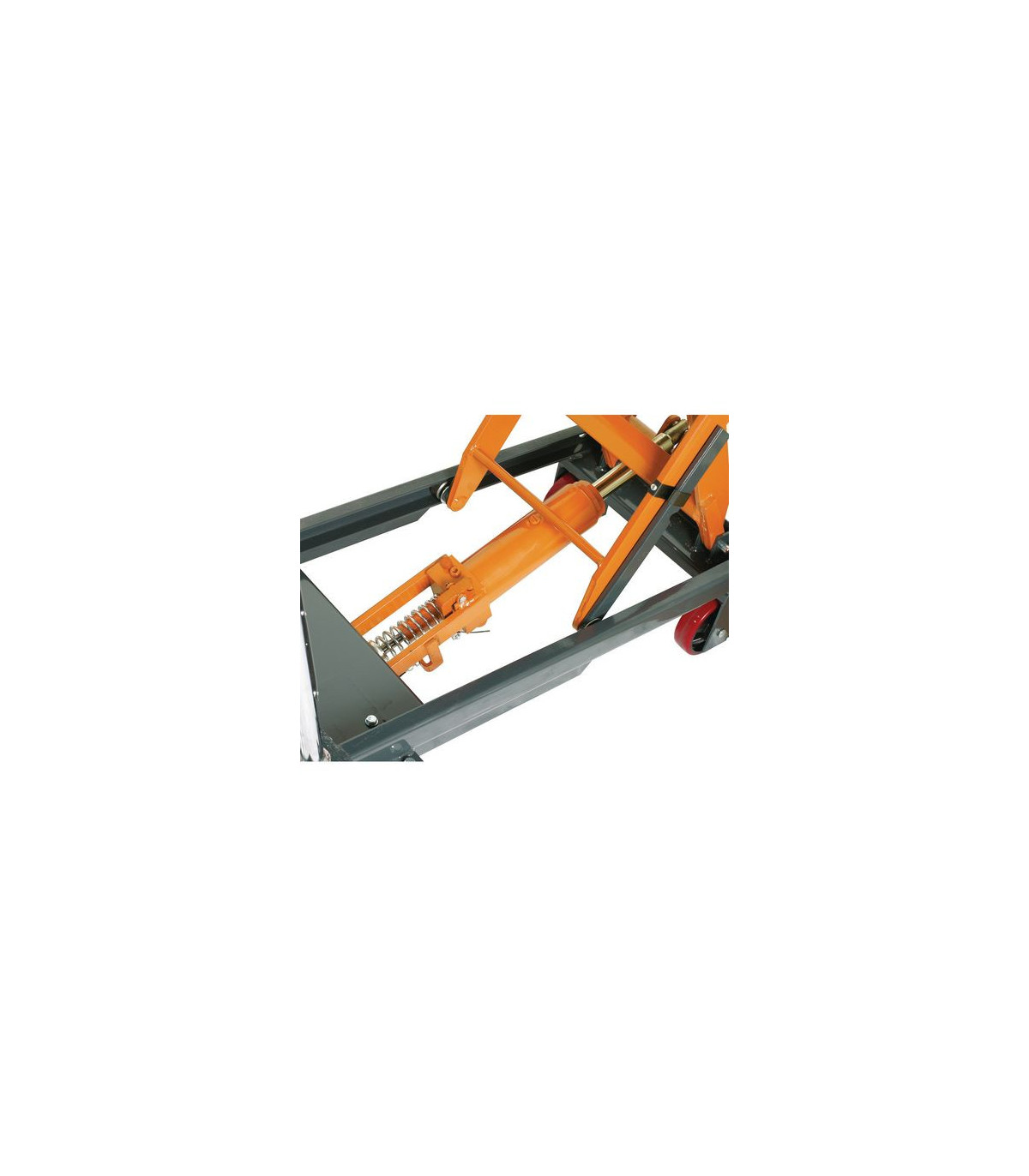

• Hydraulic lift operated by foot lever

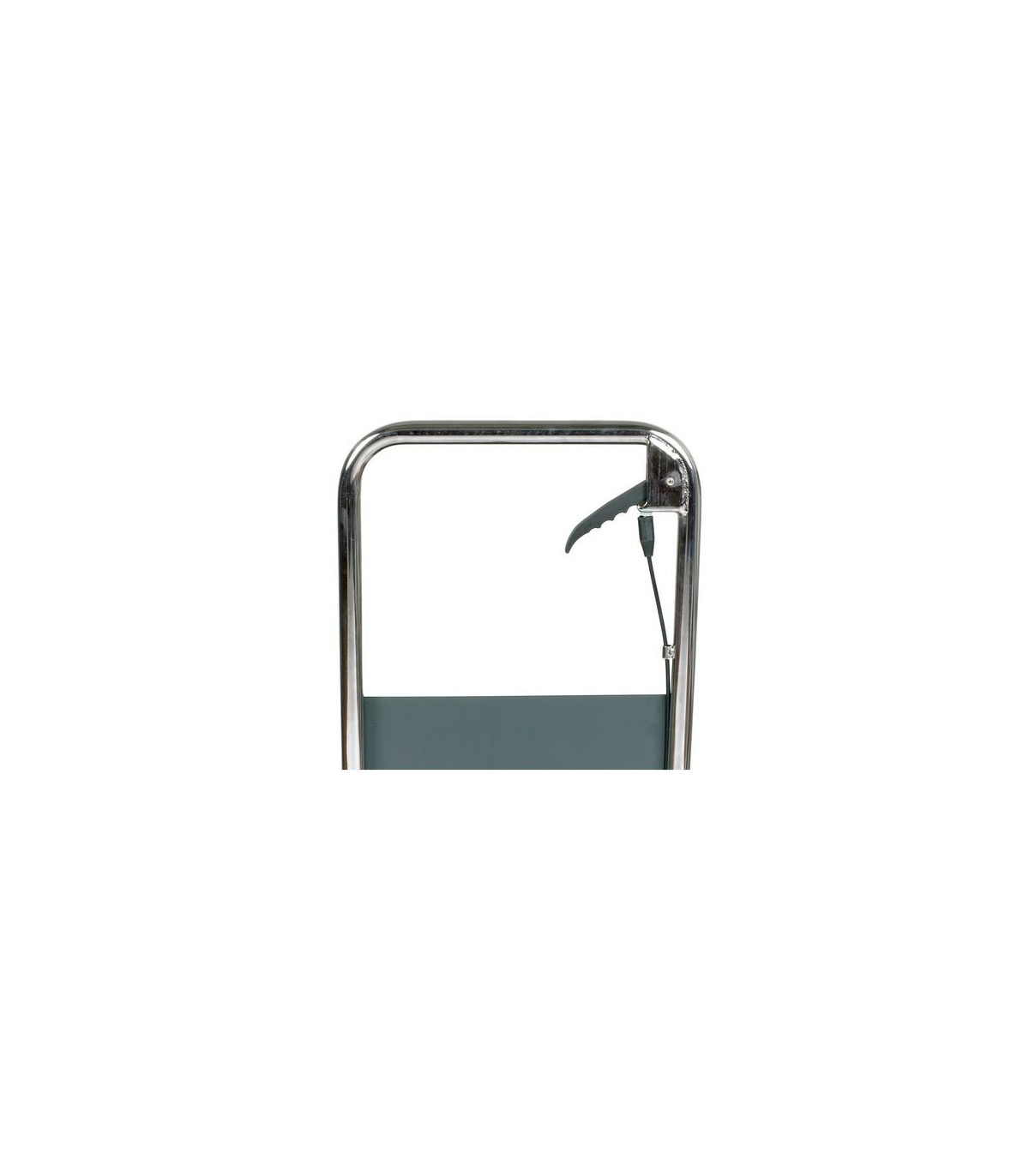

• Manually operated table descent

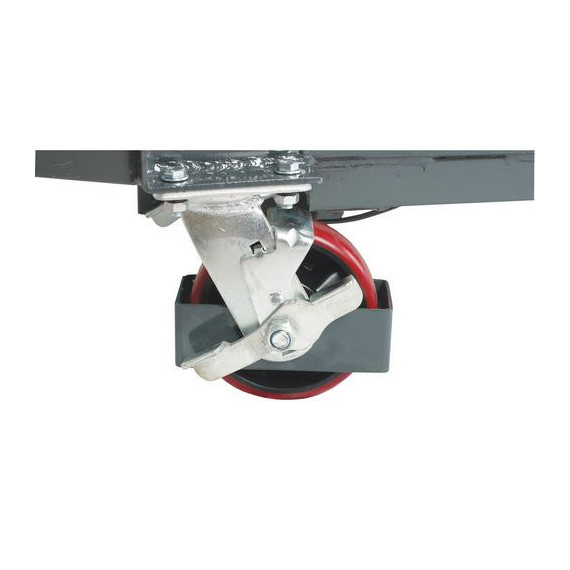

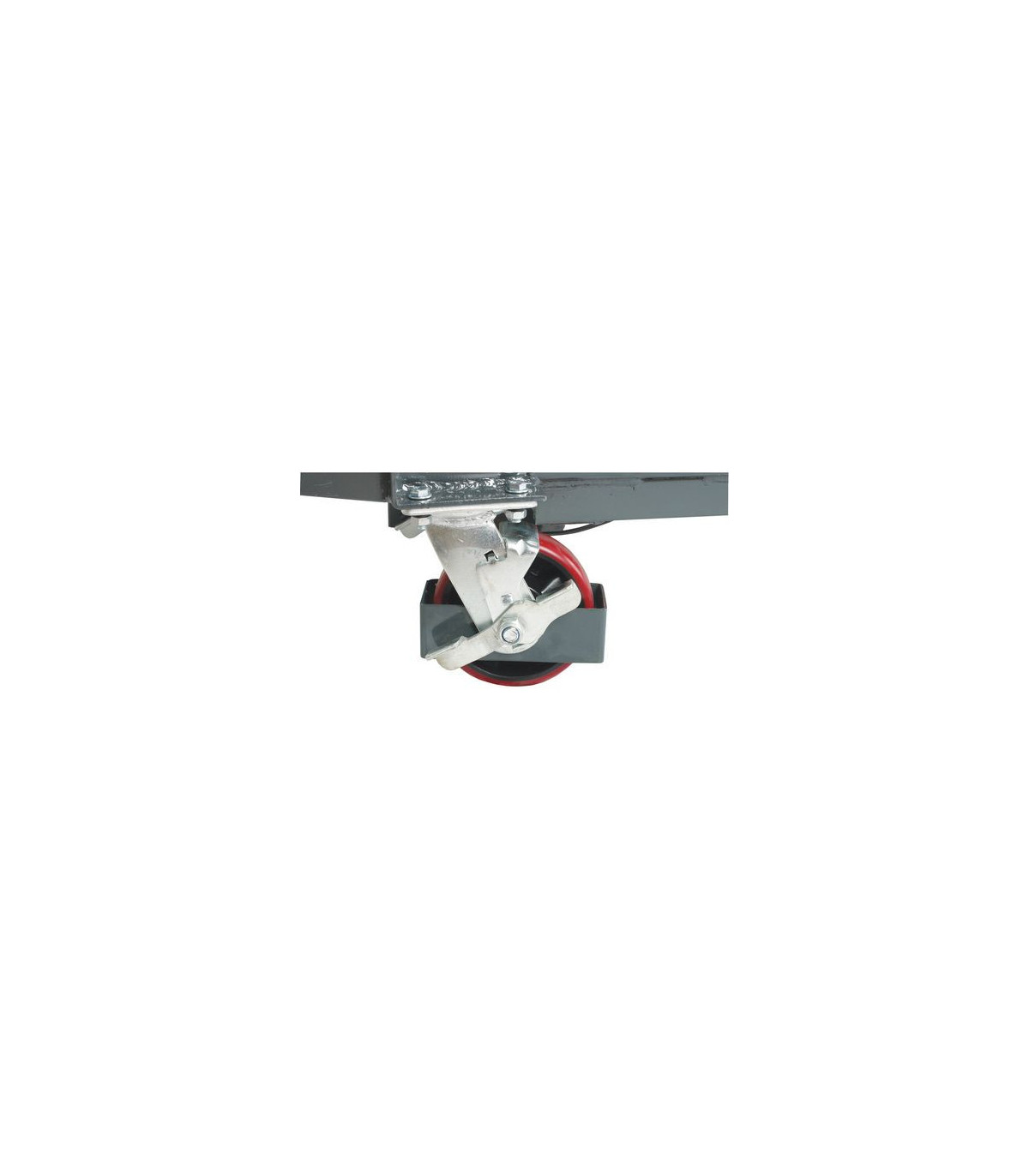

• Wheels Ø 127 mm with safety protection and brakes on the wheels.
• The overload safety valve protects the operator and the pump.

TECHNICAL SPECIFICATIONS

Load capacity 500 kilograms

Stroke per pump action 13 millimeters

Minimum platform height 340 millimeters

Maximum platform height 900 millimeters

VPE 1

Dimensions and weights

Platform length 855 millimeters

Platform width 500 millimeters

Grip height 805 millimeters

Roller diameter 127 millimeters

Approx. length 1087 millimeters

Approx. weight 87 kilograms

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The FHT scissor lift table with a capacity of 500 kg UNICRAFT is suitable for:

• Assembly
• Maintenance
• Material transport
• Loading
• Unloading
• Mechanical workshops

CERTIFICATION

Quality Management System of the Stürmer Group certified according to ISO 9001:2015

ISO 9001 is a globally recognized standard for quality management. It helps organizations of all sizes and sectors improve their performance, meet customer expectations, and demonstrate their commitment to quality.

Its evaluation basis includes:

Customer requirement orientation

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development, and innovation

Risk management
