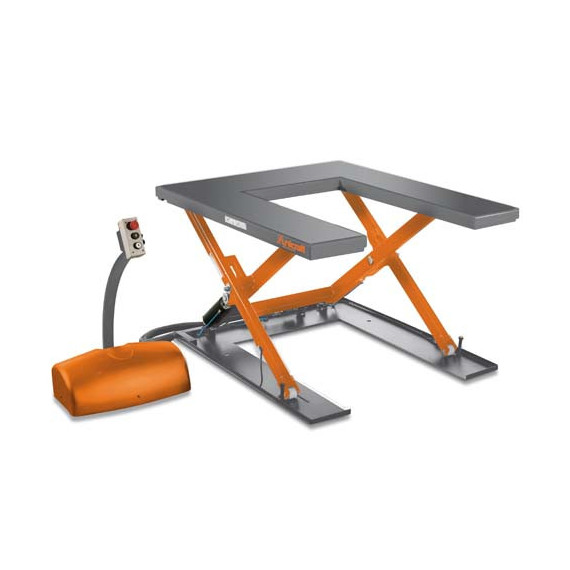

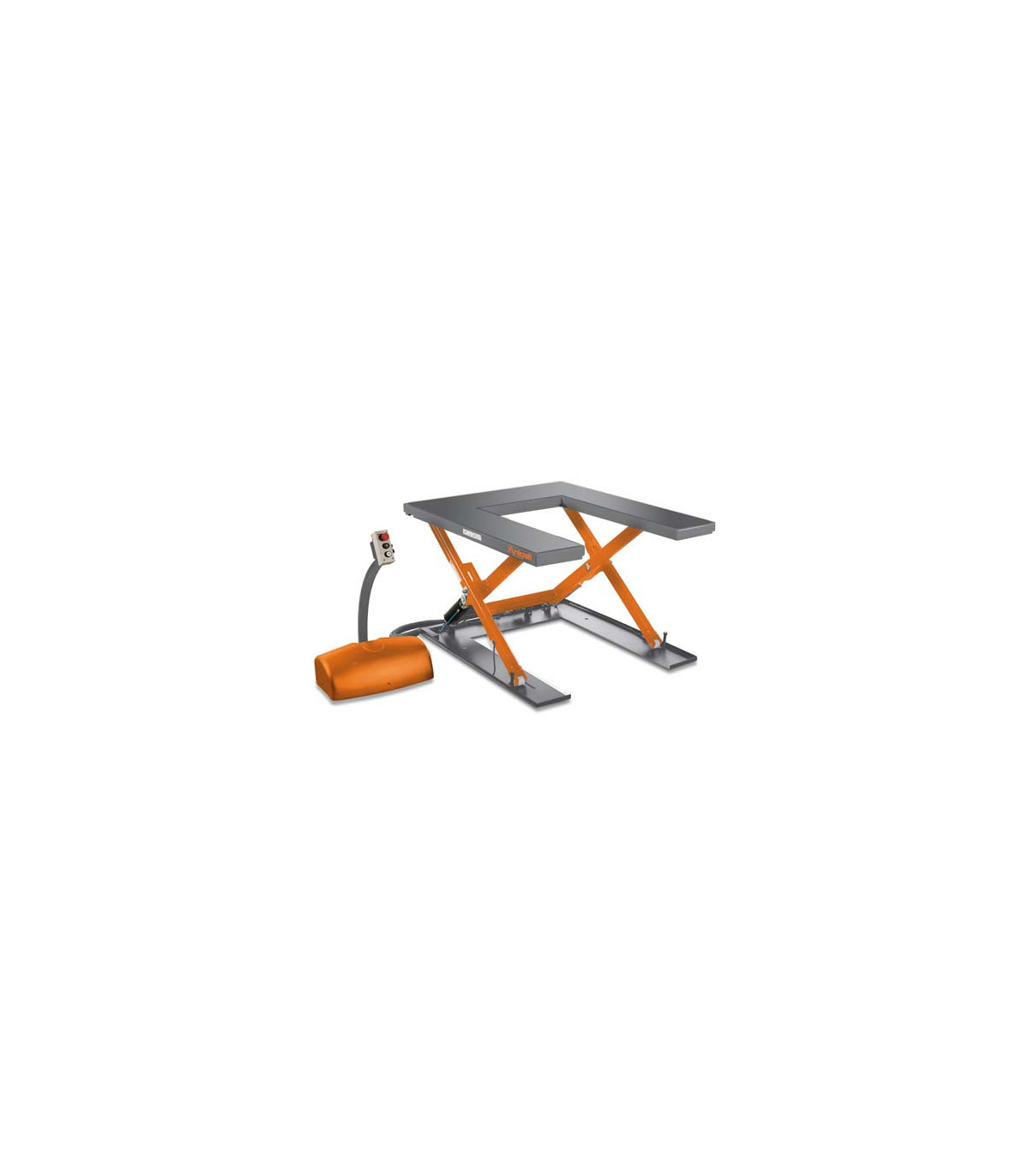

Scissor lift table SHT 1001 U with a capacity of 1 ton UNICRAFT

Scissor lift SHT 1001 U with a capacity of 1 T UNICRAFT. The SHT 1001 U scissor lift from UNICRAFT, with a capacity of 1 ton, offers ergonomic work at an optimal height thanks to its closed platform. It includes a ramp for forklifts and an independent control with a 3-meter cable. Its solid steel construction ensures stability and complies with the EN 1570 standard. With platform dimensions of 1,450 x 1,140 mm and a travel time of 18 seconds, it is ideal for assembly, maintenance, material transport, loading, and unloading in mechanical workshops.

FEATURES

• For ergonomic work at an optimal working height, with the closed platform.
• Includes ramp - moving in and out for forklifts.
• Independent control unit with a 3-meter cable, control buttons, and emergency stop switch.
• Solid steel construction for optimal stability.
• Meets the safety criteria of the EN 1570 standard.
• Chrome-plated rods.

TECHNICAL SPECIFICATIONS

Load capacity 1 T.

Platform dimensions 1,450 x 1,140 mm

Internal platform dimensions 1,050 x 585 mm

Travel duration 18 sec.

Lifting speed with load 42 mm/sec.

Power 0.75 kW / 400 V

Min. / max. height 80 / 760 mm

Net weight 235 kg

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

FOR WHAT TYPE OF WORK IS IT SUITABLE

The SHT 1001 U scissor lift with a capacity of 1 T UNICRAFT is suitable for:

• Assembly
• Maintenance
• Material transport
• Loading
• Unloading
• Mechanical workshops

CERTIFICATION

- EN 1570: The EN 1570 standard refers to "Safety tests for work tables and workbenches." This standard establishes safety requirements and testing methodologies for tables and workbenches used in various applications, especially in industrial environments and workshops. The main objective of EN 1570 is to ensure that this equipment is safe and stable during use, minimizing the risk of accidents or injuries.
