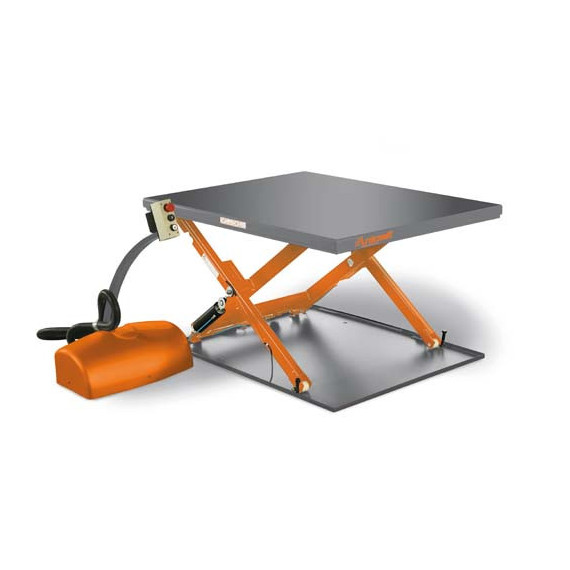

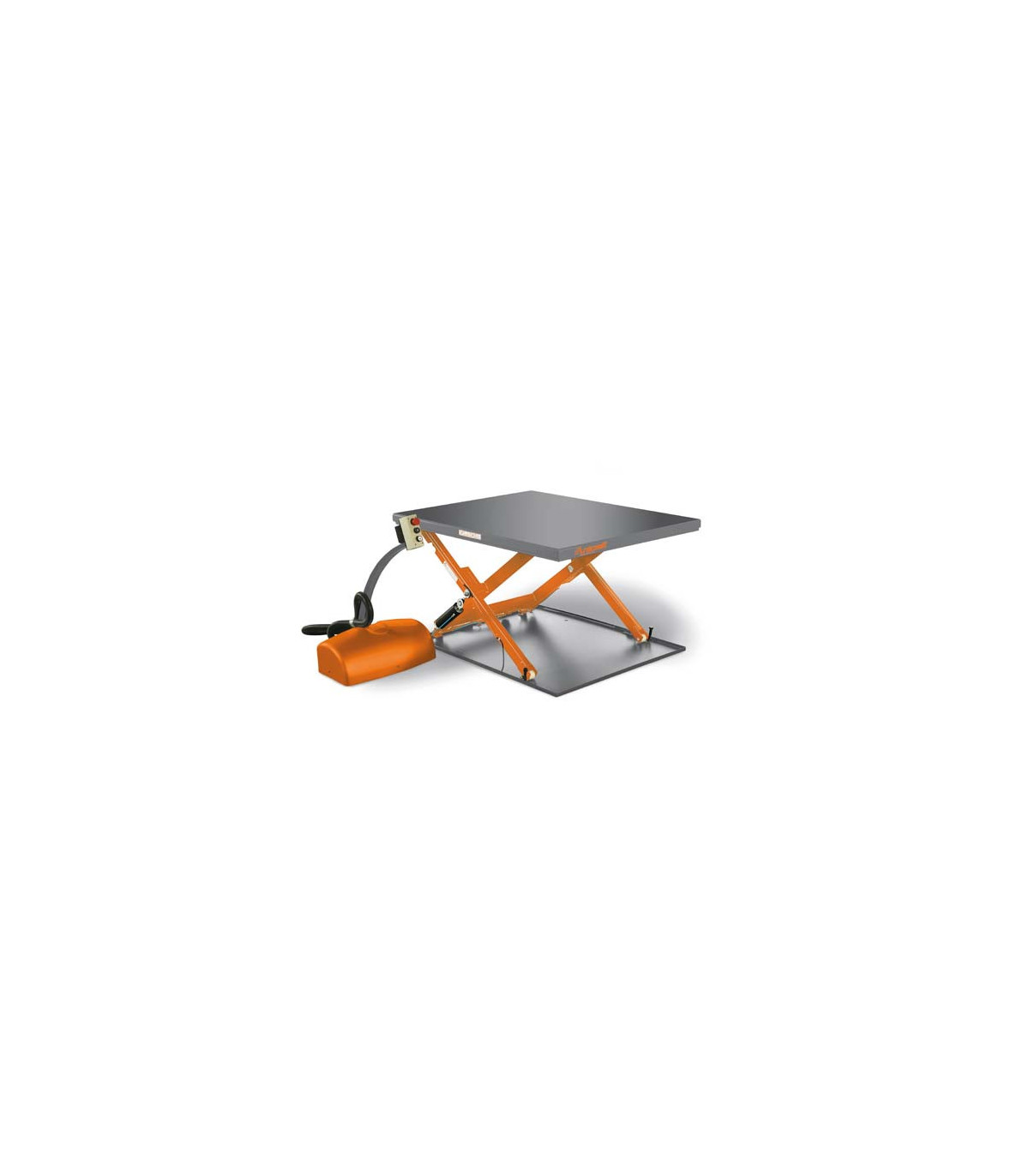

SHT 1001 G scissor lift table with 3 m cable UNICRAFT

Scissor lift table SHT 1001 G with 3 m cable UNICRAFT. The SHT 1001 G scissor lift table from UNICRAFT, with a 3-meter cable, features a closed platform and an access ramp that facilitates the use of chassis equipment, such as lawn mowers. Its independent control and steel construction ensure stability and safety, complying with the EN 1570 standard. It offers continuous lifting with a load capacity of 1 ton, reaching a minimum height of 82 mm and a maximum of 760 mm. Ideal for tasks that require accessibility and safety in handling heavy tools.

FEATURES

• With closed platform
• Includes access ramp to facilitate access for chassis equipment such as lawn mowers, etc.
• Independent control unit with 3 meters of cable, control buttons, and emergency stop switch
• Continuous lifting and lowering
• Stable steel construction for optimal stability.
• Meets the safety criteria of the EN 1570 standard
• Chromed piston rods

TECHNICAL SPECIFICATIONS

Load capacity 1 ton

Minimum platform height 82 millimeters

Maximum platform height 760 millimeters

Lifting time from minimum to maximum platform height 18 seconds

VPE 1

Dimensions and weights

External length of the platform 1450 millimeters

External width of the platform 1140 millimeters

Approximate weight. 250 kilos

Electrical data

Drive motor output 0.75 kW

Supply voltage 400 volts

Network frequency 50 Hz

COMPONENTS/PACKAGING

Unit: piece(s).

Packaging unit: 1

Ramp

FOR WHAT TYPE OF WORK IS IT SUITABLE

The SHT 1001 G scissor lift table with 3 m cable UNICRAFT is suitable for:

• Assembly
• Maintenance
• Transporting materials
• Loading
• Unloading
• Mechanical workshops

CERTIFICATION

- EN 1570: The EN 1570 standard refers to "Safety tests for work tables and workbenches." This standard establishes safety requirements and testing methodologies for tables and workbenches used in various applications, especially in industrial environments and workshops. The main objective of EN 1570 is to ensure that this equipment is safe and stable during use, minimizing the risk of accidents or injuries.
